- Intake Flange: DN 100 CFF
- Ultimate Pressure (mbar): 10-11
- Volume Flow Rate (l/s): N2 300
- Forevacuum Flange: DN 25 KF
Shopping Cart ( )
Pfeiffer Vacuum TPU 330 Turbo Pump, DN 100 CF-F Conflat Flange, Top Configuration, PMP01246 / PM P01 246
Condition:
Remanufactured
In Stock
Item#:PN19994
Mfr Part#:PMP01246 / PM P01 246
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum TPU 330 Turbo Pump, DN 100 CF-F Conflat Flange, Top Configuration, PMP01246 / PM P01 246
TPU 330 / PMP01246 Overview:
This Pfeiffer TPU-330 Turbo Pump has two ceramic bearings at each end to support rotor. The Turbo Pumps TPH330 and TPU330 PMP01246 models are identical in terms of design of inlet Flange.
This Pfeiffer TPU-330 Turbo Pump is lubricated with Pfeiffer TL 011 Turbo Pump fluid PM006034 AT / PN07244
Pfeiffer TPH-330 and TPU-330 only differ in their intake flange. TPH 330 comes with DN 100 ISO-K Inlet Flange, and TPU330 comes with DN-100 CF-F Conflat Flange.
Pfeiffer TPU-330 can have three different Inlet Flange orientations.
- TPU-330 Top Flange
- TPU-330 Side Flange
- TPU-330 Bottom Flange
Pfieffer TPU-330 Turbo Pump can be operated with one of the following Electronic Turbo Pump Controllers.
- Pfeiffer TCP 121 / PMC01475 / PN06831
- Pfeiffer TCP 300 / PMC01259 / PN00341
- Pfeiffer TCP 310 / PMC01520 / PN06829
- Pfeiffer TCP 380 / PMC01490 / PN06827
Those Pfeiffer Vacuum Turbo Pump Controllers are well design to be integrated into your High Vacuum System Vacuum, and can be rack mounted for easy panel access.
TPU330 Applications:
- Freeze drying - packaging industry
- Degassing, casting, dry vacuum smelting (super-pure metals)
- Incandescent lamp manufacturing
- Electronic tubes
- Thin film deposition
- Space simulation
- Cryogenic research
- Electron microscopy
- Nuclear physics, Plasma physics, High energy physics
- Particle accelerators - Storage rings
A&J Vacuum also repair / rebuild and service Pfeiffer TPU 330 / PMP01246 Turbo Pumps along with all other Pfeiffer Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum TPU 330 Turbo Pump, DN 100 CF-F Conflat Flange, Top Configuration, PMP01246 / PM P01 246

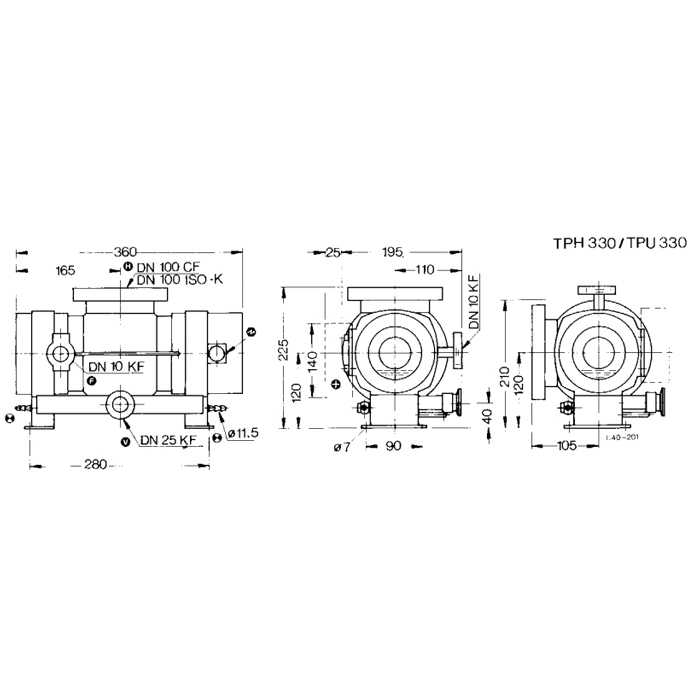

Pfeiffer TPU 330 Technical Data:
A&J Vacuum also repair / rebuild and service Pfeiffer TPU 330 / PMP01246 Turbo Pumps along with all other Pfeiffer Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
