Item#: PN24501 Mfr Part#: PE D20 000 0 / PED200000/PE D20 000 0 Manufacturer: Pfeiffer Vacuum
PRICE: $1,210.00
WEB SAVINGS: $110.00
YOU PAY: $1,100.00

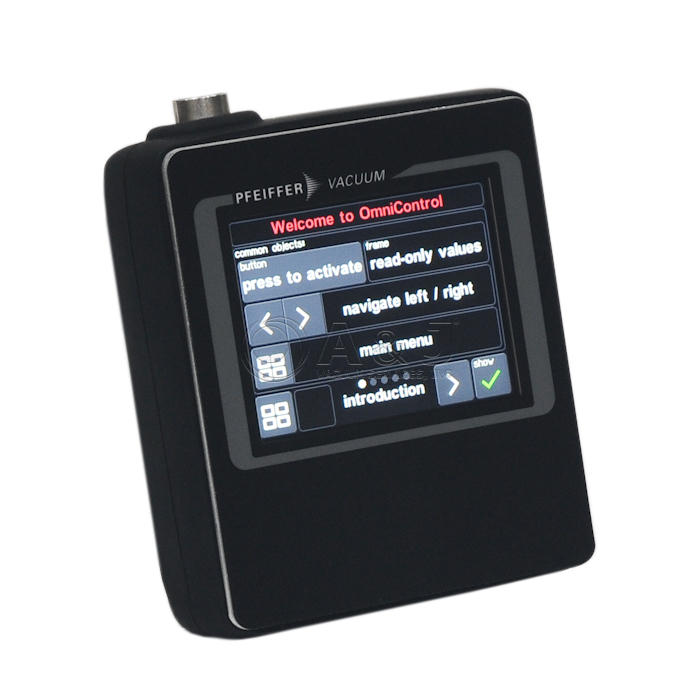

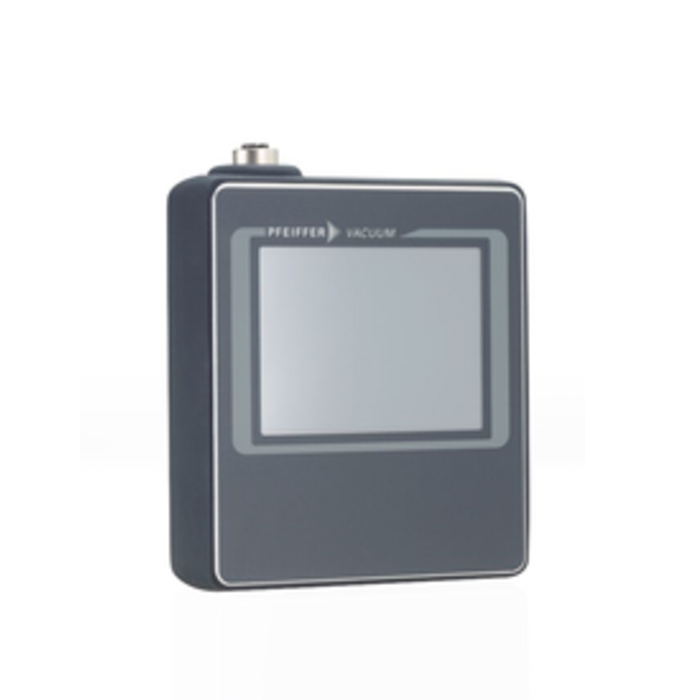

Pfeiffer Omnicontrol 001 Mobile display controller without integrated power pack PE D20 000 0 / PED200000, No Gauge or USB Port



Rack Mount Pfeiffer OmniControl PE D20 000 0 Overview:


  • Measuring Channel 0 Pcs.
  • Module Slot 1 - N/A
  • Module Slot 2 - N/A
  • Module Slot 3 - N/A
  • Portable display and operating instrument for Pfeiffer Vacuum drive instruments
  • Universal control device for all products with Pfeiffer Vacuum RS-485-Protocol
  • Suitable for all Pfeiffer HiPace turbopumps
  • Easy operation via 3.5'' touch display
  • The respective modules define the scope of functions
  • Uncomplicated data collection and processing between the Pfeiffer Vacuum devices
  • Various Pfeiffer Vacuum gauges can be connected and read



Option Gauge/IO - The Gauge/IO option provides two connections: An ActiveLine transmitter can be connected to the Gauge socket. This makes a separate gauge controller obsolete. The IO connector (2xrelay, 2xDI, 2xDO, 1xAI, 1xAO) offers the possibility to integrate external components. For example, you can switch a valve depending on the pressure.

Option Data  - With the data option, you can conveniently save measured values as a CSV file on a USB stick or a MicroSD card. This allows the data to be analyzed or archived later. The data objects to be saved can be freely defined (e.g. total pressures, speed, error codes).



With the OmniControl, you only need one control device for your complete vacuum system. The device combines control of the total pressure with control of the pumps. Data exchange and processing between Pfeiffer Vacuum products is thus very uncomplicated and without the need to purchase additional devices. The OmniControl controls products that support a Pfeiffer Vacuum RS-485 protocol (e.g. HiPace, HiScroll, HiLobe, MVP und DigiLine). In addition, ActiveLine gauges (with analog output) can be connected as an option.

The RS-485 interface and the connecting socket designated "gauge" on the gauge/IO option are used to connect a Pfeiffer Vacuum gauge.

RPT 200
PPT 200
MPT 200
CPT 200
CCT 371, CCT 372, CCT 373, CCT 374, CCT 375 CCT 37x
CCT 361, CCT 362, CCT 363, CCT 364, CCT 365 CCT 36x ×
HPT 200



Click Here for Pfeiffer Omnicontrol Manual




A&J Vacuum Services offers full repair/service of Pfeiffer Hipace Turbo Pumps, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New In Stock
