Vacuubrand DVR 2 Vacuum Gauge Range from Atmosphere down to 1 Mbar, 20682902 / 682902
Condition:
Discontinued
Item#:PN19315
Mfr Part#:20682902 / 682902
Manufacturer:Vacuubrand
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Vacuubrand DVR 2 Vacuum Gauge Range from Atmosphere down to 1 Mbar, 682902, Also known as BrandTech DVR2
This Item Has Been Discontinued - It Has Been Replaced By The DVR 2 PRO - PN23275 Click Here!
Vacuubrand DVR 2 Overview:

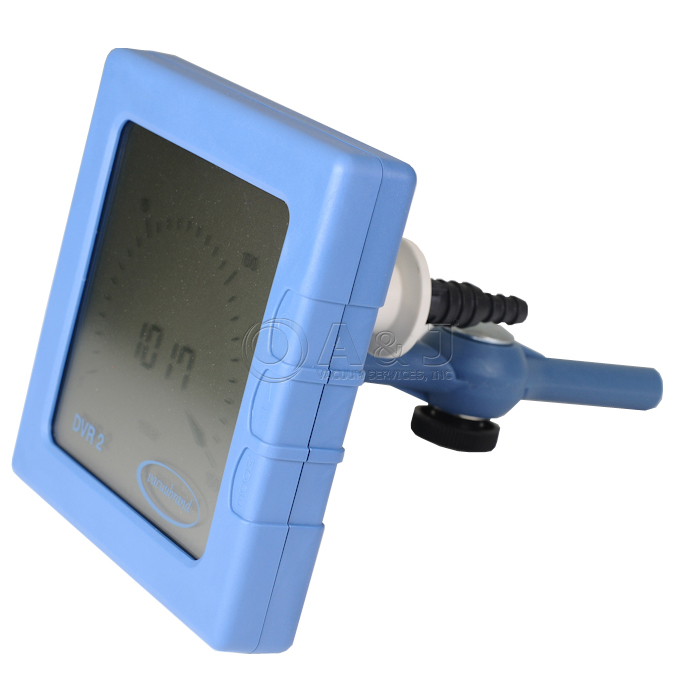

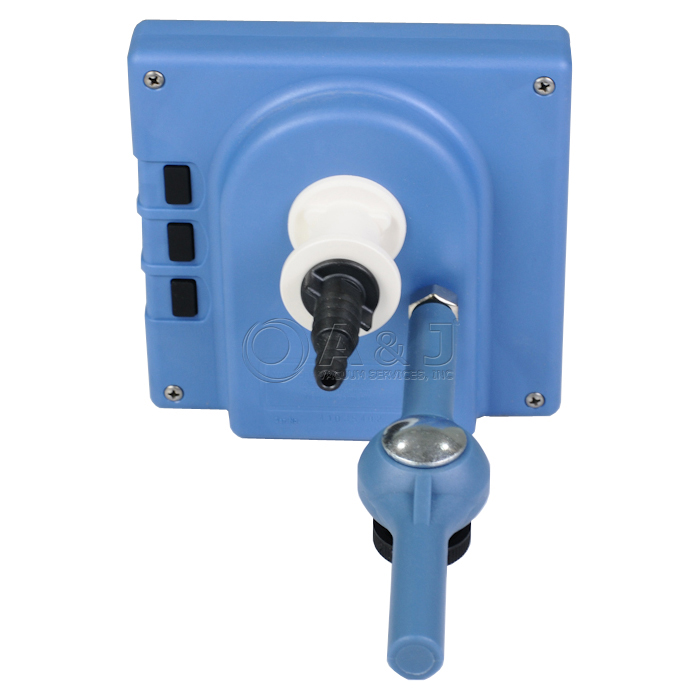

The Vacuubrand DVR 2 Vacuum Gauge is a portable, battery operated, fully electronic unit for the measuring range from atmosphere down to 1 mbar.
Vacuubrand DVR 2 has a built in integrated ceramic diaphragm vacuum sensor with capacitive readout. The DVR2 vacuum sensor is exceptionaly resistant to chemicals, and measures independently of the type of gas.
Vacuubrand / Brandtech DVR 2 Gauge features outstanding measuring accuracy, very low temperature dependenceand excellent long term stability.
DVR 2 battery operated design allows cordles operation. Its simple operation and the combined digital / analog vacuum reading for precise readout and quick trend detection, makes the DVR2 vacuum gauge one of the best on the market.
Vacuubrand DVR 2 Features:

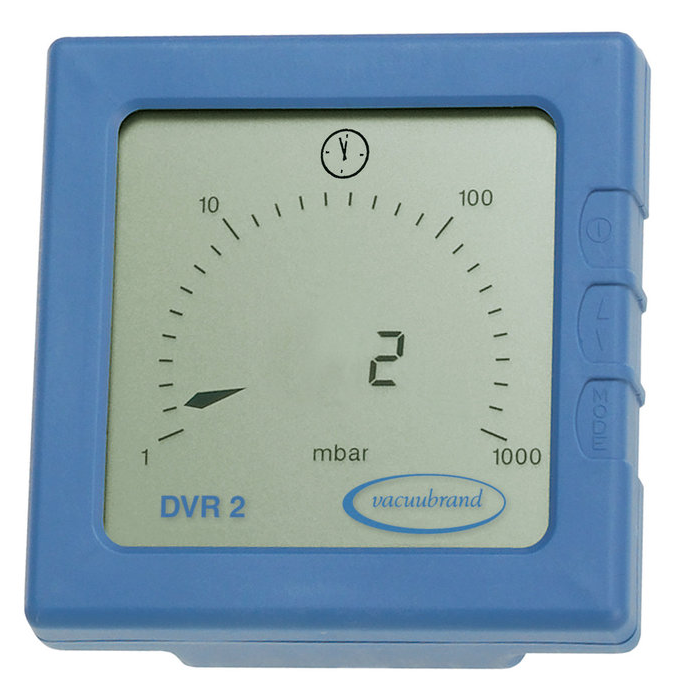

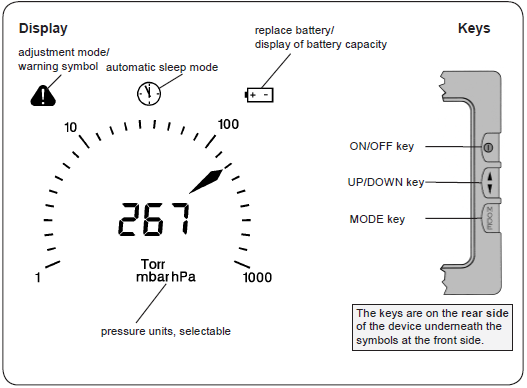

- Large digital and analog vacuum display
- Easy selection of pressure units (mbar, hPa, Torr)
- Support rod for stand mount available
- Typical batter life time is one year of continues operation
- Capative alumina ceramic diaphragm vacuum sensor with outstanding chemical resistance, accuracy and long term stability
A&J Vacuum Services offers full repair/service of Vacuubrand , along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Vacuubrand DVR 2 Vacuum Gauge Range from Atmosphere down to 1 Mbar, 682902, Also known as BrandTech DVR2
This Item Has Been Discontinued - It Has Been Replaced By The DVR 2 PRO - PN23275 Click Here!
Vacuubrand DVR 2 Technical Data:
| Technical data | Unit | DVR 2 |
|---|---|---|
| Upper measuring limit | mbar/torr | 1080 / 810 |
| Lower measuring limit | mbar/torr | 1 / 1 |
| Measurement principle | Ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure | |
| Accuracy of measurement | < +- 1 mbar/hPa/torr / +- 1 digit (after adjustment, constant temp.) | |
| Temperature coefficient | < 0.07 mbar/hPa/0.05 torr /K | |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. media temp. for continuous operation / short times | °C | 40 / 80 |
| Automatic switch-off | User-selectable: 1-1000 min (default 15 min) or continuous operation | |
| Measurement cycle | User-selectable: Automatic or 1 x per 3s, 1 x per 1s, 3 x per 1s | |
| Material of outer housing | Robust plastic housing with good chemical resistance | |
| Degree of protection | IP 40 | |
| Power supply | 9 V Lithium battery, 1.2 Ah Ultralife U9VL | |
| Typical battery lifetime | 8.000 h, stand-by: 40.000 h | |

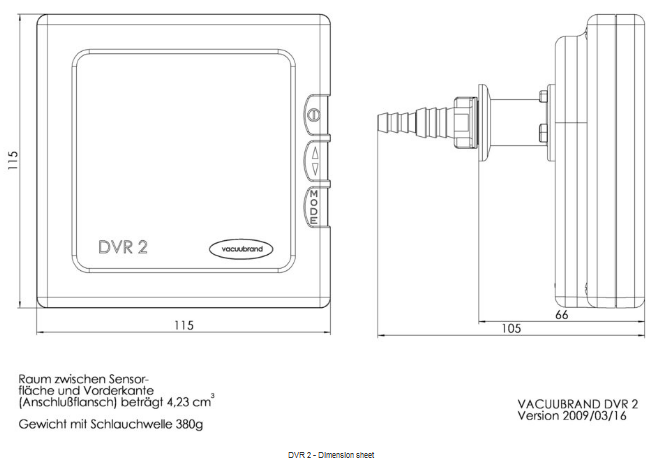

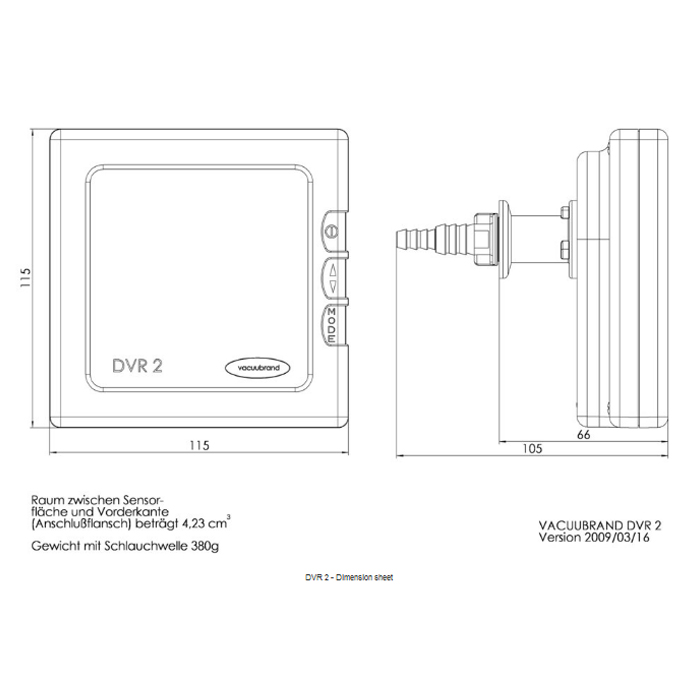

| Dimensions (L x W x H) | mm | 115 x 115 x 66 |
| Weight | kg | 0.375 |
| Items supplied | Vacuum gauge complete with integrated vacuum sensor and battery, ready for use, with support rod and manual. |
