- PN 20700203
- Max. Pumping Speed: 1.18 CFM
- Ultimate Vacuum (abs.): 2 mbar
- Simplifies Lab Work
Vacuubrand PC 3001 VARIO select VARIO® Chemistry Diaphragm Dry Pumping Unit, VACUU·SELECT, 1.18 CFM, 2 mbar, 100-120V / 200-230V, 50-60Hz, US Cord, 700203 / 20700203
Vacuubrand PC 3001 VARIO select Features:
- Automatic electronic adaptation of the vacuum level throughout the process for high process reliability and unattended operation
- Automatic optimization of the vacuum level throughout the process for high process reproducibility and unattended operation
- Extraordinary diaphragm life for minimum operational and servicing costs
- The Vacuu Select controller has a graphic user interface and predefined applications that simplify lab work
- Short process times due to zero fluctuation (hysteresis-free) vacuum control
- Excellent chemical resistance
PC 3001 VARIO select / 20700203 Overview:
Vacuubrand PC 3001 Select VARIO® Corrosive Diaphragm Dry Vacuum Pumping Unit provides precise vacuum control by of the diaphragm pump's motor speed.
The Vacuubrand PC 3001 Select VARIO® is a chemistry corrosion resistant diaphragm pump that is also suitable for high boiling point solvents.
The Vacuu-Select controller enables fully automatic evaporation at push of a button, compact design with light weight and very quiet operation contribute to clasify this unit as one of the best vacuum pumping systems for laboratory use.
The on demend motor speed control results in unpatalleled lnght of service intervals for all wearing internal parts.
PC3001 VARIOselect Scope of Delivery:
- Pump completely mounted
- Manual
PC3001 VARIOselect Applications:
- Drying
- Rotary evaporation
- Vacuum concentration
- Filtration
- Local area vacuum networks
- Reactors & synthesis applications
- Fore vacuum generation for turbomolecular pumps
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand PC 3001 VARIO select VARIO® Chemistry Diaphragm Dry Pumping Unit, VACUU·SELECT, 1.18 CFM, 2 mbar, 100-120V / 200-230V, 50-60Hz, US Cord, 700203 / 20700203
Vacuubrand PC 3001 VARIO select Technical Data:
- Max. pumping speed 50 Hz: 2 m3/h
- Max. pumping speed 60 Hz: 1.18 cfm
- Ultimate vacuum: 2.0 mbar / 1.5 torr
- Ultimate vacuum with gas ballast: 4 mbar / 3 torr
- Number of heads: 4
- Number of stages: 3
- Vacuum controller: VACUU·SELECT
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 8-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Coolant connection: 2 x hose nozzle DN 6-8 mm
- Rated motor power: 0.16 kW
- Protection class IEC 60529: IP 20
- Dimension L in mm: 303 mm
- Dimension B in mm: 306 mm
- Dimension H in mm: 400 mm
- Weight: 8.2 kg | 18 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 42 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: Yes
- Rated mains voltage range 1: 200-230 V
- Rated mains voltage range 2: 100-120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 50-60 Hz
- Interface: Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

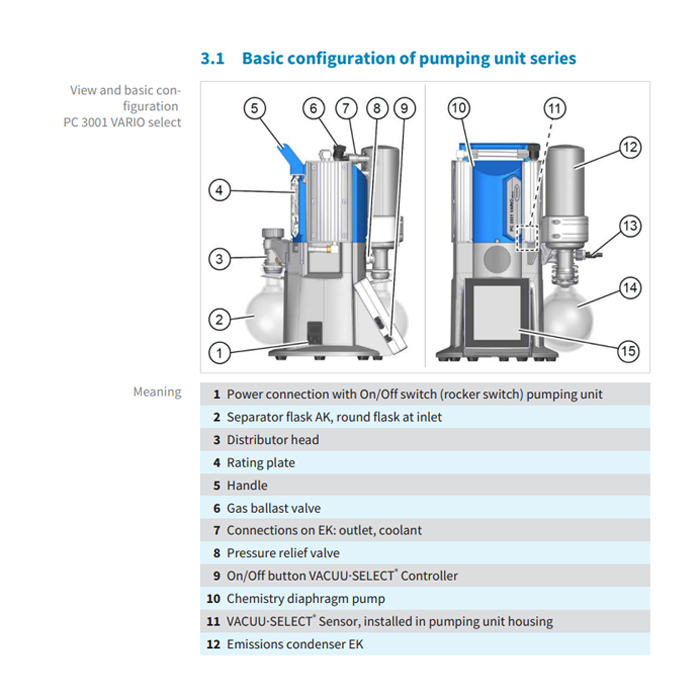

Vacuubrand PC3001VARIOselect, TE, IK, EKP Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
