- PN 733503
- Max. pumping speed: 1.6 CFM
- Ultimate vacuum (abs.): 7 Mbar
- •Excellent chemical resistance
Shopping Cart ( )
Vacuubrand PC 3002 VARIO® Chemistry Diaphragm Dry Pumping Unit, CVC 3000, 1.6 CFM, 7 Mbar, 100-120V, 50-60Hz, US Cord, 733503 / 20733503
Condition:
New
Item#:PN19513
Mfr Part#:733503 / 20733503
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Vacuubrand PC 3002 VARIO® Chemistry Diaphragm Dry Pumping Unit, CVC 3000, 1.6 CFM, 7 Mbar, 100-120V, 50-60Hz, US Cord, 733503 / 20733503
Vacuubrand PC 3002 VARIO® Corrosive Diaphragm Dry Vacuum Pumping Unit provide precise vacuum control by of the diaphragm pump's motor speed.
The Vacuubrand PC 3002 VARIO® is a two stage chemistry corrosion resistant diaphragm pump the meets medium vacuum requirements for most chemical solvents. The MZ 2C NT VARIO two-stage corrosive resistance chemistry dry pump which meets medium vacuum requirements for most solvents. The pumping unit PC 3002 VARIO is a well proven choice for evaporation of large amounts of solvents.
The integrated CVC 3000 vacuum controller enables fully automatic evaporation at push of a button, compact design with light weight and very quiet operation contribute to clasify this unit as one of the best vacuum pumping systems for laboratory use.
The on demend motor speed control results in unpatalleled lnght of service intervals for all wearing internal parts.
-
PC3002 offers Automatic electronic adaptation of the vacuum level throughout the process for high process reliability and unattended operation
-
Automatic optimatization of the vacuum level throught the process for high process reproducibility and unattended operation.
-
Extraordinary diaphragm life for minimum operational and servicing costs
-
Easily operated CVC 3000 vacuum controller with clear text menus, with integrated venting valve
-
Short process times due to zero-fluctuation (hysteresis-free) vacuum control
-
Excellent chemical resistance for corrosive applications
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Vacuubrand PC 3002 VARIO® Chemistry Diaphragm Dry Pumping Unit, CVC 3000, 1.6 CFM, 7 Mbar, 100-120V, 50-60Hz, US Cord, 733503 / 20733503
| Technical data | Unit | PC 3002 VARIO |
|---|---|---|
| Vacuum controller | CVC 3000 | |
| Number of heads / stages | 2 / 2 | |

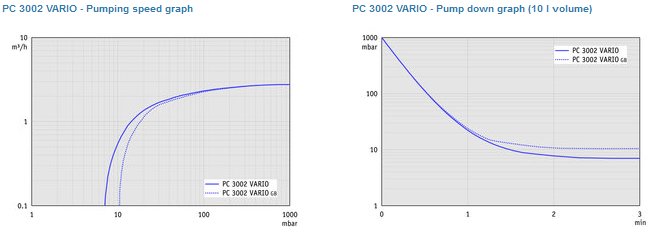

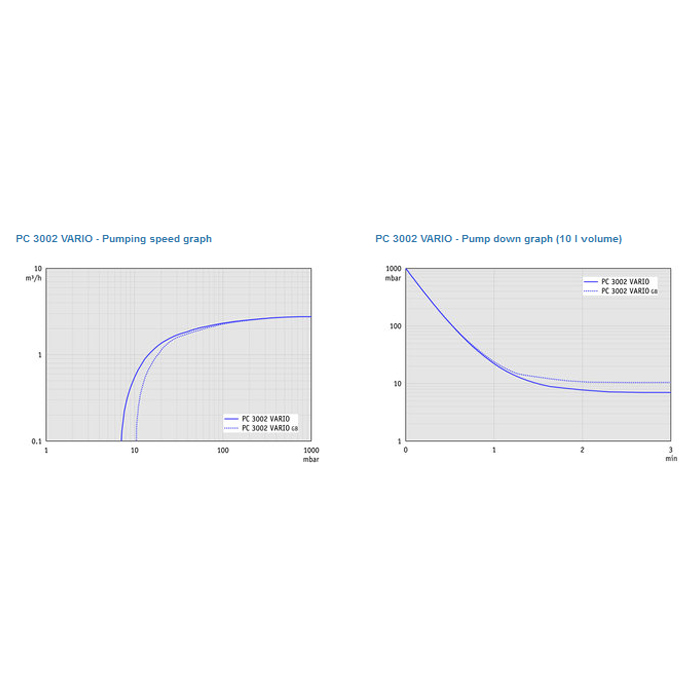

| Max. pumping speed | m3/h | 2.8 |
| Max. pumping speed | cfm | 1.6 |
| Ultimate vacuum (abs.) | mbar/torr | 7 / 5 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 12 / 9 |
| Ambient temperature range (operation) | °C | 10 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Hose nozzle DN 8-10 mm | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Coolant connection | 2 x hose nozzle DN 6-8 mm | |
| Rated motor power | kW | 0.53 |
| Motor speed range | min-1 | 30 - 2400 |
| Degree of protection | IP 40 | |

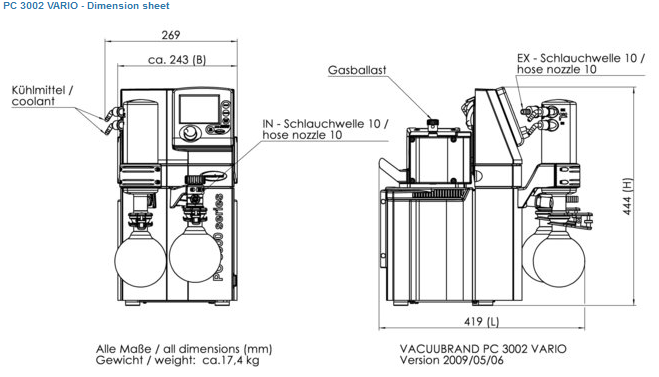

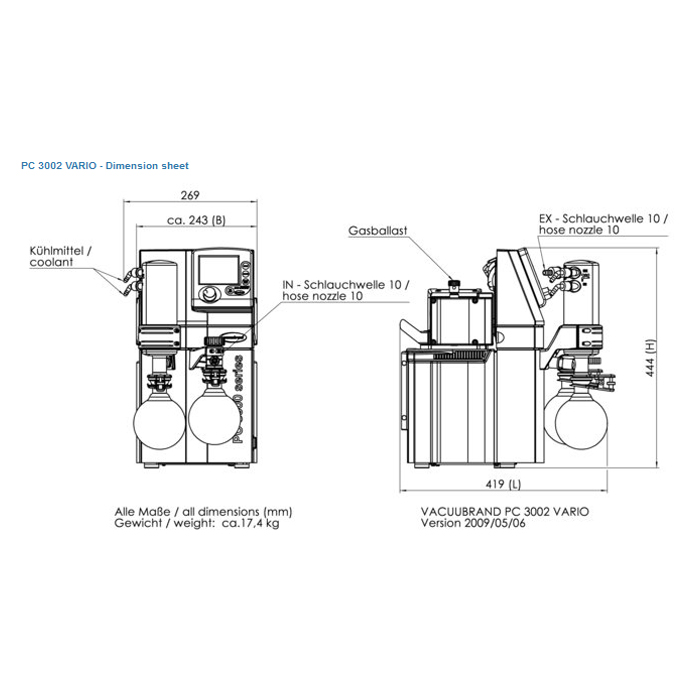

| Dimensions (L x W x H) | mm | 419 x 243 x 444 |
| Weight | kg | 17.4 |
| Noise level at 50 Hz, typ. | dBA | 43 |
| ATEX conformity (only 230V) | II 3G IIC T3 X Internal Atm. only | |
| Items supplied | Pumping unit completely mounted, ready for use, with manual. |
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
