- PN 696703
- Max. Pumping Speed: 1.18 CFM
- Ultimate Vacuum (abs.): 2 mbar
- Pumping Speed: 2.0 m3/h
Shopping Cart ( )
Vacuubrand PC 3001 VARIOpro VARIO® Chemistry Diaphragm Dry Pumping Unit, CVC 3000, 1.18 CFM, 2 mbar, 100-120V / 200-230V , 50-60Hz, US Cord, 696703 / 20696703
Condition:
Discontinued
Item#:PN19353
Mfr Part#:696703 / 20696703
Manufacturer:BRANDTECH / Vacuubrand
This product has been discontinued and is no longer available for sale

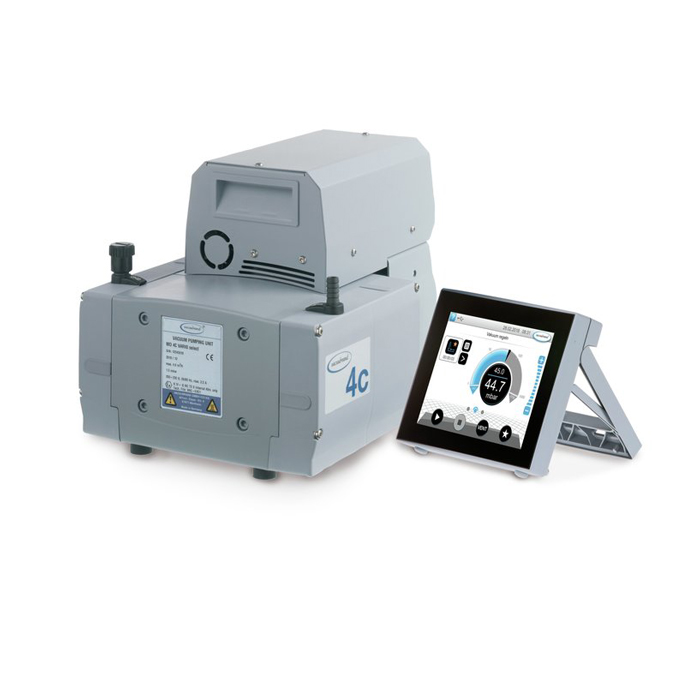

VIEW REPLACEMENT
Features:
Vacuubrand PC 3001 VARIOpro VARIO® Chemistry Diaphragm Dry Pumping Unit, CVC 3000, 1.18 CFM, 2 mbar, 100-120V / 200-230V, 50-60Hz, US Cord, 696703 / 20696703
Vacuubrand PC 3001 VARIOpro Features:
- Automatic electronic adaptation of the vacuum level throughout the process for high process reliability and unattended operation
- Automatic optimization of the vacuum level throughout the process for high process reproducibility and unattended operation
- Extraordinary diaphragm life for minimum operational and servicing costs
- Easily operated CVC 3000 vacuum controller with clear text menus, with integrated venting valve
- Short process times due to zero fluctuation (hysteresis-free) vacuum control
- Excellent chemical resistance
PC 3001 VARIOpro / 20696703 Overview:
Vacuubrand PC 3001 PRO VARIO® Corrosive Diaphragm Dry Vacuum Pumping Unit provide precise vacuum control by of the diaphragm pump's motor speed.
The Vacuubrand PC 3001 PRO VARIO® is a two stage chemistry corrosion resistant diaphragm pump the meets medium vacuum requirements for most chemical solvents.
The integrated CVC 3000 vacuum controller enables fully automatic evaporation at push of a button, compact design with light weight and very quiet operation contribute to clasify this unit as one of the best vacuum pumping systems for laboratory use.
The on demend motor speed control results in unpatalleled lnght of service intervals for all wearing internal parts.
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Vacuubrand PC3001 PRO VARIO® Chemistry Diaphragm Dry Pumping Unit, CVC 3000, 1.2 CFM, 2 Mbar, 100-120V/200-230V,50-60Hz, US cord, 696703, PC-3001
Vacuubrand PC 3001 VARIOpro Technical Data:

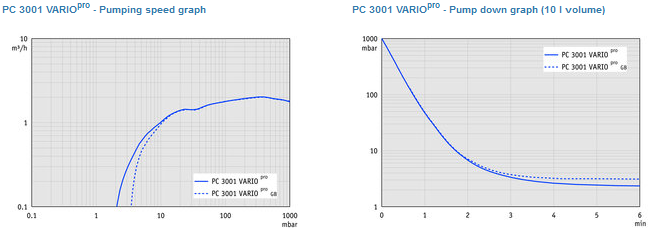

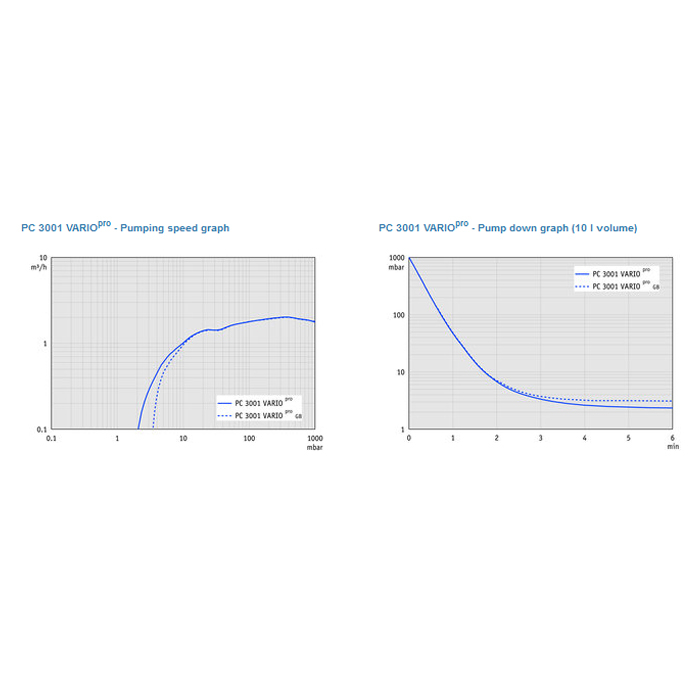

- Max. pumping speed 50 Hz: 2 m3/h
- Max. pumping speed 60 Hz: 1.18 cfm
- Ultimate vacuum: 2 mbar / 1.5 torr
- Number of heads: 4
- Number of stages: 3
- Vacuum controller: CVC 3000
- Lower ambient temperature (operation): 10 °C
- Upper ambient temperature (operation): 40 °C
- Lower ambient temperature (storage): -10 °C
- Upper ambient temperature (storage): 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Hose nozzle DN 6-10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Coolant connection: 2 x hose nozzle DN 6-8 mm
- Rated motor power: 0.16 kW
- Protection class IEC 60529: IP 20

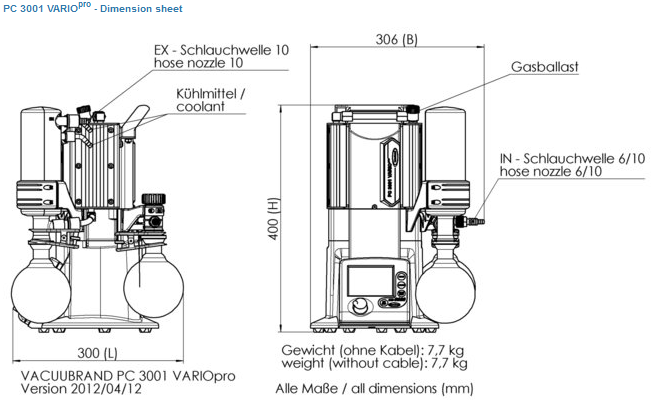

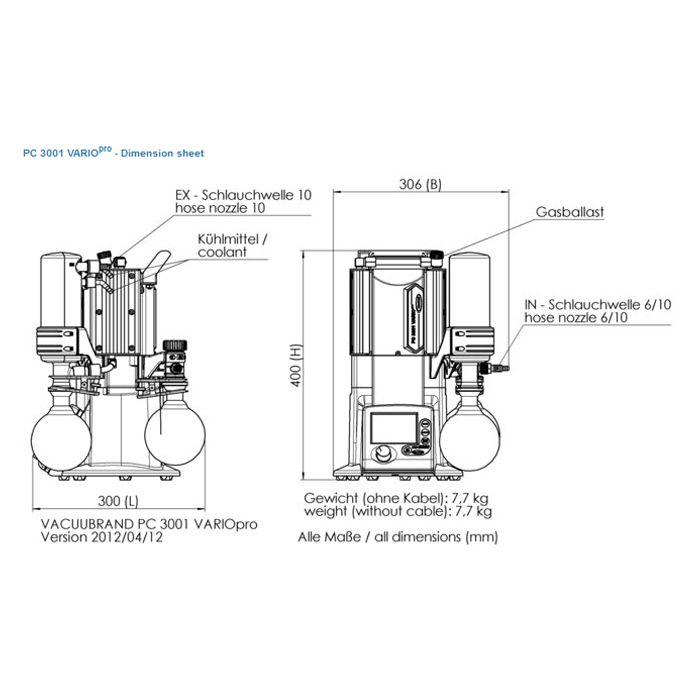

- Dimension L in mm: 300 mm
- Dimension B in mm: 306 mm
- Dimension H in mm: 400 mm
- Weight: 7.7 kg | 17 lb
- Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®): 42 dBA
- ATEX conformity: II 3/- G Ex h IIC T3 Gc X Internal Atm. only
- NRTL certification: Yes
- Rated mains voltage range 1: 200-230 V
- Rated mains voltage range 2: 100-120 V
- Mains frequency 1: 50-60 Hz
- Mains frequency 2: 50-60 Hz
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Vacuubrand PC 3001 corrosive diaphragm pumping unit 696703 Basic Manual, PC3001
Vacuubrand PC 3001 Vario Pro corrosive diaphragm pumping unit 696703 Instructions Manual
