- Pumping Speed: 6.8 m3/h (60 Hz) 4 CFM
- Ultimate pressure: 2 x 10-3 mbar
- Inlet flange: DN 16 ISO-KF
- Outlet flange: Hose nozzle 3/8" 10mm3/8" 10 mm
Shopping Cart ( )
Vacuubrand RZ6 Dual Stage High Performance Vacuum Pump, 4 CFM, RZ6, 100-120 VAC / 200-230 VAC, 698136 / 20698136
Condition:
Remanufactured
Call us for Availability
Item#:PN23836
Mfr Part#:698136 / 20698136
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Vacuubrand RZ6 Dual Stage High Performance Vacuum Pump, 4 CFM, RZ6, 100-120 VAC / 200-230 VAC, 698136 / 20698136
Vacuubrand RZ 6 Overview:
The Vacuubrand RZ 6 dry vacuum rotary vane pumps. The max pumping speed up to 4 CFM at 60 Hz. Vacuubrand (20698136) has the nominal rotation speed 1800 min-1 at 60 Hz. The weight of Vacuubrand RZ 6 is 16.4 kg. Noise level Vacuubrand RZ 6 is 50 dB at 50 Hz.
These powerful rotary vane pumps feature a particularly compact design and low weight for pumps of this capacity. They are the ideal solution for a wide range of laboratory and process applications that require low ultimate vacuum at medium to increased gas flow rate. The PC 3 rotary vane pumping unit, with GKF 1000i cold trap at the inlet, helps the pump to handle large amounts of condensable vapors. The PC 3 pumping unit is compact, user-friendly and well-arranged, with an oil mist filter at the outlet, a valve and a T-connection for a gauge. Various packages including pump, oil mist filter, etc. are available.
Vacuubrand RZ 6 Features:
- Dual Stage, High Performance Rotary Vane Pump
- High flow rates even at vacuum levels approching ultimate vacuum
- High water vapor tolerance due to efficient gas ballast
- Very good ultimate pressure even with gass ballast
- Vacuum tight at switch off; external andi-suckback valve not needed
- Large oil volume: long intervals between oil changes
- Ease of maintenance due to telescopic design
Vacuubrand RZ 6 Applications:
Typical applications for Vacuubrand RZ6 include lypohilization, vacuum distilation and evacuation of small valumes, u-focus, xray tubes or filling with purge gases. Vacuubrand RZ6 with PC 3 is a perfect choice for applications requiring special protectionof pump and enviroment.

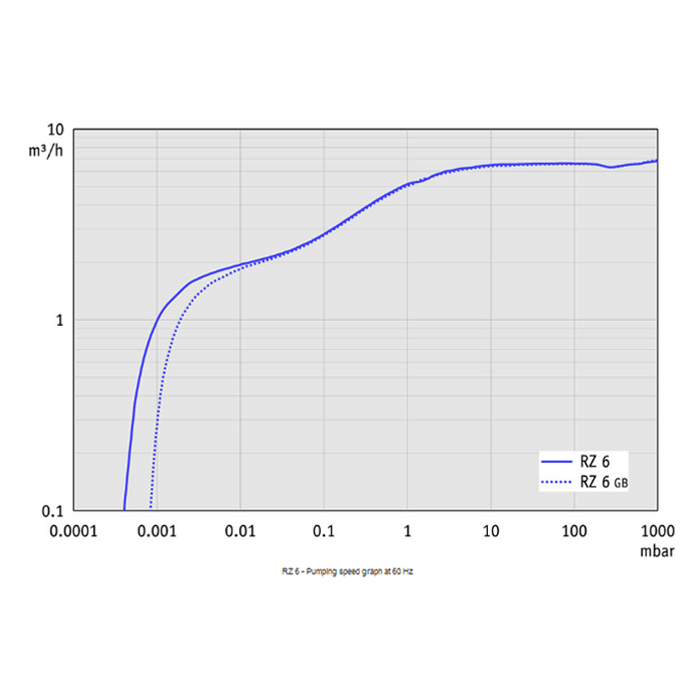

Vacuubrand RZ 6 Pumping Speed:

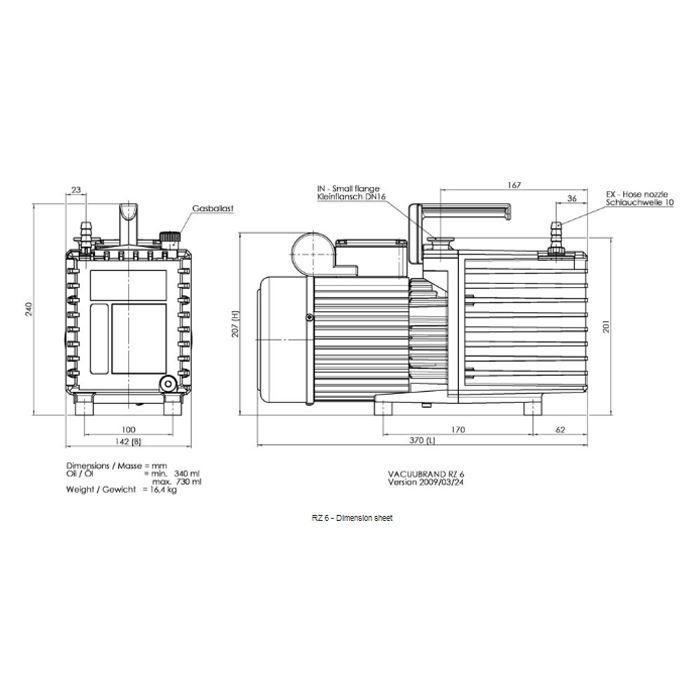

Vacuubrand RZ 6 Dimensions:
Click Here for Vacuubrand RZ Series Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Vacuubrand RZ6 Dual Stage High Performance Vacuum Pump, 4 CFM, RZ6, 100-120 VAC / 200-230 VAC, 698136 / 20698136
Vacuubrand RZ 6 Technical Data:
| Technical data | Unit | RZ 6 |
|---|---|---|
| Number of stages | 2 | |
| Max. pumping speed at 50/60 Hz | m3/h | 5.7 / 6.8 |
| Max. pumping speed at 50/60 Hz | cfm | 3.4 / 4.0 |
| Ultimate partial vacuum (abs.) | mbar | 4 x 10-4 |
| Ultimate vacuum (abs.) | mbar/torr | 2 x 10-3 / 1.5 x 10-3 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 1 x 10-2 / 0.75 x 10-2 |
| Water vapor tolerance with gas ballast | mbar | 40 |
| Ambient temperature range (operation) | °C | 12 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Oil capacity (B-Oil) min./max. | l | 0.34 / 0.65 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Small flange KF DN 16 | |
| Outlet connection | Hose nozzle DN 8-10 mm | |
| Rated motor power | kW | 0.3 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |
| Dimensions (L x W x H) | mm | 370 x 142 x 207 |
| Weight | kg | 16.4 |
| Noise level at 50 Hz, typ. | dBA | 50 |
| Items supplied | Pump oil filled and completely mounted, ready for use, with manual. | |
| Accessories | Stainless steel tubing KF DN 16 (1000 mm: 20673336) Separator inlet side AK R 5/6 (20698006) Oil mist filter FO R 2/2.5/5/6 (20698003) Package fine vacuum control KF DN 16 (20700100 or 20700101) Rubber vacuum tubing DN 8 mm (20686001) Small flange KF DN 16 with hose nozzle DN 8-10 mm (20662806) |
Click Here for Vacuubrand RZ Series Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
