- Ultimate Pressure Pa(Torr) :1.1 (0.007)
- Pumping Speed m3/h : 600-950
- Power Consumption kW :1.6
- Inlet Flange ISO 100 Bolted
Shopping Cart ( )
Toyota T1000 Dry Pump, Industrial Dry Pumping System T 1000 Pump
Condition:
Remanufactured
Call us for Availability
Item#:PN00258
Mfr Part#:3620-00253
Manufacturer:Toyota
Price upon request
CONTACT US
Features:
Toyota T1000 Dry Pump, Industrial Dry Pumping System T 1000 Pump, 3620-00253
Toyota T1000 Overview:
T1000 is an ultra compact new generation dry vacuum pump jointly developed by Toyota Industries Corp. and Applied Materials, Inc., which is designed for installation on semiconductor equipment in cleanroom
Toyota Dry Pumps T1800, T1200, T1000, T600, T100P are roots type vacuum pumps that rotate a pair of synchronized, timing gears, and incorporate a roots type booster pump. Bearings and gears on the high pressure side are lubricated by fluoric type oil. Ceramic balls are used in the bearings on the low pressure side, and those bearings are lubricated by fluoric type grease.
The Toyota T1000 Dry Pump and motor are equipped with an indirect cooling system by cooling water, which enables thermal control by automatic switching of internal valve.
The Toyota T 1000 Vacuum Pump has a N2 purge structure, and N2 is used for diluting various process gases and shaft seals.

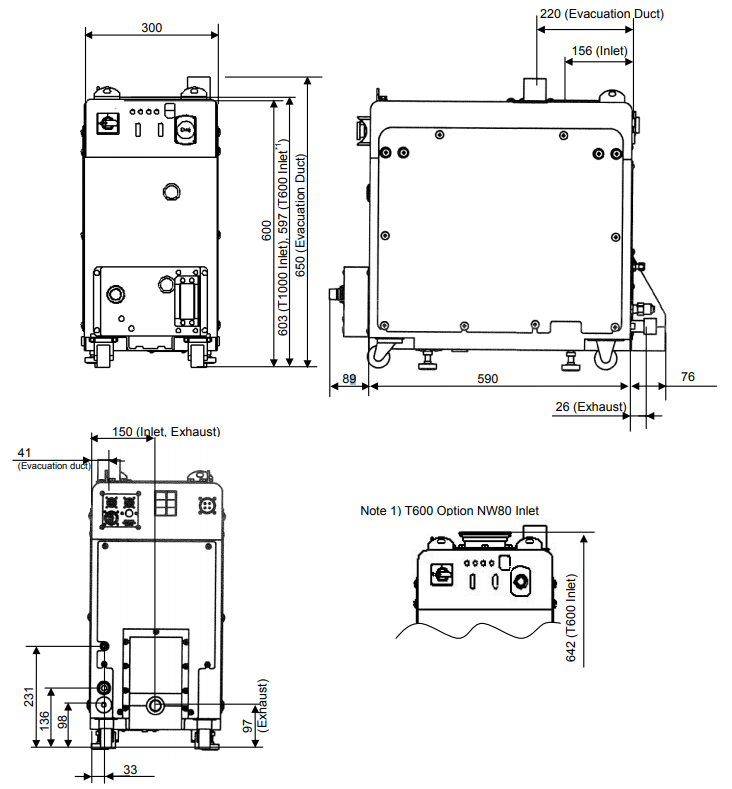

Toyota T1000L Dimensions:
Click Here for Toyota IPUP T1000 L Manual
A&J Vacuum Repair / Rebuild and Service Toyota T100, T600, T1000 Dry Vacuum Pumps and Toyota Vacuum Boosters Pumps along with all other Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, ULVAC Leak Detector Repair and Service. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Toyota T1000 Dry Pump, Industrial Dry Pumping System T 1000 Pump, 3620-00253
Toyota T1000 Technical Data:
|
Size(L*W*H) : |
590*600*300mm |
|
Ultimate Pressure Pa(Torr) : |
1.1 (0.007) |
|
Pumping Speed m3/h : |
600-950 |
|
Power Consumption kW : |
1.6 |
|
Inlet Flange |
ISO 100 Bolted |
|
Exhaust Flange |
KF 25 |
|
Sound Level dB(A): |
<58 |
|
Vibration G: |
0.1 |
|
Weight kg: |
104 |
Please note: Remote Controller is Not Included |
Click Here for Toyota IPUP T1000 L Manual
A&J Vacuum Repair / Rebuild and Service Toyota T100, T600, T1000 Dry Vacuum Pumps and Toyota Vacuum Boosters Pumps along with all other Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, ULVAC Leak Detector Repair and Service. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
