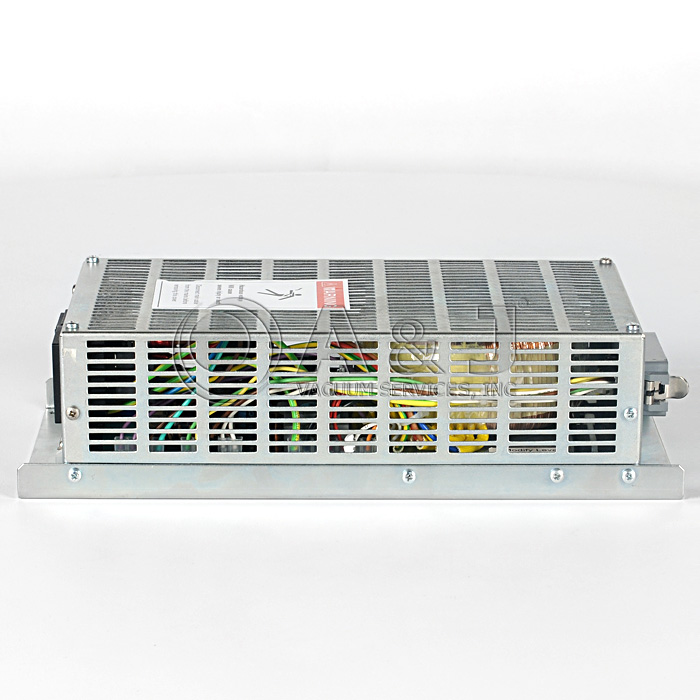

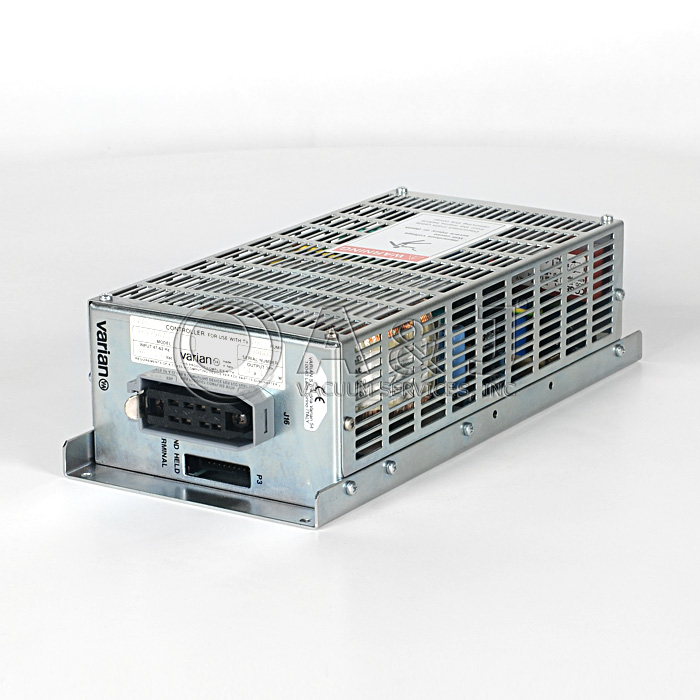

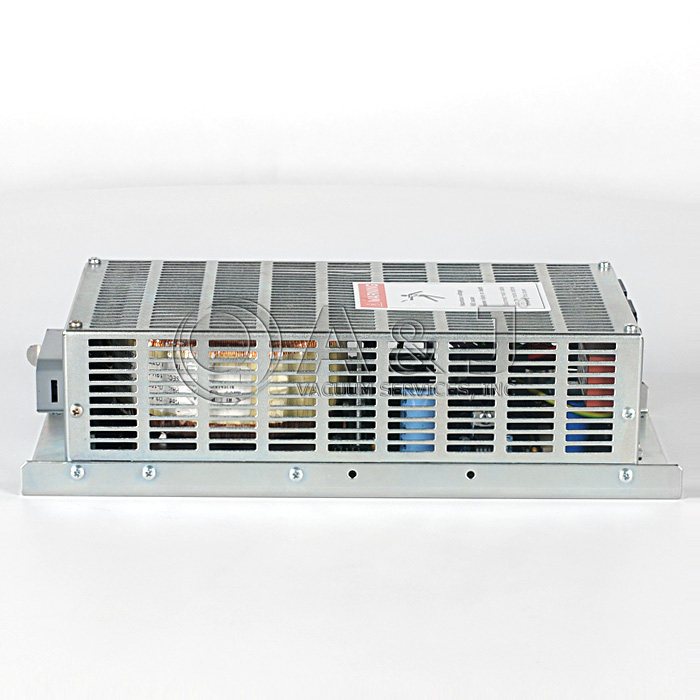

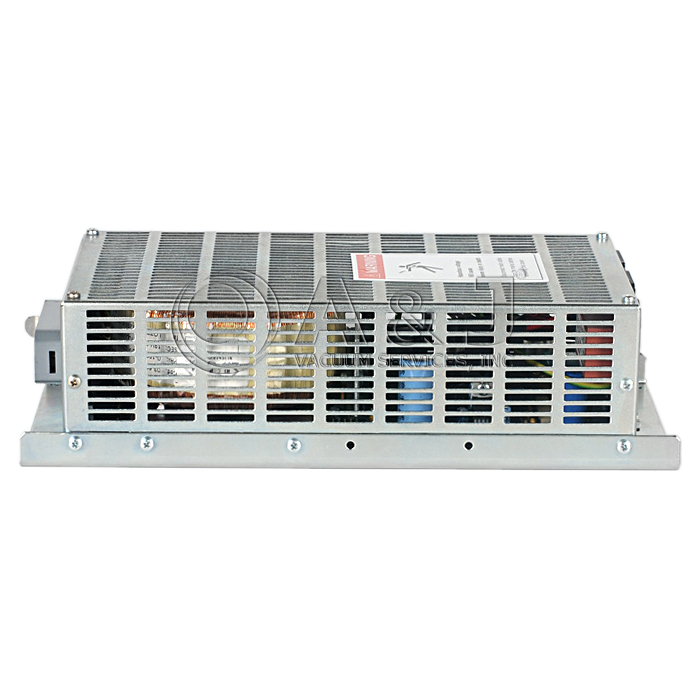

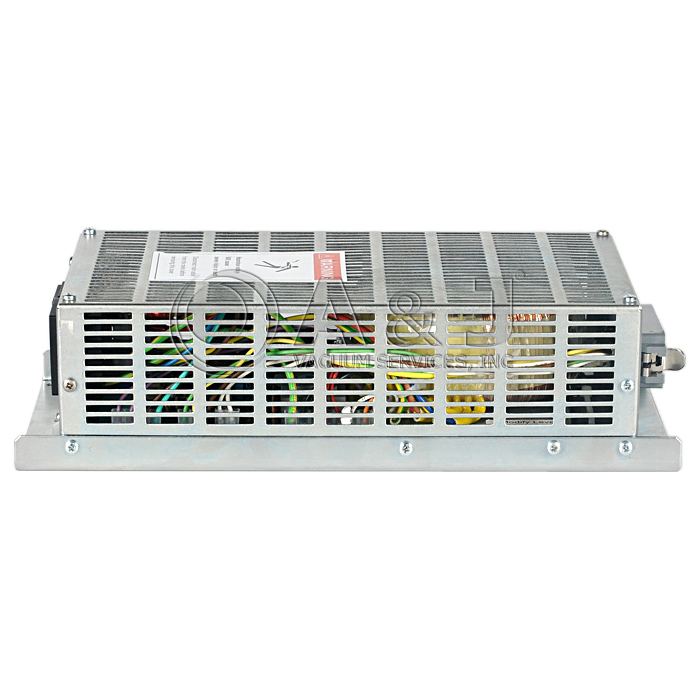

Varian Turbo V 70 Turbo Pump Controller, Power Supply, 120 V, 9699507S003
The Varian Turbo V 70 is a turbo pump controller, factory set for 120 Vac and 50/60 Hz input voltage. It is a solid state frequency converter which is driven by a single chip microcomputer.
The controller is composed of:
- Power transformer

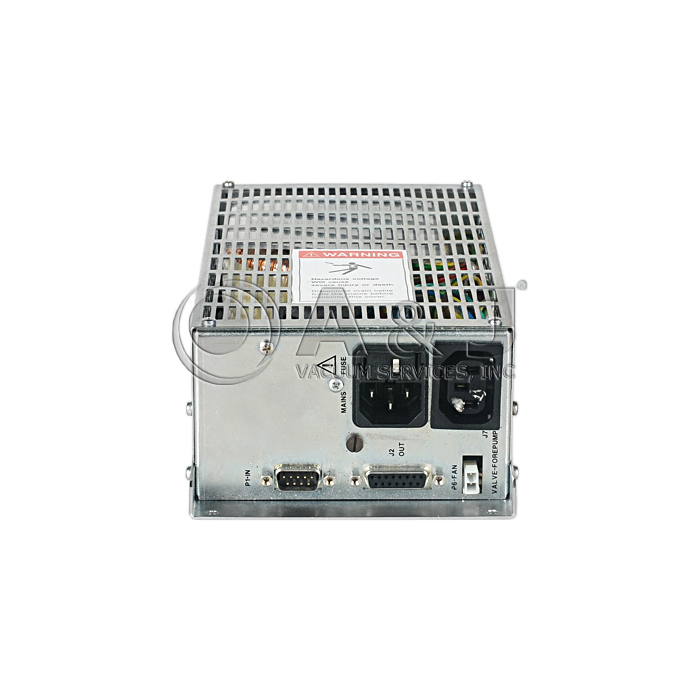

- Left panel with input/output connector, mains socket, forepump and vent coil output, fan connector

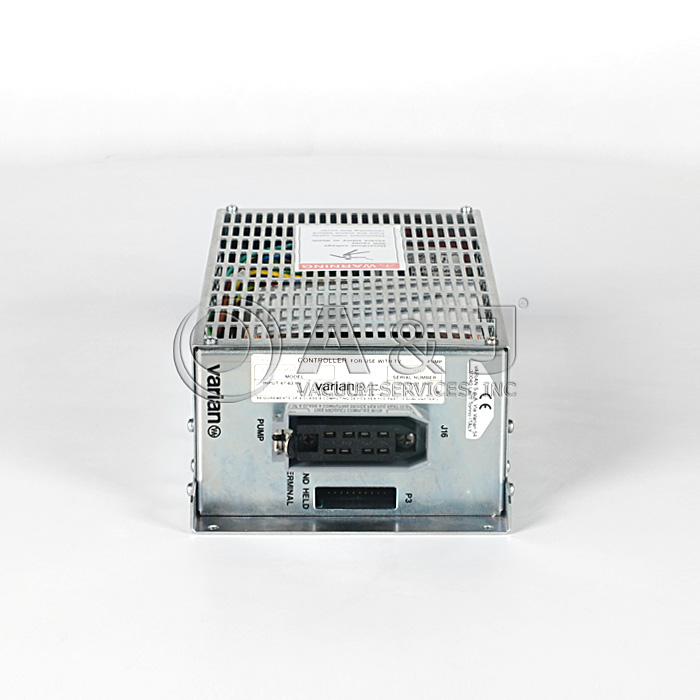

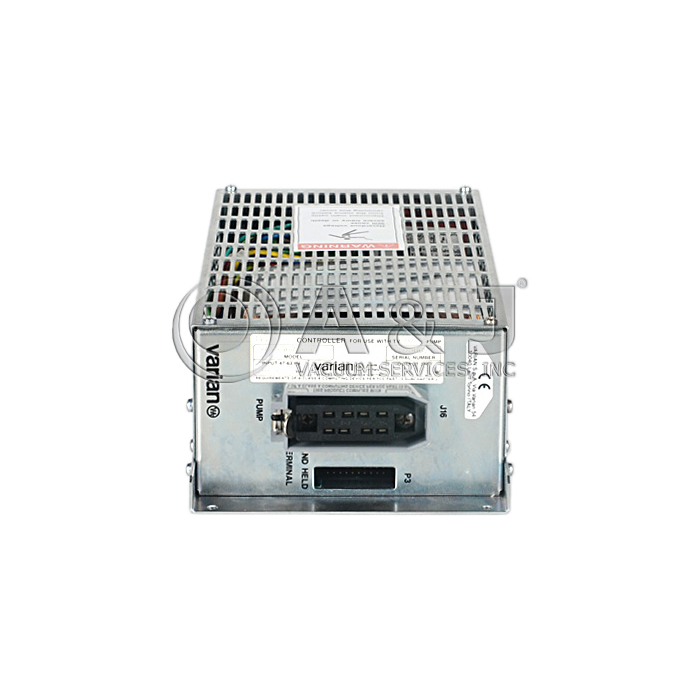

- Right panel with pump connector and hand-held terminal connector
- PCB including: power supply and 3 phase output, analog and input/output section, microprocessor and digital section, display and keyboard circuits.
The power supply converts the single phase (50/60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump. The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump. Moreover, it manages signals from sensors, input/output connection information to be displayed on the hand-held terminal, and gives outputs for a fully automatic operation.
A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time. The controller can be operated by remote signals via the left panel connector and may be monitored/reprogrammed using the optional hand-held terminal via the right panel connector.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Varian Turbo V 70 Turbo Pump Controller, Power Supply, 120 V, 9699507S003
Input:
- Voltage: 120 Vac
- Frequency: 1 Phase
- Power: 50/60 Hz
Output:
- Voltage: 54 Vac
- Frequency: 1250 Hz
- Power: 150 W
Weight: 3.8 kg / 8.4 lbs
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Varian Turbo V 70 Turbo Pump Controller, Power Supply, 120 V, 9699507S003
The Varian Turbo V 70 is a turbo pump controller, factory set for 120 Vac and 50/60 Hz input voltage. It is a solid state frequency converter which is driven by a single chip microcomputer.
The controller is composed of:
- Power transformer
- Left panel with input/output connector, mains socket, forepump and vent coil output, fan connector
- Right panel with pump connector and hand-held terminal connector
- PCB including: power supply and 3 phase output, analog and input/output section, microprocessor and digital section, display and keyboard circuits.
The power supply converts the single phase (50/60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump. The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump. Moreover, it manages signals from sensors, input/output connection information to be displayed on the hand-held terminal, and gives outputs for a fully automatic operation.
A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time. The controller can be operated by remote signals via the left panel connector and may be monitored/reprogrammed using the optional hand-held terminal via the right panel connector.
THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED.
Specifications
Varian Turbo V 70 Turbo Pump Controller, Power Supply, 120 V, 9699507S003
Input:
- Voltage: 120 Vac
- Frequency: 1 Phase
- Power: 50/60 Hz
Output:
- Voltage: 54 Vac
- Frequency: 1250 Hz
- Power: 150 W
Weight: 3.8 kg / 8.4 lbs
