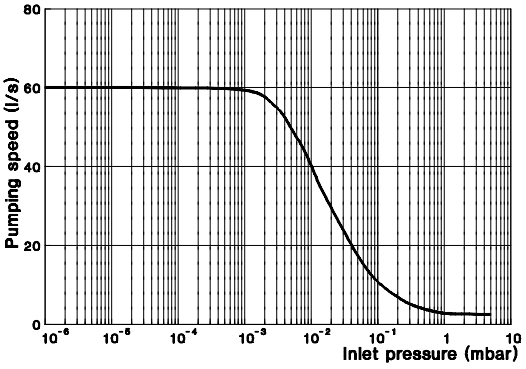

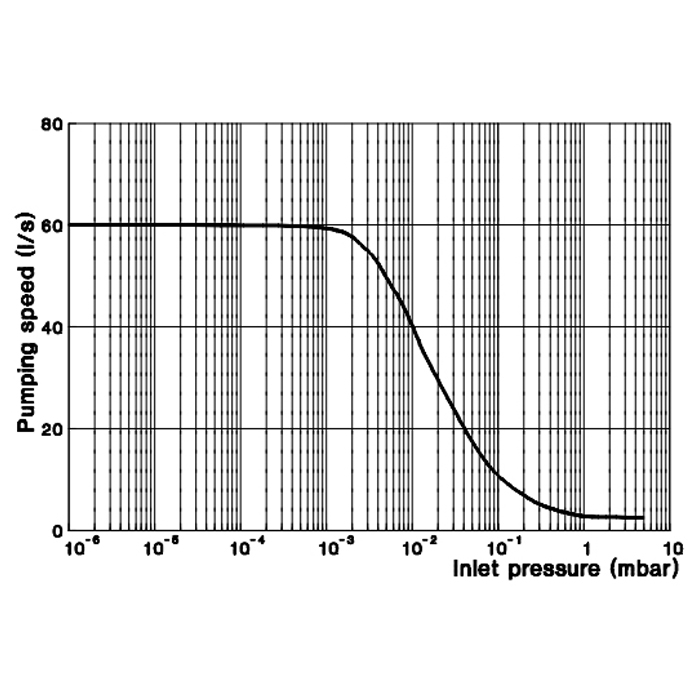

- Pumping Speed: N2: 60 l/s
- Compression Ratio: N2: 5 x 107
- Inlet Flange: ISO 63
- Foreline Flange: KF 16 NW
Shopping Cart ( )

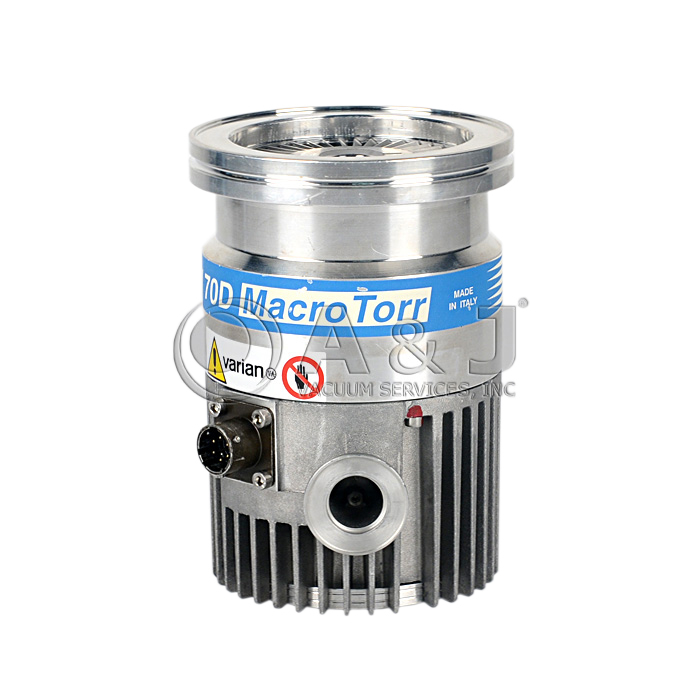

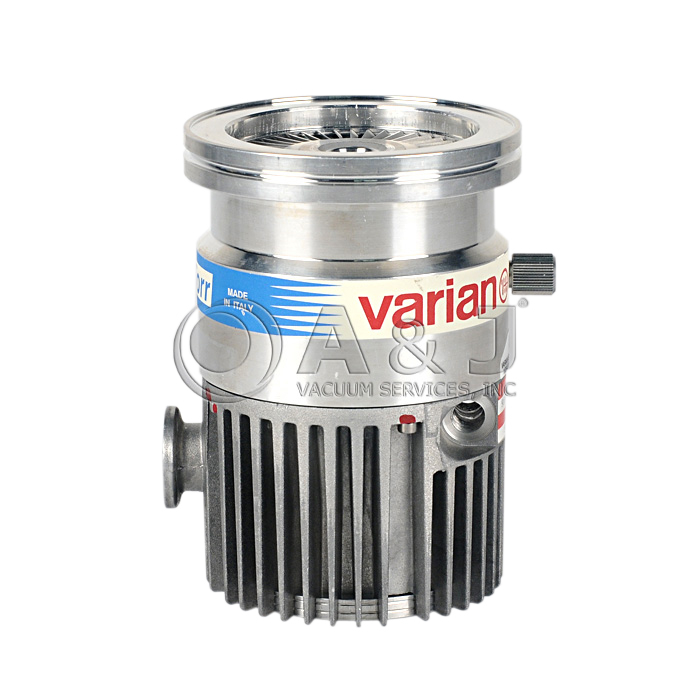

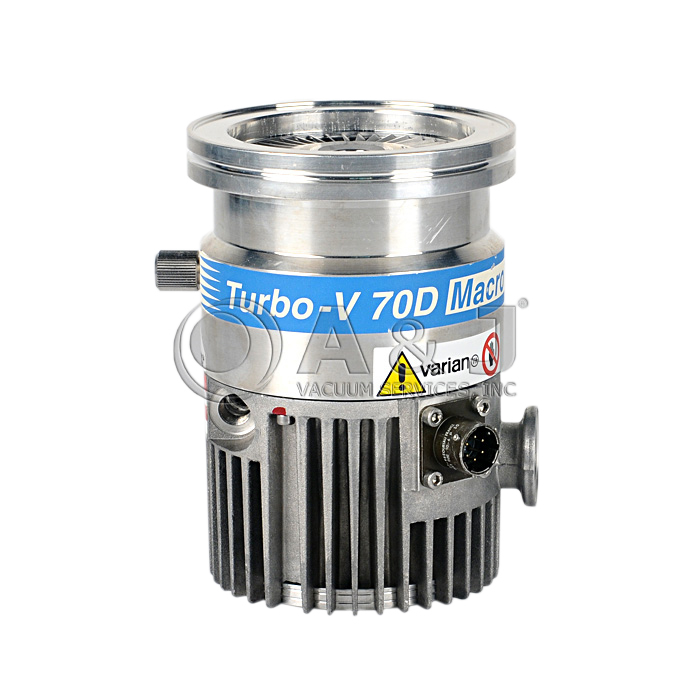

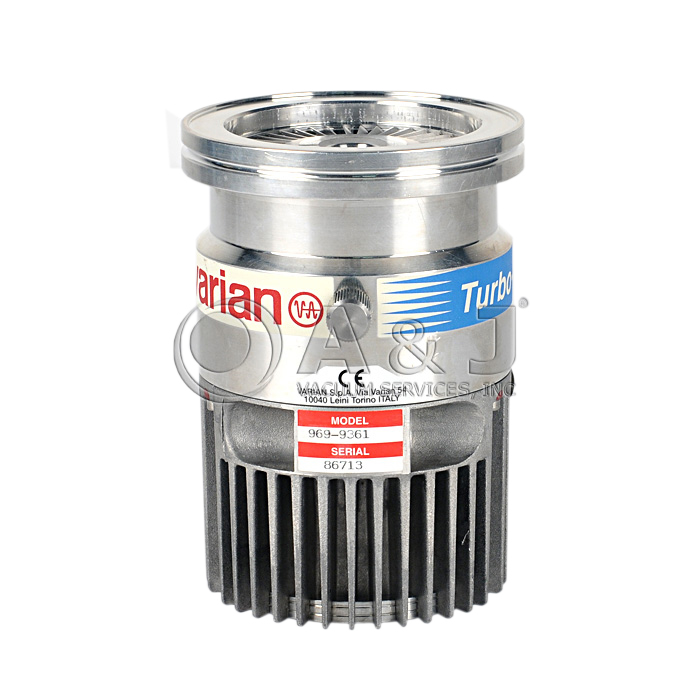

Agilent Varian V70D Turbo Pump, ISO 63, 9699361 / 969-9361
Condition:
Remanufactured
In Stock
Item#:PN16965
Mfr Part#:9699361 / 969-9361
Manufacturer:Agilent Technologies / Varian
Features:
Agilent Varian V70D Turbo Pump, ISO 63, 9699361 / 969-9361
V70D Turbo Pump / 9699361 Overview:
The Varian/Agilent V 70D turbo pump. The pumping speed up to 60 l/s N2. Varian V 70D (969-9361) has the compression ratio 5 x 107. The weight of Agilent V 70D is 1.7 kg. Rotational speed is about 75000 rpm.
The Agilent Technologies / Varian Turbo V70D / 969-9361 Turbo Pump consists of a high frequency motor driving a turbine fitted with 7 bladed stages and 4 Macrotorr stages. The turbine rotates in a counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength, light aluminum alloy, and is machined from a single block of aluminum. The turbine blades have five different angles, while the Macrotorr stages are in the form of discs. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearing installed on the forevacuum side of the pump.
A&J Vacuum repair / rebuild and service all Varian V70D, Agilent V 70 D, V-70 D Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Agilent Varian V70D Turbo Pump, ISO 63, 9699361 / 969-9361

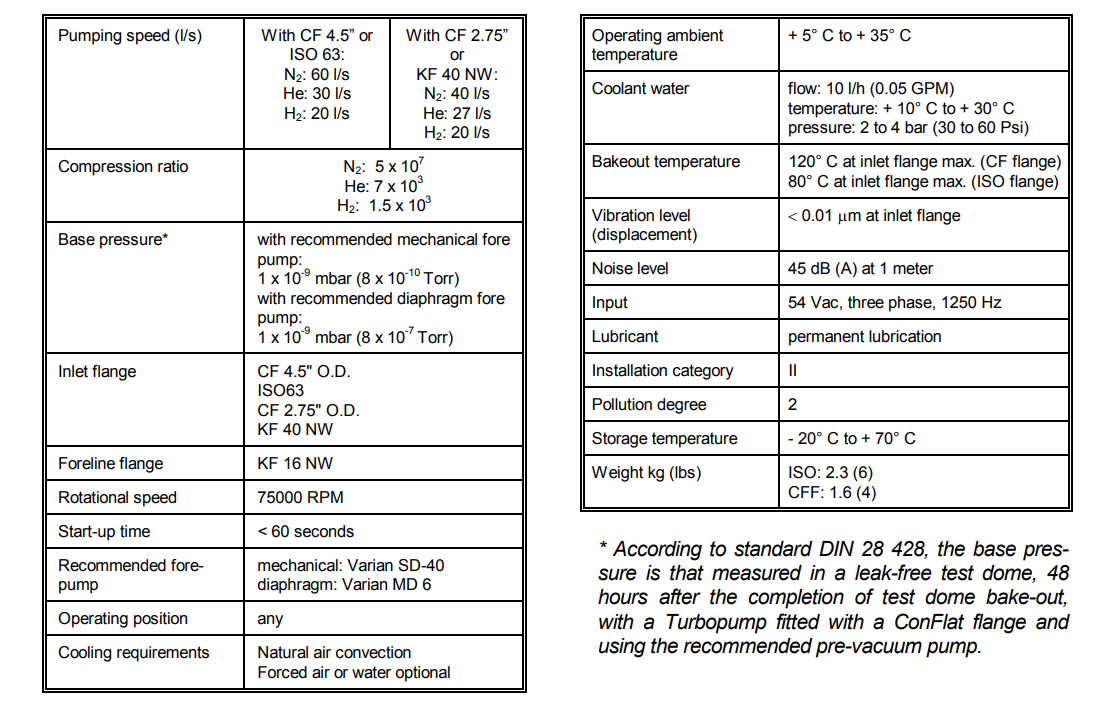

Agilent Varian V70D Turbo Pump Technical Data:
A&J Vacuum repair / rebuild and service all Varian V70D, Agilent V 70 D, V-70 D Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN15894
Mfr Part#:9699347
Condition: Out of Stock
New
$204.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
