- Pumping speed N2: 68 l/s
- Ultimate Pressure: 1 x 10-9 mbar (8 x 10-10 Torr)
- Inlet Flange DN 63 ISO
- Outlet Flange DN 16 ISO-KF
Shopping Cart ( )
Agilent Varian V 70 Turbo Pump, ISO 63, 9699357 / 969-9357
Condition:
Remanufactured
In Stock
Item#:PN17440
Mfr Part#:9699357 / 969-9357
Manufacturer:Agilent Technologies / Varian
Features:
Agilent Varian V 70 Turbo Pump, ISO 63, 9699357 / 969-9357
V 70 Turbo Pump / 9699357 Overview:
The Varian/Agilent V 70 turbo pump. The pumping speed up to 68 l/s N2. Varian V 70 (9699357) has the compression ratio 5 x 108. The weight of Agilent V 70 is 1.7 kg. Rotational speed is about 75000 rpm.
The Varian Turbo V70 9699357S002 pump consists of a high frequency motor driving a turbine fitted with 11 bladed stages. The turbine rotates in an anticlockwise direction when viewed from the high vacuum flange end.
The Varian V70 969-9357S002 turbine is made of high-strength, light aluminium alloy, and is machined from a single block of aluminium. The turbine blades have five different angles, from 42° to 12°. The turbine rotor is supported by permanently lubricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are fabricated in stainless steel. These are supported and accurately positioned by spacer rings.
During normal operation, the motor functions with a power feed at 54 Vac three-phase at 1250 Hz. To reduce losses during start-up to a minimum, the frequency increases according to a ramp with a higher initial voltage/frequency ratio.
The external body of the TV301 pump is fitted with fins which allow the pump itself to function with natural convection air cooling. Kits are available for water cooling or forced air cooling to cool the pump in the cases where it is used under heavy load or when natural convection is insufficient for cooling purposes. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The thermistor sensor, the motor stator windings and the earth are connected to a Turbo-V controller through a 6 pin socket on the side of the pump. The pump is balanced after assembly with a residual vibration amplitude less than 0.01. The pump can operate in any position and can be supported on the high vacuum flange or on its base. The connection of the forevacuum on the side of the pump is a KF 16 NW flange.
A&J Vacuum repair / rebuild and service all Varian V70, Agilent V 70, V-70 Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Agilent Varian V 70 Turbo Pump, ISO 63, 9699357 / 969-9357

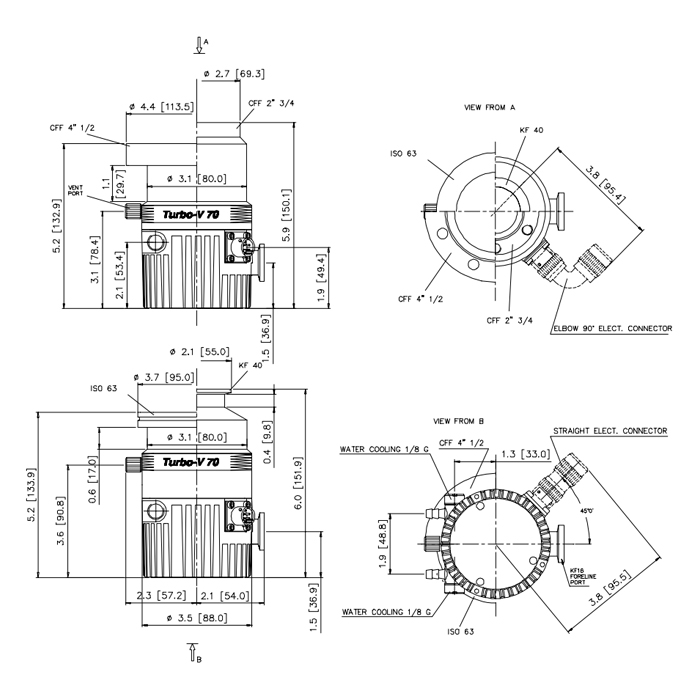

Agilent Varian V 70 Turbo Pump Technical Data:
A&J Vacuum repair / rebuild and service all Varian V70, Agilent V 70, V-70 Turbo Pump Service, Varian Vacuum Pumps along with all other Varian, Alcatel, Edwards, Bush, Leybold, Pfeiffer, Ulvac Oil lubricated Pumps, Varian Scroll Dry Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

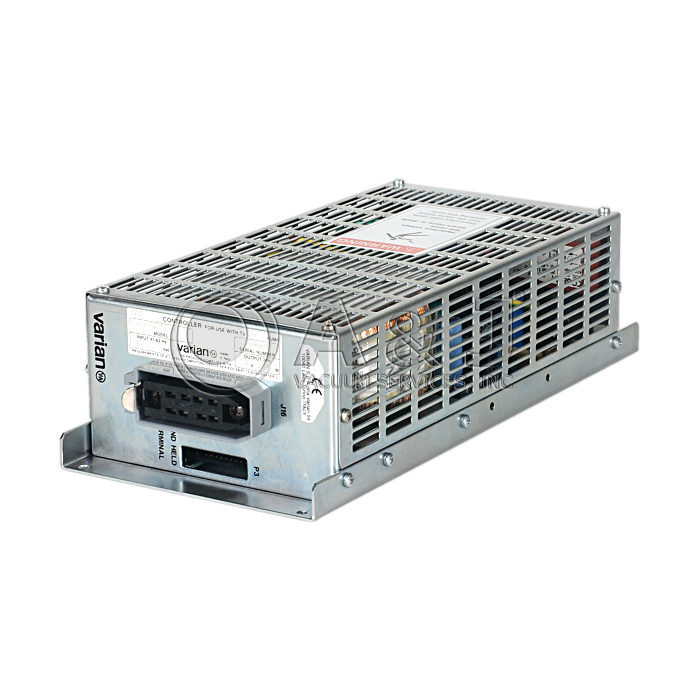

Item#:PN15894
Mfr Part#:9699347
Condition: Out of Stock
New
$204.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
