Adixen ASM 142 Graph D+ Helium Leak Detector with ACP 15 Dry Pump. 115 VAC 50/60 Hz also known as Alcatel ASM Graph D+ P/N N3R00000B710
Condition:
Remanufactured
Call us for Availability
Item#:PN41268
Mfr Part#:N3R00000B710
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Fully Re-manufactured Adixen ASM 142 Graph D+ Helium Leak Detector with ACP 15 Dry Pump. 115 VAC 50/60 Hz also known as Alcatel ASM Graph D+ P/N N3R00000B710
Adixen Pfeiffer ASM-Graph D+ Dry Leak Detector Overview:

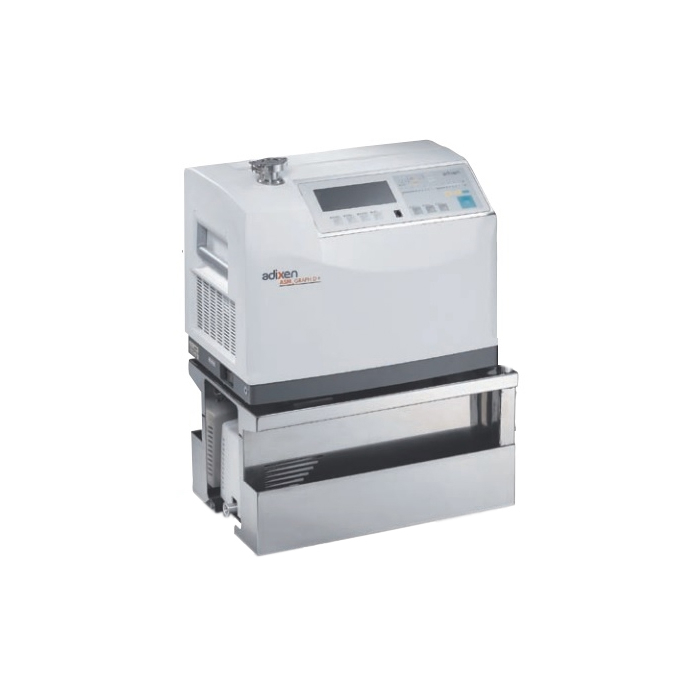

The Pfeiffer Adixen ASM142 Graph D+ is a fully automatic, multi-purpose, portable (mobile cart included) or compact table top helium leak detector.
Compact and powerful helium leak detector, the ASM Graph D+ combines 14 m3/h clean, dry, roughing capacity with our high sensitivity analyzer cell in very small foot print clean room compatible package.
Highly manoeuvrable, the system is mounted on a unique cart equipped with four large, full swivel wheels with brakes for easy movement through and around cluttered areas and over grilled floors such as Semiconductor Fabs.
The Adixen Pfeiffer ASM 142 unit consists of the robust Holweck molecular drag high vacuum pump with a large 7 CFM two-stage rotary vane roughing/backing pump. Ideally suited for repetitive or non-repetitive sequential testing for applications requiring high performance operation and reliability. These detectors are the end-result of an innovative engineering approach itilizing the latest electronics technologies and vacuum concepts, which make them a truly universal unit.
Compartments for convenient storage of vacuum hardware and provisions for a helium bottle, are part of this clever package, all in a foot print of just 0.5m x 0.35m (20” x 16”).
Alcatel Adixen ASM Grapg D+ 142 Helium Leak Detector Features:
- Oil free dry leak detection with Adixen ACP 15 Dry backing pump
- • ASM Graph D+: the ACP 15 multistage roots frictionless pump technology guarantees a high level of cleanliness, reliability and longetivity.
- 180° magnetic deflection mass spectrometer
- 1.3 l/s helium pumping speed
- 110/115 V operating voltage
- Patented amplification system based on an electron multiplier (multi channel plate concept) which provides unmatched stability and sensitivity.
- Graph user interface and voice synthesizer in English
- Two independent filaments for a better reliability and maintainability (automatic switch from one filament to the other with automatic auto-calibration for maximum up time).
- Remote control and sniffer probe with various cable or tube lengths available as accessories
- Comprehensive display panel with sensing switches for smoother operation.
- High performances, such as, a roughing capacity of 8.2 CFM / 14m3/h with a usable helium sensitivity
- Comprehensive control panel with two distinct areas
- Very rugged design, based on field-proven components

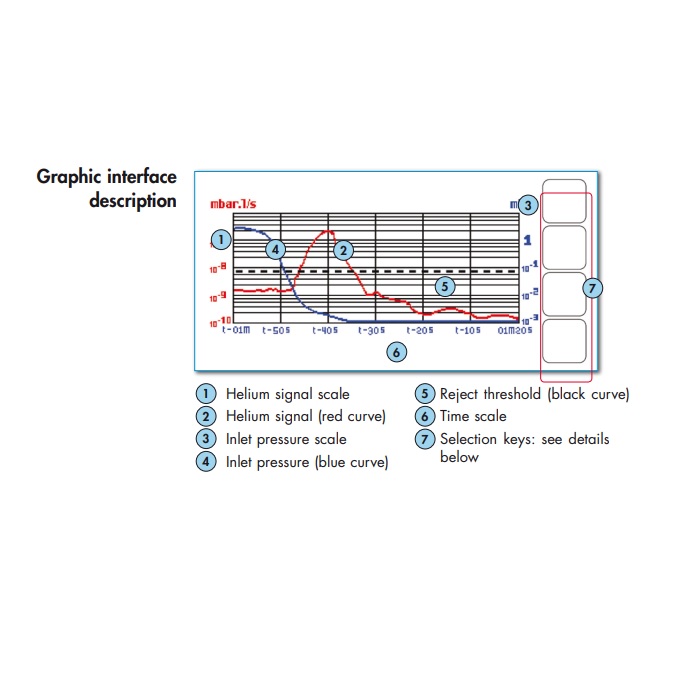

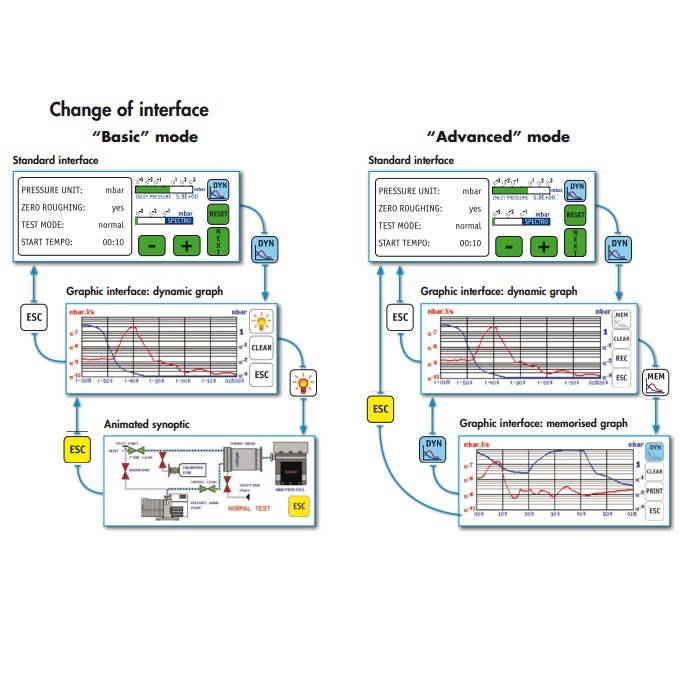

Pfeiffer ASM 142 Control Panel:

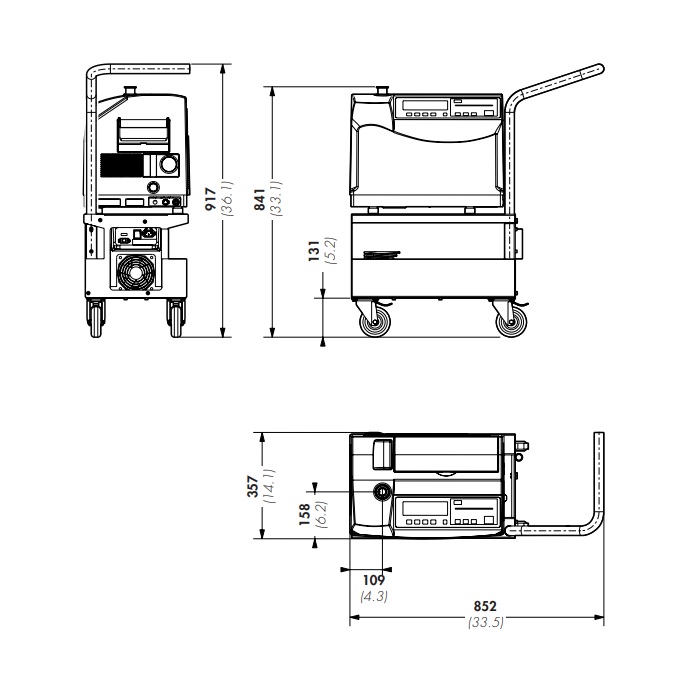

Pfeiffer ASM 142 Dimensions in mm(inch):
A&J Vacuum Services offers full repair/service of Pfeiffer ASM 142 Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Fully Re-manufactured Adixen ASM 142 Graph D+ Helium Leak Detector with ACP 15 Dry Pump. 115 VAC 50/60 Hz also known as Alcatel ASM Graph D+ P/N N3R00000B710
Pfeiffer ASM 142 Graph D+ Technical Data:
| Backing Pump | Dry Clean ACP-15 |
| Backing Pump Capacity: | 14 m3/h |
| Detectable Gases: | 4He |
| Inlet Flange: | DN 25 ISO-KF |
| Mains Cable: | US Power Cable |
| Maximum Inlet Pressure: | 10 hPa / 7.5 Torr / 10 mbar |
| Minimum Detectable Leak Rate For Helium (Sniffing Leak Detection): | 1 x 10-8 Pa m3/s |
| Minimum Detectable Leak Rate For Helium (Vacuum Leak Detection): | 5.10-12 atm.cc/s |
| Noise Level: | 50 dB (A) |
| Start-up time (including auto-calibration) | Less than 3 minutes |
| Supply: | 110-130 V, 50/60 Hz |
| Weight | 70 kg / 154 lbs |
