The Pfeiffer ASM 310 is the lightest unit leak detector of its category. It has various options for importing data such as photos (BMP format). Pfeiffer ASM 310 is perfectly suited for leak testing applications where portability is a must. Pfeiffer ASM 310 leak detector can be used to detect permeation through materials, micro-openings, porosities, etc. The means of detection is a tracer gas: Helium. Helium is so light and it can penetrate microscopic cracks very fast. Adixen ASM 310 helium leak detector has a wide measuring range capability.
The Pfeiffer Adixen ASM 310 Helium Leak Detector combines all the necessary features of a revolutionary leak detector. This version of the Adixen helium leak detector series is the lightest in its category in terms of weight, adding greater portability to the user while providing high sensitivity and pumping capacity. Adixen ASM 310 offers high performance and an oil-free pumping system ideal for eliminating any contamination.
The third generation analyzer cell of the Adixen ASM 310 Helium Leak Detector is carefully designed, thereby enabling excellent stability. It is composed of a light alloy vacuum chamber, ionization module, braking module, and equipped plate module.
The Pfeiffer Adixen ASM 310 Leak Detector comes with the ability to detect leaks with flows as miniscule as 3 x 10^(-11) mbar l/s. A variety of leak-detecting methods are available with the Adixen ASM 310, including the spray method, sniffing method, and bombing method, all of which are ideally suited for tightly-sealed objects that cannot be directly connected to the leak detector. All of these methods can be utilized to discover the possible location of the leak. Methods should be chosen according to the required measurement range as well as the required test parts.
Pfeiffer Vacuum Adixen ASM 310 Helium Leak Detector - Features & Benefits:
Ultra-Light; Weight of Only 21kg (46lbs)
1 cfm Dry and Cleaning Roughing Capacity
1.1 l/s Helium Pumping Speed at Inlet
Analyzer Cell Delivery: 3 Years of Operation Before Maintenance is Required
User-Friendly Interface, Customized to Meet Individual Preferences/Specifications
Intuitive Menu & Settings Display
Integrated SD Memory Card for Recording & Downloading Capacities
Importing Capabilities Guaranteed Through BMP Format
Leak detection utilizing helium has a complex history dating back to the first half of the twentieth century and is used in a variety of processes and industries. Helium is used as the preferred tracer gas for eliminating leaks for a variety of reasons, including its non-flammability, non-toxicity, and inexpensiveness relative to other gases. Likewise, its inert state and small atomic size (helium has an atomic mass unit of 4 - second only to hydrogen, which has an AMU of 2) allows the gas to pass through leaks with ease. Unlike hydrogen however, helium is stable and non-explosive, providing a better alternative to be used in leak detection processes.

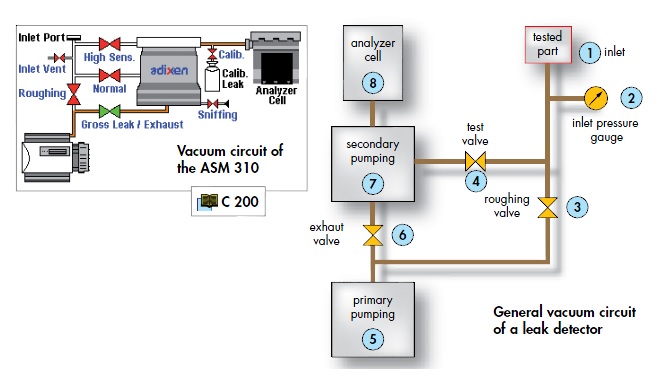

Utilizing the beneficial qualities of helium, a Helium Leak Detector pumps molecules of the gas into the device's analyzer cell through the use of vacuum pumps. The analyzer cell works on the principle of mass spectroscopy and measures the gas's partial pressure, displayed on the device's spectrometer. A higher reading indicates that a leak may be present, as represented by the quantity and concentration of helium molecules that have passed through a given space, as analyzed by the device. The leak detector converts this partial pressure of molecules into a flow rate. Helium leak detectors are known to be extremely precise and exhibit unparalleled accuracy in detecting leaks.
Click Here for Pfeiffer Vacuum Adixen ASM 310 Helium Leak Detector Operating Instructions.
A&J Vacuum Services offers full repair/service of Pfeiffer Adixen ASM 310 Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Backing Pump | With Oil-Free Backing Pump |
Backing Pump Capacity | 1.7 m³/h | 1 cfm | 28.33 l/min |
Detectable Gases | 4He, 3He, H2 |
Dimensions (L x W x H) | 350 x 254 x 415 mm | 13.78 x 10 x 16.34 inch |
Flange Model (Inlet) | DN 25 ISO-KF |
I/O Interfaces | Basic 15 pins I/O |
Minimum Detectable Leak Rate for Helium (Sniffing Leak Detection) | 1 * 10^[-8] Pa m^3/s | 7.5 * 10^[-8] Torr l/s | 1 * 10^[-7] mbar l/s |
Minimum Detectable Leak Rate for Helium (Vacuum Leak Detection) | 5 * 10^[-13] Pa m³/s |
Noise Level | < 45 dB(A) |
Power Consumption Max. | 300 W |
Pumping Speed for He | 1.1 l/s |
Response Time (Sniffing Leak Detection) | < 1 s |
Sound Pressure Level | <45 dB(A) |
Start-Up Time (20°C) with Calibration | < 3.5 min |
Start-up Time (20°C) without Calibration | < 2 min |
Supply | 90 – 240 V, 50/60 Hz |
Test Method | Vacuum and Sniffing Leak Detection |
User Interface | Graphic Color Touch Screen (Detachable) |
Weight | 21 kg | 46.3 lb |
Click Here for Pfeiffer Vacuum Adixen ASM 310 Helium Leak Detector Operating Instructions.
A&J Vacuum Services offers full repair/service of Pfeiffer Adixen ASM 310 Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
