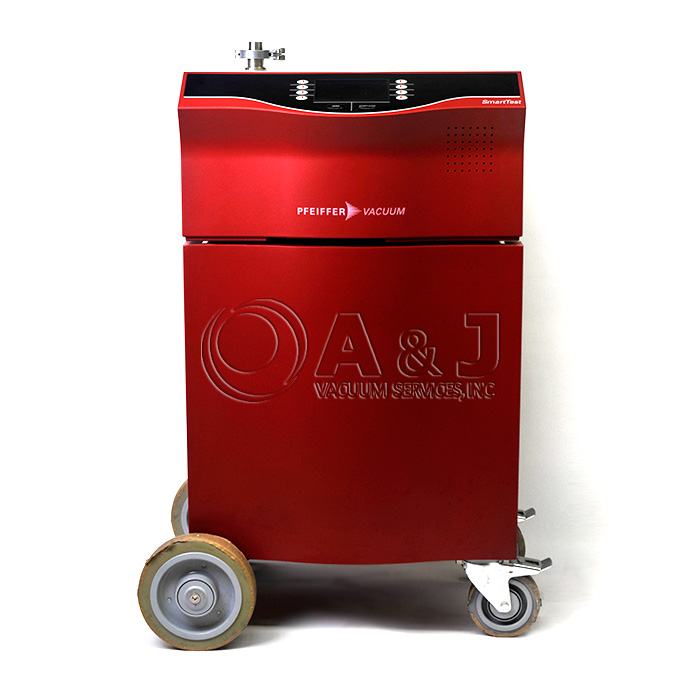

Pfeiffer HLT 572 SmartTest Helium Leak Detector with Cart and XtraDry Pump, 120 V, 50/60 Hz, PTL02161
Condition:
Demo
Out of Stock
Item#:PN00121
Mfr Part#:PTL02161
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:

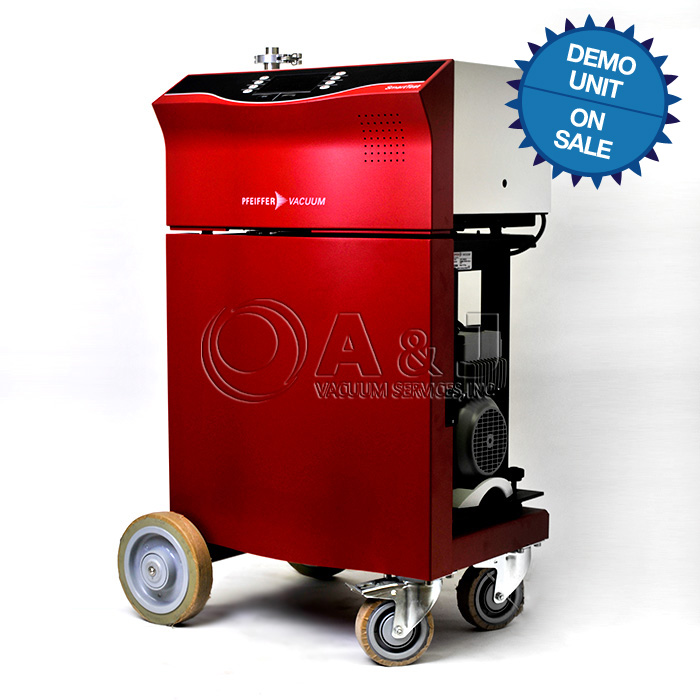

Demo Unit Pfeiffer HLT572 SmartTest Helium Leak Detector with Cart and XtraDry Pump, 120 V, 50/60 Hz, PTL02161
Pfeiffer HLT 572 Overview & Features:
- Rugged, dependable helium leak detector, absolutely oil-free
- For a mains voltage of 100-120 V, 50/60 Hz

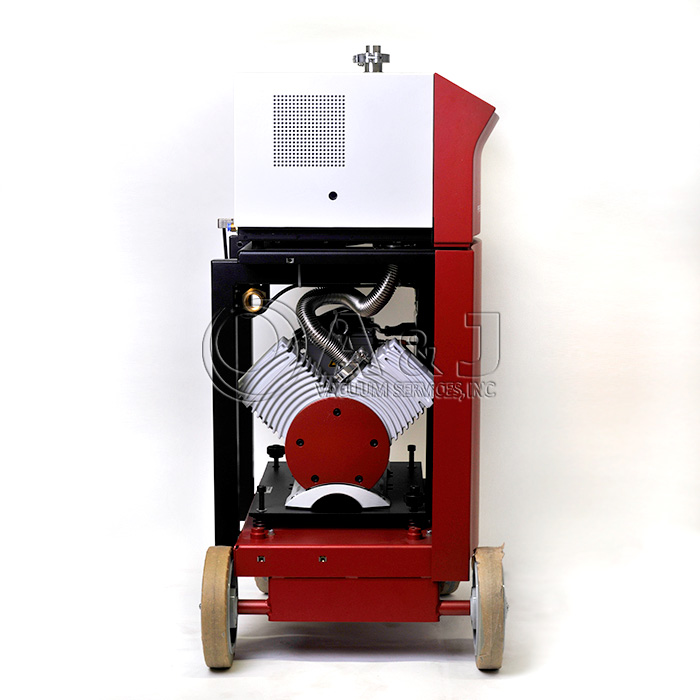

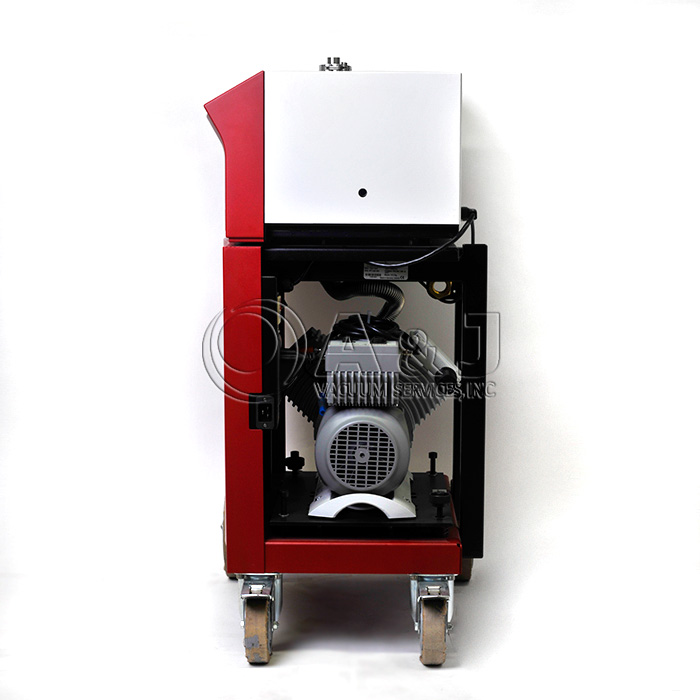

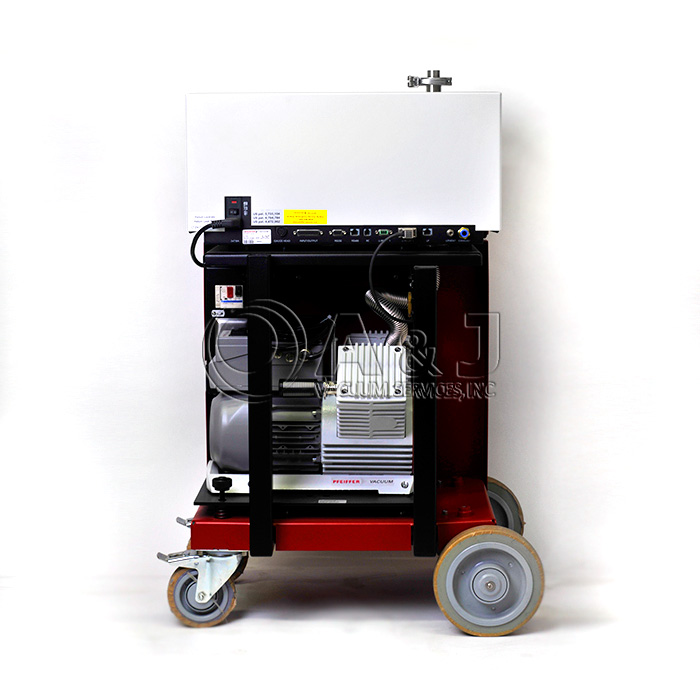

- HLT 572 with cart and 28 m3/h dry pump
- Very easy operation to achieve precise measuring results
- Analog and digital inputs and outputs for industrial use
- Durable and industry-tested mass spectrometer
- Integrated test leak
- Bypass option for large test items
- For sniffer and vacuum leak detection
- Simple maintenance - low cost of ownership
- Pfeiffer HLT 572 SmartTest Helium Leak Detector with Cart and XtraDry Pump, 120 V, 50/60 Hz, PTL02161
- Relay: Switching current 3 A
- Relay: Switching capacity 2x 230 VAC
- Output: Digital Ready to pump, Ready to measure, Leak, Error, Bypass valve, Calibration acknowledge
- Output: Analog Leak rate signal 2x 0-10 V, lin/log
- Weight 140 kg Interface RS-232-C, RS-485
- Power consumption 900 VA
- Ambient temperature - ºC
- Pumping speed: for He 2,5 l/s Inlet pressure max. 25 mbar
- Pumping time to ready: 100 l test volume 160 s
- Pumping time to ready: 10 l test volume 16 s
- Pumping time to ready: 0.5 l test volume 1 s
- Response time 0,5 s
- Cold start to ready 3 min
- Leak rate display 10-12 - 1 mbar l/s
- Detectable gases 4He, 3He, H2

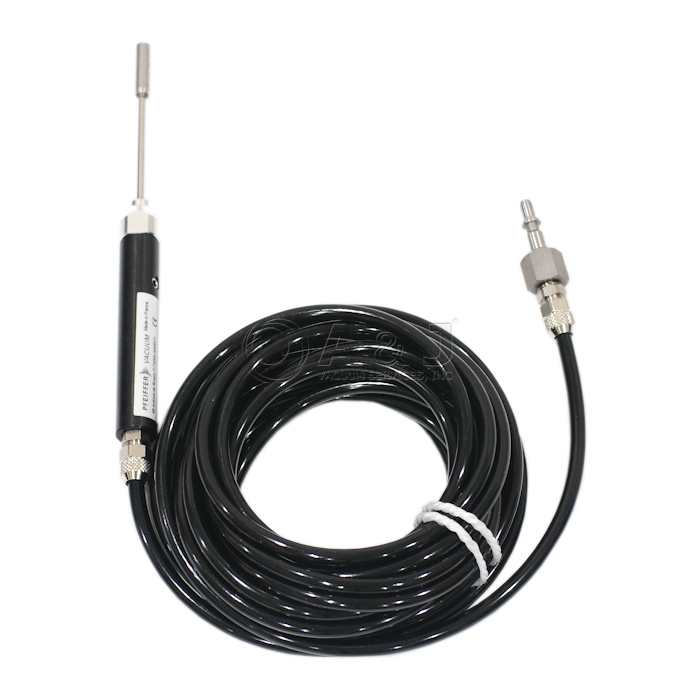

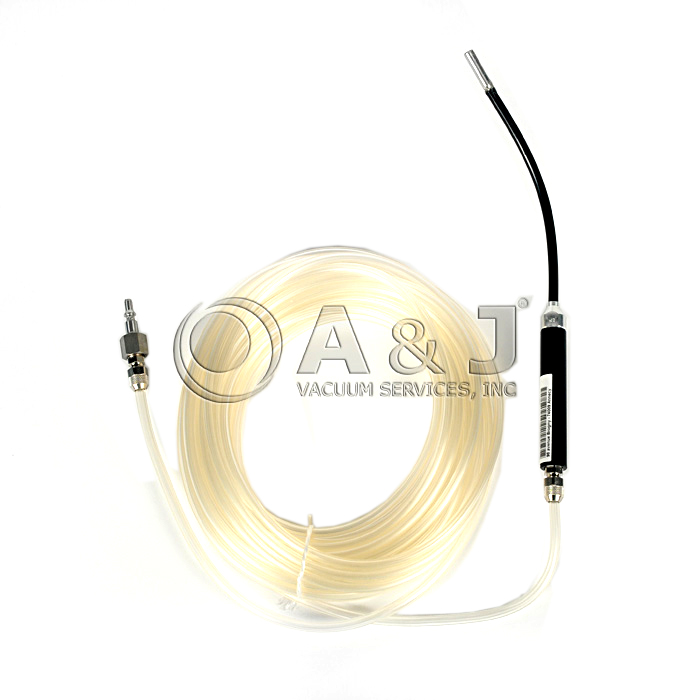

- Sniffer probe, detectable leak rate 5·10-8 mbar l/s
- Smallest detectable leak rate for 4He 5·10-12 mbar l/s
A&J Vacuum Services offers full repair/service of Pfeiffer HLT 572 SmartTest Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Demo Unit Pfeiffer HLT572 SmartTest Helium Leak Detector with Cart and XtraDry Pump, 120 V, 50/60 Hz, PTL02161
Pfeiffer HLT 572 Technical Data:
|
Smallest detectable leak rate for 4He 5·10-12 mbar l/s |
|
Sniffer probe, detectable leak rate 5·10-8 mbar l/s |
|
Detectable gases 4He, 3He, H2 |
|
Leak rate display 10-12 - 1 mbar l/s |
|
Cold start to ready 3 min |
|
Response time 0.5 s |
|
Pumping time to ready: 0.5 l test volume 1 s |
|
Pumping time to ready: 10 l test volume 16 s |
|
Pumping time to ready: 100 l test volume 160 s |
|
Pumping speed: for He 2,5 l/s Inlet pressure max. 25 mbar |
|
Ambient temperature - ºC |
|
Power consumption 900 VA |
|
Weight 140 kg Interface RS-232-C, RS-485 |
|
Output: Analog Leak rate signal 2x 0-10 V, lin/log |
|
Output: Digital Ready to pump, Ready to measure, Leak, Error, Bypass valve, Calibration acknowledge |
|
Relay: Switching capacity 2x 230 VAC |
|
Relay: Switching current 3 A |
|
Pfeiffer HLT 572 SmartTest Helium Leak Detector with Cart and XtraDry Pump, 120 V, 50/60 Hz, PTL02161 |
A&J Vacuum Services offers full repair/service of Pfeiffer HLT 572 SmartTest Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
