Adixen Pfeiffer ASM 142 Helium Leak Detector 100/115 VAC 50/60 Hz also known as Alcatel ASM142 P/N T0R00000B710 (Cart included)
Condition:
Remanufactured
Call us for Availability
Item#:PN17511
Mfr Part#:W0R00000B710
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Fully Re-manufactured Pfeiffer Adixen ASM 142 Portable Helium Leak Detector with cart, 100/115 VAC 50/60 Hz also known as Alcatel ASM142 P/N T0R00000B710
Adixen Pfeiffer ASM-142 Portable Leak Detector Overview:
The Pfeiffer Adixen ASM142 is a fully automatic, multi-purpose, portable (mobile cart included) or compact table top helium leak detector. The Adixen Pfeiffer ASM 142 unit consists of the robust Holweck molecular drag high vacuum pump with a large 7 CFM two-stage rotary vane roughing/backing pump. Ideally suited for repetitive or non-repetitive sequential testing for applications requiring high performance operation and reliability. These detectors are the end-result of an innovative engineering approach itilizing the latest electronics technologies and vacuum concepts, which make them a truly universal unit.
Alcatel Adixen ASM 142 Helium Leak Detector Features:
- Oil free leak detection with diaphragm backing pump
- 1.3 l/s helium pumping speed
- 110/130 V operating voltage
- US power cable
- Basic user interface and voice synthesizer in English
- Remote control and sniffer probe with various cable or tube lengths available as accessories
- High performances, such as, a roughing capacity of 7 CFM(60 l/mn) with a usable helium sensitivity
- Comprehensive control panel with two distinct areas
- Very rugged design, based on field-proven components

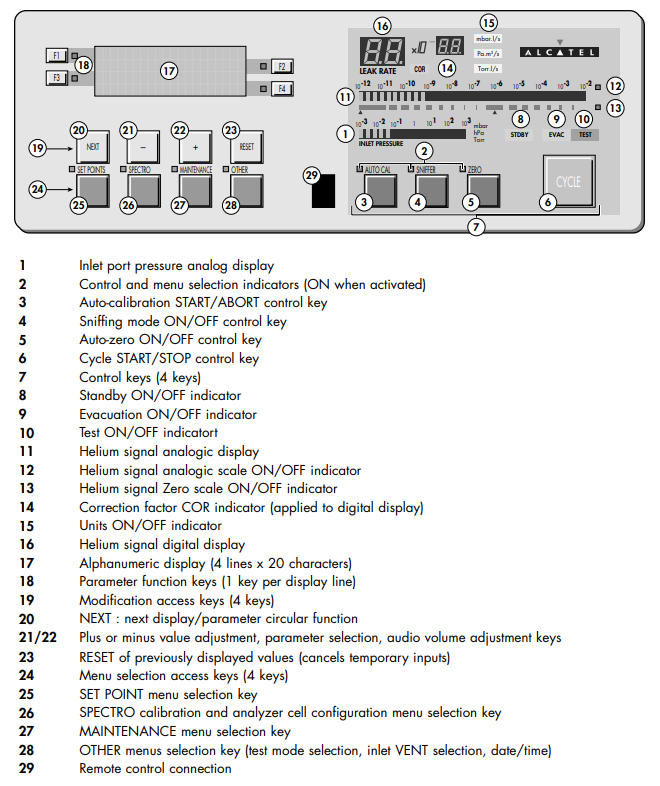

Pfeiffer ASM 142 Control Panel:

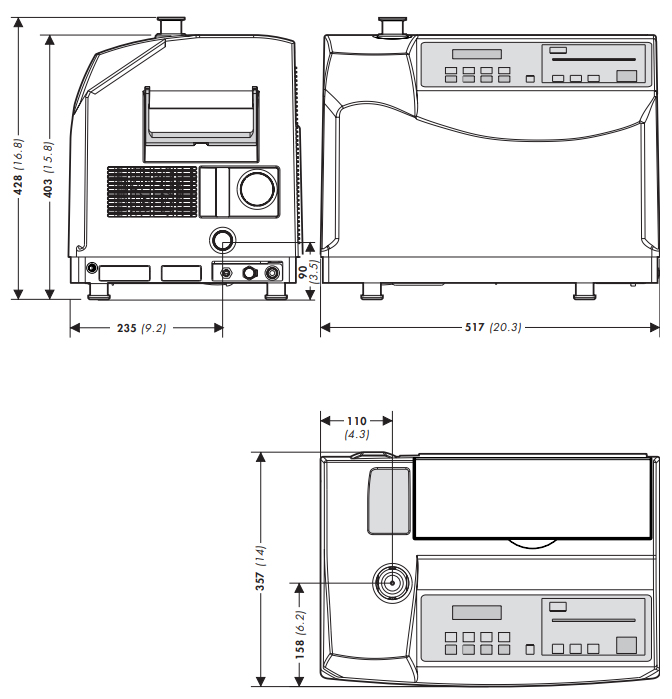

Pfeiffer ASM 142 Dimensions in mm(inch):
A&J Vacuum Services offers full repair/service of Pfeiffer ASM 142 Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Fully Re-manufactured Pfeiffer Adixen ASM 142 Portable Helium Leak Detector with cart, 100/115 VAC 50/60 Hz also known as Alcatel ASM142 P/N T0R00000B710
Pfeiffer ASM 142D Technical Data:
| Oil | Oil Lubricated Backing Pump |
| Backing Pump Capacity: | 15 m3/h |
| Detectable Gases: | 4He |
| Inlet Flange: | DN 25 ISO-KF |
| Mains Cable: | US Power Cable |
| Maximum Inlet Pressure: | 10 hPa / 7.5 Torr / 10 mbar |
| Minimum Detectable Leak Rate For Helium (Sniffing Leak Detection): | 1 x 10-8 Pa m3/s |
| Minimum Detectable Leak Rate For Helium (Vacuum Leak Detection): | 5 x 10-13 Pa m3/s |
| Noise Level: | 50 dB (A) |
| Pumping Speed for He: | 1.3 l/s |
| Supply: | 110-130 V, 50/60 Hz |
| Weight | 42 kg / 92.59 lbs |
A&J Vacuum Services offers full repair/service of Pfeiffer ASM 142D SmartTest Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
