Alcatel Adixen, Major Repair Kit for Adixen Pascal Series Vacuum Pump 2021 I, PN 103909FR

Condition: New

In Stock

Item#:PN09838

Mfr Part#:103909FR

Manufacturer:Adixen / Alcatel

PRICE:

$490.00

Web savings:

$30.00

YOU PAY:

$460.00

Add to cart

Request a repair estimate Request sales quote Financing available

New Alcatel Adixen, Major Repair Kit for Adixen Pascal Series Vacuum Pump 2021 I, PN 103909FR

Features:

Alcatel Adixen
Major Repair Kit
High Quality Parts
PN 103909FR

Overview
Specifications
Manuals
Exploded View
Service & Repair

Alcatel Adixen, Major Repair Kit for Adixen Pascal Series Vacuum Pump 2021 I, PN 103909FR

Overview

The Alcatel Adixen Major Repair Kit includes everything needed for major overhauls on the Alcatel Adixen Pascal Series 2021 I Pump.The parts included in the Alcatel Adixen Major Repair Kits for 2005, 2010, 2015, 2021 C1/C2/I pumps, are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen C1/C2/I Series Pump Models are available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen Pascal C1/C2/I Series Rotary Vane Vacuum Pumps.

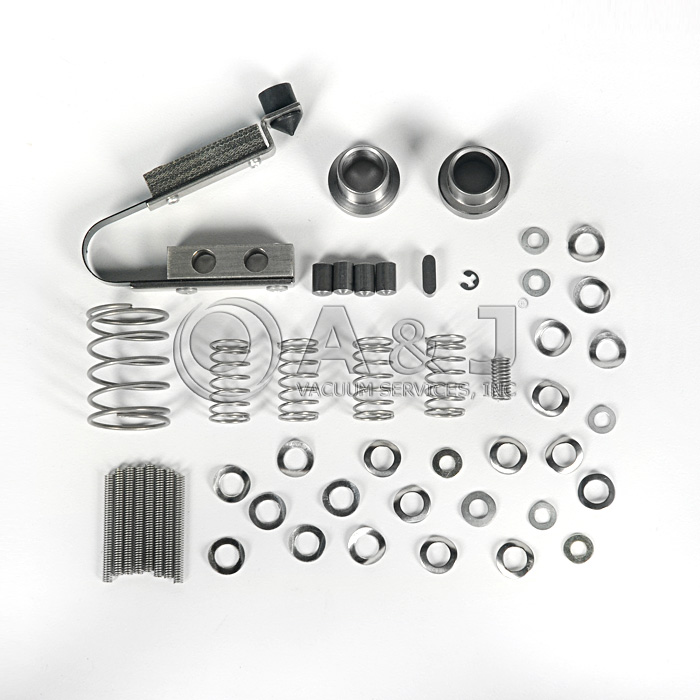

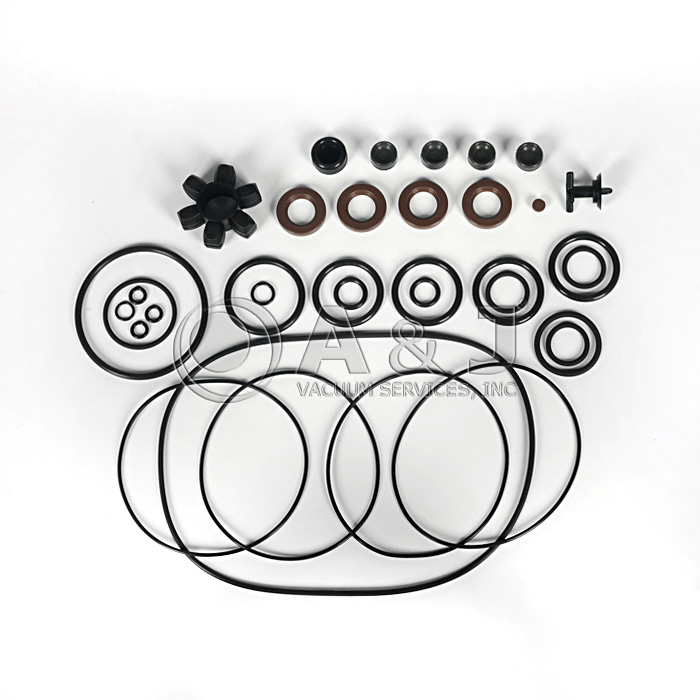

The Alcatel, Adixen Major Repair Kit for 2021 I Series Pump contains the following parts:

71161, C-CLIP, 2004/8/12/20AAC, QTY.1

52553 COUPLER, ELASTIC, 2004-20 A/AC, QTY.1

71067 KEY, SHAFT, QTY.1

340023 NIB, ANTISUCK BACK, VITON, QTY.1

82007 O'RING, VITON, 10.77 X 2.62 MM, QTY.1

320036 O'RING, VITON 12.1 X 2.7 MM, QTY.1

79148 O'RING, VITON, 165 X 3 MM, QTY.1

320035 O'RING, VITON, 17.12 X 2.62 MM, QTY.3

79506 O'RING, VITON, 212 X 3 MM, QTY.1

82025 O'RING, VITON, 29.3 X 3.6 MM, QTY.4

320109 O'RING, VITON, 33 X 2.5 MM, QTY.1

82014 O'RING, VITON, 34.1 X 3.6 MM, QTY.1

82004 O'RING, VITON, 5.7 X 1.9 MM, QTY.3

320067, O'RING, VITON, 63.09 X 3.53 MM, QTY.1

79537 O'RING, VITON, 7.5 X 1.5 MM, QTY.1

79513 O'RING, VITON, 90 X 2 MM, QTY.4

720007 PAD, FELT, 2010C2/155D/05C1/21C2, QTY.1

71040 PIN, CENTERING, 2004A-63AAC/C, QTY.4

82604 PLUG, DRAIN, PLASTIC, 2004A-2063C, QTY.3

25011 RING, SHOLDERED, 2015SD/05C1, QTY.1

82063 SEAL, SHAFT, VITON, QTY.4

65784 SIGHT GLASS, 2010/15/21CP, QTY.1

580031 SLEEVE, GAS, BALLAST, QTY.1

65797 SPRING, QTY.1

65799 SPRING, QTY.1

52541 SPRING, VALVE, QTY. 4

53040 SPRING, VALVE, MW, QTY.8

390007 VALVE DISK, VITON, QTY.4

65791 VALVE, FOR PASCAL PUMP, QTY.1

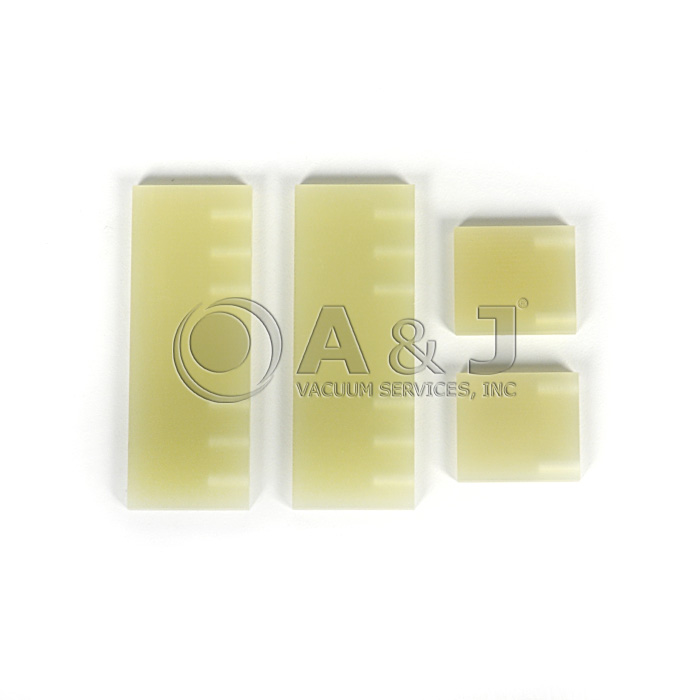

65759FR, VANE, GX, 1ST STAGE, QTY.2

65756FR, VANE, GX, 1ST STAGE, QTY.2

230044FR, VANE, GX, OIL PUMP, QTY.1

420029 WASHER, FLAT, STEEL, ZINK CHROMAT, QTY.2

84646 WASHER, WAVED, QTY.1

73460 WASHER, WAVED, S.S, M6, QTY.19

73452 WASHER, WAVED, STEEL, M4, QTY.4

73453 WASHER, WAVED, STEEL, M5, QTY.1

A & J Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, Models 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

Alcatel Adixen, Major Repair Kit for Adixen Pascal Series Vacuum Pump 2021 I, PN 103909FR

Overview

The Alcatel, Adixen Major Repair Kit for 2021 I Series Pump contains the following parts:

71161, C-CLIP, 2004/8/12/20AAC, QTY.1

52553 COUPLER, ELASTIC, 2004-20 A/AC, QTY.1

71067 KEY, SHAFT, QTY.1

340023 NIB, ANTISUCK BACK, VITON, QTY.1

82007 O'RING, VITON, 10.77 X 2.62 MM, QTY.1

320036 O'RING, VITON 12.1 X 2.7 MM, QTY.1

79148 O'RING, VITON, 165 X 3 MM, QTY.1

320035 O'RING, VITON, 17.12 X 2.62 MM, QTY.3

79506 O'RING, VITON, 212 X 3 MM, QTY.1

82025 O'RING, VITON, 29.3 X 3.6 MM, QTY.4

320109 O'RING, VITON, 33 X 2.5 MM, QTY.1

82014 O'RING, VITON, 34.1 X 3.6 MM, QTY.1

82004 O'RING, VITON, 5.7 X 1.9 MM, QTY.3

320067, O'RING, VITON, 63.09 X 3.53 MM, QTY.1

79537 O'RING, VITON, 7.5 X 1.5 MM, QTY.1

79513 O'RING, VITON, 90 X 2 MM, QTY.4

720007 PAD, FELT, 2010C2/155D/05C1/21C2, QTY.1

71040 PIN, CENTERING, 2004A-63AAC/C, QTY.4

82604 PLUG, DRAIN, PLASTIC, 2004A-2063C, QTY.3

25011 RING, SHOLDERED, 2015SD/05C1, QTY.1

82063 SEAL, SHAFT, VITON, QTY.4

65784 SIGHT GLASS, 2010/15/21CP, QTY.1

580031 SLEEVE, GAS, BALLAST, QTY.1

65797 SPRING, QTY.1

65799 SPRING, QTY.1

52541 SPRING, VALVE, QTY. 4

53040 SPRING, VALVE, MW, QTY.8

390007 VALVE DISK, VITON, QTY.4

65791 VALVE, FOR PASCAL PUMP, QTY.1

65759FR, VANE, GX, 1ST STAGE, QTY.2

65756FR, VANE, GX, 1ST STAGE, QTY.2

230044FR, VANE, GX, OIL PUMP, QTY.1

420029 WASHER, FLAT, STEEL, ZINK CHROMAT, QTY.2

84646 WASHER, WAVED, QTY.1

73460 WASHER, WAVED, S.S, M6, QTY.19

73452 WASHER, WAVED, STEEL, M4, QTY.4

73453 WASHER, WAVED, STEEL, M5, QTY.1

Alcatel Adixen SD Series Rotary Vane Pumps Operating Instructions / Manual

Pfeiffer Adixen SD Series Rotary Vane Pumps - Exploded View

Get started with your repair:

We can have a repair estimate ready for your equipment within the hour of submission.

Request a repair estimate

Start your equipment repair process by creating a Service RMA.

Generate Service RMA

High quality service guaranteed

A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.

We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

AJVS repair process:

Repair Steps

Full incoming inspection and run up time check, vibration check, drive inspection.
Full disassembly of the pump, decontamination and cleaning.
Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
