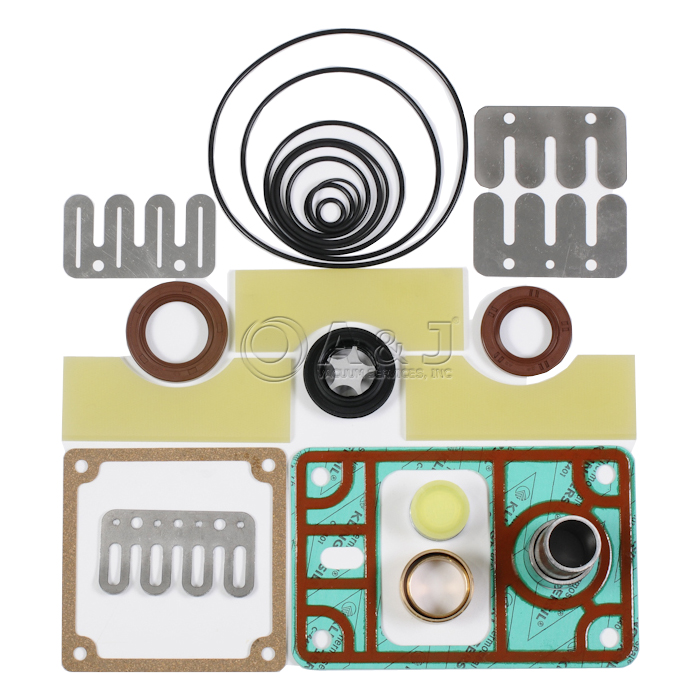

Agilent MS 40+ Maintenance Kit for MS40+ Vacuum Pump Repair / Service Kit, 9499203, AJVS
The Agilent MS 40+ Maintenance Kit is design to perform standard Maintenance service on MS40+ Vacuum pumps. Please reffer to Bill of Materials for list of parts.
MS 40+Vacuum Pump is environmentally-friendly and the latest from the experts in vacuum technologies. With a pumping speed of more than 45 m3/hour it's the highest in its class. Sophisticated electronics and excellent mechanical design allow high capacity roughing with a small footprint. General applications served by the MS40+ Filetr pump are electron microscopy, mass spectrometry including LC-MS/ICP-MS/ GC-TOF-MS and other scientific instrumentation.
Vacuum Pump Features:
- High capacity pumping speed with the smallest footprint
- Proven inverter technology
- Ideal for mass spectrometry and electron microscopy
- Lowest noise, highest throughput
- Environmentally friendly and cost-effective due to reduced power requirements
- I/O and RS232/RS485 enable adjustment of operating parameters simplifying system integration
9499203 – Maintencence Kit Contains the following parts;
|
Part no. |
Description |
Qty/kit |
|
310115 |
SEAL,SHAFT,30X47X7 |
1 |
|
310118 |
SEAL,SHAFT,25X42X7 |
1 |
|
300169 |
GASKET,CASE,BEADED BOTH SIDES |
1 |
|
300171 |
GASKET,CASE,CORK |
1 |
|
380034 |
VALVE,PLATE,W/BYPASS |
1 |
|
380035 |
VALVE,PLATE,W/SLOTS |
1 |
|
380036 |
VALVE,PLATE,4FINGER |
1 |
|
380037 |
STOP,VALVE,4FINGER |
1 |
|
230074 |
VANE,GX,MS40+ |
3 |
|
320169 |
O'Ring,Viton,113.97 X 2.62 mm |
1 |
|
320380 |
O'RING,VITON,60.00x2.62 |
1 |
|
320381 |
O'RING,VITON,50.52X1.78 |
1 |
|
320382 |
O'RING,VITON,44.12X2.62 |
1 |
|
40008 |
O'RING,VITON,18.72 X 2.62 MM |
2 |
|
82015 |
O'RING,VITON,9.19 X 2.62 MM |
1 |
|
320385 |
O'RING,VITON,34.60x2.62 |
1 |
|
320386 |
O'RING,VITON,88.57X2.62 |
1 |
|
83623 |
SIGHT GLASS,2060C |
1 |
|
430015 |
Plug,Oil,G1/2 |
1 |
|
612155A |
O'RING,VITON,21.95 X 1.78 MM |
1 |
A&J Vacuum Repair / Rebuild and Service Varian Agilent MS 40+ Vacuum Pumps and Turbo Pumps along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, Varian Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Overview:

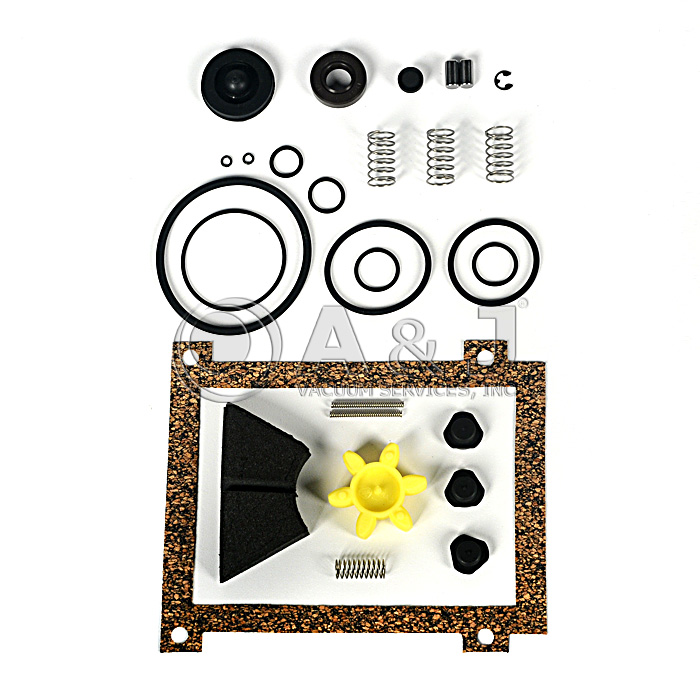

The Varian SD 700 Minor Repair / Rebuild Kit, for SD700 Vacuum Pump, 54285 Vacuum Pump Minor Repair Kit includes everything needed for minor overhauls on the Varian SD700 Rotary Vane Vacuum Pump. P1879301
Varian SD700 Minor Repair Kit / Rebuild Kit contains the following parts:
|
PN 54285 KIT,MINOR,1033/2033 |
||
|
PN |
Desc. |
Qty |
|
103306 |
GASKET,SIGHT GLASS |
1 |
|
105452R |
SIGHT GLASS,OIL,PLASTIC |
1 |
|
320067 |
O'RING,VITON,63.09 X 3.53 MM |
1 |
|
53443 |
VALVE,DISCHRG,VITON 2033/63C |
3 |
|
54091 |
COUPLER,ELSTC,BLUE,2030-2033C |
1 |
|
54114 |
SPRING,GAS BALLAST |
1 |
|
54128 |
GASKET,CASE,2033C |
1 |
|
54134 |
VALVE,EXHAUST,2033/63C |
1 |
|
54145 |
SPRING |
1 |
|
54149 |
SPRING |
1 |
|
54196 |
MEMBRANE,OIL PUMP |
1 |
|
54224 |
CLAPPER,2033/63 |
1 |
|
73446 |
WASHER,WAVED,S.S.,M10 |
4 |
|
73460 |
WASHER,WAVED,S.S.,M6 |
16 |
|
73461 |
WASHER,WAVED,S.S.,M8 |
23 |
|
79234 |
O'RING,BUNA,8 X 2 MM |
2 |
|
82108 |
O'RING,BUNA,9.19 X 2.62 MM |
1 |
|
82109 |
O'RING,BUNA,10.77 X 2.62 MM |
1 |
|
82112 |
O'RING,BUNA,15.54 X 2.62 MM |
1 |
|
65059 |
PAD,FELT,2033-2033CP+ |
1 |
|
65079 |
ASSY,SIGHT GLASS,2033/2063CP+ |
1 |
|
71188 |
C-CLIP,2033/63C |
2 |
|
71338 |
NUT |
1 |
|
75024 |
SCREW,SOCKET HEAD CAP,YLW CH |
1 |
|
76135 |
Sight glass, Window,W/seal |
1 |
|
76261 |
PIN,COTTER,2033/63 |
1 |
|
76261C |
C-CLIP,2033/63 |
1 |
|
79010 |
O'RING,BUNA,128 X 2 MM |
4 |
|
79051 |
O'RING,BUNA,41 X 3 MM |
1 |
|
79100 |
SEAL,SHAFT,BUNA |
3 |
|
79101 |
SEAL,SHAFT,VITON |
1 |
|
82024 |
O'RING,VITON,12.37 X 2.62 MM |
4 |
|
82122 |
O'RING,BUNA,29.3 X 3.6 MM |
1 |
|
82129 |
O'RING,BUNA,40.64 X 5.33 MM |
1 |
|
82604 |
PLUG,DRAIN,PLASTIC,2004A-2063C |
1 |
|
82925 |
PLUG,FILL,2033-2063C |
1 |
|
83633 |
O'RING,BUNA,38 X 2.5 MM |
1 |
|
84149 |
O'RING,BUNA,16 X 2 MM |
1 |
|
87926 |
O'RING,BUNA,44 X 3 MM |
1 |
|
87954 |
SPRING,VALVE |
3 |
|
54451G |
VANE,GX,OIL PUMP |
1 |
|
DRAWING |
Drawing Layout |
1 |
A&J Vacuum also repair / rebuild and service all Alcatel Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
THERE ARE NO RETURNS ON THIS PRODUCT.
Overview:
Varian SD90, Varian SD200, Varian SD300 and Varian SD450 Vacuum Pump Minor Repair / Rebuild Kit, includes everything needed for minor overhauls on Varian Rotary Vane Vacuum Pumps.
We also do minor and major repairs for all Alcatel Rotary Vane Vacuum Pumps.
Minor Maintenance Repair Kit, 52610 contains the following parts:
| DESCRIPTION | PART NO. | QTY |
| Valve Spring | 52541 | 4 |
| Coupling | 52553 | 1 |
| Fan Plate Gasket | 52555 | 1 |
| Exhaust Clapper | 52557 | 1 |
| Discharge Valve | 52655 | 4 |
| Case Gasket | 52755 | 1 |
| Felt Pad | 52990 | 1 |
| Washer | 73339 | 3 |
| O-Ring, 28 x 5 mm | 79238 | 1 |
| O-Ring, 82 x 2 mm | 82033 | 5 |
| Shaft Seal | 82063 | 4 |
| O-Ring, 26.57 x 3.53 mm | 82120 | 1 |
| O-Ring, 29.3 x 3.6 mm | 82122 | 1 |
| O-Ring, 38 x 2.5 mm | 83633 | 1 |
| C-Clip | 83653 | 2 |
| Gas Ballast Valve | 52562B | 1 |
| Gas Ballast Spring | 52563 | 1 |
| Gas Ballast Spring Ball | 52564 | 1 |
| Exhaust Clapper | 52642 | 1 |
| Retaining Pin | 54071 | 1 |
| Doweal Pin | 71050 | 1 |
| C-Clip | 71161 | 1 |
| Waved Washer | 73460 | 9 |
| Waved Washer | 73461 | 6 |
| O-Ring, 5 x 2 mm | 82105 | 1 |
| Gas Ballast Ball | 82522 | 1 |
| O-Ring, 16 x 2 mm | 84149 | 2 |
| White Front Locking Carton | U30007193 | 1 |
| Nib | 54340V | 1 |
A&J Vacuum also repair / rebuild and service all Varian Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
THERE ARE NO RETURNS ON THIS PRODUCT.
Varian SD 300 Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 52611FR
Overview:
Varian SD300, SD 300 Major Repair/Rebuild Kit includes everything needed for major overhauls on the Varian SD300 Rotary Vane Vacuum Pump.
A&J Vacuum also repair / rebuild and service all Varian Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Varian SD90 Major Repair / Rebuild Kit, 52614FR, for SD 90 Varian SD90 Vacuum Pump
Overview:
Varian SD90 Major Repair / Rebuild Kit, 52614FR includes everything needed for major overhauls on the Varian SD90 Rotary Vane Pump.
A&J Vacuum also repair / rebuild and service all Varian Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Varian SD90 Major Repair / Rebuild Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
| ASB Lever | 52750 | 1 |
| Valve Spring | A52541 | 2 |
| Coupling | A52553 | 1 |
| Fan Plate Gasket | A52555 | 1 |
| Exhaust Clapper | A52557 | 1 |
| Gas Ballast Valve - Viton | A52562 | 1 |
| Gas Ballast Valve - Buna | A52562B | 1 |
| Gas Ballast Spring | A52563 | 1 |
| Ball Spring | A52564 | 1 |
| Exhaust Clapper | A52642 | 1 |
| Exhaust Valve | A52655 | 2 |
| Oil Case Gasket | A52755 | 1 |
| Felt Pad | A52990 | 1 |
| Vane Spring | A53040 | 4 |
| Pin | A71050 | 1 |
| Clip | A71161 | 1 |
| Nut | A71211 | 4 |
| Nut | A71214 | 3 |
| Flat Washer M4 | A73339 | 3 |
| Waved Washer M6 | A73454 | 9 |
| Waved Washer M8 | A73455 | 6 |
| Stage O-Ring | A79030 | 5 |
| O-Ring | A79238 | 1 |
| O-Ring | A82056 | 1 |
| Viton Shaft Seal | A82063 | 3 |
| Double Lip Viton Shaft Seal | A82063-01 | 1 |
| O-Ring | A82105 | 1 |
| O-Ring | A82120 | 1 |
| O-Ring | A82122 | 1 |
| Steel Ball | A82522 | 1 |
| Drain Plug | A82604 | 2 |
| Sight Glass | A83546 | 1 |
| Clip | A83653 | 2 |
| 2nd Stage Vane | A83946G | 4 |
| O-Ring | A84149 | 2 |
THERE ARE NO RETURNS ON THIS PRODUCT.
Varian SD 200 Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 52613FR
Overview:
Varian SD200, SD 200 Major Repair/Rebuild Kit includes everything needed for major overhauls on the Varian SD200 Rotary Vane Vacuum Pump.
A&J Vacuum also repair / rebuild and service all Varian Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Varian SD-200 Major Repair/Rebuild Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
| ASB Lever | 52750 | 1 |
| Valve Spring | A52541 | 3 |
| Coupling | A52553 | 1 |
| Fan Plate Gasket | A52555 | 1 |
| Exhaust Clapper | A52557 | 1 |
| Gas Ballast Valve - Viton | A52562 | 1 |
| Gas Ballast Valve - Buna | A52562B | 1 |
| Gas Ballast Spring | A52563 | 1 |
| Ball Spring | A52564 | 1 |
| Exhaust Clapper | A52642 | 1 |
| Exhaust Valve | A52655 | 3 |
| Oil Case Gasket | A52755 | 1 |
| Felt Pad | A52990 | 1 |
| Vane Spring | A53040 | 6 |
| 1st Stage Vane | A53106G | 2 |
| Pin | A71050 | 1 |
| Clip | A71161 | 1 |
| Nut | A71211 | 4 |
| Nut | A71214 | 3 |
| Flat Washer M4 | A73339 | 3 |
| Waved Washer M6 | A73454 | 9 |
| Waved Washer M8 | A73455 | 6 |
| Stage O-Ring | A79030 | 5 |
| O-Ring | A79238 | 1 |
| O-Ring | A82056 | 1 |
| Viton Shaft Seal | A82063 | 3 |
| Double Lip Viton Shaft Seal | A82063-01 | 1 |
| O-Ring | A82105 | 1 |
| O-Ring | A82120 | 1 |
| O-Ring | A82122 | 1 |
| Steel Ball | A82522 | 1 |
| Drain Plug | A82604 | 2 |
| Sight Glass | A83546 | 1 |
| Clip | A83653 | 2 |
| 2nd Stage Vane | A83946G | 2 |
| O-Ring | A84149 | 2 |
THERE ARE NO RETURNS ON THIS PRODUCT.

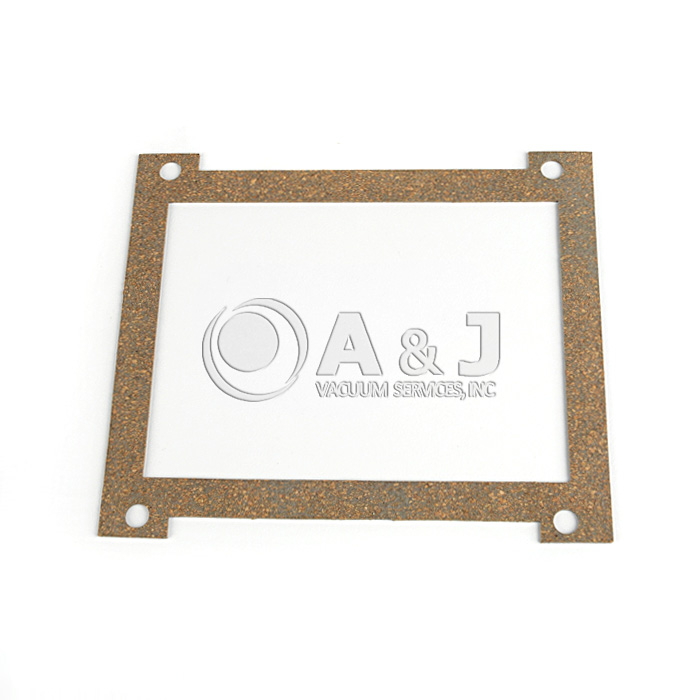

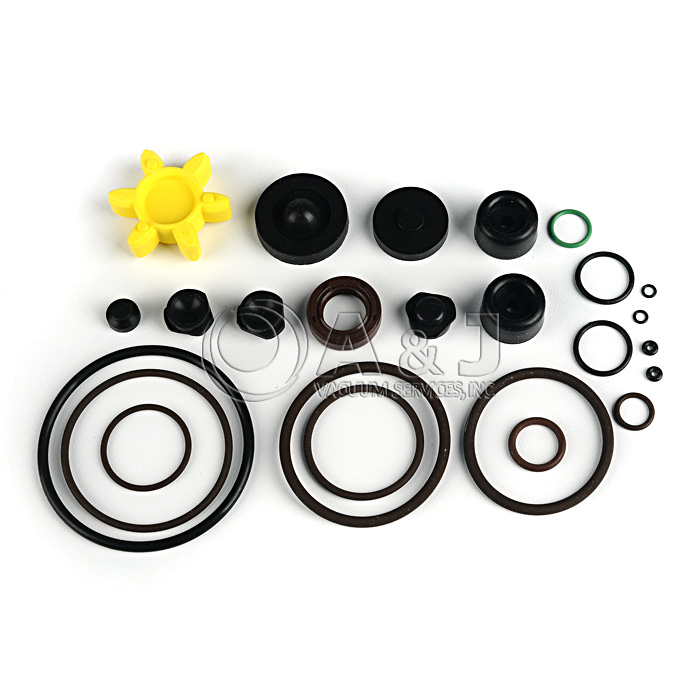

Varian DS 42 / Agilent DS42 Minor Maintenance Service Seal kit, 985700212042, Agilent DS-42
Engineered to meet or exceed OEM specifications, our kits and spares re designed part for part, providing you the same quality components you would find in OEM kits, but at fraction of the cost.
A&J Vacuum also repair / rebuild and service allVarian DS 42 / Agilent DS42 Vacuum Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Varian SD 450 Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 52982FR
Overview:
The Varian SD450 Major Repair/Rebuild Kit includes everything needed for major overhauls on the Varian SD450 Rotary Vane Vacuum Pump.
A&J Vacuum also repair / rebuild and service all Alcatel Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Varian SD450 Major Repair/Rebuild Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
|
ASB Lever |
52750 |
1 |
|
Valve Spring |
A52541 |
4 |
|
Coupling |
A52553 |
1 |
|
Fan Plate Gasket |
A52555 |
1 |
|
Exhaust Clapper |
A52557 |
1 |
|
Gas Ballast Valve - Viton |
A52562 |
1 |
|
Gas Ballast Valve - Buna |
A52562B |
1 |
|
Gas Ballast Spring |
A52563 |
1 |
|
Ball Spring |
A52564 |
1 |
|
Exhaust Clapper |
A52642 |
1 |
|
Exhaust Valve |
A52655 |
4 |
|
Oil Case Gasket |
A52755 |
1 |
|
2nd Stage Vane |
A52958G |
2 |
|
1st Stage Vane |
A52959G |
2 |
|
Felt Pad |
A52990 |
1 |
|
Vane Spring |
A53040 |
8 |
|
Pin |
A71050 |
1 |
|
Clip |
A71161 |
1 |
|
Nut |
A71211 |
4 |
|
Nut |
A71214 |
3 |
|
Flat Washer M4 |
A73339 |
3 |
|
Waved Washer M6 |
A73454 |
9 |
|
Waved Washer M8 |
A73455 |
6 |
|
Stage O-Ring |
A79030 |
5 |
|
O-Ring |
A79238 |
1 |
|
O-Ring |
A82056 |
1 |
|
Viton Shaft Seal |
A82063 |
3 |
|
Double Lip Viton Shaft Seal |
A82063-01 |
1 |
|
O-Ring |
A82105 |
1 |
|
O-Ring |
A82120 |
1 |
|
O-Ring |
A82122 |
1 |
|
Steel Ball |
A82522 |
1 |
|
Drain Plug |
A82604 |
2 |
|
Sight Glass |
A83546 |
1 |
|
Clip |
A83653 |
2 |
|
O-Ring |
A84149 |
2 |
Overview:
The Varian SD700 Major Repair / Rebuild Kit includes everything needed for major overhauls on theVarian SD700 Rotary Vane Vacuum Pump.
A&J Vacuum also repair / rebuild and service all Alcatel Vacuum and Turbo Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Varian SD 700 Major Repair/Rebuild Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
| Viton Valve | A53443 | 3 |
| Coupling | A54091 | 1 |
| Gas Ballast Spring | A54114 | 1 |
| Oil Case Gasket | A54128 | 1 |
| Exhaust Valve | A54134 | 1 |
| Spring | A54145 | 1 |
| Spring | A54149 | 1 |
| Membrane | A54196 | 1 |
| Clapper | A54224 | 1 |
| Oil Pump Vane | A65044 | 1 |
| Felt Pad | A65059 | 1 |
| Centering Pin | A71040 | 9 |
| C-Clip | A71188 | 2 |
| Nut | A71214 | 17 |
| Waved Washer M5 | A73453 | 1 |
| Waved Washer M6 | A73454 | 16 |
| Waved Washer M8 | A73455 | 23 |
| Waved Washer M10 | A73456 | 4 |
| Socket Head Screw | A75024 | 1 |
| Oil Sight Glass | A76135 | 1 |
| Stage O-Ring | A79010 | 4 |
| O-Ring | A79051 | 1 |
| Viton Shaft Seal | A79101 | 4 |
| O-Ring | A79234 | 2 |
| O-Ring | A82024 | 4 |
| O-Ring | A82056 | 1 |
| O-Ring | A82108 | 1 |
| O-Ring | A82109 | 1 |
| O-Ring | A82112 | 1 |
| O-Ring | A82122 | 1 |
| O-Ring | A82129 | 1 |
| Drain Plug | A82604 | 1 |
| Fill Plug | A82925 | 1 |
| O-Ring | A84149 | 1 |
| O-Ring | A87926 | 1 |
| 1st Stage Vane | A87941G | 2 |
| Vane Spring | A87942 | 9 |
| Vane Spring | A87954 | 3 |
| 2nd Stage Vane | A87996G | 2 |
THERE ARE NO RETURNS ON THIS PRODUCT.
Varian DS 42 Coupling Element (Spider) 360071, DS-42 (Varian only) NOT for Agilent DS42
Engineered to meet or exceed OEM specifications, our kits and spares re designed part for part, providing you the same quality components you would find in OEM kits, but at fraction of the cost.
A&J Vacuum also repair / rebuild and service all Varian DS42 / Agilent DS 42 Vacuum Pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
