The Pfeiffer Vacuum Uno/Duo 2.5A, UNO 5 Rotary Vane Vacuum Pump Set of Seals includes everything needed for minor overhauls on the Pfeiffer Vacuum Uno/Duo Rotary Vane Vacuum Pump.
We also do minor and major repairs for all Pfeiffer Vacuum Rotary Vane Vacuum Pumps.
THERE ARE NO RETURNS ON THIS PRODUCT.
DESCRIPTION | PART NO. | QTY |
O-Ring, 10.3 x 2.4 mm | 79569 | 2 |
Gasket Ring | 300057 | 1 |
Case Gasket | 194081 | 1 |
Single Lip Shaft Seal | 310061 | 1 |
O-Ring, 16 x 1 mm | 320174 | 2 |
O-Ring, 15 x 1.5 mm | 320176 | 1 |
O-Ring, 5 x 1.5 mm | 4070065 | 1 |
O-Ring, 6 x 2.2 mm | 4070088 | 3 |
O-Ring, 15 x 2.5 mm | 4070259 | 1 |
O-Ring, 18 x 5 mm | 4070321 | 3 |
O-Ring, 24 x 2.5 mm | 4070420 | 1 |
O-Ring, 22 x 1.5 mm | 23970016 | 2 |
O-Ring, 8 x 2 mm | 23970149 | 1 |
O-Ring, 2.1 x 1 mm | 320210 | 1 |
Case Gasket | 300165 | 1 |
Felt Ring | 300166 | 1 |
Part Number
|
Description
|
Quantity
|
230063 | Vane |
4
|
230064 | Vane |
1
|
420043 | Coupling |
1
|
490036 | Spring |
4
|
490041 | Spring |
1
|
490046 | Spring |
1
|
500015 | Sight Glass |
1
|
570002 | Valve Plate |
1
|
580042 | Valve Flap |
1
|
580043 | Valve Flap |
1
|
580044 | Piston |
1
|
79569 | O-Ring, 10.3 x 2.4 mm |
2
|
300057 | Gasket |
1
|
310061 | Shaft Seal |
1
|
320174 | O-Ring, 16 x 1 mm |
2
|
320176 | O-Ring, 15 x 1.5 mm |
1
|
4070065 | O-Ring, 5 x 1.5 mm |
1
|
4070088 | O-Ring, 6 x 2.2 mm |
3
|
4070259 | O-Ring, 15 x 2.5 mm | 1 |
4070321 | O-Ring, 18 x 5 mm | 3 |
4070420 | O-Ring, 24 x 2.5 mm | 1 |
23970016 | O-Ring, 22 x 1.5 mm | 2 |
23970149 | O-Ring, 8 x 2 mm | 1 |
194081 | Gasket | 1 |
320210 | O-Ring, 2.1 x 1 mm | 1 |
360055 | Half Coupling | 1 |
300165 | Gasket | 1 |
300166 | Felt Ring | 1 |
A&J Vacuum Rrepair / Rebuild and Service Pfeiffer DUO 2.5 Vacuum pumps, Pfeiffer Adixen Turbo Pumping Stations along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
A&J Vacuum Services offers full repair/service of Pfeiffer Turbo Pumps, along with all other brands offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
The Pfeiffer Vacuum Uno/Duo 1.5A Rotary Vane Vacuum Pump Minor Repair / Rebuild Kit includes everything needed for minor overhauls on the Pfeiffer Vacuum Uno/Duo 1.5 Rotary Vane Vacuum Pump.
We also do minor and major repairs for all Pfeiffer Vacuum Rotary Vane Vacuum Pumps.
This Seal Set Includes:
Part Number
|
Description
|
Quantity
|
79569 | O-Ring, 10.3 x 2.4 mm |
1
|
194109 | Sight Glass Gasket |
1
|
320177 | O-Ring, 18 x 2 mm |
1
|
320180 | O-Ring, 25 x 3 mm |
1
|
320181 | O-Ring, 48.9 x 2.62 mm |
1
|
320182 | O-Ring, 75 x 3 mm |
1
|
320215 | O-Ring, 88 x 3 mm |
1
|
360054 | Coupling |
1
|
4070088 | O-Ring, 6 x 2.2 mm |
1
|
4070259 | O-Ring, 15 x 2.5 mm |
1
|
4070542 | O-Ring, 32 x 3 mm |
2
|
4071536 | O-Ring, 165 x 3 mm |
1
|
23963115 | O-Ring, 38 x 3 mm |
1
|
23970149 | O-Ring, 8 x 2 mm |
1
|
23970211 | O-Ring, 50 x 3 mm |
1
|
23970410 | O-Ring, 22 x 3 mm |
1
|
23970436 | O-Ring, 27 x 2.5 mm |
1
|
02124025 | O-Ring, 28 x 5 mm |
2
|
We Also Service and Repair ALL Pfeiffer Vacuum Rotary Vane Pumps.
THERE ARE NO RETURNS ON THIS PRODUCT.

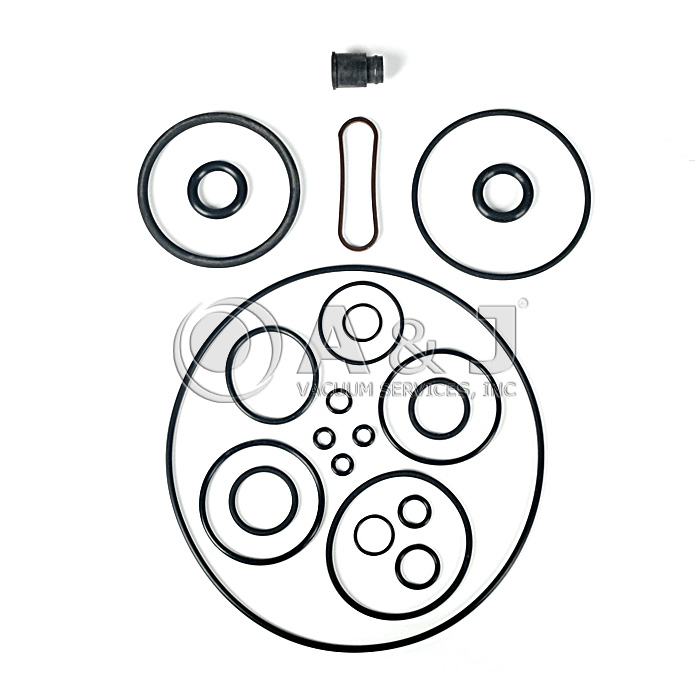

This Pfeiffer DUO 5 M Seal Set Includes:
Part Number
|
Description
|
Quantity
|
79569 | O-Ring, 10.3 x 2.4 mm |
1
|
194109 | Sight Glass Gasket |
1
|
320176 | O-Ring, 15 x 1.5 mm |
2
|
320180 | O-Ring, 25 x 3 mm |
1
|
320181 | O-Ring, 48.9 x 2.62 mm |
1
|
320182 | O-Ring, 75 x 3 mm |
1
|
360054 | Coupling |
1
|
4070088 | O-Ring, 6 x 2.2 mm |
3
|
4070259 | O-Ring, 15 x 2.5 mm |
1
|
4070321 | O-Ring, 18 x 5 mm |
2
|
4070874 | O-Ring, 59 x 3 mm |
1
|
4070949 | O-Ring, 65 x 5 mm |
1
|
4071536 | O-Ring, 165 x 3 mm |
1
|
23963115 | O-Ring, 38 x 3 mm |
1
|
23970149 | O-Ring, 8 x 2 mm |
1
|
23970410 | O-Ring, 22 x 3 mm |
1
|
23970436 | O-Ring, 27 x 2.5 mm |
1
|
We Also Service and Repair ALL Pfeiffer Vacuum Rotary Vane Pumps.
Pfeiffer DUO20 Seal Kit Includes:
Part Number
|
Description
|
Quantity
|
194109 | Sight Glass Gasket |
1
|
320212 | O-Ring, 62 x 2.5 mm |
1
|
320213 | O-Ring, 205 x 3 mm |
1
|
360054 | Coupling |
1
|
900178 | O-Ring, 26 x 3 mm |
1
|
4070088 | O-Ring, 6 x 2.2 mm |
3
|
4070259 | O-Ring, 15 x 2.5 mm |
2
|
4070542 | O-Ring, 32 x 3 mm |
2
|
23949217 | O-Ring, 100 x 3 mm |
2
|
23963115 | O-Ring, 38 x 3 mm |
1
|
23970149 | O-Ring, 8 x 2 mm |
1
|
23970211 | O-Ring, 50 x 3 mm |
1
|
23970436 | O-Ring, 27 x 2.5 mm |
1
|
48652700 | O-Ring, 66 x 2 mm |
1
|
02124025 | O-Ring, 28 x 5 mm |
2
|
We Also Service and Repair ALL Pfeiffer Vacuum Rotary Vane Pumps.
THERE ARE NO RETURNS ON THIS PRODUCT.
This Kit is also suitable for Special Agilent DUO 2.5 pump, P/N PKD41062 G Revision Only, G3870-80055
The set of seals contains all seals including all O-rings of the assembly groups and the subassemblies.
We Also Service and Repair ALL Pfeiffer Vacuum Rotary Vane Pumps.
Click Here for Pfeiffer DUO 1.6 Manual
Click Here for Pfeiffer DUO 3 Manual
A&J Vacuum Services offers full repair/service of Pfeiffer Rotary Vane Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This Kit is also suitable for Special Agilent DUO 2.5 pump, P/N PKD41062 G Revision Only, G3870-80055
Click Here for Pfeiffer DUO3 Operation Manual
A&J Vacuum repair / rebuild and service all Pfeiffer DUO3, DUO 3 PKD57711 Pumps along with all other Pfeiffer DUO 2.5 Vacuum Pumps and all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
