Ulvac DAT-50D Vacuum Pump Rebuild Kit, 1036450
THERE ARE NO RETURNS ON THIS PRODUCT.
Ulvac GLD 202 AA/BB Rotary Vane Pump Major Rebuild Kit, 1053536
This repair kit is compatible with the following pumps:
GLD-202AA/BB
Ulvac G-100 / G-101D / G-100DB Vacuum Pump Rebuild Kit, 1034635
The Ulvac G-100/101D Rebuild Kit contains the following parts:
|
Spring φ10×22 |
4 |
|
O-ring S-24 |
1 |
|
O-ring S-55 |
1 |
|
O-ring P-8 |
1 |
|
O-ring P-12 |
1 |
|
O-ring P-24 |
1 |
|
O-ring V-160 1 |
1 |
|
Oil Seal HTC-17-40-9 |
1 |
|
Oil Seal SC-17-30-7 |
1 |
|
Oil Seal SC-15-30-7 |
1 |
|
Vane Spring φ2.4×24 |
8 |
|
No. 1 Vane 62×15.5×t6 |
2 |
|
No. 2 Vane 20×14×t6 |
2 |
|
Oil Level Gauge |
1 |
|
Teflon Tube O.D.1/8 |
1 |
|
Bearing 6203 Open |
1 |
|
Bearing 6002 Open |
1 |
|
Sleeve SN1/8 |
2 |
|
Middle Pin φ2×φ3.4×27 |
4 |
|
Coupling |
1 |
A&J Vacuum Repairs / Rebuilds and Services Vacuum Pumps including Turbo Pumps and Rotary Vane Pumps, Dry Pumps, Puming Stations. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

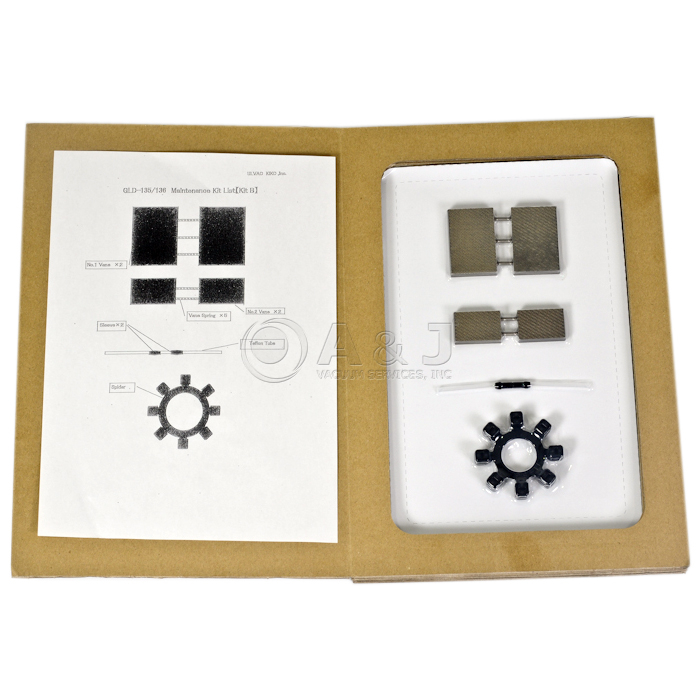

Ulvac GLD 135 and GLD 136 Rotary Vane Vacuum Pump Major Rebuild Kit, 103465
This repair kit is compatible with the following pumps:
GLD-135 / GLD135
GLD-136 / GLD136
GLD-136A / GLD136A
GLD-136B / GLD136B
GLD-136C / GLD136C
THERE ARE NO RETURNS ON THIS PRODUCT.

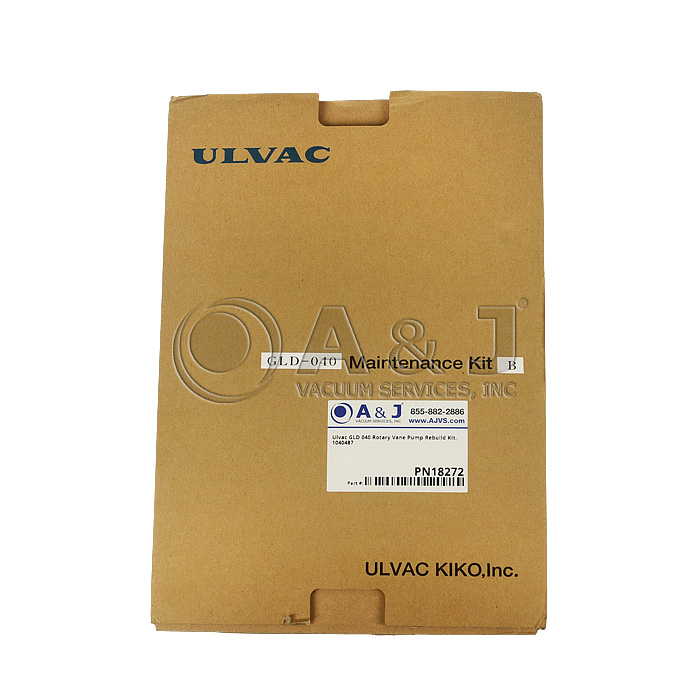

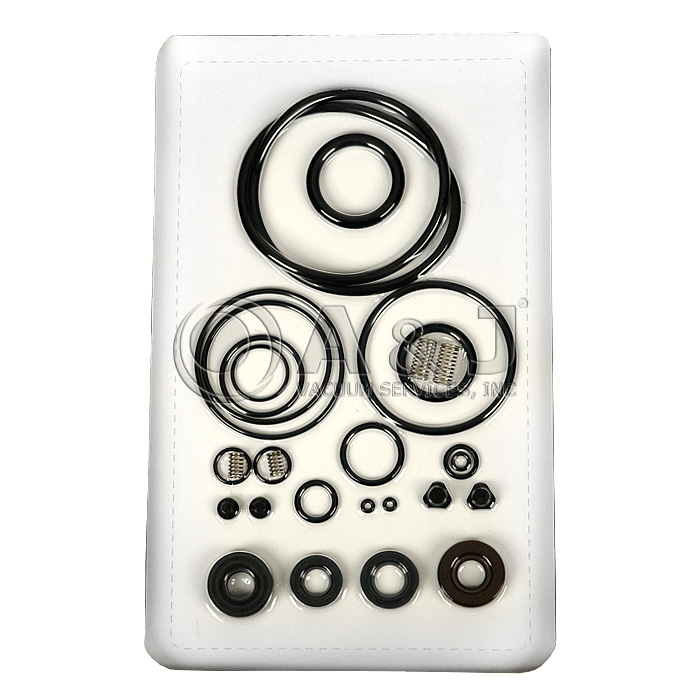

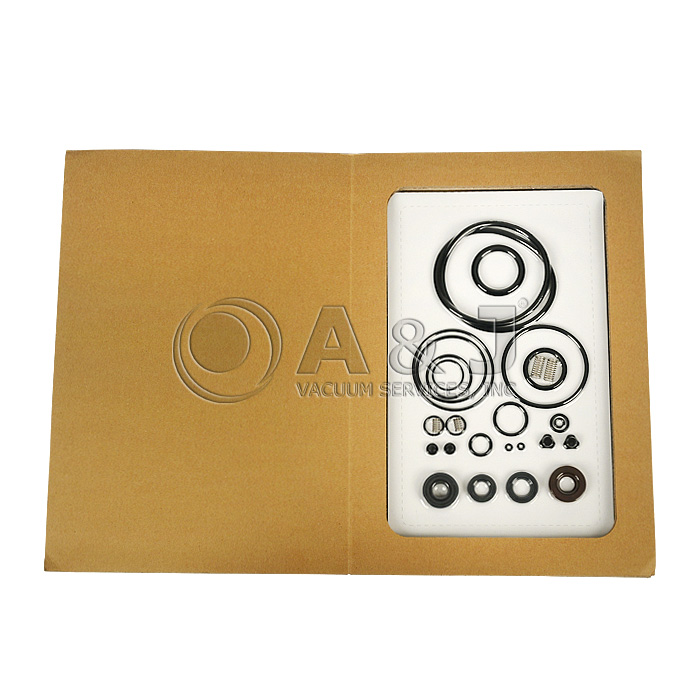

Ulvac GLD 040 Rotary Vane Vacuum Pump Rebuild Kit.
THERE ARE NO RETURNS ON THIS PRODUCT.
Ulvac GHD 031 Rotary Vane Vacuum Pump Rebuild Kit.
THERE ARE NO RETURNS ON THIS PRODUCT.
ULVAC PKS 016 Oil Rotary Vacuum Pump Rebuild Kit, NBR, 1001771, PKS-016
ULVAC PKS-016 Major kit is the original OEM service kit.
Ulvac PKS-016 / NBR Rubber / 1041609 Pump Overview:
The ULVAC PKS-016 Series Rotary Piston Pumps are designed for industrial applications use. The Ulvac PKS-016 Series Pumps are oil units best suitable for small floor space. The ULVAC PKS-016 pumps are carefully engineered providing extreme durability and stable pumping performance.
The ULVAC PKS016 Series operates by moving the slide vane on the vane guide part in a piston motion by rotation of eccentric rotor, thereby volume of the space surrounded by slide vane and cylinder is varied and exhausted. Robust and comparatively strong for foreign materials. Workable for long term with appropriate regular maintenance.
A&J Vacuum Services / rebuilds and repairs all Ulvac vacuum pumps. We service all Ulvac PKS-016, PKS-030, PKS-070 Series pumps, including rotary vane and rotary piston pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
ULVAC PKS 016 Oil Rotary Vacuum Pump Rebuild Kit, Viton, 1041609, PKS-016
ULVAC PKS-016 Major kit is the original OEM service kit.
ULVAC PKS-016 Pump Overview:
The ULVAC PKS-016 Series Rotary Piston Pumps are designed for industrial use. The ULVAC PKS-016 Series Pumps are oil units best suitable for small floor space. The PKS-016 pumps are carefully engineered providing extreme durability and stable pumping performance.
The Ulvac PKS Series operates by moving the slide vane on the vane guide part in a piston motion by rotation of eccentric rotor, thereby volume of the space surrounded by slide vane and cylinder is varied and exhausted. Robust and comparatively strong for foreign materials. Workable for long term with appropriate regular maintenance.
A&J Vacuum Services / rebuilds and repairs all Ulvac vacuum pumps. We service all Ulvac PKS-016, PKS-030, PKS-070 Series pumps, including rotary vane and rotary piston pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Ulvac D-650K/DK Rebuild Kit, 1001804
THERE ARE NO RETURNS ON THIS PRODUCT.
Ulvac VD 301 and VD 401 Rotary Vane Vacuum Pump Rebuild Kit, Vanes Not Included.
|
REBUILD KIT VD-301/401 |
|
1set |
|
|
1 |
VALVE PLATE (1) |
SUS410M |
1 |
|
2 |
VALVE PLATE (2) |
|
1 |
|
3 |
GASKET FOR EXHAUST VALVE (2) |
KLINGER |
1 |
|
4 |
GASKET FOR DISTRIBUTION VALVE |
FKM |
1 |
|
5 |
SPRING FOR EXHAUST VALVE PLATE (1) |
|
1 |
|
6 |
OIL SEAL |
HTC24408 FKM |
1 |
|
7 |
OIL SEAL |
SCY24408 FKM |
2 |
|
8 |
O-RING |
V-55 D4x54.5 FKM |
2 |
|
9 |
O-RING |
P-10A D2.4xID9.8 FKM |
1 |
|
10 |
O-RING |
P-18 D2.4xID17.8 FKM |
1 |
|
11 |
O-RING |
P-36 D3.5xID35.7 FKM |
2 |
|
12 |
O-RING |
P-40 D3.5xID39.7 FKM |
1 |
|
13 |
O-RING |
S-8 D1.5xID7.5 FKM |
3 |
|
14 |
O-RING |
S-18 D1.5xID17.5 FKM |
1 |
|
15 |
O-RING |
S-60 D2xID59.5 FKM |
1 |
|
16 |
O-RING |
S-105 D2x104.5 FKM |
3 |
|
17 |
O-RING |
ISO-267 D3.5xID209.14 FKM |
1 |
|
18 |
COUPLING RUBBER |
M-84 |
1 |
|
19 |
OIL LEVEL GAUGE ASSY |
FKM |
1 |
THERE ARE NO RETURNS ON THIS PRODUCT.
