Overview:

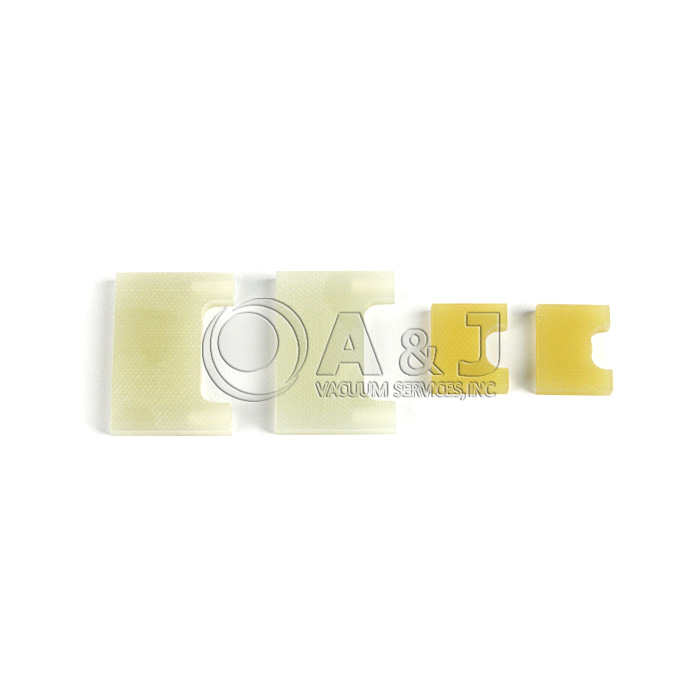

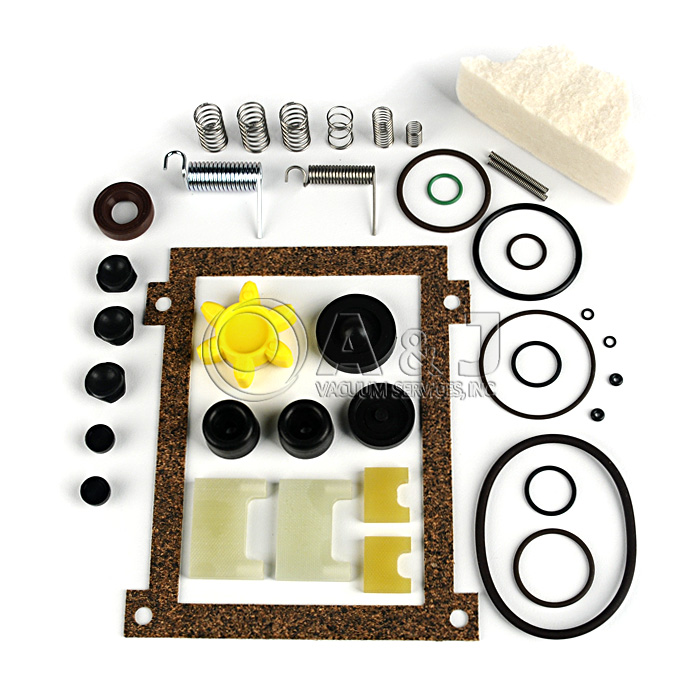

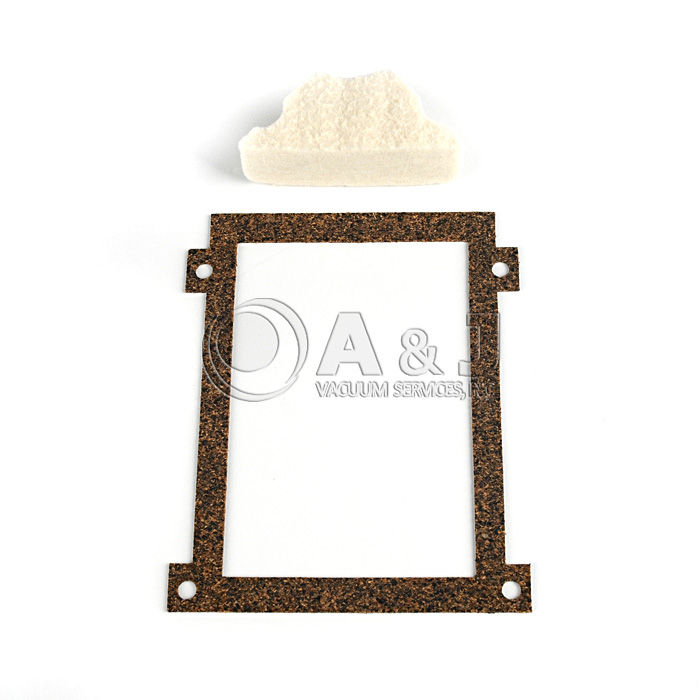

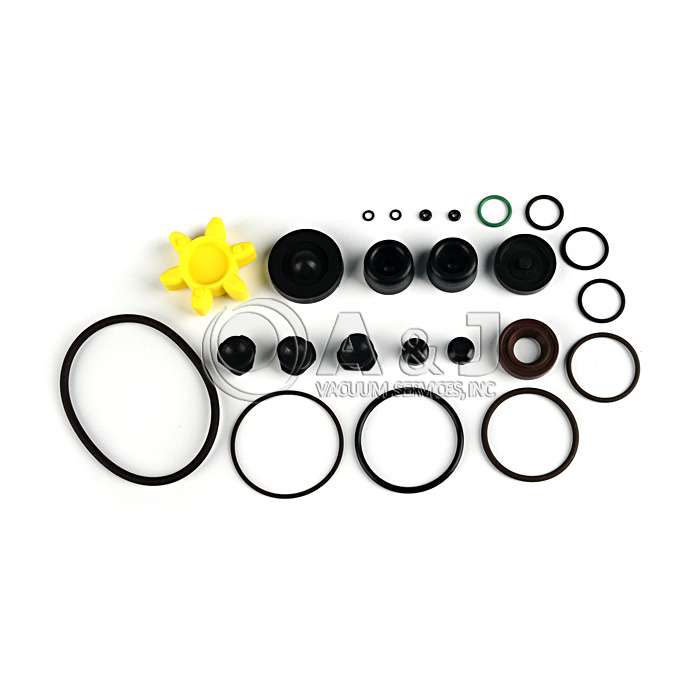

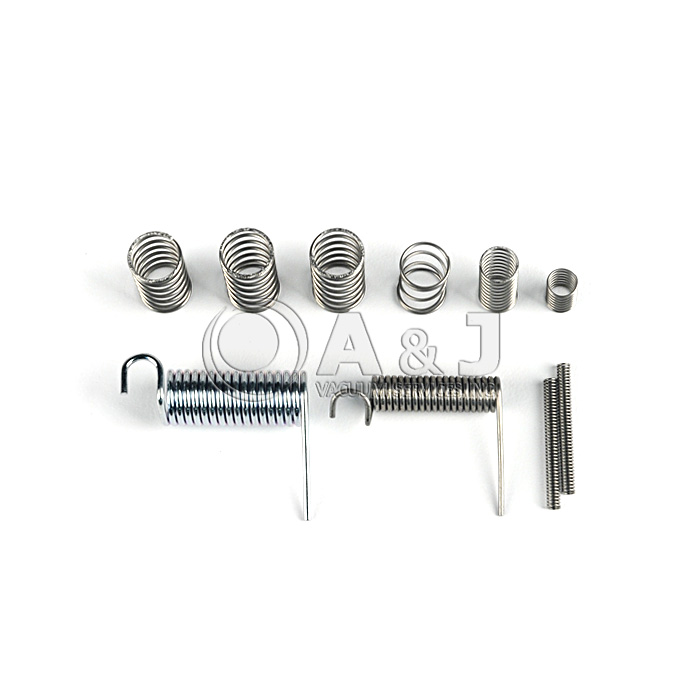

The Galileo D5 Major Repair Kit includes everything needed for major overhauls on the Galileo D5 Rotary Vane Vacuum Pump.
We also do minor and major repairs for all Galileo Rotary Vane Vacuum Pump.
| DESCRIPTION | PART NO. | QTY |
|
O-Ring |
A320109 |
1 |
|
O-Ring |
E02122009V |
1 |
|
O-Ring |
E02122058 |
1 |
|
O-Ring |
E02124119 |
1 |
|
2nd Stage Vane |
G230056G |
2 |
|
1st Stage Vane |
G230057G |
2 |
|
Cork Gasket |
G300055 |
1 |
|
Viton Shaft Seal |
G310053 |
1 |
|
O-Ring |
G320072 |
1 |
|
O-Ring |
G320126 |
2 |
|
O-Ring |
G320132 |
2 |
|
Viton Exhaust Valve |
G380016 |
3 |
|
Buna Valve |
G380017 |
1 |
|
O-Ring |
G40020 |
1 |
|
Compression Spring |
G490028 |
1 |
|
Compression Spring |
G490029 |
1 |
|
Compression Spring |
G490030 |
1 |
|
Torsion Spring |
G490031 |
1 |
|
Torsion Spring |
G490032 |
1 |
|
Vane Spring |
G490034 |
2 |
|
Coupling Element |
G500501 |
1 |
|
ASB Shutter Viton |
G580039 |
1 |
|
ASB Shutter Valve |
G580040 |
1 |
|
Spring |
G619561A |
3 |
|
Buffer Foot |
G640015 |
2 |
|
Felt Pad |
G920001 |
1 |
|
O-Ring |
L23970191 |
1 |
|
O-Ring |
L72591002 |
2 |
THERE ARE NO RETURNS ON THIS PRODUCT.

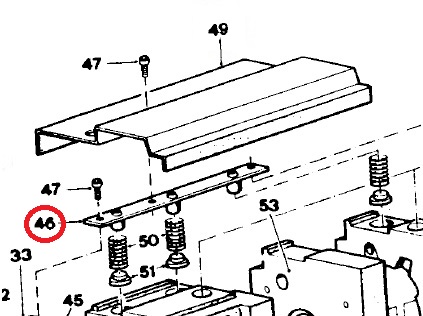

Bracket Agilent HS602 / Varian DS602 Exhaust Valve Bracket
Agilent HS 602 and DS 602 pumps, also know as Varian DS602 Vacuum Pump Valve Bracket Replacement part. OEM Part
AJVS PN18053
A&J Vacuum Repair / Rebuild and Service Varian Agilent HS 602 and DS 602 Vacuum Pumps and Turbo Pumps along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, Varian Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

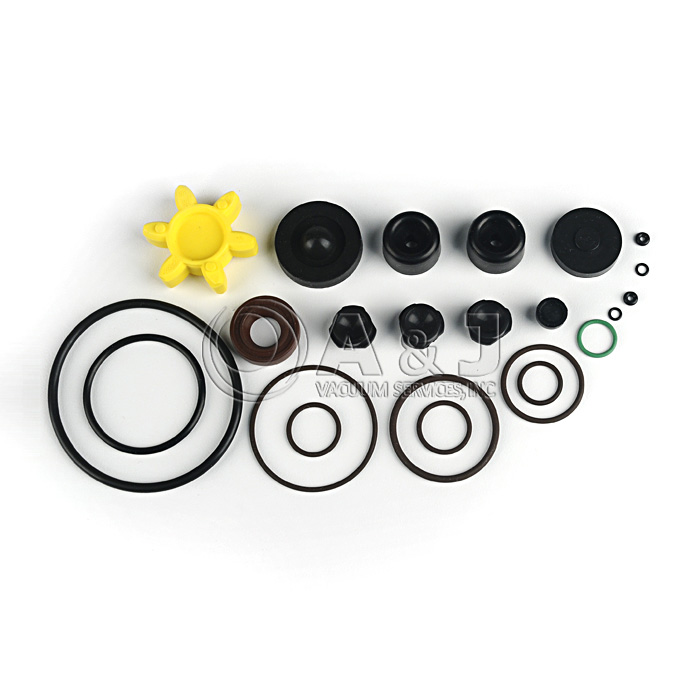

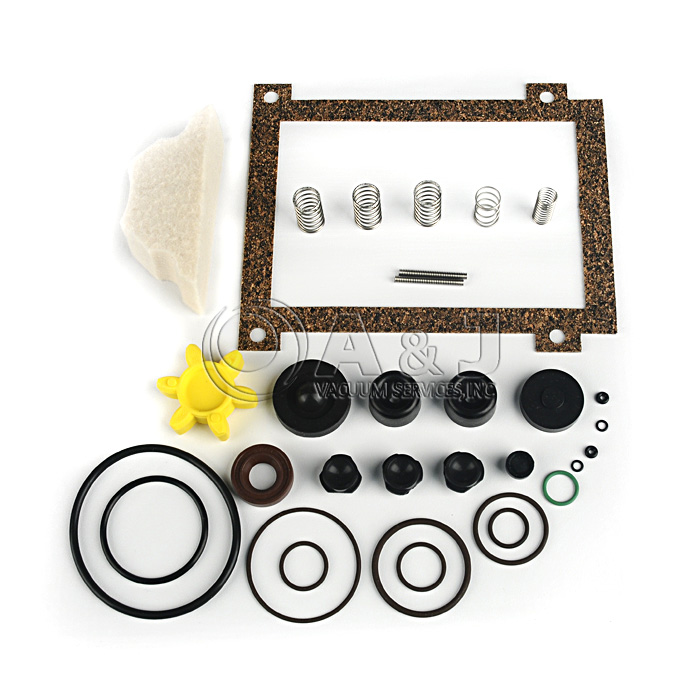

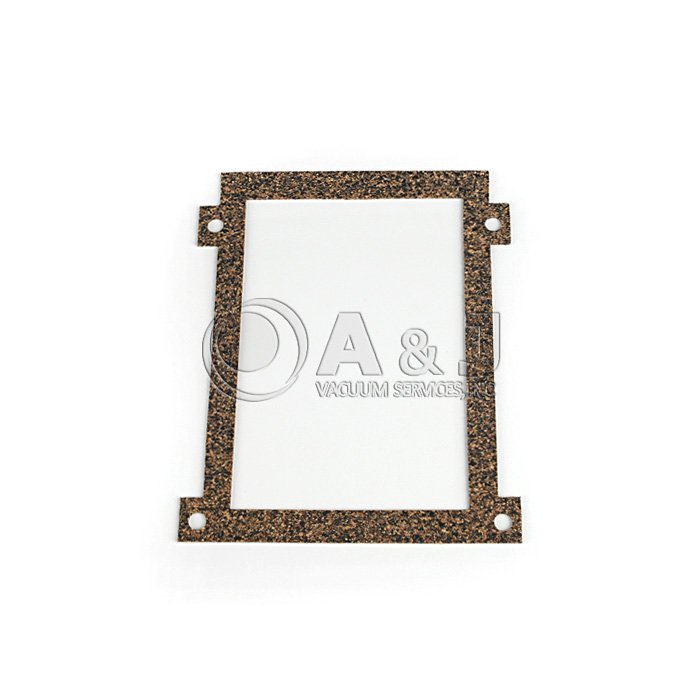

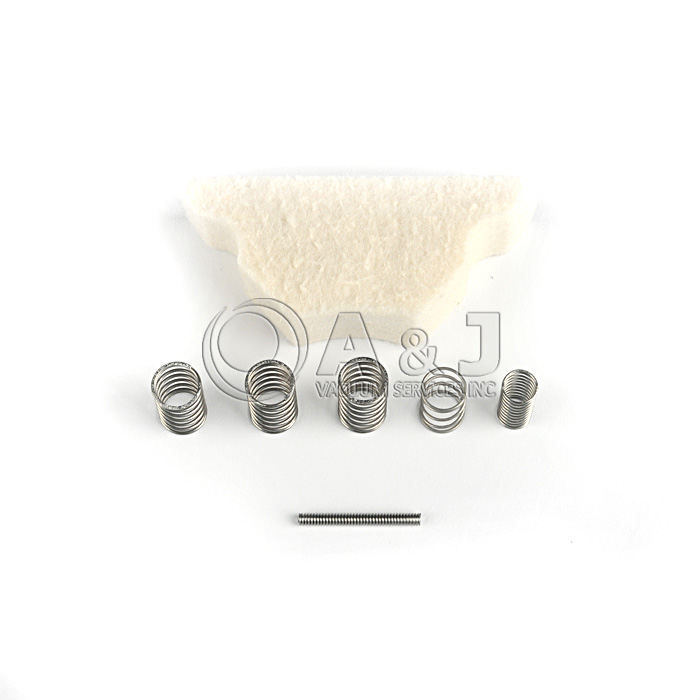

Galileo D5, D8, D12 Rotary Vane Vacuum Pump Seal & Gasket Kit, 985700212001
Overview:
The Galileo D5, D8, D12 Seal & Gasket Kit includes everything needed for overhauls on the Galileo D5, D8, and D12 Rotary Vane Vacuum Pump.
We also do minor and major repairs for all Galileo Rotary Vane Vacuum Pump.
| DESCRIPTION | PART NO. | QTY |
|
O-Ring |
A320109 |
1 |
|
O-Ring |
E02122009V |
1 |
|
O-Ring |
E02122058 |
1 |
|
O-Ring |
E02124119 |
1 |
|
Cork Gasket |
G300055 |
1 |
|
Viton Shaft Seal |
G310053 |
1 |
|
O-Ring |
G320072 |
1 |
|
O-Ring |
G320126 |
2 |
|
O-Ring |
G320132 |
2 |
|
Viton Exhaust Valve |
G380016 |
3 |
|
Buna Valve |
G380017 |
1 |
|
O-Ring |
G40020 |
1 |
|
Compression Spring |
G490028 |
1 |
|
Compression Spring |
G490029 |
1 |
|
Vane Spring |
G490034 |
2 |
|
Coupling Element |
G500501 |
1 |
|
ASB Shutter Viton |
G580039 |
1 |
|
ASB Shutter Valve |
G580040 |
1 |
|
Spring |
G619561A |
3 |
|
Buffer Foot |
G640015 |
2 |
|
Felt Pad |
G920001 |
1 |
|
O-Ring |
L23970191 |
1 |
|
O-Ring |
L72591002 |
2 |
THERE ARE NO RETURNS ON THIS PRODUCT.

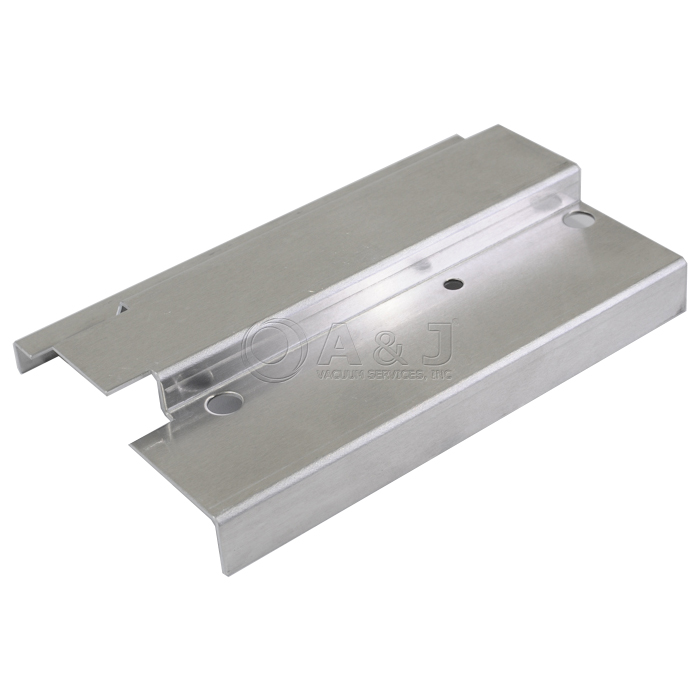

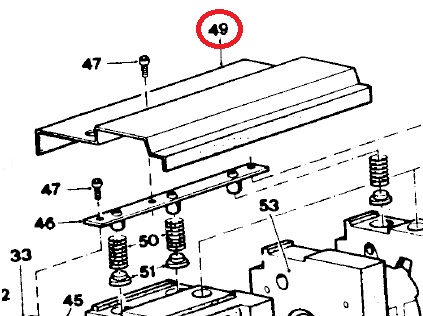

Valve cover Agilent HS 602 / DS 602, PN18383, Varian DS 602 Valve Cover (#49)
Agilent HS 602 and DS 602 pumps, also know as Varian DS602 Vacuum Pump Valve Bracket Replacement part. OEM Part (#49)
AJVS PN18383
A&J Vacuum Repair / Rebuild and Service Varian Agilent HS 602 and DS 602 Vacuum Pumps and Turbo Pumps along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, Varian Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

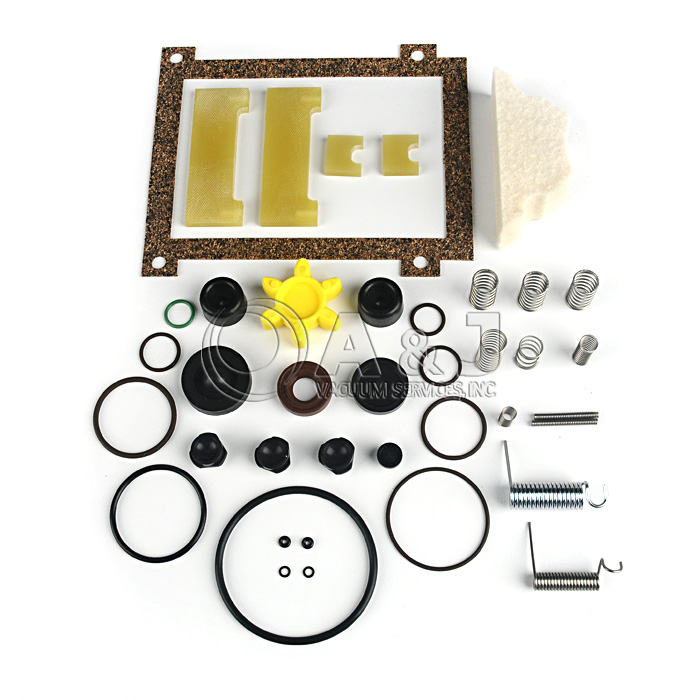

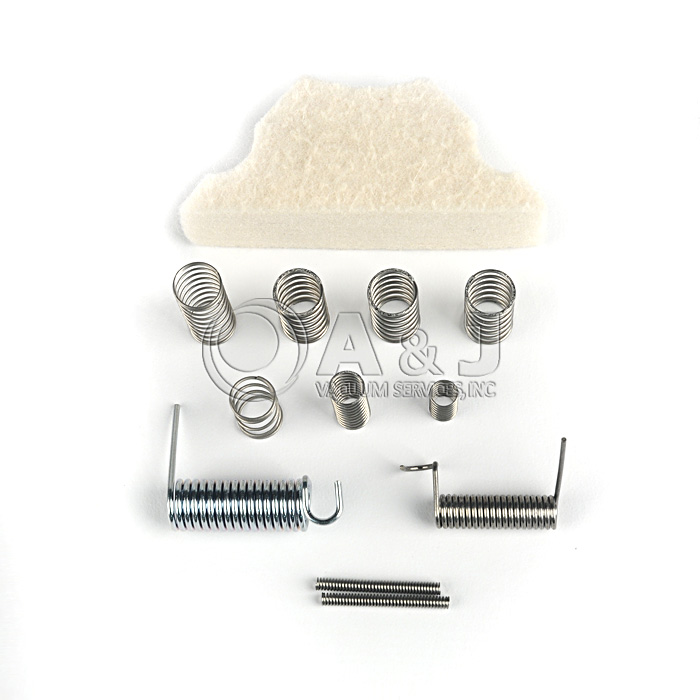

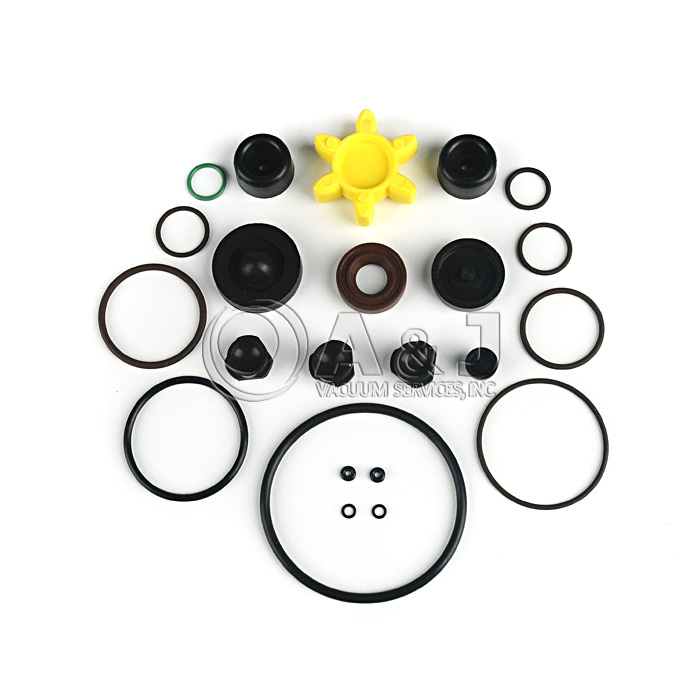

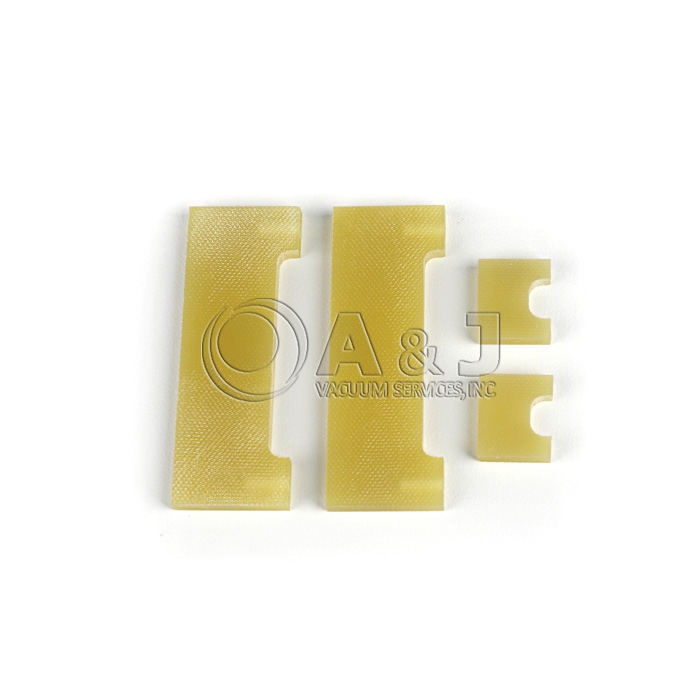

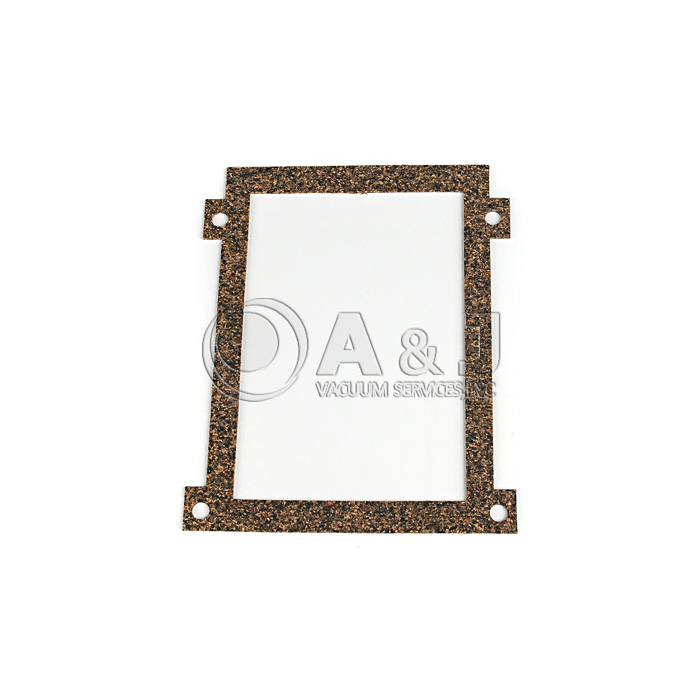

Galileo D8, D12 Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 985700212002
Overview:
The Galileo D8, D12 Major Repair / Rebuild Kit includes everything needed for major overhauls on the Galileo D8, D12 Rotary Vane Vacuum Pump.
We also do minor and major repairs for all Galileo Rotary Vane Vacuum Pumps.
Galileo D8, D12 Major Repair / Rebuild Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
|
O-Ring |
A320109 |
1 |
|
O-Ring |
E02122009V |
1 |
|
O-Ring |
E02122058 |
1 |
|
O-Ring |
E02124119 |
1 |
|
1st Stage Vane |
G230055G |
2 |
|
2nd Stage Vane |
G230056G |
2 |
|
Cork Gasket |
G300055 |
1 |
|
Viton Shaft Seal |
G310053 |
1 |
|
O-Ring |
G320072 |
1 |
|
O-Ring |
G320126 |
2 |
|
O-Ring |
G320132 |
2 |
|
Viton Exhaust Valve |
G380016 |
3 |
|
Buna Valve |
G380017 |
1 |
|
O-Ring |
G40020 |
1 |
|
Compression Spring |
G490028 |
1 |
|
Compression Spring |
G490029 |
1 |
|
Compression Spring |
G490030 |
1 |
|
Torsion Spring |
G490031 |
1 |
|
Torsion Spring |
G490032 |
1 |
|
Vane Spring |
G490034 |
2 |
|
Coupling Element |
G500501 |
1 |
|
ASB Shutter Viton |
G580039 |
1 |
|
ASB Shutter Valve |
G580040 |
1 |
|
Spring |
G619385A |
1 |
|
Spring |
G619561A |
3 |
|
Buffer Foot |
G640015 |
2 |
|
Felt Pad |
G920001 |
1 |
|
O-Ring |
L23970191 |
1 |
|
O-Ring |
L72591002 |
2 |
THERE ARE NO RETURNS ON THIS PRODUCT.
THERE ARE NO RETURNS ON THIS PRODUCT.
Galileo D28 Rotary Vane Vacuum Pump Gas Ballast Knob O-Ring , 58901A014016
THERE ARE NO RETURNS ON THIS PRODUCT.

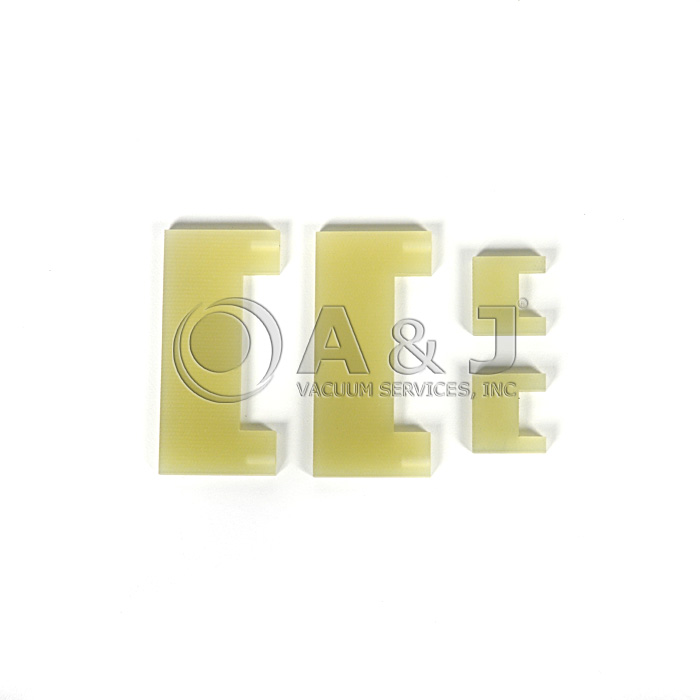

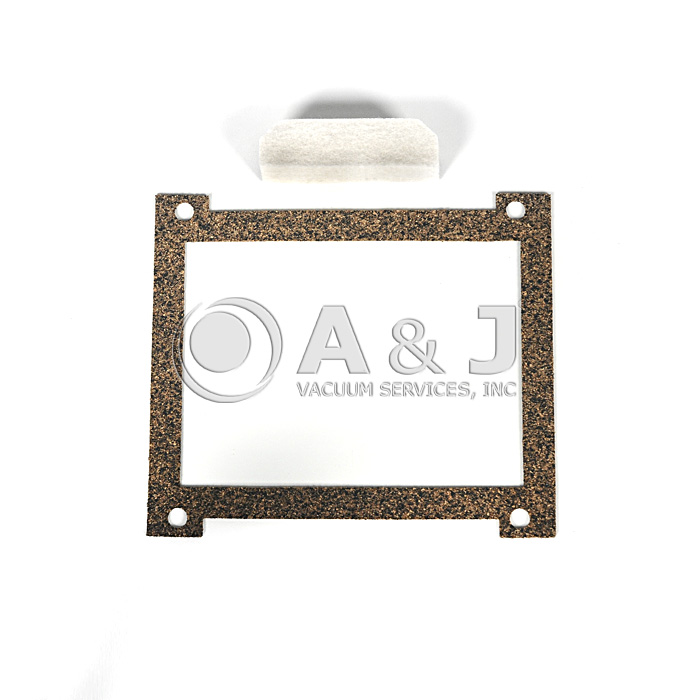

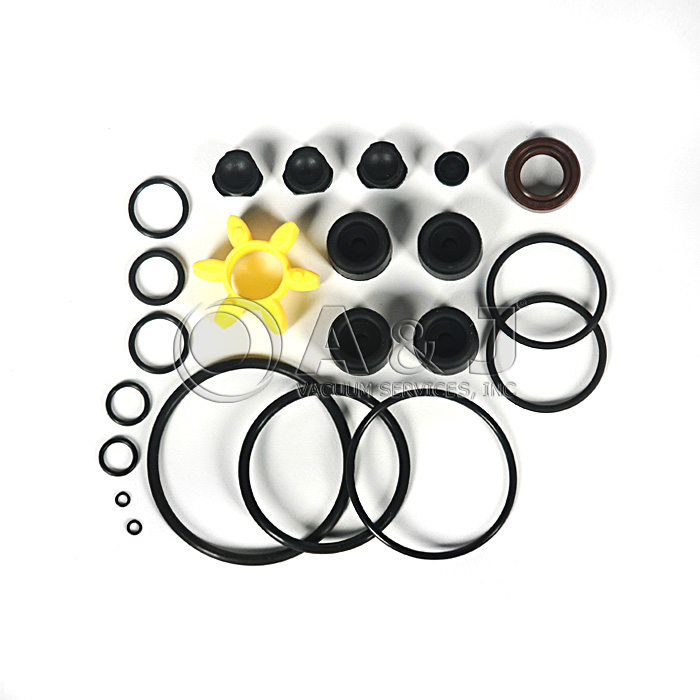

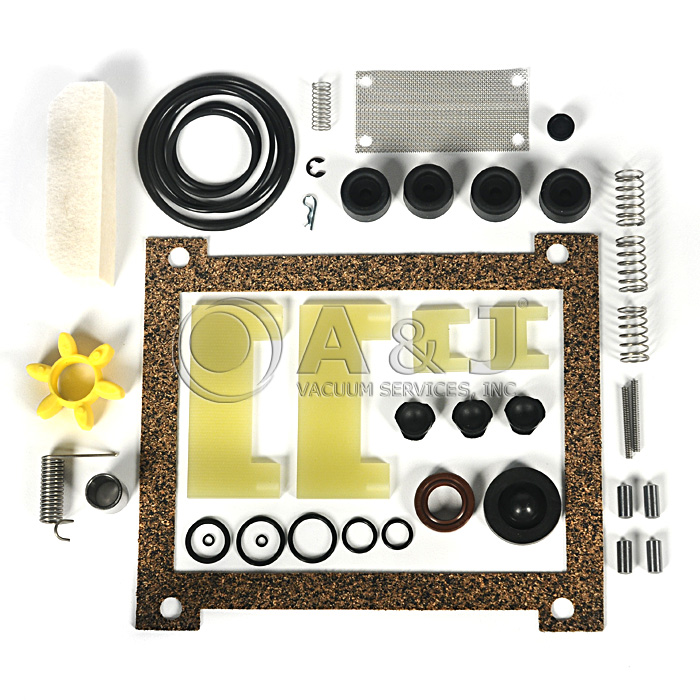

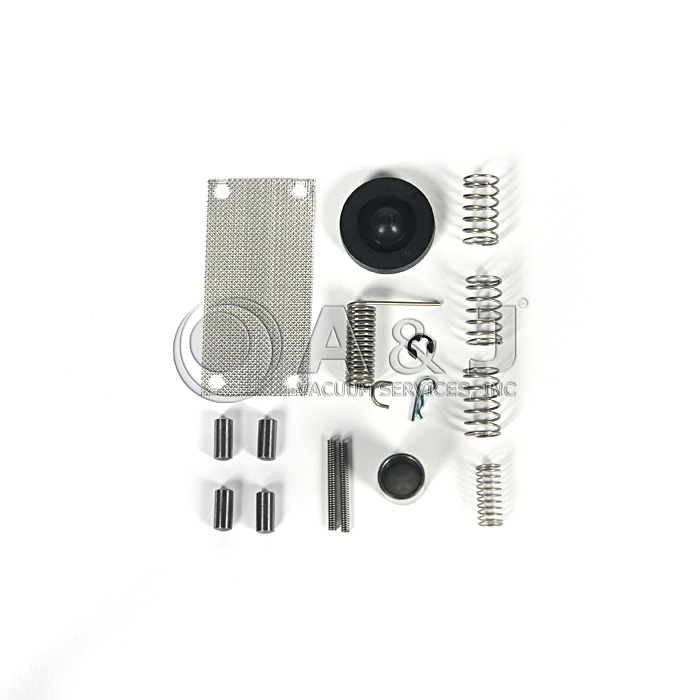

Galileo D18, D28 Rotary Vane Vacuum Pump Major Repair / Rebuild Kit, 985700228002
Overview:
The Galileo D18, D28 Major Repair / Rebuild Kit includes everything needed for major overhauls on the Galileo D18, D28 Rotary Vane Vacuum Pump.
We also do minor and major repairs for all Galileo Rotary Vane Vacuum Pumps.
Galileo D18, D28 Major Repair / Rebuild Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
|
O-Ring |
A320109 |
1 |
|
O-Ring |
E02122009V |
1 |
|
O-Ring |
E02122058 |
1 |
|
1st Stage Vane |
G230058G |
2 |
|
2nd Stage Vane |
G230059G |
2 |
|
Shaft Sleeve |
G250012 |
1 |
|
Casing Gasket Cork |
G300052 |
1 |
|
Viton Shaft Seal |
G310056 |
1 |
|
O-Ring |
G320108 |
1 |
|
O-Ring |
G320126 |
2 |
|
O-Ring |
G320130 |
1 |
|
O-Ring |
G320131 |
1 |
|
O-Ring |
G320132 |
2 |
|
Viton Exhaust Valve |
G380016 |
3 |
|
Buna Valve |
G380017 |
1 |
|
Compression Spring |
G490028 |
1 |
|
Torsion Spring |
G490033 |
1 |
|
Vane Spring |
G490034 |
2 |
|
Coupling Element |
G500501 |
1 |
|
ASB Shutter Viton |
G580039 |
1 |
|
ASB Shutter Valve |
G580040 |
1 |
|
Spring |
G619561A |
3 |
|
Buffer Foot |
G640015 |
2 |
|
Felt Pad |
G720013 |
1 |
|
O-Ring |
L23970106 |
1 |
|
O-Ring |
L23970191 |
1 |
|
O-Ring |
L72591000 |
1 |
|
O-Ring |
L72591002 |
2 |
THERE ARE NO RETURNS ON THIS PRODUCT.

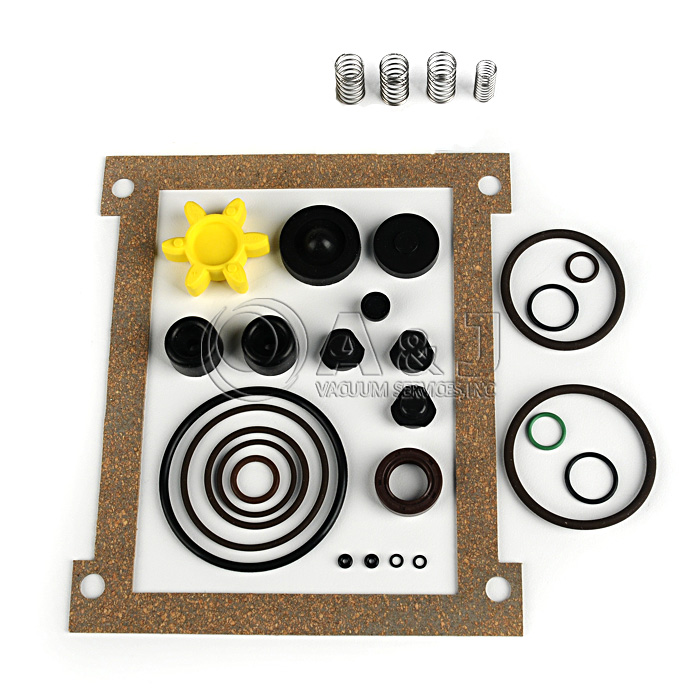

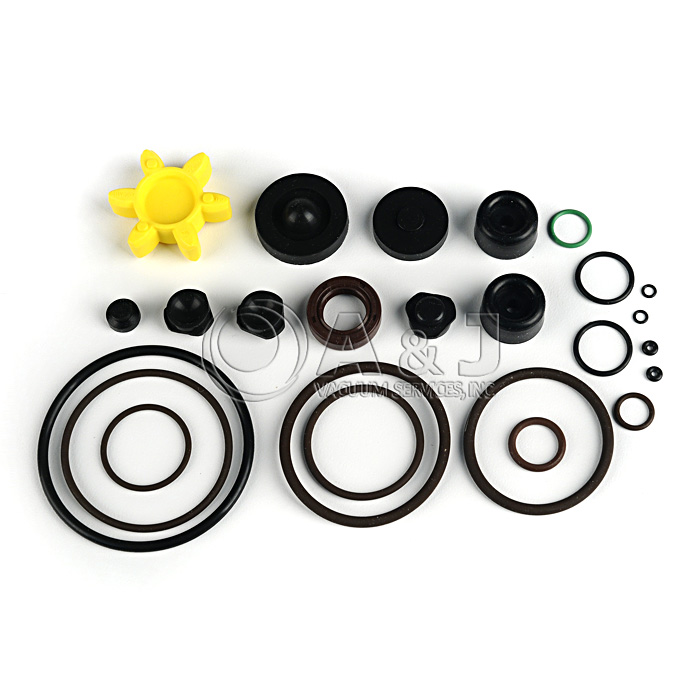

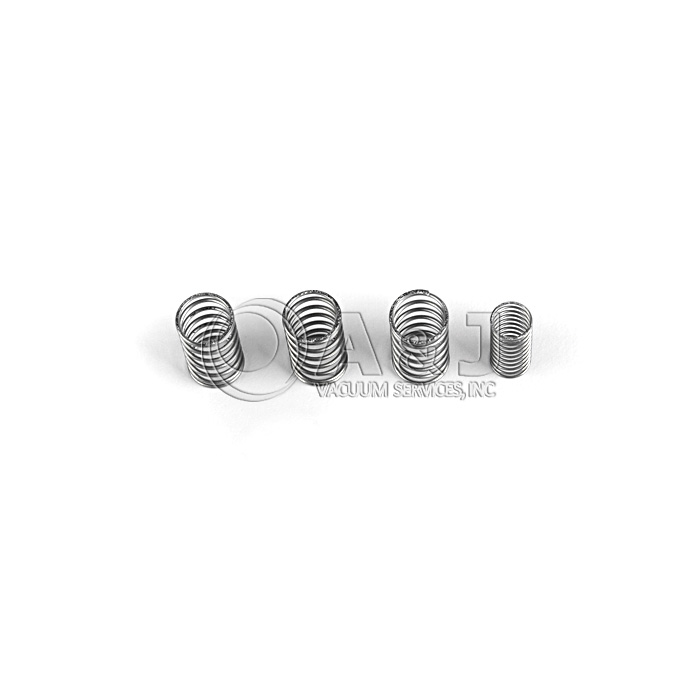

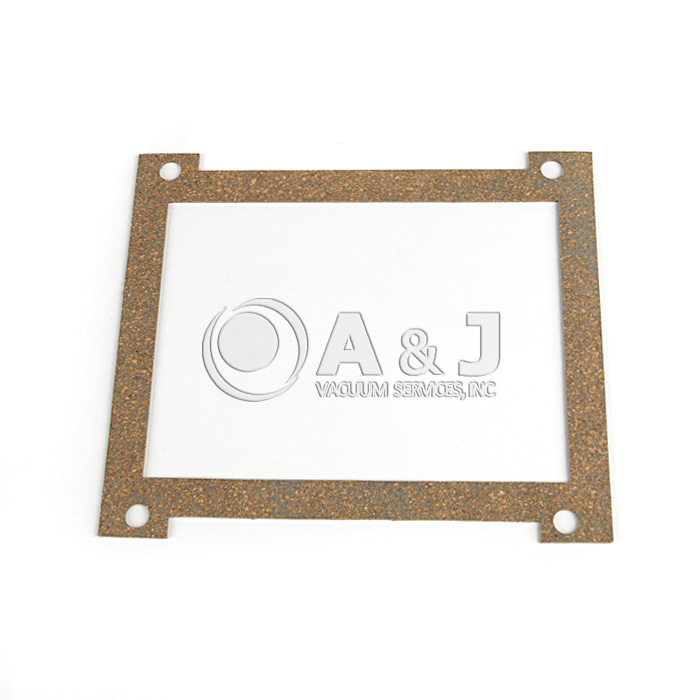

Galileo D18, D28 Rotary Vane Vacuum Pump Seal & Gasket Kit , 985700228008
The Galileo D18, D28 Rotary Vane Vacuum Pump Seal & Gasket Kit includes everything needed for overhauls on the Galileo D18 and D28 Rotary Vane Vacuum Pump.
We also do minor and major repairs for all Galileo Rotary Vane Vacuum Pumps.
Galileo D18, D28 Seal & Gasket Kit contains the following parts:
| DESCRIPTION | PART NO. | QTY |
|
O-Ring |
A320109 |
1 |
|
O-Ring |
E02122009V |
1 |
|
O-Ring |
E02122058 |
1 |
|
Casing Gasket Cork |
G300052 |
1 |
|
Viton Shaft Seal |
G310056 |
1 |
|
O-Ring |
G320108 |
1 |
|
O-Ring |
G320126 |
2 |
|
O-Ring |
G320130 |
1 |
|
O-Ring |
G320131 |
1 |
|
O-Ring |
G320132 |
2 |
|
Viton Exhaust Valve |
G380016 |
3 |
|
Buna Valve |
G380017 |
1 |
|
Compression Spring |
G490028 |
1 |
|
Coupling Element |
G500501 |
1 |
|
ASB Shutter Viton |
G580039 |
1 |
|
ASB Shutter Valve |
G580040 |
1 |
|
Spring |
G619561A |
3 |
|
Buffer Foot |
G640015 |
2 |
|
O-Ring |
L23970106 |
1 |
|
O-Ring |
L23970191 |
1 |
|
O-Ring |
L72591000 |
1 |
|
O-Ring |
L72591002 |
2 |
THERE ARE NO RETURNS ON THIS PRODUCT.

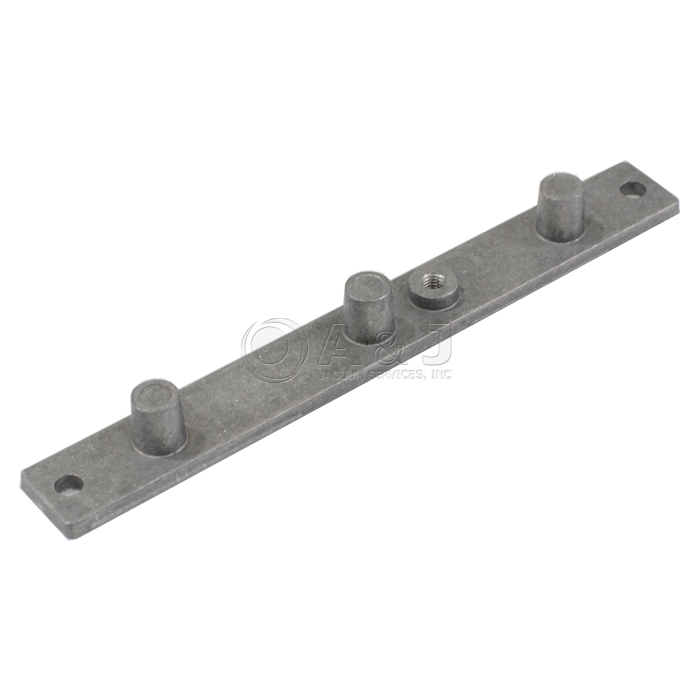

Bracket Agilent HS602 / Varian DS602 Exhaust Valve Bracket
Agilent HS 602 and DS 602 pumps, also know as Varian DS602 Vacuum Pump Valve Bracket Replacement part. OEM Part
AJVS PN18053
A&J Vacuum Repair / Rebuild and Service Varian Agilent HS 602 and DS 602 Vacuum Pumps and Turbo Pumps along with all other Varian and Agilent Technology Vacuum Rotary Vane Pumps, Varian Dry Scroll Pump repair, Varian Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
