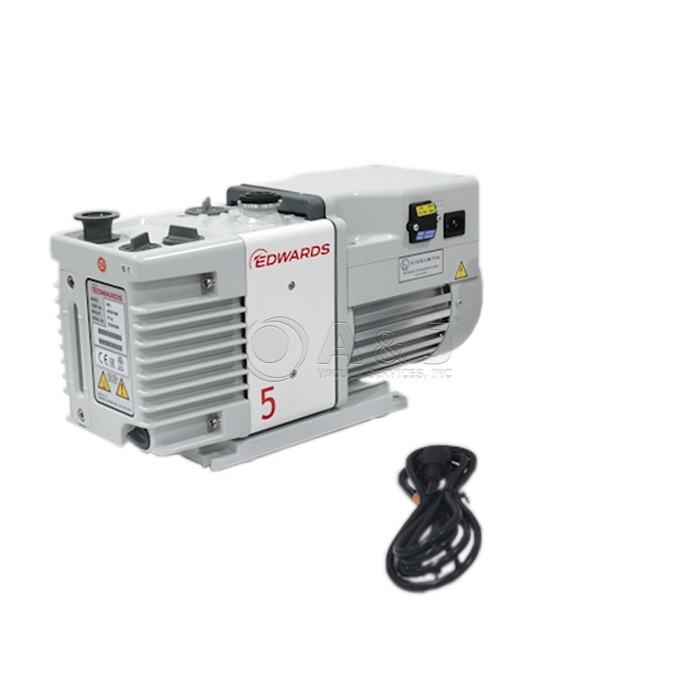

Edwards RV5FX Rotary Vane Vacuum Pump, Single Phase, 115/230 V, 50/60 Hz, Factory Set to 115V for USA, PFPE Oil, A65309906

Edwards RV5FX Rotary Vane Vacuum Pump, Single Phase, 115/230 V, 50/60 Hz, Factory Set to 115V for USA, PFPE Oil, A65309906

Edwards RV5FX Features:

• High reliability – generous lubrication of moving parts.
• Safe process and systems – fast acting inlet valve for best in class anti‑suck back protection.
• Configured to meet your vacuum needs – mode selector and two position gas ballast.
• No unplanned downtime – designed for easy maintenance.
• Better work environment – quiet running and intrusive frequencies minimised.
• Two position gas ballast allows either 60 g/hr or a class leading 220 g/hr (290 g/hr on RV12) of water vapour to be handled.
• Universal motor to cover the widest possible voltage and frequency range from a single variant.
• Smooth controlled inlet valve opening by oil pressure to eliminate pressure surges.
• Rapid closing inlet valve within 0.4 seconds of pump stopping.

RV5FX / A65309906 Overview:

The Edwards Vacuum RV 5 Rotary Vane Pump is a small oil sealed rotary vane pump that delivers excellent ultimate vacuum pressure, high pumping speeds and superior vapour handling capabilities with quiet operation. Edwards Vacuum RV Series, with over 300,000 units produced, these pumps offer proven performance that sets the industry standard for R&D and scientific pumping applications.

All Edwards RV pumps are significantly quieter – noise levels of 48 dBA 50Hz are typically half the noise of a conventional pump and have been achieved by extensive work on the drive train and motor.

The pumps have the unique ability to deliver excellent ultimate vacuum in both high vacuum and high throughput modes with or without gas ballast. This gives the user an unrivalled opportunity to select the optimum pumping performance without compromising the application.

In its high vacuum mode, the RV pump is ideal for analytical instruments, electron microscopes, physics research, backing turbo pumps and leak detection applications. Configure the same pump in the high throughput mode, and it becomes suitable for distillation, laboratory furnaces, backing vapor pumps, solvent concentration, freeze drying and other drying applications.

The simple to use mode selector and accessible, three-position gas ballast control allow the pump to be reconfigured at any time, even when the pump is running.

Edwards RV pumps have become the industry standard for scientific primary pumping applications. Edwards Vacuum RV series pumps are uniquely capable of delivering high or low throughputs with high ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including GCMS and other small bench top type applications.

RV5FX Applications:

• Analytical instruments
• Centrifuges, ultra-high speed
• Coating
• Degassing/curing - oil, epoxy resin
• Distillation/extraction/filtration
• Freeze drying
• Furnaces
• Gas bottle filling/emptying
• Gel drying
• Glove boxes, ovens
• Laboratory bench top vacuum
• Leak detectors, Helium
• Load locks and transfer chambers
• Refrigeration manufacture
• Research and development
• Rotary, centirfugal evaporators
• Scanning electron microscopes - SEM
• SEM/FIB (ion beam repair)
• Solvent recovery
• Surface science instruments
• Turbomolecuar backing pumps

A&J Vacuum also repair / rebuild and service all Edwards RV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, E2M12 Series  Vacuum Pumps  along with all other Edwards  Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
