- Ensures Long Life
- For E2M175/275S
- Spares Kit C&O
- Includes Pin Split, Nut Oddie, Piston Face, Exhaust Warning Label, Shaft Seal Sleeve, and more...
Shopping Cart ( )

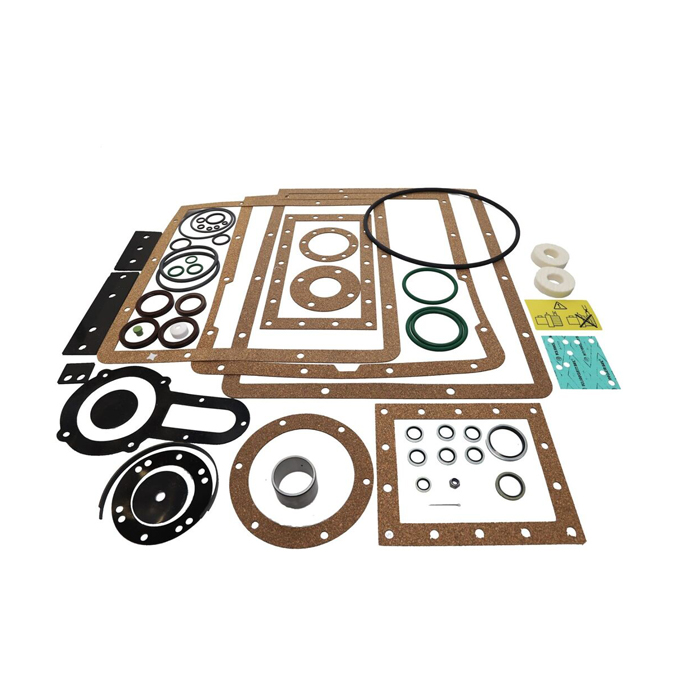

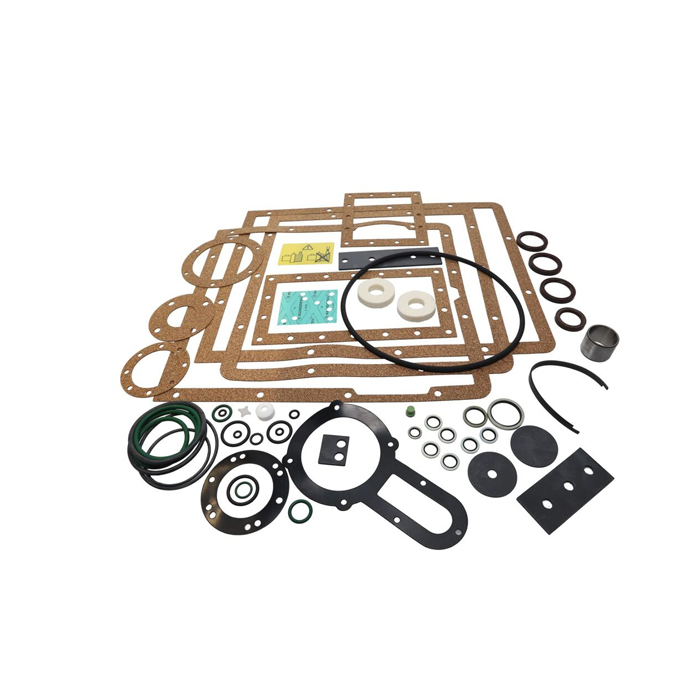

Edwards E2M175/275S Spares Kit C&O, A36601131
Condition:
New
Item#:PN57693
Mfr Part#:A36601131
Manufacturer:Edwards Vacuum
Features:
Edwards E2M175/275S Spares Kit C&O, A36601131
Edwards Spares Kit C&O Features:
- Tested to ensure long life
- Suitable for application the pump is qualified for
- Reliable operation
- Includes pin split, nut oddie, piston face, exhaust warning label, shaft seal sleeve, and more
Spares Kit C&O / A36601131 Overview:
Edwards spare part kits comprise seal kits, overhaul kits, preventive maintenance kits, and more. Using only genuine spare parts ensures convenient maintenance, precise fit, and dependable equipment performance after servicing. Whether for routine maintenance or complete overhauls, the kits provide an efficient and cost-effective solution for your pump repair requirements.
A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80, E2M175 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Edwards E2M175/275S Spares Kit C&O, A36601131
Edwards Spares Kit C&O Features:
- Spares Kit Content:
- 1x Pin Split SS 1/16X1 Long
- 1x Nut Oddie M6
- 1x Piston Face
- 1x Label - Exhaust Warning
- 1x Shaft Seal Sleeve 35X40X30
- 1x Void Filler
- 2x Filter
- 1x Ballast Valve
- 1x Piston Ring
- 1x Distributor Rubber
- 1x Diaphragm
- 1x Gasket
- 1x LV Exhaust Rubber
- 1x HV Exhaust Valve Rubber
- 1x HV Exhaust Rubber
- 1x Filter Gasket
- 1x Ballast Gasket
- 1x Ballast Gasket
- 1x Valve Body Gasket
- 1x Exhaust Gasket
- 1x Endplate Gasket
- 1x Lid Gasket
- 1x Lid Gasket
- 1x Box Gasket
- 1x Box Gasket
- 1x Valve Pad
- 1x Dowty Bonded Seal Mk A 1/8"BSP
- 6x Dowty Bonded Seal Mk B 1/4"BSP
- 1x Dowty Bonded Seal Mk D 1/2"BSP
- 1x Seal FKM GP 30.42.7 Bid
- 3x Seal FKM GP 40.52.7 Bid
- 3x O-Ring Nit 5.6ID X 2.4Sec
- 1x O-Ring FKM GP 14.6ID X 2.4Sec
- 1x O-Ring NIT 0.921ID X .139Sec
- 2x O-Ring NIT 1.109ID X .139Sec
- 1x O-Ring NIT 3.609ID X .139Sec
- 1x O-Ring NIT 3.350ID X .210Sec
- 1x O-Ring NIT 9.475ID X .275Sec
- 1x O-Ring NIT 0.299ID X .103Sec
- 1x O-Ring NIT 2.687ID X .139Sec
- 1x O-Ring NIT 3.140ID X .210Sec
- 2x O-Ring FKM GP 0.734ID X .139Sec
- 1x O-Ring FKM GP 2.225ID X .210Sec
- 2x O-Ring FKM GP 2.625ID X .210Sec
A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80, E2M175 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
