- OEM PN A36601831
- Major Service Kit
Shopping Cart ( )

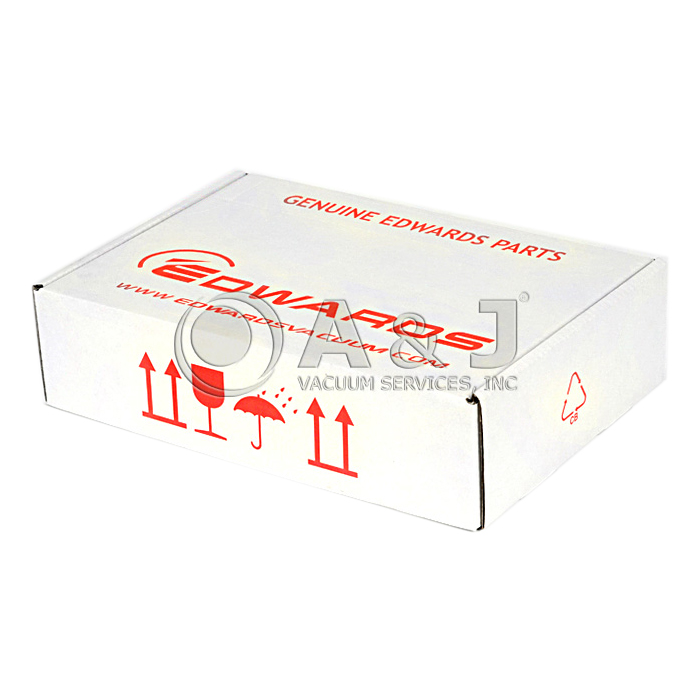

Edwards Major Kit for Edwards E2M175 Vacuum Pump Service Repair Kit, A36601831
Condition:
New
Item#:PN11135
Mfr Part#:A36601831
Manufacturer:Edwards Vacuum
Features:
Edwards Major Kit for Edwards E2M175 Vacuum Pump Service Repair Kit, A36601831
| A36601831-SPARES KIT MAJOR E2M175 | ||
| Components | Description | Quantity |
| A02800016 | PISTON FACE | 1 |
| A20402632 | BLADE HV E1M-175/E2M-175 F32 | 2 |
| A20402636 | LV BLADE E2M175/275 | 2 |
| A00906058 | OIL SIGHT GLASS END CAP | 2 |
| A25904601 | BALLAST VALVE | 1 |
| A27159413 | DISTRIBUTOR RUBBER | 1 |
| A27159504 | LV EXHAUST RUBBER | 1 |
| A27159505 | HV EXHAUST VALVE RUBBER | 1 |
| A34601042 | VALVE PAD | 1 |
| A34601067 | BACK UP WASHER E1/E2M 175/275 | 2 |
| B27158170 | ISO63 TRAPPED ORING SEAL (V) | 1 |
| 211284039 | PIN SPLIT SS 1/16X1 LONG | 1 |
| A01601089 | SIGHT GLASS | 1 |
| A19201007 | BALLAST PISTON ASSY 40/80/175/ | 1 |
| A20001293 | LABEL - EXHAUST WARNING | 1 |
| A20402539 | OIL PUMP BLADE | 1 |
| A20404013 | ROLLER BEARING NU208 | 2 |
| A20405021 | SHAFT SEAL SLEEVE 35X40X30 | 1 |
| A21071030 | FLEXIBLE COUPLING ELEMENT | 1 |
| A22304032 | FILTER ELEMENT OIL | 1 |
| A22305011 | FILTER ASSY E2M 175/275 | 1 |
| A22305014 | KNITMESH | 1 |
| A22305041 | FILTER | 2 |
| A25972004 | DRIVE PLATE E2M175/275 | 1 |
| A26501020 | PISTON RING | 1 |
| A27102019 | SPRING | 1 |
| A27102022 | SPRING ST/STL | 1 |
| A27102023 | SPRING ST/STL | 2 |
| A27159416 | DIAPHRAGM | 1 |
| A27159428 | GASKET | 1 |
| A27159526 | FILTER GASKET | 1 |
| A27159614 | BALLAST GASKET | 1 |
| A27159615 | BALLAST GASKET | 1 |
| A27159619 | VALVE BODY GASKET | 1 |
| A27159620 | EXHAUST GASKET | 1 |
| A27159621 | ENDPLATE GASKET | 1 |
| A27159624 | LID GASKET | 1 |
| A27159627 | BOX GASKET | 1 |
| H02104001 | DOWTY BONDED SEAL MK A 1/8"BSP | 1 |
| H02104002 | DOWTY BONDED SEAL MK B 1/4"BSP | 6 |
| H02104004 | DOWTY BONDED SEAL MK D 1/2"BSP | 1 |
| H02104008 | DOWTY BONDED SEAL MK H 1" BSP | 1 |
| H02109076 | SEAL FKM GP 30.42.7 BID | 1 |
| H02109077 | SEAL FKM GP 40.52.7 BID | 3 |
| H02120027 | O-Ring NIT 5.6ID x 2.4SEC | 3 |
| H02120036 | O'RING NIT 14.6ID X 2.4SEC | 1 |
| H02125011 | O-Ring NIT 0.424ID x .103SEC | 1 |
| H02125023 | O-Ring NIT 0.921ID x .139SEC | 1 |
| H02125026 | O-Ring NIT 1.109ID x .139SEC | 2 |
| H02125039 | O-Ring NIT 3.609ID x .139SEC | 1 |
| H02125055 | O-Ring NIT 3.350ID x .210SEC | 1 |
| H02125091 | O-Ring NIT 9.475ID x .275SEC | 1 |
| H02125116 | O-Ring NIT 0.299ID x .103SEC | 1 |
| H02125171 | O-Ring NIT 2.687ID x .139SEC | 1 |
| H02125181 | O-Ring NIT 3.140ID x .210SEC | 1 |
| H02126020 | O-RING FKM GP 0.734ID X .139SEC | 2 |
| H02126047 | O-RING FKM GP 2.225ID X .210SEC | 1 |
| H02126050 | O-RING FKM GP 2.625ID X .210SEC | 2 |
A&J Vacuum also repair / rebuild and service all Edwards, E2M175, E2M275, Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Edwards Major Kit for Edwards E2M175 Vacuum Pump Service Repair Kit, A36601831
| A36601831-SPARES KIT MAJOR E2M175 | ||
| Components | Description | Quantity |
| A02800016 | PISTON FACE | 1 |
| A20402632 | BLADE HV E1M-175/E2M-175 F32 | 2 |
| A20402636 | LV BLADE E2M175/275 | 2 |
| A00906058 | OIL SIGHT GLASS END CAP | 2 |
| A25904601 | BALLAST VALVE | 1 |
| A27159413 | DISTRIBUTOR RUBBER | 1 |
| A27159504 | LV EXHAUST RUBBER | 1 |
| A27159505 | HV EXHAUST VALVE RUBBER | 1 |
| A34601042 | VALVE PAD | 1 |
| A34601067 | BACK UP WASHER E1/E2M 175/275 | 2 |
| B27158170 | ISO63 TRAPPED ORING SEAL (V) | 1 |
| 211284039 | PIN SPLIT SS 1/16X1 LONG | 1 |
| A01601089 | SIGHT GLASS | 1 |
| A19201007 | BALLAST PISTON ASSY 40/80/175/ | 1 |
| A20001293 | LABEL - EXHAUST WARNING | 1 |
| A20402539 | OIL PUMP BLADE | 1 |
| A20404013 | ROLLER BEARING NU208 | 2 |
| A20405021 | SHAFT SEAL SLEEVE 35X40X30 | 1 |
| A21071030 | FLEXIBLE COUPLING ELEMENT | 1 |
| A22304032 | FILTER ELEMENT OIL | 1 |
| A22305011 | FILTER ASSY E2M 175/275 | 1 |
| A22305014 | KNITMESH | 1 |
| A22305041 | FILTER | 2 |
| A25972004 | DRIVE PLATE E2M175/275 | 1 |
| A26501020 | PISTON RING | 1 |
| A27102019 | SPRING | 1 |
| A27102022 | SPRING ST/STL | 1 |
| A27102023 | SPRING ST/STL | 2 |
| A27159416 | DIAPHRAGM | 1 |
| A27159428 | GASKET | 1 |
| A27159526 | FILTER GASKET | 1 |
| A27159614 | BALLAST GASKET | 1 |
| A27159615 | BALLAST GASKET | 1 |
| A27159619 | VALVE BODY GASKET | 1 |
| A27159620 | EXHAUST GASKET | 1 |
| A27159621 | ENDPLATE GASKET | 1 |
| A27159624 | LID GASKET | 1 |
| A27159627 | BOX GASKET | 1 |
| H02104001 | DOWTY BONDED SEAL MK A 1/8"BSP | 1 |
| H02104002 | DOWTY BONDED SEAL MK B 1/4"BSP | 6 |
| H02104004 | DOWTY BONDED SEAL MK D 1/2"BSP | 1 |
| H02104008 | DOWTY BONDED SEAL MK H 1" BSP | 1 |
| H02109076 | SEAL FKM GP 30.42.7 BID | 1 |
| H02109077 | SEAL FKM GP 40.52.7 BID | 3 |
| H02120027 | O-Ring NIT 5.6ID x 2.4SEC | 3 |
| H02120036 | O'RING NIT 14.6ID X 2.4SEC | 1 |
| H02125011 | O-Ring NIT 0.424ID x .103SEC | 1 |
| H02125023 | O-Ring NIT 0.921ID x .139SEC | 1 |
| H02125026 | O-Ring NIT 1.109ID x .139SEC | 2 |
| H02125039 | O-Ring NIT 3.609ID x .139SEC | 1 |
| H02125055 | O-Ring NIT 3.350ID x .210SEC | 1 |
| H02125091 | O-Ring NIT 9.475ID x .275SEC | 1 |
| H02125116 | O-Ring NIT 0.299ID x .103SEC | 1 |
| H02125171 | O-Ring NIT 2.687ID x .139SEC | 1 |
| H02125181 | O-Ring NIT 3.140ID x .210SEC | 1 |
| H02126020 | O-RING FKM GP 0.734ID X .139SEC | 2 |
| H02126047 | O-RING FKM GP 2.225ID X .210SEC | 1 |
| H02126050 | O-RING FKM GP 2.625ID X .210SEC | 2 |
A&J Vacuum also repair / rebuild and service all Edwards, E2M175, E2M275, Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
