Pfeiffer SAS 40, Dust Separator, PKZ60510 / PK Z60 510, DN 40 ISO-KF
Pfeiffer SAS 40 Dust Separator / PKZ60510 Overview:
The SAS 40 Dust Separator protects the vacuum pump from dust particles from the process. Installed on the intake side of the vacuum pump, it filters dust from the gas flow being pumped. The standard filter insert is made of polyester, with the gas flowing through it from the outside in. A paper filter insert is also available as an alternative.
For oil-free vacuum pumps, placing the dust separator on the exhaust side helps protect the environment by filtering out dust and particles from the discharged gas flow.
SAS 40 Dust Separator PKZ60510 Features:
- For pumping speed up to 114.78cfm
- For the inlet flange
- Safeguards the pump against particles from the process
- Customer benefits from longer service life for mechanical parts
SAS 40 Dust Separator Scope of Delivery:
- Dust separator with integrated filter insert
- Protective cover for the connection flange (mounted)
- Operating instructions
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer SAS 40, Dust Separator, PKZ60510 / PK Z60 510, DN 40 ISO-KF
Pfeiffer SAS 40 Dust Separator Technical Data:
- Conductance at 1 hPa: 180 l/s
- Conductance at 100 hPa: 680 l/s

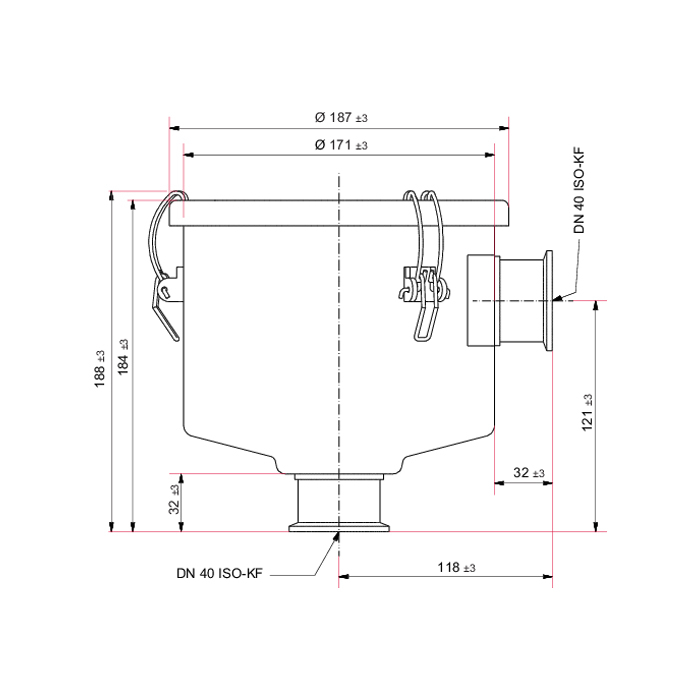

- Connection flange: DN 40 ISO-KF / DN 40 ISO-KF
- Connection flange (in): DN 40 ISO-KF
- Connection flange (out): DN 40 ISO-KF
- Degree of separation: 99.7%
- For pumping speed up to: 114.78cfm
- Grain size limit (separable): 5 µm
- Inlet pressure max.: Atmospheric pressure
- Integral leak rate: < 1 · 10-5 Pa m³/s | < 7.5 · 10-5 Torr l/s | < 1 · 10-4 mbar l/s
- Temperature range (vacuum side): 26 – 104 °C | 78.8 – 219.2 °F | 299.15 – 377.15 K
- Weight approx.: 4.63lb
A&J Vacuum Services repairs / rebuilds and services all of the Pfeiffer HiScroll pumps such as the HiScroll 6 / PD S10 000, HiScroll 12 / PD S20 000, HiScroll 18 / PD S30 000, and HiScroll 46 / PD S40 000 as well as other Pfeiffer Vacuum equipment such as their turbomolecular pumps, rotary vane pumps, leak detectors, and more. Please contact us for information about our service program or click here http://www.ajvs.com/service.php to go to our service page. We also offer emergency rush service upon request. For more information please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer SAS 16 - 160 Dust Separator Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
