- Inlet flange: DN 63 ISO-K
- Pumping speed for N2 32 l/s
- Ultimate pressure < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar
- Backing pump MVP 015-2
Shopping Cart ( )
Pfeiffer HiCube 30 Eco Turbo Pumping Station, Includes HiPace 30 Turbo Pump DN 63 ISO-K, MVP 015-2 Diaphragm Vacuum Pump And DCU 002 Control Unit, PMS7110000 / PM 025 013 AT / PM025013AT
Condition:
New
Item#:PN22881
Mfr Part#:PMS7110000 / PM 025 013 AT / PM025013AT
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiCube 30 Eco Turbo Pumping Station, Includes HiPace 30 Turbo Pump DN 63 ISO-K, MVP 015-2 Diaphragm Vacuum Pump And DCU 002 Control Unit, PMS7110000 / PM 025 013 AT / PM025013AT
Pfeiffer HiCube 30 Eco Features:
- Compact high performance pumping station for all high and ultrahigh vacuum applications
- Plug and play solution with HiPace 30 turbopump and multistage diaphragm pump MVP 015-2
- Intermittent mode adapts the pumping station to the process conditions and saves up to 90% energy
- Easy integration of pressure gauges from the accessories
HiCube 30 Eco / PM025013AT Overview:
The Pfeiffer Vacuum HiCube30 Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications.
The Hicube 30 Eco Station has a modern design with the latest turbo pump and electronics technology.
What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. We offer you the HiCube in Pro and Classic versions; available with dry compressing or oil-sealed backing pump and an ultimate pressure of up to 5 · 10-10 hPa.
The HiCube Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.
All HiCube Eco turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.
HiCube30Eco Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
A&J Vacuum services and repairs Pfeiffer HiCube 30 Eco, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer HiCube 30 Eco Turbo Pumping Station, Includes HiPace 30 Turbo Pump DN 63 ISO-K, MVP 015-2 Diaphragm Vacuum Pump And DCU 002 Control Unit, PMS7110000 / PM 025 013 AT / PM025013AT

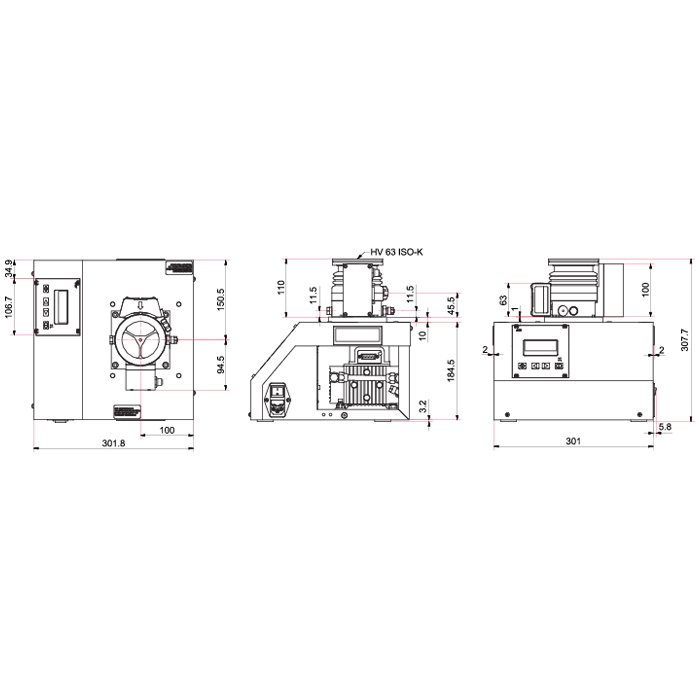

Pfeiffer HiCube 30 Eco Technical Data:
| Backing pump | MVP 015-2 |
| Cooling method, standard | Air |
| Flange (in) | DN 63 ISO-K |
| Flange (out) | Silencer, G 1/8" |
| Mains requirement | 110 – 240 V AC, 50/60 Hz |
| Mains requirement: frequency (range) | 50/60 Hz |
| Mains requirement: power consumption | 170 W |
| Mains requirement: voltage | 100 – 240 V |
| Power consumption max. | 170 W |
| Pumping speed backing pump at 50 Hz | 1 m³/h | 0.59 cfm | 16.67 l/min |
| Pumping speed for N2 | 32 l/s |
| Sound pressure level | ≤ 50 dB(A) |
| Turbopump | HiPace 30 |
| Type | Turbo pumping station |
| Ultimate pressure | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
| Ultimate pressure without gas ballast | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
| Weight | 11.7 kg | 25.79 lb |
A&J Vacuum services and repairs Pfeiffer HiCube 30 Eco, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
