- Inlet flange: DN 63 CF-F
- Pumping speed for N2 32 l/s
- Ultimate pressure < 1 · 10-8 hPa | < 7.5 · 10-9 Torr | < 1 · 10-8 mbar
- Backing pump MVP 015-2
Shopping Cart ( )
Pfeiffer HiCube 30 Eco Turbo Pumping Station, Includes HiPace 30 Turbo Pump DN 63 CF-F, MVP 015-2 Diaphragm Vacuum Pump And DCU 002 Control Unit, PMS7210000 / PM 025 014 AT / PM025014AT
Condition:
New
In Stock
Item#:PN22882
Mfr Part#:PMS7210000 / PM 025 014 AT / PM025014AT
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiCube 30 Eco Turbo Pumping Station, Includes HiPace 30 Turbo Pump DN 63 CF-F, MVP 015-2 Diaphragm Vacuum Pump And DCU 002 Control Unit, PMS7210000 / PM 025 014 AT / PM025014AT
Pfeiffer HiCube 30 Eco Features:
- Compact high performance pumping station for all high and ultrahigh vacuum applications
- Plug and play solution with HiPace 30 turbopump and multistage diaphragm pump MVP 015-2
- Intermittent mode adapts the pumping station to the process conditions and saves up to 90% energy
- Easy integration of pressure gauges from the accessories
HiCube 30 Eco / PM025014AT Overview:
The Pfeiffer Vacuum HiCube30 Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications.
The Hicube 30 Eco Station has a modern design with the latest turbo pump and electronics technology.
What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. We offer you the HiCube in Pro and Classic versions; available with dry compressing or oil-sealed backing pump and an ultimate pressure of up to 5 · 10-10 hPa.
The HiCube Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.
All HiCube Eco turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the
vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.
HiCube30Eco Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
A&J Vacuum services and repairs Pfeiffer HiCube 30 Eco, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer HiCube 30 Eco Turbo Pumping Station, Includes HiPace 30 Turbo Pump DN 63 CF-F, MVP 015-2 Diaphragm Vacuum Pump And DCU 002 Control Unit, PMS7210000 / PM 025 014 AT / PM025014AT
Pfeiffer HiCube 30 Eco Technical Data:
| Backing pump | MVP 015-2 |
| Cooling method, standard | Air |
| Flange (in) | DN 63 CF-F |
| Flange (out) | Silencer, G 1/8" |
| Mains requirement | 110 – 240 V AC, 50/60 Hz |
| Mains requirement: frequency (range) | 50/60 Hz |
| Mains requirement: power consumption | 170 W |
| Mains requirement: voltage | 100 – 240 V |
| Power consumption max. | 170 W |
| Pumping speed backing pump at 50 Hz | 1 m³/h | 0.59 cfm | 16.67 l/min |
| Pumping speed for N2 | 32 l/s |
| Sound pressure level | ≤ 50 dB(A) |
| Turbopump | HiPace 30 |
| Type | Turbo pumping station |
| Ultimate pressure | < 1 · 10-8 hPa | < 7.5 · 10-9 Torr | < 1 · 10-8 mbar |
| Ultimate pressure without gas ballast | < 1 · 10-8 hPa | < 7.5 · 10-9 Torr | < 1 · 10-8 mbar |
| Weight | 12.9 kg | 28.44 lb |
A&J Vacuum services and repairs Pfeiffer HiCube 30 Eco, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum MVP 015-2 Diaphragm Pump Operating Instructions
Pfeiffer Hipace30 Turbo Pump, Hipace 30 PMP0528, PMP05281, PMP05282
Manual_Instruction_HiCube_Eco_Series.pdf
Item#:PN06800
Mfr Part#:2000005849 / PU E22 001 -T / PUE22001-T
Condition: In Stock
New
In Stock
$650.00
Item#:PN15316
Mfr Part#:2000029578 / P 0920 567 E / P0920567E
Condition: Out of Stock
New
$81.00
Item#:PN15592
Mfr Part#:PN15592
Condition: In Stock
New
In Stock
$65.00
Item#:PN20446
Mfr Part#:2000025238 / PK 050 148 -U / PK050148-U
Condition: In Stock
New
In Stock
$210.00
Item#:PN22767
Mfr Part#:2000025215 / PK 050 002 -T / PK050002-T
Condition: Ships Within 1-3 Days
New
$97.20
Item#:PN22769
Mfr Part#:2000028988 / P 0991 939 / P0991939
Condition: In Stock
New
In Stock
$21.50
Item#:PN22770
Mfr Part#:2000025235 / PK 050 136 / PK050136
Condition: In Stock
New
In Stock
$95.00
Item#:PN02097
Mfr Part#:GA-0450V
Condition: In Stock
New
In Stock
$25.00
Item#:PN14632
Mfr Part#:GA-0450AL
Condition: In Stock
New
In Stock
$132.00
Item#:PN15042
Mfr Part#:DY-CF63RA16R
Condition: In Stock
New
In Stock
Price upon request
Item#:PN15674
Mfr Part#:PN15674
Condition: In Stock
New
In Stock
$9.95

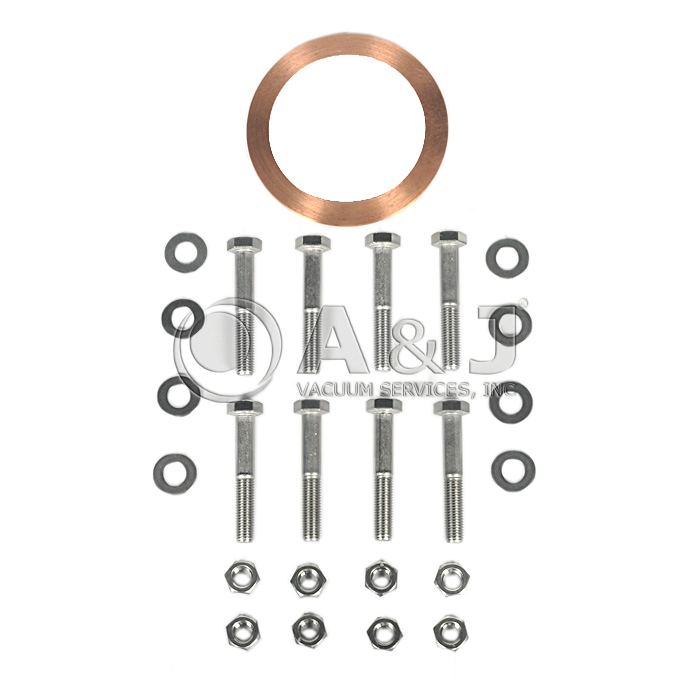

Item#:PN17961
