- Inlet flange: DN 63 ISO-K
- Pumping speed (N2): 65 l/s
- Ultimate pressure: < 1 x 8-7 mbar
- MVP 015 Diaphragm pump
Shopping Cart ( )

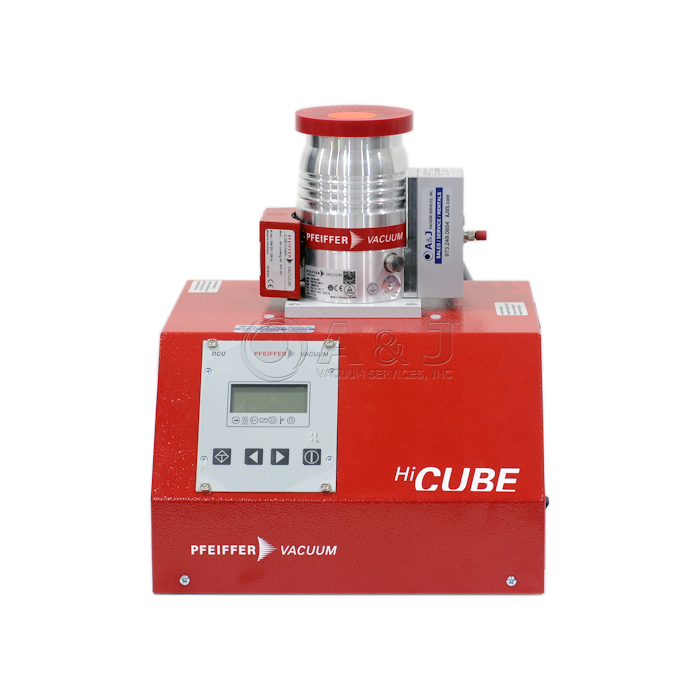

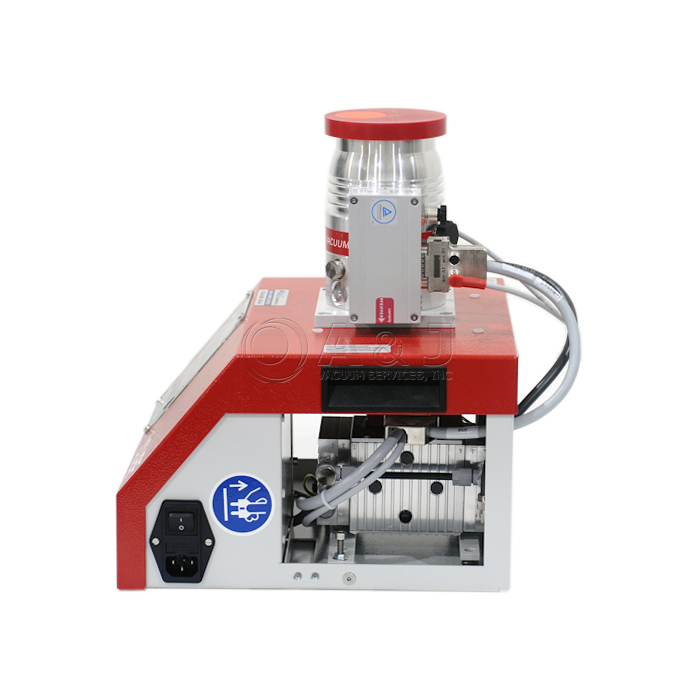

Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 ISO-K), MVP 015 Diaphragm Vacuum Pump and DCU 002 Control Unit, PM015886-T / PMS03555
Condition:
Demo
Out of Stock
Item#:PN20132
Mfr Part#:PM015886-T / PMS03555
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 ISO-K), MVP 015 Diaphragm Vacuum Pump and DCU 002 Control Unit, PM015886-T / PMS03555
The Pfeiffer Vacuum HiCube80 Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. ISO-K Inlet Flange makes this system trully High Vacuum (HV).
The Hicube 80 Station has a modern design with the latest turbo pump and electronics technology.
Features:
- Compact series of pumping stations for all high vacuum applications
- Air-cooled and ready for operation with HiPace 80 Turbo Pump and MVP 015 Dry Diaphragm Backing Pump
- Pfeiffer HiCube 80 Eco comes with DN 63 ISO-K inlet flange
- DCU 002 Control Unit
- Pfieffer HiCube 80 Eco voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz
Typical High Vacuum Hicube80 Eco Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
A&J Vacuum also repair / rebuild and service all Pfeiffer TMH Turbo Pumps along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 ISO-K), MVP 015 Diaphragm Vacuum Pump and DCU 002 Control Unit, PM015886-T / PMS03555
Technical Data:
Backing Pump: MVP 015 Dry Diaphragm Pump
Inlet Flange: DN 63 ISO-K
Mains Requirement: 110 V, 50/60 Hz; 230 V, 50/60 Hz
Mains Requirement Power Consumption: 230 W
Pumping Speed Backing Pump at 50 Hz: 0.50 m3/h
Pumping Speed for N2: 67 l/s
Pumping Station Components: HiPace 80, MVP 015-2, TPS 110, DCU 002
Ultimate Pressure: < 1 x 10-7 hPa
Weight: 17 kg / 38 lbs
A&J Vacuum also repair / rebuild and service all Pfeiffer TMH Turbo Pumps along with all other Pfeiffer Vacuum Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
