Pfeiffer HiPace 80 Agilent Turbo Pump with TC 110 Controller, DN 100 ISO-K, G3170-80161 / PMP03949 / PM P03 949
Condition:
Remanufactured
In Stock
Item#:PN15741
Mfr Part#:G3170-80161 / PMP03949 / PM P03 949
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiPace 80 Agilent Turbo Pump with TC 110 Controller, DN 100 ISO-K, G3170-80161 / PMP03949 / PM P03 949
Pfeiffer HiPace 80 Features:
- Powerful HiPace 80 Turbo Pump with a pumping speed of up to 67 l/s (N2)
- Ideal for dependable systems integration
- Installation in any orientation
- Extensive accessories available
HiPace 80 / PMP03949 Overview:
Agilent G3170-80161 Turbo Pump was designed for Agilent gas chromotography / mass spectrometry and used with several Agilent 5975 series units.
Agilent 5975A, 5975B, 5975C, 5975C-TAD and 5975E
The Pfeiffer HiPace Series is a compact yet powerful turbo pump line featuring pumping speeds that range from 10 - 2,000 liters per second. The HiPace 80 models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum Hipace 80 Agilent G3170-80161 Turbo Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click herehttp://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer HiPace 80 Agilent Turbo Pump with TC 110 Controller, DN 100 ISO-K, G3170-80161 / PMP03949 / PM P03 949
Pfeiffer HiPace 80 Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 1011 |
| Compression ratio for H2 | 1.4 · 105 |
| Compression ratio for He | 1.3 · 107 |
| Compression ratio for N2 | > 1 · 1011 |
| Cooling method, optional | Air/Water |
| Cooling method, standard | Convection |
| Cooling water flow | 75 l/h |
| Cooling water flow, max | 75 l/h |
| Cooling water flow, min | 75 l/h |
| Cooling water temperature | 5-25 °C | 41-77 °F | 278-298 K |
| Electronic drive unit | with TC 110 |

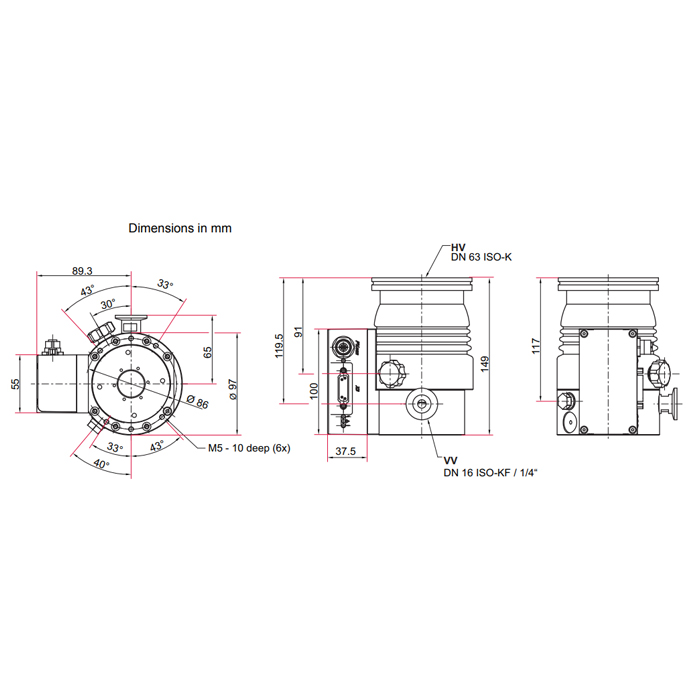

| Flange (in) | DN 63 ISO-K |
| Flange (out) | DN 16 ISO-KF/G ¼" |
| Fore-vacuum max. for N2 | 22 hPa | 16.5 Torr | 22 mbar |
| Gas throughput at full rotational speed for Ar | 0.54 hPa·l/s |
| Gas throughput at full rotational speed for H2 | 15.3 hPa·l/s |
| Gas throughput at full rotational speed for He | 2.7 hPa·l/s |
| Gas throughput at full rotational speed for N2 | 1.3 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Mounting orientation | Any |
| Operating voltage: V DC | 24 (± 5 %) V DC |
| Permissible magnetic field max. | 3.8 mT |
| Protection category | IP54 |
| Pumping speed for Ar | 66 l/s |
| Pumping speed for H2 | 48 l/s |
| Pumping speed for He | 58 l/s |
| Pumping speed for N2 | 67 l/s |
| Rotation speed ± 2 % | 90,000 rpm | 90,000 min-1 |
| Rotation speed variable | 50 – 100 % |
| Run-up time | 1.7 min |
| Sound pressure level | ≤ 48 dB(A) |
| Ultimate pressure according to PNEUROP | < 1 · 10-7 hPa | < 7.5 · 10-8Torr | < 1 · 10-7 mbar |
| Venting connection | G 1/8" |
| Weight | 2.4 kg | 5.29 lb |
A&J Vacuum repair / rebuild and service all Pfeiffer Vacuum Hipace 80 Agilent G3170-80161 Turbo Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click herehttp://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
