Pfeiffer HLT560 Helium Leak Detector, 120 VAC / 60 Hz, PTL02001,Like New, HLT 560

Pfeiffer HLT560 Helium Leak Detector, 120 VAC / 60 Hz, PTL02001,Like New, HLT 560

Pfeiffer HLT 560 Overview & Features:

The Pfeiffer HLT560 SmartTest Helium Leak Detectors PTL02001 are microprocessor-controller leak detecting instruments. All the processes in the instrument are controlled automatically.

• Rugged, dependable helium leak detector.
• For a mains voltage of 120 V, 60 Hz
• With 5.1 m3/h UNO5 Rotary Vane Pump
• Very easy operation to achieve precise measuring results
• Wireless remote control optional, distance up to 100 m as well as data logging to USB stick
• Durable and industry-tested mass spectrometer
• Integrated test leak
• Bypass option for large test items
• For sniffer and vacuum leak detection
• Simple maintenance - low cost of ownership

Helium Leak Detector – The clever and modular Solution. Simple Operation. Top Performance.

Leak Detection Methods

When searching for leaks with the SmartTest the test gas entering or escaping
through leaks in the sample is detected.
For gas to flow through a leak a pressure difference between the inside and outside
of the sample is necessary. For this either excess pressure or vacuum pressure is
generated inside the sample.

Vacuum method

In the vacuum method test gas is blown against the wall of the evacuated sample
from the atmosphere side. It enters the sample at leaks and is fed to the leak
detector.
The sample must be vacuum pressure-proof.
The sensitivity stages
counterflow ⇒ Twin-Flow™ low ⇒ Twin-Flow™ high
are run through.
The detection limit is lower than in the sniffing method. The helium concentration
at the leak must be known in order to quantify the leak. The state of equilibrium
must be waited for.

Sniffing method

In the sniffing method the test gas escaping from leaks in the sample into the
atmosphere is detected.
The sample must withstand the applied test pressure.
In operation with the sniffing probe a constant gas flow is sucked in from the
atmosphere. The helium proportion of the air (5.2 ppm) causes a leak rate display
of approx. 1×10-6 mbar l/s which can be eliminated by the ZERO function.
To detect a leak, the sniffing probe is applied to the points of the sample under
helium overpressure which are suspected of leaking. An increased leak rate value
indicates an increased concentration of helium and therefore a leak. The higher the
pressure and the helium concentration in the sample, the smaller the leaks which
can be detected.
The sensitivity stages
counterflow ⇒ Twin-Flow™ low
are run through.
The detection sensitivity and the quantifiability of the leak rate are less favourable
than in the vacuum pressure leak detection.

With its modular design and it's new wireless remote control RC 500 WL, the SmartTest offers the perfect solution for vacuum leak detection. Fast, reliable results, lowest detectable leak rates and short recovery time are what characterize the SmartTest and make it such a powerful and dependable product.

Utmost sensitivity in identifying even the smallest leaks. Quantification of the leaks. Outstanding reproducibility of the measurement. Helium test gas is non-toxic and non-flammable. Short measurement times

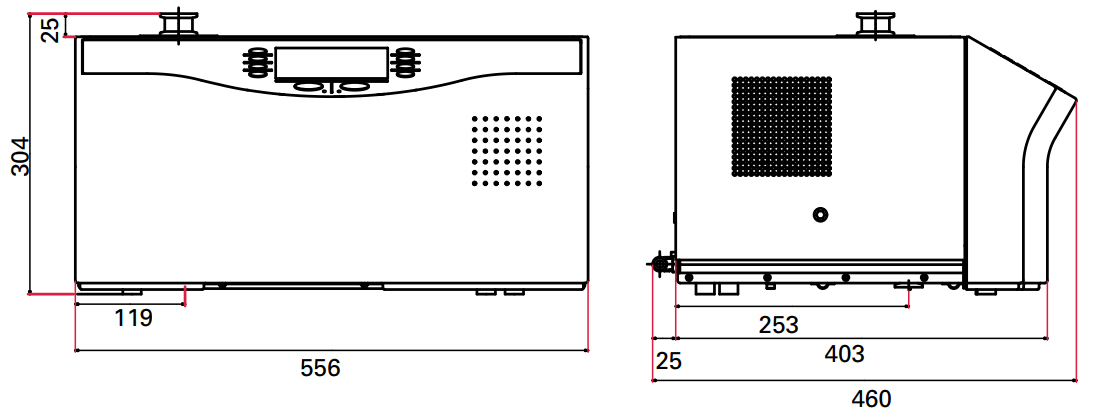

Pfeiffer HLT 560 Dimensions:

Click Here for Pfeiffer HLT 560  Manual

A&J Vacuum Services offers full repair/service of Pfeiffer HLT 560 SmartTest Helium Leak Detectors, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
