- Inlet Flange DN 100 ISO-K
- Outlet Flange DN 16 ISO-KF/G ¼"
- Pumping speed for Ar 255 l/s
- Fully Remanufactured !
Shopping Cart ( )
Pfeiffer Vacuum HiPace 300 Plus Turbo Pump with TC 110 Controller, DN 100 ISO-K, PM P03 980 A / PNP03980A
Condition:
Remanufactured
Call us for Availability
Item#:PN40683
Mfr Part#:PM P03 980 A / PNP03980A
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Vacuum HiPace 300 Plus Turbo Pump with TC 110 Controller, DN 100 ISO-K, PM P03 980 A / PNP03980A
Pfeiffer HiPace 300 Plus Turbo Pump Features:
- Rugged, powerful turbopump with a pumping speed of up to 245 l/s for N2
- Integrated drive electronics TC110
- Perfect solution for coating and semiconductor processes as well as for dusty industrial applications like electron-beam welding facilities
- For installation in any orientation
- With integrated water cooling for maximum gas throughput
- Flexible through the ability to employ up to 4 accessories
- Ideal for fast cycles
- Extensive accessories expand the range of applications
- Insensitive to dust
HiPace 300 Plus / PM P03 980 A Overview:
The Pfeiffer HiPace 300 Plus PMP03980 A 100 ISO-K is a complete line of compact yet powerful Pfeiffer turbo pumps featuring pumping speed of 245 l/s N2. These Hipace 300 plus models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
The Pfeiffer Hipace 300 Plus Turbo Pump proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
This Fully Refurbished HiPace 300 Plus Turbo Pump comes with a TC-110 Controller.
Complete Operating Instruction for HiPace 300 Plus PM P03 980 A is available in PDF format below.
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 300 plus Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer Vacuum HiPace 300 Plus Turbo Pump with TC 110 Controller, DN 100 ISO-K, PM P03 980 A / PNP03980A
Pfeiffer HiPace 300 Plus Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 1011 |
| Compression ratio for H2 | 9 · 105 |
| Compression ratio for He | > 1 · 108 |
| Compression ratio for N2 | > 1 · 1011 |
| Cooling method, optional | Water |
| Cooling method, standard | Air |
| Cooling water flow | 50 l/h |
| Cooling water flow, max | 50 l/h |
| Cooling water flow, min | 50 l/h |
| Cooling water temperature | 15-35 °C | 59-95 °F | 288-308 K |
| Current max. | 7,5 A |
| Electronic drive unit | with TC 110 |

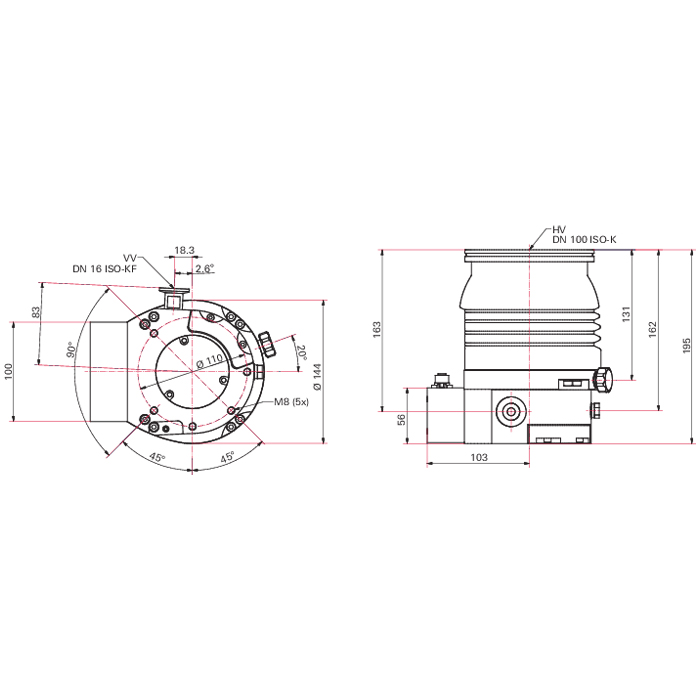

| Flange (in) | DN 100 ISO-K |
| Flange (out) | DN 16 ISO-KF/G ¼" |
| Fore-vacuum max. for N2 | 15 hPa | 11.25 Torr | 15 mbar |
| Gas throughput at full rotational speed for Ar | 2 hPa·l/s |
| Gas throughput at full rotational speed for H2 | > 14 hPa·l/s |
| Gas throughput at full rotational speed for He | 8 hPa·l/s |
| Gas throughput at full rotational speed for N2 | 5 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Interface, extended | Profibus, DeviceNet, E74 |
| Low vibrations | YES |
| Mounting orientation | 0° (HV flange top) |
| Operating voltage: V DC | 24 (± 5 %) V DC |
| Permissible magnetic field max. | 5.5 mT |
| Power consumption max. | 180 W |
| Protection category | IP54 |

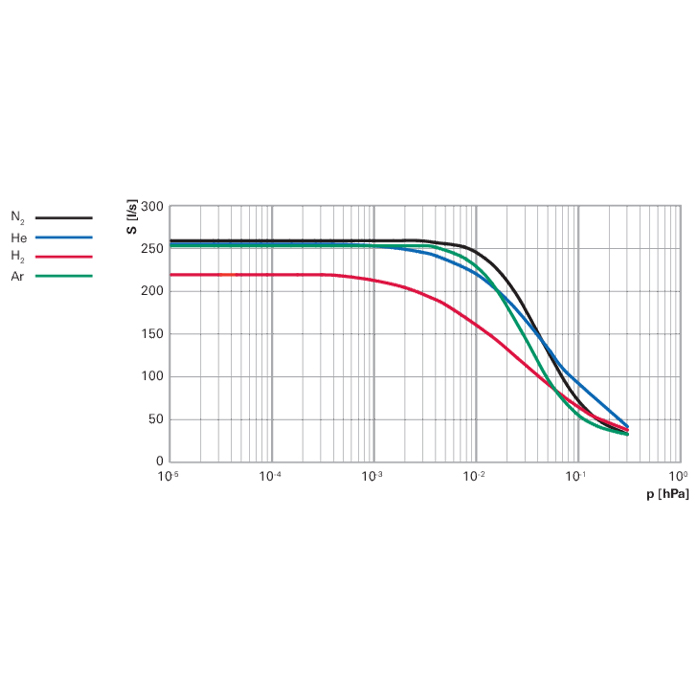

| Pumping speed for Ar | 255 l/s |
| Pumping speed for H2 | 220 l/s |
| Pumping speed for He | 255 l/s |
| Pumping speed for N2 | 260 l/s |
| Rotation speed ± 2 % | 60,000 rpm | 60,000 min-1 |
| Rotation speed variable | 35 – 100 % |
| Run-up time | 3.5 min |
| Sound pressure level | ≤50 dB(A) |
| Ultimate pressure according to PNEUROP | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
| Ultimate pressure without gas ballast | 1 · 10-7 hPa | 7.5 · 10-8 Torr | 1 · 10-7 mbar |
| Venting connection | G 1/8" |
| Weight | 5.8 kg | 12.79 lb |
