- PN 1402PI/MS
- Outstanding Quality
- For Welch Pump 1402
- Primary Kit
Shopping Cart ( )
Primary Kit for Major Overhaul, Mechanical Cast Iron Vanes, for Welch Rotary Vane Pump 1402, 1402PI/MS
Condition:
New
In Stock
Item#:PN13567
Mfr Part#:1402PI/MS
Manufacturer:Welch
Features:
Primary Kit for Major Overhaul, Mechanical Cast Iron Vanes, for Welch Rotary Vane Pump 1402, 1402PI/MS
Primary Kits include all components of secondary kits plus vanes for major overhaul.

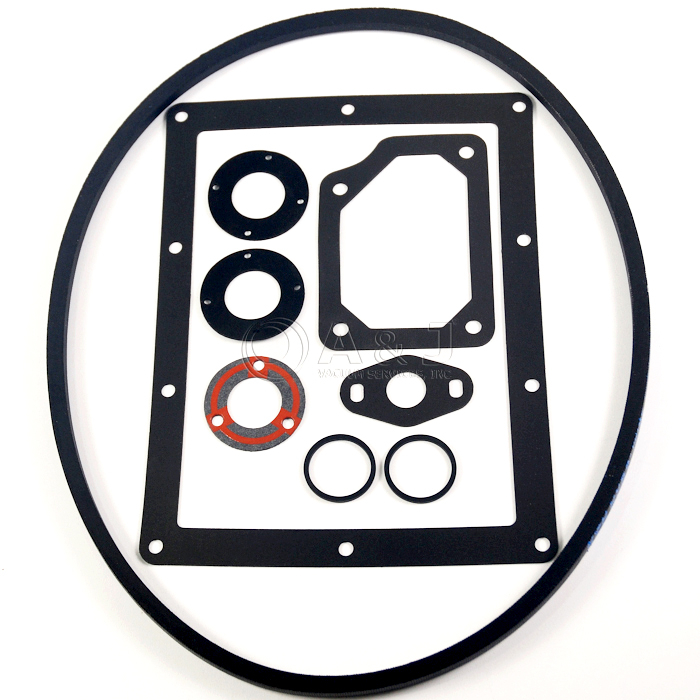

The Primary Kit 1402PI/MS contains the following parts:
410234 Gasket,1376,1380,1402/1405, qty.1
410403 Gasket,Case,Foam Rubber, qty.1
410508 Washer,Thrust, qty.1
410578 Seal,Shaft (Metal Case) , qty.1
410613 Key,Woodruff,Cut, qty.2
410624 Key,Woodruff,Cut, qty.2
410696 Holder,Spring, qty.3
410713 V-Belt, qty.1
410959 Vane,Cast Iron,1st Stage,Large, qty.2
410992 Valve,Pressure Relief, qty.1
411266 Washer,Tension, qty.2
411267 Washer,Rubber, qty.2
411304 Spring,Ss, qty.6
411487 Vane,Cast Iron,2nd Stage,Small, qty.2
411766 Washer,Disk, qty.3
412153s Valve,Pressure Relief,S/S, qty.2
412154s Valve,Pressure Relief,S/S, qty.2
412158 Spring,Valve, qty.2
412291 Gasket,1376,1402/1405 , qty.1
4401200 Ball,Steel, qty.1
1401d Seal,Shaft,Mech,W/Screws,.750", qty.1
410643 Gasket,Shaft Seal, qty.1
A&J Vacuum Repairs / Rebuilds and Services all Welch 1400, 1402, 1405 Vane Pumps including belt driven Welch pumps service pumps and all other Welch vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Primary Kit for Major Overhaul, Mechanical Cast Iron Vanes, for Welch Rotary Vane Pump 1402, 1402PI/MS
Primary Kits include all components of secondary kits plus vanes for major overhaul.
The Primary Kit 1402PI/MS contains the following parts:
410234 Gasket,1376,1380,1402/1405, qty.1
410403 Gasket,Case,Foam Rubber, qty.1
410508 Washer,Thrust, qty.1
410578 Seal,Shaft (Metal Case) , qty.1
410613 Key,Woodruff,Cut, qty.2
410624 Key,Woodruff,Cut, qty.2
410696 Holder,Spring, qty.3
410713 V-Belt, qty.1
410959 Vane,Cast Iron,1st Stage,Large, qty.2
410992 Valve,Pressure Relief, qty.1
411266 Washer,Tension, qty.2
411267 Washer,Rubber, qty.2
411304 Spring,Ss, qty.6
411487 Vane,Cast Iron,2nd Stage,Small, qty.2
411766 Washer,Disk, qty.3
412153s Valve,Pressure Relief,S/S, qty.2
412154s Valve,Pressure Relief,S/S, qty.2
412158 Spring,Valve, qty.2
412291 Gasket,1376,1402/1405 , qty.1
4401200 Ball,Steel, qty.1
1401d Seal,Shaft,Mech,W/Screws,.750", qty.1
410643 Gasket,Shaft Seal, qty.1
A&J Vacuum Repairs / Rebuilds and Services all Welch 1400, 1402, 1405 Vane Pumps including belt driven Welch pumps service pumps and all other Welch vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
