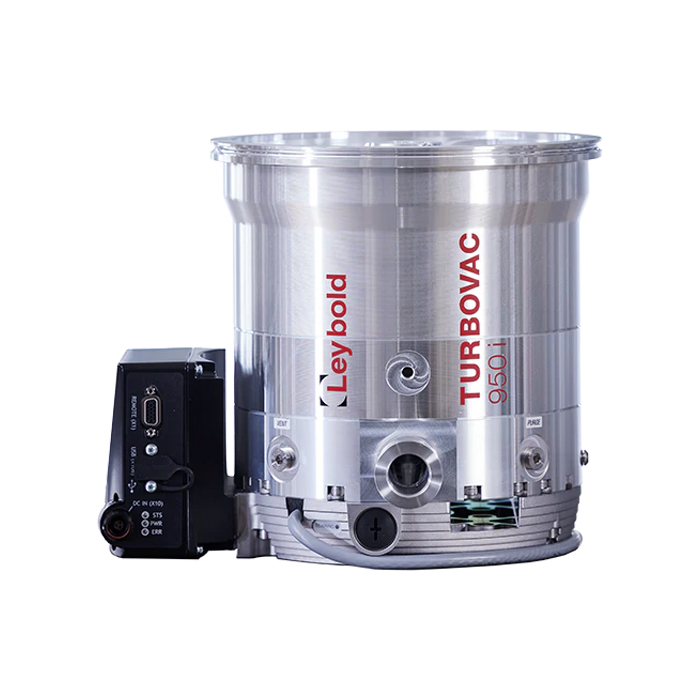

Leybold Turbovac 950 i High-Vacuum Turbo Pump, DN 200 CF, 840111V1000
Leybold Turbovac 950 i Features:
- Ultimate pressure: 3.000 × 10⁻¹⁰ mbar
- Pumping speed (Ar): 790 l/s
- Pumping speed (He): 860 l/s
- Pumping speed (H₂): 720 l/s
- Pumping speed (N₂): 850 l/s
- Stress free operation
- High performance
Turbovac 950 i / 840111V1000 Overview:
With the Leybold Turbovac 950 i high-vacuum pump, improving your industrial vacuum processes has never been easier and more convenient. The Leybold Turbovac 950i/950iX Series of industrial high-vacuum turbo pumps allows users to optimize pump down times and consistently achieve optimal pressures and gas flows. The 950i series pump is particularly designed to offer the best performance-to-size ratio among pumps within the ISO 200 CF inlet size range. A defining feature of this product family includes a cutting-edge rotor along with drag-stage design, effectively resulting in high performance and unparalleled pumping speed, particularly for light gas varieties. Turbovac 950 i is also available as an IP 54 version.
Turbo-molecular vacuum pumps of the Turbovac 950i category are used in applications necessitating a clean high or ultra-high vacuum, particularly in fields ranging from research and development (R&D) to industrial fields incorporating the semiconductor industry, as well as analytical instrumentation and coating technology.
Turbovac950i Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair and service of Leybold Turbovac 950i High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold Turbovac 950 i High-Vacuum Turbo Pump, DN 200 ISO-K, 840091V1000
Leybold Turbovac 950 i Features:
- Ultimate pressure: 7.000 × 10⁻⁹ mbar
- Pumping speed (Ar): 840 l/s
- Pumping speed (He): 925 l/s
- Pumping speed (H₂): 770 l/s
- Pumping speed (N₂): 900 l/s
- Stress free operation
- High performance
Turbovac 950 i / 840091V1000 Overview:
With the Leybold Turbovac 950 i high-vacuum pump, improving your industrial vacuum processes has never been easier and more convenient. The Leybold Turbovac 950i/950iX Series of industrial high-vacuum turbo pumps allows users to optimize pump down times and consistently achieve optimal pressures and gas flows. The 950i series pump is particularly designed to offer the best performance-to-size ratio among pumps within the ISO 200 inlet size range. A defining feature of this product family includes a cutting-edge rotor along with drag-stage design, effectively resulting in high performance and unparalleled pumping speed, particularly for light gas varieties. Turbovac 950 i is also available as an IP 54 version.
Turbo-molecular vacuum pumps of the Turbovac 950i category are used in applications necessitating a clean high or ultra-high vacuum, particularly in fields ranging from research and development (R&D) to industrial fields incorporating the semiconductor industry, as well as analytical instrumentation and coating technology.
Turbovac950i Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair and service of Leybold Turbovac 950i High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold Turbovac 950 iX High-Vacuum Turbo Pump, DN 200 CF, 840111V3300
Leybold Turbovac 950 iX Features:
- Ultimate pressure: 3.000 × 10⁻¹⁰ mbar
- Pumping speed (Ar): 790 l/s
- Pumping speed (He): 860 l/s
- Pumping speed (H₂): 720 l/s
- Pumping speed (N₂): 850 l/s
- Stress free operation
- High performance
Turbovac 950 iX / 840111V3300 Overview:
With the Leybold Turbovac 950 iX high-vacuum pump, improving your industrial vacuum processes has never been easier and more convenient. The Leybold Turbovac 950i/950iX Series of industrial high-vacuum turbo pumps allows users to optimize pump down times and consistently achieve optimal pressures and gas flows. The 950iX series pump is particularly designed to offer the best performance-to-size ratio among pumps within the ISO 200 CF inlet size range. A defining feature of this product family includes a cutting-edge rotor along with drag-stage design, effectively resulting in high performance and unparalleled pumping speed, particularly for light gas varieties.
Turbo-molecular vacuum pumps of the Turbovac 950iX category are used in applications necessitating a clean high or ultra-high vacuum, particularly in fields ranging from research and development (R&D) to industrial fields incorporating the semiconductor industry, as well as analytical instrumentation and coating technology.
Turbovac950iX Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair and service of Leybold Turbovac 950iX High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold Turbovac 950 iX High-Vacuum Turbo Pump, DN 200 ISO-K, 840091V3300
Leybold Turbovac 950 iX Features:
- Ultimate pressure: 7.000 × 10⁻⁹ mbar
- Pumping speed (Ar): 840 l/s
- Pumping speed (He): 925 l/s
- Pumping speed (H₂): 770 l/s
- Pumping speed (N₂): 900 l/s
- Stress free operation
- High performance
Turbovac 950 iX / 840091V3300 Overview:
With the Leybold Turbovac 950 iX high-vacuum pump, improving your industrial vacuum processes has never been easier and more convenient. The Leybold Turbovac 950i/950iX Series of industrial high-vacuum turbo pumps allows users to optimize pump down times and consistently achieve optimal pressures and gas flows. The 950iX series pump is particularly designed to offer the best performance-to-size ratio among pumps within the ISO 200 inlet size range. A defining feature of this product family includes a cutting-edge rotor along with drag-stage design, effectively resulting in high performance and unparalleled pumping speed, particularly for light gas varieties.
Turbo-molecular vacuum pumps of the Turbovac 950iX category are used in applications necessitating a clean high or ultra-high vacuum, particularly in fields ranging from research and development (R&D) to industrial fields incorporating the semiconductor industry, as well as analytical instrumentation and coating technology.
Turbovac950iX Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair and service of Leybold Turbovac 950iX High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
