Leybold Turbovac 350 i High-Vacuum Turbo Pump, DN 100 CF, 830061V1000
Leybold Turbovac 350 i Features:
- Ultimate pressure: < 5,0 x 10-10 mbar
- Pumping speed (Ar): 260 l/s
- Pumping speed (He): 360 l/s
- Pumping speed (H₂): 350 l/s
- Pumping speed (N₂): 290 l/s
- High pressure foreline tolerance
- Excellent resistance to vibration due to proven mechanical bearings
- Efficient convection cooling due to a large number of cooling fans
Turbovac 350 i / 830061V1000 Overview:
It has never been so easy to improve your processes until now. The Leybold Turbovac 350 i high-vacuum pump will allow you to optimize pump down times and consistently hit your target pressures and gas flows. The Turbovac 350 i is specifically designed to offer the best performance-to-size ratio within the ISO 63, 100, and 160 flange size range, featuring a cutting-edge rotor and drag stage design. These combined features result in high performance and unparalleled pumping speeds, particularly for light gas varieites.
Not only does the flexibility of the rotor and drag stage design offer benchmark performance, it also ensures that the performance of your pump is perfectly adapted to your specific application. In addition, you may choose between diverse electronic control options, various housing and flange configurations, as well as a wide range of options for accessories.
The unique oil-free hybrid bearing system with lifetime-lubricated ball bearings will boost your productivity and reduce the cost of ownership. The result is a vacuum system operation that is more efficient than ever before!
Turbovac350i Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair and service of Leybold Turbovac 350i High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

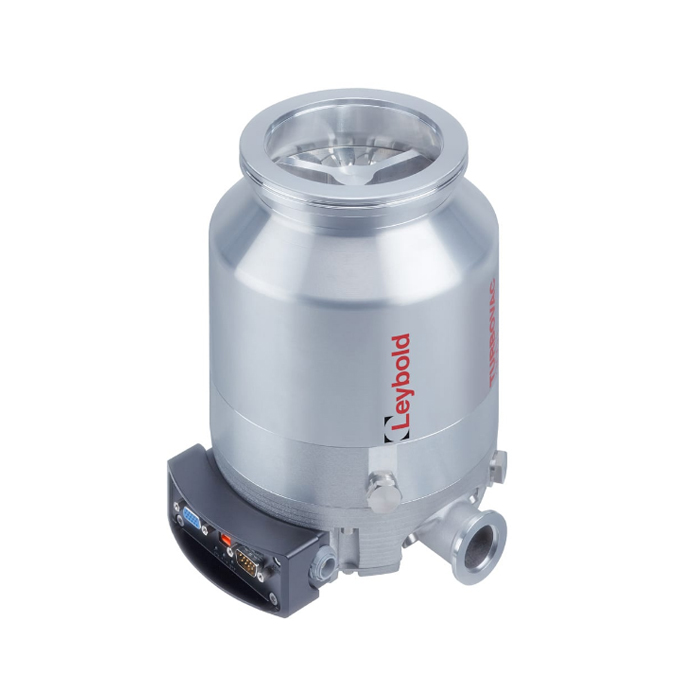

Leybold Turbovac 350 i High-Vacuum Turbo Pump, DN 100 ISO-K, 830051V1000
Leybold Turbovac 350 i Features:
- Ultimate pressure: < 8.0 x 10-8 mbar
- Pumping speed (Ar): 260 l/s
- Pumping speed (He): 360 l/s
- Pumping speed (H₂): 350 l/s
- Pumping speed (N₂): 290 l/s
- High pressure foreline tolerance
- Excellent resistance to vibration due to proven mechanical bearings
- Efficient convection cooling due to a large number of cooling fans
Turbovac 350 i / 830051V1000 Overview:
With the Leybold Turbovac 350 i high-vaccum pump, improving your industrial vacuum processes has never been this easy. Leybold Turbovac 90, 350, and 450 i Series pumps allow you to optimize pump down times and consistently hit your target range for both pressure and gas flow. Specifically designed to offer the best performance-to-size ratio within the ISO 63, 100, and 160 flange size ranges, this product family features a cutting-edge rotor and drag stage design, resulting in high performance and unparalleled pumping speed, particularly for light gas varieites.
Not only does the flexibility of the rotor and drag stage design offer benchmark performance, it also ensures that the performance of your pump is perfectly adapted to your specific application. In addition, you can also choose between different electronic control options, various housing and flange configurations, as well as a wide range of options for accessories.
The unique oil-free hybrid bearing system of the Leybold Turbovac 350 i, with lifetime-lubricated ball bearings, will boost your productivity and reduce the cost of ownership. The result is a vacuum system operation that is more efficient than ever before!
Turbovac350i Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair and service of Leybold Turbovac 350i High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold Turbovac 350 iX High-Vacuum Turbo Pump, RS 485, DN 100 ISO-K, 830051V3300
Leybold Turbovac 350 iX Features:
- Ultimate pressure: < 8.0 x 10-8 mbar
- Pumping speed (Ar): 260 l/s
- Pumping speed (He): 360 l/s
- Pumping speed (H₂): 350 l/s
- Pumping speed (N₂): 290 l/s
- High pressure foreline tolerance
- Excellent resistance to vibration due to proven mechanical bearings
- Efficient convection cooling due to a large number of cooling fans
Turbovac 350 iX / 830051V3300 Overview:
With the Leybold Turbovac 350 iX, high functionality meets outstanding performance. Our Model 350 iX turbomolecular pump range with an integrated vacuum system controller provides many features that have, until now, been available only within costly external control units. With the new Turbovac 350 iX, valuable accessories including forevacuum pumps, gauges, coolers, valves, and many other varieties of accessories can now be easily controlled via the turbo pump.
Specifically designed to offer the best performance-to-size ratio within the ISO 63, 100 and 160 size range, the Leybold Turbovac 350 iX features a cutting-edge rotor and drag stage design, contributing to high performance and an unparalleled pumping speed, especially for light gas varieties.
A wide selection of interface options, housing and flange configurations, as well as accessories completes this product line. The unique oil-free hybrid bearing system with lifetime-lubricated ball bearings will boost your productivity and reduce cost of ownership.
Turbovac350iX Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair and service of Leybold Turbovac 350iX High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

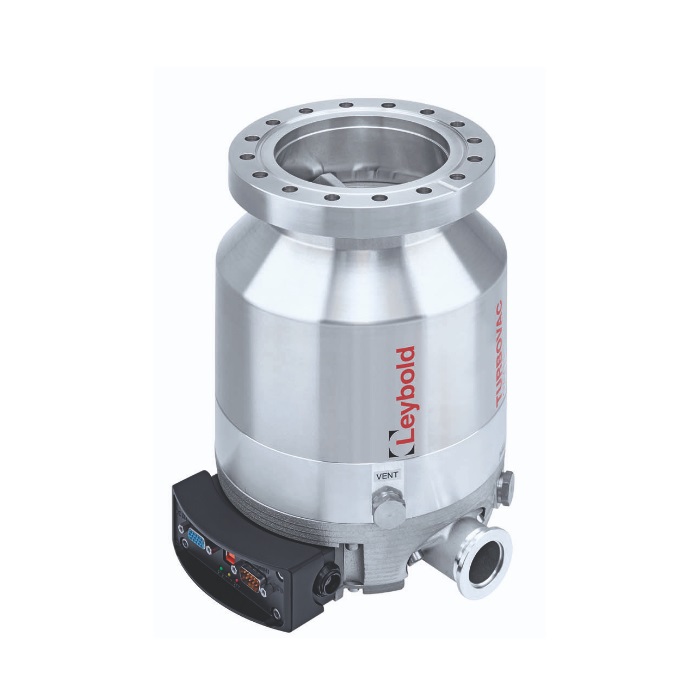

Leybold Turbovac 350 iX High-Vacuum Turbo Pump, RS 485, DN 100 CF, 830061V3300
Leybold Turbovac 350 iX Features:
- Ultimate pressure: < 5.0 x 10-10 mbar
- Pumping speed (Ar): 260 l/s
- Pumping speed (He): 360 l/s
- Pumping speed (H₂): 350 l/s
- Pumping speed (N₂): 290 l/s
- High pressure foreline tolerance
- Excellent resistance to vibration due to proven mechanical bearings
- Efficient convection cooling due to a large number of cooling fans
Turbovac 350 iX / 830061V3300 Overview:
With the Leybold Turbovac 350 iX, high functionality meets outstanding performance. Our Model 350 iX turbomolecular pump range with an integrated vacuum system controller provides many features that have, until now, been available only within costly external control units. With the new Turbovac 350 iX, valuable accessories including forevacuum pumps, gauges, coolers, valves, and many other varieties of accessories can now be easily controlled via the turbo pump.
Specifically designed to offer the best performance-to-size ratio within the ISO 63, 100 and 160 size range, the Leybold Turbovac 350 iX features a cutting-edge rotor and drag stage design, contributing to high performance and an unparalleled pumping speed, especially for light gas varieties.
A wide selection of interface options, housing and flange configurations, as well as accessories completes this product line. The unique oil-free hybrid bearing system with lifetime-lubricated ball bearings will boost your productivity and reduce cost of ownership.
Turbovac350iX Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair and service of Leybold Turbovac 350iX High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
