Item#: PN23272 Mfr Part#: 820051V3300 Manufacturer: Leybold
PRICE: $10,000.00
WEB SAVINGS: $619.00
YOU PAY: $9,381.00

Leybold Turbovac 250 iX, RS 485, Turbo Pump, DN 100 ISO-K, 820051V3300



Leybold Turbovac 250 iX (w/ DN 100 ISO-K Inlet Flange) - Product Overview:


With the Leybold Turbovac 250 iX, high functionality meets outstanding performance. Our model 250 iX turbomolecular pump range with an integrated vacuum system controller provides many features that have, until now, been available only in costly external pump control units. With the Leybold Turbovac 250 iX, forevacuum pumps, gauges, coolers, valves, and many other accessories can now be easily controlled via the turbo pump. The Turbovac 250 iX turbo pump has a pumping speed of 225 l/s of N2 (Nitrogen).

Designed to offer the best performance-to-size ratio within the ISO 63, 100 and 160 flange size range, the Leybold Turbovac 250 iX features a cutting-edge rotor and drag stage design, contributing to high performance and unparalleled pumping speeds, especially for light gas varieites.

A wide selection of interface options, housing and flange configurations, as well as accessories completes this product line. The unique oil-free hybrid bearing system with lifetime-lubricated ball bearings will likewise boost your productivity and reduce the cost of ownership.

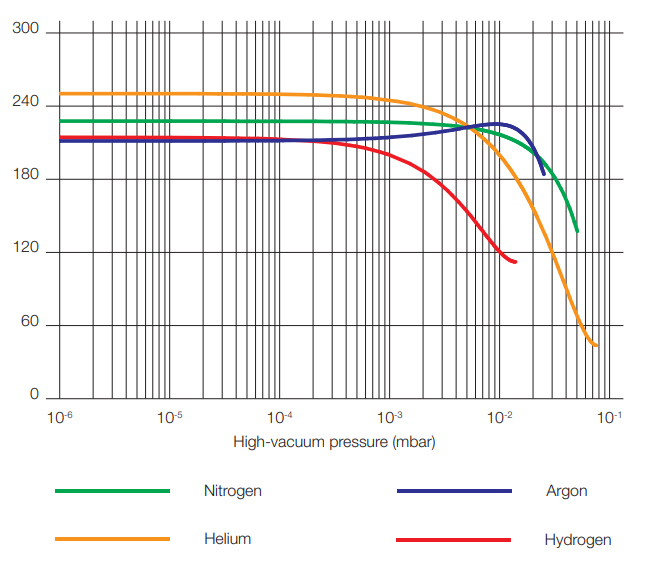

Leybold Turbovac 250 iX - Pumping Speed:


Leybold TURBOVAC 250 ix, DN100 ISO-K, 820051V3300, Pumping speed



Leybold Turbovac 250 iX - Typical Applications:


  • Helium Leak Detectors
  • Mass Spectrometers (Gas Chromatography GC-MS), Liquid Chromatography (LC-MS), Residual Gas Analysis, Mobile Analytical Systems, etc.)
  • Electron Beam Microscopy
  • XHV-/UHV Systems
  • Transfer Chambers


Leybold Turbovac 250 iX - Technical Features


  • Oil-Free Pump
  • High Pressure Foreline Tolerance
  • Excellent Resistance to Vibration Due to Proven Mechanical Bearings
  • Efficient Convection Cooling Due to a Large Number of Cooling Fans
  • Purge Gas/Venting Connection
  • Installation in Any Orientation
  • Flexible Attachment of the Frequency Converter to the Pump
  • Small Exhaust Footprint



Leybold Turbovac 250 iX - User Advantages:


  • Easy to Integrate Into Complex Vacuum Systems
  • Space-Saving; Maneuverability
  • Prepared for Pumping of Slightly-Corrosive Gases, Owing to Seal Gas Connection
  • High Reliability Due to Self-Monitoring

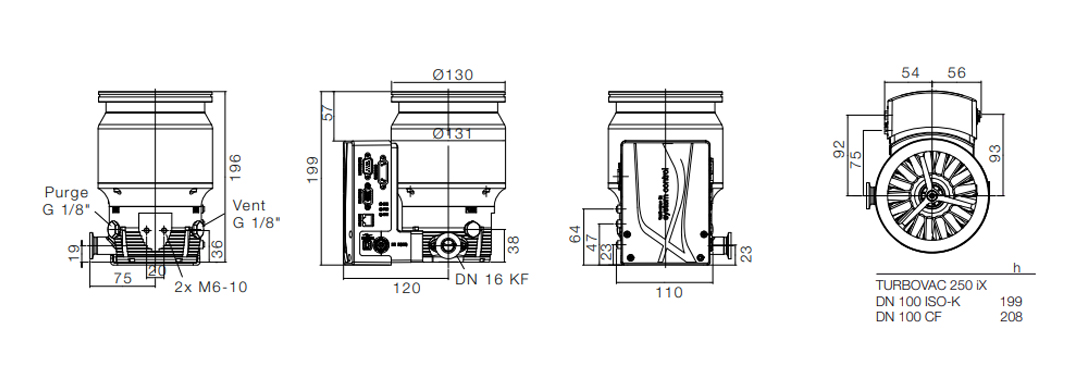

Leybold Turbovac 250 iX Dimensions:


Leybold TURBOVAC 250 ix, DN100 ISO-K, 820051V3300, Dimensions


A&J Vacuum Services offers full repair and service of Leybold Turbovac 250iX High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN23273 Mfr Part#: 820061V3300 Manufacturer: Leybold
PRICE: $10,074.00
WEB SAVINGS: $285.01
YOU PAY: $9,788.99

Leybold Turbovac 250 iX, RS 485, High-Vacuum Turbo Pump, DN 100 CF, 820061V3300



Leybold Turbovac 250 iX (w/ DN 100 CF Inlet Flange) - Product Overview:


With the Leybold Turbovac 250 iX, high functionality meets outstanding performance. Our model 250 iX turbomolecular pump range with an integrated vacuum system controller provides many features that have, until now, been available only in costly external pump control units. With the Leybold Turbovac 250 iX, fore-vacuum pumps, gauges, coolers, valves, and many other accessories can now be easily controlled via the turbo pump. The Turbovac 250 iX turbo pump has a pumping speed of 225 l/s of N2 (Nitrogen).

Designed to offer the best performance-to-size ratio within the ISO 63, 100 and 160 flange size range, the Leybold Turbovac 250 iX features a cutting-edge rotor and drag stage design, contributing to high performance and unparalleled pumping speeds, especially for light gas varieties.

A wide selection of interface options, housing and flange configurations, as well as accessories completes this product line. The unique oil-free hybrid bearing system with lifetime-lubricated ball bearings will likewise boost your productivity and reduce the cost of ownership.



Leybold 250 iX Pumping Speed:


Leybold TURBOVAC 250 ix, DN100 ISO-K, 820051V3300, Pumping speed



Leybold Turbovac 250 iX - Typical Applications:


  • Helium Leak Detectors
  • Mass Spectrometers (Gas Chromatography GC-MS), Liquid Chromatography (LC-MS), Residual Gas Analysis, Mobile Analytical Systems, etc.)
  • Electron Beam Microscopy
  • XHV-/UHV Systems
  • Transfer Chambers


Leybold Turbovac 250 iX - Technical Features


  • Oil-Free Pump
  • High Pressure Foreline Tolerance
  • Excellent Resistance to Vibration Due to Proven Mechanical Bearings
  • Efficient Convection Cooling Due to a Large Number of Cooling Fans
  • Purge Gas/Venting Connection
  • Installation in Any Orientation
  • Flexible Attachment of the Frequency Converter to the Pump
  • Small Exhaust Footprint



Leybold Turbovac 250 iX - User Advantages:


  • Easy to Integrate Into Complex Vacuum Systems
  • Space-Saving; Maneuverability
  • Prepared for Pumping of Slightly-Corrosive Gases, Owing to Seal Gas Connection
  • High Reliability Due to Self-Monitoring



Leybold 250 ix Dimensions:


Leybold TURBOVAC 250 ix, DN100 ISO-K, 820051V3300, Dimensions


A&J Vacuum Services offers full repair and service of Leybold Turbovac 250iX High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
