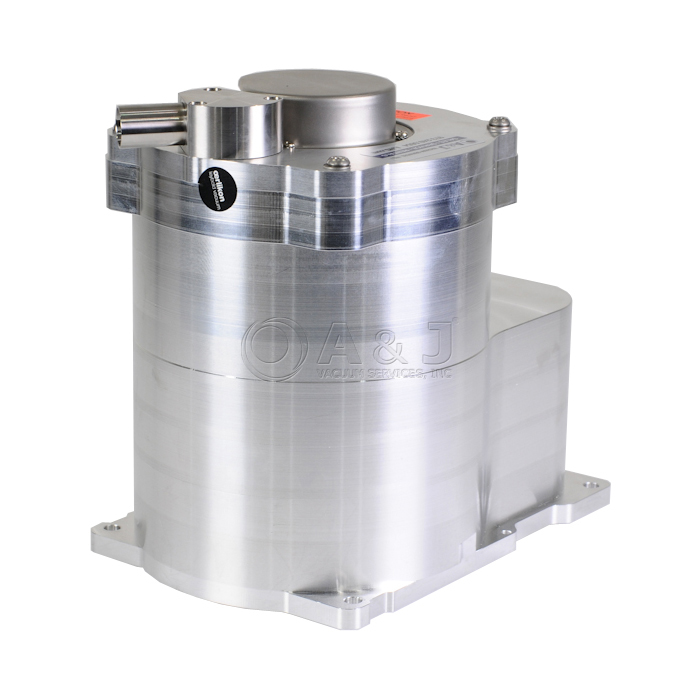

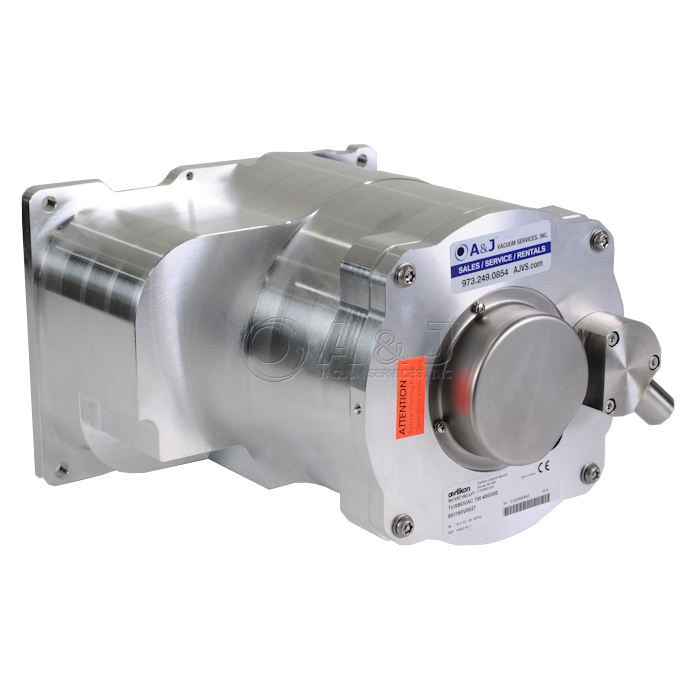

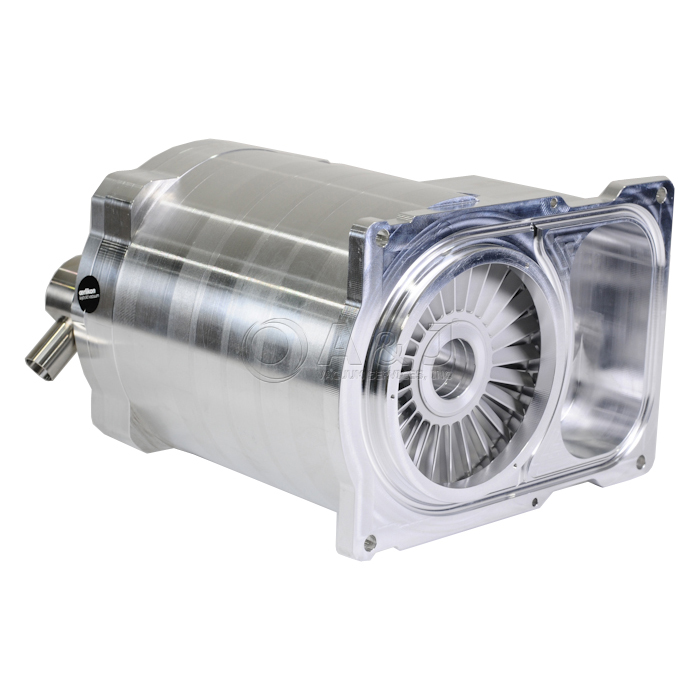

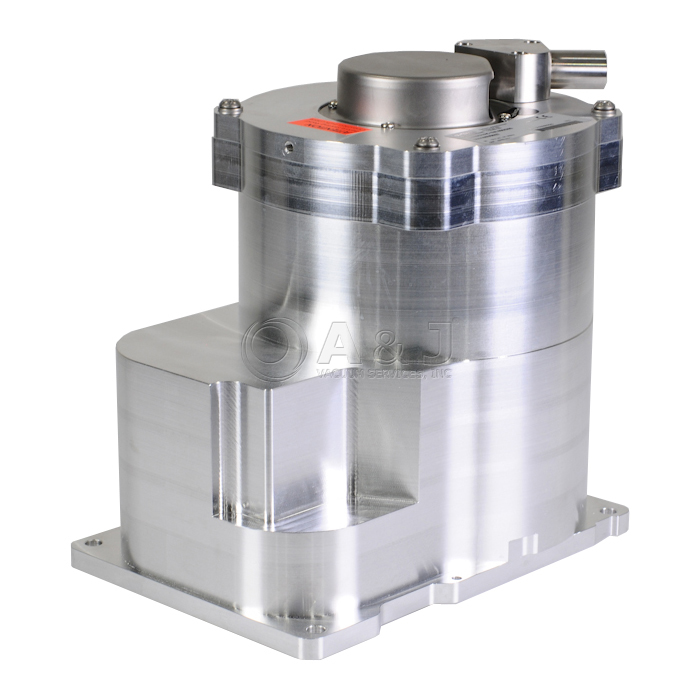

Open Box Unit, Like New, Never Installed, Oerlikon Leybold TW400/300 Turbovac TW Turbo Vacuum Pump, 800160V0027
Leybold TW 400 Overview:
The Oerlikon Turbovac TW 400/300 Turbo Pump is a dual inlet Turbo Pump designed for Mass Spectrometers Instruments to evacuate up to three vacuum chambers. TW 400/300 have a mounting housing and is designed to be integrated into a system.
Oerlikon TW400 Turbo Pumps are suitable for pumping air and clean gases.
The TW 400/300 pump comprises essentially a multi-stage rotor with the stator group, and the drive. The first section of the rotor are two turbomolecular pump stages while the second section represents a Holweck stage.
The Holweck pumping stage increases the permissible forevacuum pressure level markedly when compared with the classical turbomolecular pump. The pumps have gas inlets into the turbo stages, the triple-inlet pumps have a third gas inlet into the Holweck stage. The two triple-inlet pumps are very similar, they differ mainly in the Holweck stage and the operating speed.
Leybold TW400 Forevacuum Pressure
Click Here for Leybold TW 400 Manual
A&J Vacuum also repair / rebuild and service Oerlikon Turbo TW400 800160V0034 Turbo Pump repair and TW 400/300 Turbo Pumps along with all other Oerlikon Leybold Vacuum Rotary Vane Pumps, Oerlikon Dry Scroll Pump repair, Oerlikon Leybold Leak Detector Repair and all other Leybold Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Leybold TW 290/20/20 Thermo Fisher Scientific Pump P/N 1238741 , Leybold P/N 800160V0021N, TW290/20/20
Leybold TW 290/20/20 Overview
The Leybold TW290/20/20 Turbo Pump is a specialt Turbo Pump designed for Mass Spectrometers Instruments to evacuate up to three vacuum chambers. TW 290/20/20 have a mounting housing and is designed to be integrated into a Thermo Fisher Scientific, system. Thermo Exactive Plus Thermo Orbitrap
Leybold TW290 Turbo Pumps are suitable for pumping air and clean gases. Leybold Turbodrive TD400 P/N 800073V0003 is being used to controll TW290 Turbo Pump, TD 400 Controller is mounted at the base of the Thermo Fisher Turbo Pump.
The Leybold TW 290 pump comprises essentially a multi-stage rotor with the stator group, and the drive. The first section of the rotor are two turbomolecular pump stages while the second section represents a Holweck stage.
The Holweck pumping stage increases the permissible forevacuum pressure level markedly when compared with the classical turbomolecular pump. The pumps have gas inlets into the turbo stages, the triple-inlet pumps have a third gas inlet into the Holweck stage. The two triple-inlet pumps are very similar, they differ mainly in the Holweck stage and the operating speed.
Leybold TW290/20/20 UHV was also knows as Oerlikon TW290/20/20
A&J Vacuum also repair / rebuild and service Oerlikon Turbo TW290/20/20 Turbo Pump repair and TW part # 1238741 Turbo Pumps along with all other Oerlikon Leybold Vacuum Rotary Vane Pumps, Oerlikon Dry Scroll Pump repair, Oerlikon Leybold Leak Detector Repair and all other Leybold Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
New Leybold TW 220/150 Turbovac Turbo Pump, 24V, Purge DI / D-SHAPE, 800160V0005
Leybold TW 220/150 Overview:
The Oerlikon Turbovac TW 220/150 Turbo Pump is a dual inlet Turbo Pump designed for Mass Spectrometers Instruments to evacuate up to three vacuum chambers. TW 220/150 have a mounting housing and is designed to be integrated into a system.
Oerlikon TW220/150 Turbo Pumps are suitable for pumping air and clean gases.
The TW 220/150 pump comprises essentially a multi-stage rotor with the stator group, and the drive. The first section of the rotor are two turbomolecular pump stages while the second section represents a Holweck stage.
The Holweck pumping stage increases the permissible forevacuum pressure level markedly when compared with the classical turbomolecular pump. The pumps have gas inlets into the turbo stages, the triple-inlet pumps have a third gas inlet into the Holweck stage. The two triple-inlet pumps are very similar, they differ mainly in the Holweck stage and the operating speed.
A&J Vacuum also repair / rebuild and service Oerlikon Turbo TW 220 150 Turbo Pump repair and TW220 Turbo Pumps along with all other Oerlikon Leybold Vacuum Rotary Vane Pumps, Oerlikon Dry Scroll Pump repair, Oerlikon Leybold Leak Detector Repair and all other Leybold Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Leybold TW 220/150 Turbo Pump Cartridge, 800160V0005
Housing is not included.
Leybold TW 220/150 Overview:
The Oerlikon Turbovac TW 220/150 Turbo Pump is a dual inlet Turbo Pump designed for Mass Spectrometers Instruments to evacuate up to three vacuum chambers. TW 220/150 have a mounting housing and is designed to be integrated into a system.
Oerlikon TW220/150 Turbo Pumps are suitable for pumping air and clean gases.
The TW 220/150 pump comprises essentially a multi-stage rotor with the stator group, and the drive. The first section of the rotor are two turbomolecular pump stages while the second section represents a Holweck stage.
The Holweck pumping stage increases the permissible forevacuum pressure level markedly when compared with the classical turbomolecular pump. The pumps have gas inlets into the turbo stages, the triple-inlet pumps have a third gas inlet into the Holweck stage. The two triple-inlet pumps are very similar, they differ mainly in the Holweck stage and the operating speed.
A&J Vacuum also repair / rebuild and service Oerlikon Turbo TW 220 150 Turbo Pump repair and TW220 Turbo Pumps along with all other Oerlikon Leybold Vacuum Rotary Vane Pumps, Oerlikon Dry Scroll Pump repair, Oerlikon Leybold Leak Detector Repair and all other Leybold Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Leybold Turbovac SL80H Turbo Pump, DN 63 CF-F, 800002V3006, SL 80 H
Leybold Turbovac SL-80 800002V3006 Overview:
The pumps SL 80 comprise essentially the pump housing, a multi-stage rotor with the stator group, and the drive.
The first section of the rotor is a turbomolecular pump rotor while the second tile represents a Holweck stage. The Holweck pumping stage increases the permissible forevacuum pressure level markedly when compared with the classic turbomolecular pump.
The rotor shaft runs in two lifetime lubricated ceramic ball bearings.
The pump is driven by a split-cage DC motor. In this motor the rotor and stator windings are separated by a vacuum-tight can. Consequently the rotor runs inside the vacuum while the stator is outside the vacuum. This eliminates any need of vacuum feedthroughs. The pump is equipped with a temperature sensor and a resistor code.
Water cooling or an air cooling fan is available as optional equipment. The intake flange should be fitted with a wire mesh inlet screen to protect the pump against mechanical damage caused by foreign objects.
The pump is driven by an electronic frequency converter TURBO.DRIVE. All functions like, for example, speed control, pump sensing or temperature monitoring are monitored by the TURBO.DRIVE. This unit is powered by an external power supply.
The TURBO.DRIVE may be installed beside or underneath the pump or up to 5 m away. The pumps are equipped with a purge gas facility.
The purge gas and venting connection is blanked off by default with a M8 closure screw. A purge gas and venting valve may be connected either directly or by using a M8 – DN16KF adapter. For space reasons, when the frequency converter is installed at the side, only either the air cooler or a purge gas valve can be connected.
Oerlikon / Leybold Turbovac SL-80 Features:
- Integrated or external frequency converter
- Compact design
- Operation in any orientation
- High foreline tolerance
- Oil-free pump for generating clean high and ultra-high vacuum conditions
Oerlikon / Leybold Turbovac SL-80 Advantages:
- Space-saving
- Easy to integrate into complex vacuum systems
- Allows the use of down-sized fore-vacuum pumps
- Low operating costs
- Highly reliable operation
This item has been fully tested and is ready for a wide variety of applications.

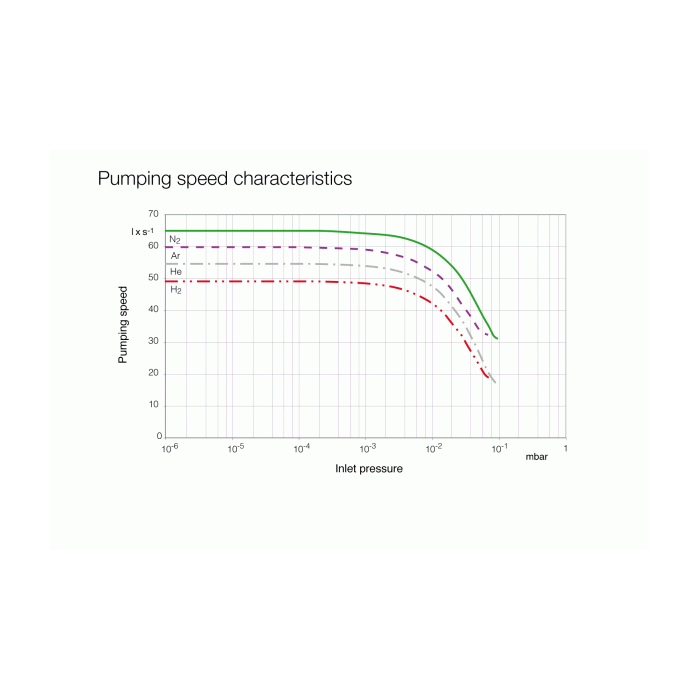

Leybold Turbovac SL80 Pumping Speed:

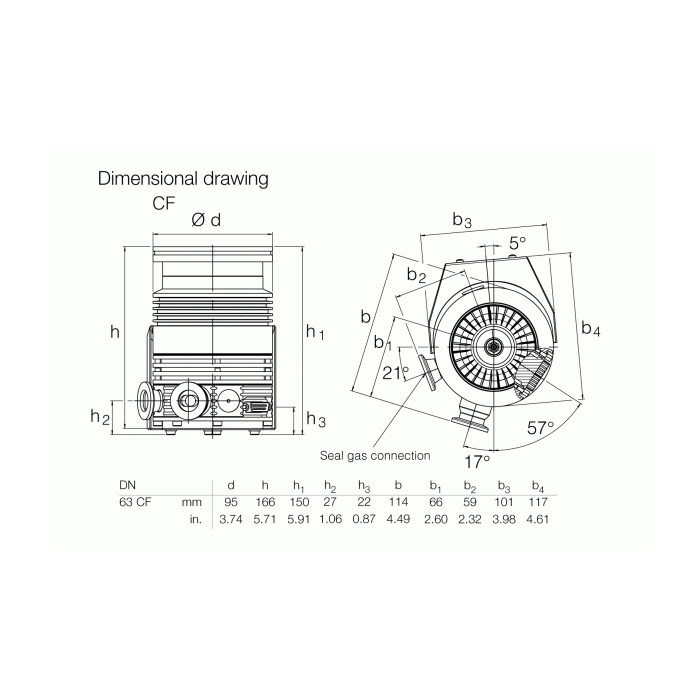

Leybold Turbovac SL80 Dimensions:
Click Here for Leybold Turbovac SL80 Manual
A&J Vacuum repair / rebuild and service all Leybold SL80 800002V3006 Turbo Pumps, Oerlikon SL 80 800002V3001 Pumps Leybold TMP Turbo Pump Service, Sogevac Pump Repair, Leybold Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Leybold Turbovac 250/20/20 iC Turbo Pump for Thermo Fisher Exactive Mass Spectrometer, 822301V1000
Leybold Turbovac 250/20/20 IC (w/ DN 100 ISO-K Inlet Flange) - Product Overview:
With the Leybold Turbovac 250/20/20IC, high functionality meets outstanding performance.
This Leybold Turbovac 250/20/20IC p/n 822301V1000 turbo pump with an integrated vacuum system controller is specificaly design to operate with Thermo Fisher Exactive Mass Spectrometer.
Designed to offer the best performance-to-size ratio within the ISO 63, 100 and 160 flange size range, the Leybold Turbovac 250/20/20IC features a cutting-edge rotor and drag stage design, contributing to high performance and unparalleled pumping speeds, especially for light gas varieites.
A wide selection of interface options, housing and flange configurations, as well as accessories completes this product line. The unique oil-free hybrid bearing system with lifetime-lubricated ball bearings will likewise boost your productivity and reduce the cost of ownership.

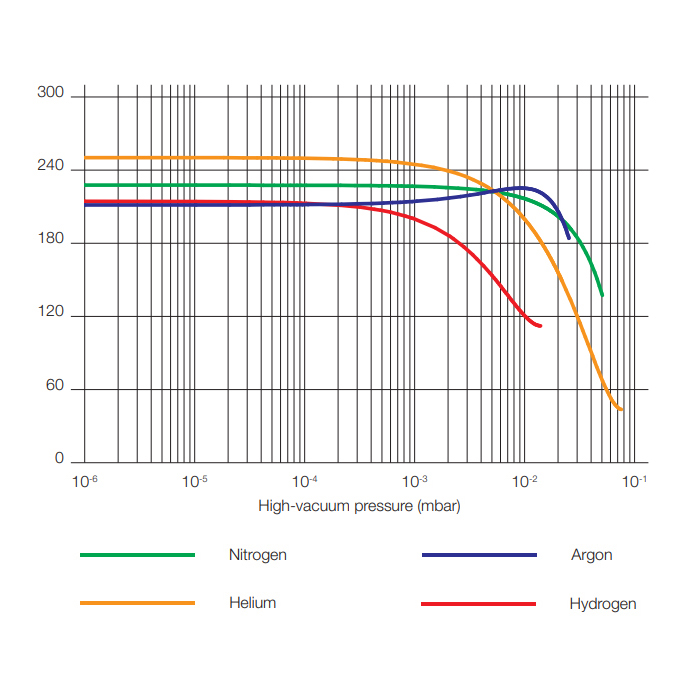

Leybold Turbovac 250 - Pumping Speed:
Leybold Turbovac 250/20/20IC - Typical Applications:
- Thermo Fisher Scientific Exactive Mass Spectrometer
- Mass Spectrometers (Gas Chromatography GC-MS), Liquid Chromatography (LC-MS), Residual Gas Analysis, Mobile Analytical Systems, etc.)
Leybold Turbovac 250/20/20IC - Technical Features
- Oil-Free Pump
- High Pressure Foreline Tolerance
- Excellent Resistance to Vibration Due to Proven Mechanical Bearings
- Efficient Convection Cooling Due to a Large Number of Cooling Fans
- Purge Gas/Venting Connection
- Installation in Any Orientation
- Flexible Attachment of the Frequency Converter to the Pump
- Small Exhaust Footprint
Leybold Turbovac 250 iX - User Advantages:
- Easy to Integrate Into Complex Vacuum Systems
- Space-Saving; Maneuverability
- High Reliability Due to Self-Monitoring

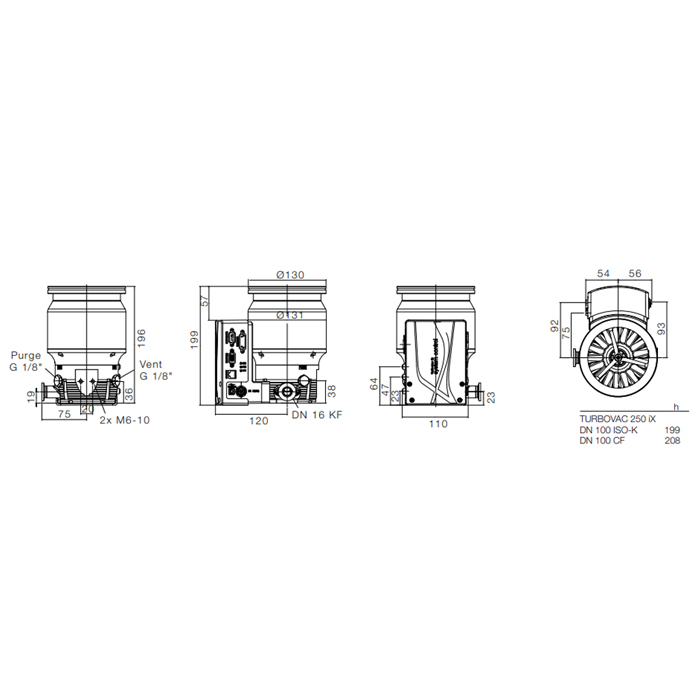

Leybold Turbovac 250 iX Dimensions:
A&J Vacuum Services offers full repair and service of Leybold Turbovac 250/20/20IC High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
New "Open Box" Leybold Turbovac 250/20/20 iC Turbo Pump for Thermo Fisher Exactive Mass Spectrometer, 822301V1000
Leybold Turbovac 250/20/20 IC (w/ DN 100 ISO-K Inlet Flange) - Product Overview:
With the Leybold Turbovac 250/20/20IC, high functionality meets outstanding performance.
This Leybold Turbovac 250/20/20IC p/n 822301V1000 turbo pump with an integrated vacuum system controller is specificaly design to operate with Thermo Fisher Exactive Mass Spectrometer.
Designed to offer the best performance-to-size ratio within the ISO 63, 100 and 160 flange size range, the Leybold Turbovac 250/20/20IC features a cutting-edge rotor and drag stage design, contributing to high performance and unparalleled pumping speeds, especially for light gas varieites.
A wide selection of interface options, housing and flange configurations, as well as accessories completes this product line. The unique oil-free hybrid bearing system with lifetime-lubricated ball bearings will likewise boost your productivity and reduce the cost of ownership.
Leybold Turbovac 250 - Pumping Speed:
Leybold Turbovac 250/20/20IC - Typical Applications:
- Thermo Fisher Scientific Exactive Mass Spectrometer
- Mass Spectrometers (Gas Chromatography GC-MS), Liquid Chromatography (LC-MS), Residual Gas Analysis, Mobile Analytical Systems, etc.)
Leybold Turbovac 250/20/20IC - Technical Features
- Oil-Free Pump
- High Pressure Foreline Tolerance
- Excellent Resistance to Vibration Due to Proven Mechanical Bearings
- Efficient Convection Cooling Due to a Large Number of Cooling Fans
- Purge Gas/Venting Connection
- Installation in Any Orientation
- Flexible Attachment of the Frequency Converter to the Pump
- Small Exhaust Footprint
Leybold Turbovac 250 iX - User Advantages:
- Easy to Integrate Into Complex Vacuum Systems
- Space-Saving; Maneuverability
- High Reliability Due to Self-Monitoring
Leybold Turbovac 250 iX Dimensions:
A&J Vacuum Services offers full repair and service of Leybold Turbovac 250/20/20IC High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
