- Pumping Speed: 19.1 m3/h (60 Hz) 11.1 CFM
- Ultimate pressure: 1.5 x 10-3 mbar
- Inlet flange: DN25 ISO-KF
- Outlet flange: DN25 ISO-KF
Shopping Cart ( )
Vacuubrand RZ16 Single Stage High Performance Vacuum Pump, 11.1 CFM, RZ 16, 220 VAC - 50-60Hz, 698050
Condition:
Remanufactured
Call us for Availability
Item#:PN19749
Mfr Part#:698133
Manufacturer:BRANDTECH / Vacuubrand
Price upon request
CONTACT US
Features:
Refurbished Vacuubrand Brandtech RZ16 Single Stage High Performance Vacuum Pump, 11.1 CFM, RZ 16, 220 VAC - 50-60Hz, 698050
Vacuubrand RZ 16 Overview:
The Vacuubrand RZ 16 dry vacuum rotary vane pumps. The max pumping speed up to 11.2 CFM at 60 Hz. Vacuubrand (698050) has the nominal rotation speed 1800 min-1 at 60 Hz. The weight of Vacuubrand RZ 16 is 29 kg. Noise level Vacuubrand RZ 16 is 54 dB at 50 Hz.
Vacuubrand RZ 16 Two stage rotary vane vacuum pump is the largest of the vacuubrand rotary vane pump line, design to be used on large volumes of gasses or pumping on larger chambers. The Vacuubrand PC 3 rotary vane pumping unit with Vacuubrand GFK 1000i cold trap ath the inlet port helps the pump to handle larger amounts of condensable vapors.
Vacuubrand RZ 16 Features:
- High water vapor tolerance due to efficient gas ballast; very good ultimate vacuum even with gas ballast
- Dual Stage, High Performance Rotary Vane Pump
- High flow rates even at vacuum levels approching ultimate vacuum
- High water vapor tolerance due to efficient gas ballast
- Very good ultimate pressure even with gass ballast
- Vacuum tight at switch off external anti suckback valve not needed
- Large oil volume: long intervals between oil changes
- Ease of maintenance due to telescopic design
Vacuubrand RZ 16 Applications:
Typical applications for Vacuubrand RZ16 include lypohilization, vacuum distilation and evacuation of small valumes, u-focus, xray tubes or filling with purge gases. Vacuubrand RZ16 with PC 3 is a perfect choice for applications requiring special protectionof pump and enviroment.

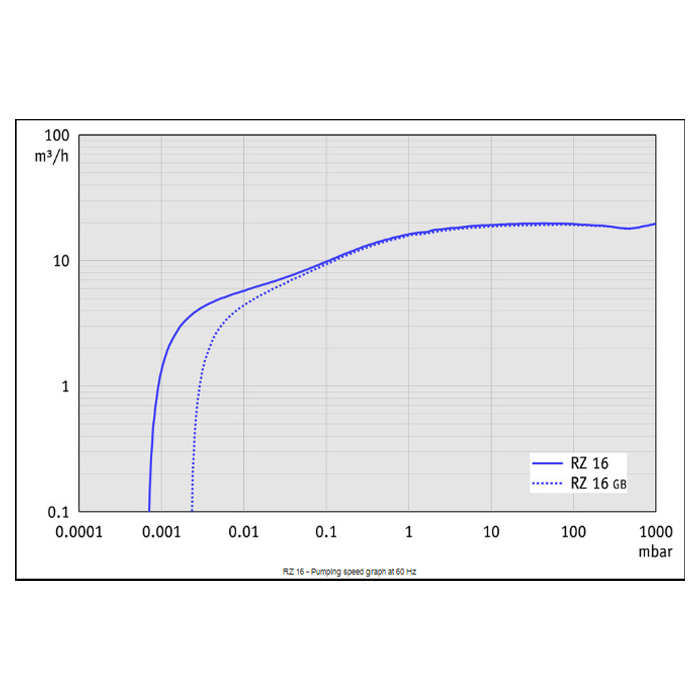

Vacuubrand RZ 16 Pumping Speed:

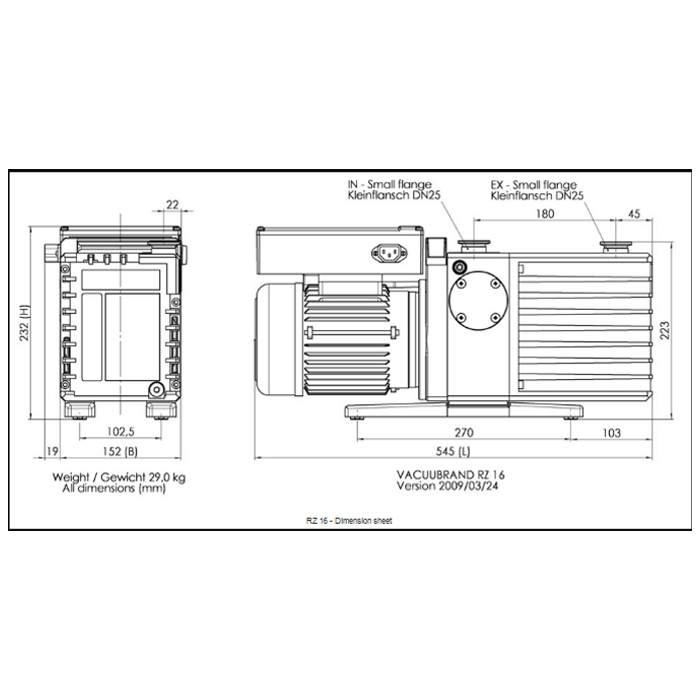

Vacuubrand RZ 16 Dimensions:
Click Here for Vacuubrand RZ Series Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Refurbished Vacuubrand Brandtech RZ16 Single Stage High Performance Vacuum Pump, 11.1 CFM, RZ 16, 220 VAC - 50-60Hz, 698050
Vacuubrand RZ 16 Technical Data:
| Technical data | Unit | RZ 16 |
|---|---|---|
| Number of stages | 2 | |
| Max. pumping speed at 50/60 Hz | m3/h | 16.6 / 19.1 |
| Max. pumping speed at 50/60 Hz | cfm | 9.8 / 11.2 |
| Ultimate partial vacuum (abs.) | mbar | 4 x 10-4 |
| Ultimate vacuum (abs.) | mbar/torr | 2 x 10-3 / 1.5 x 10-3 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 1 x 10-2 / 0.75 x 10-2 |
| Water vapor tolerance with gas ballast | mbar | 40 |
| Ambient temperature range (operation) | °C | 12 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Oil capacity (B-Oil) min./max. | l | 0.5 / 1.0 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Small flange KF DN 25 | |
| Outlet connection | Small flange KF DN 25 | |
| Rated motor power | kW | 0.55 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |
| Dimensions (L x W x H) | mm | 545 x 152 x 232 |
| Weight | kg | 29 |
| Noise level at 50 Hz, typ. | dBA | 54 |
| Items supplied | Pump oil filled and completely mounted, ready for use, with manual. |
Click Here for Vacuubrand RZ Series Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
