- Pumping Speed: 10.2 m3/h (60 Hz) 6 CFM
- Ultimate pressure: 1.5 x 10-3 mbar
- Inlet flange: DN25 ISO-KF
- Outlet flange: DN25 ISO-KF
Shopping Cart ( )
Vacuubrand RZ9 Single Stage High Performance Vacuum Pump, 6 CFM, RZ 9 VAC / 230 VAC, 798140 / 20798140
Condition:
New
Item#:PN19748
Mfr Part#:798140 / 20798140
Manufacturer:BRANDTECH / Vacuubrand
Features:
Vacuubrand RZ9 Single Stage High Performance Vacuum Pump, 6 CFM, RZ 9 VAC / 230 VAC, 798140 / 20798140
Vacuubrand RZ 9 Overview:
The Vacuubrand RZ 9 dry vacuum rotary vane pumps. The max pumping speed up to 6 CFM at 60 Hz. Vacuubrand (20698143) has the nominal rotation speed 1800 min-1 at 60 Hz. The weight of Vacuubrand RZ 9 is 24.2 kg. Noise level Vacuubrand RZ 9 is 52 dB at 50 Hz.
The powerful mid-size one-stage RE 9 and two-stage RZ 9 rotary vane pumps are the ideal solution for a wide range of laboratory and process applications that require high pumping speed. The PC 3 rotary vane pumping unit, with the GKF 1000i cold trap at the inlet, helps the pump to handle large amounts of condensable vapors. The PC 3 pumping unit is compact, user-friendly, and well-arranged, with an oil mist filter at the outlet, a valve, and a T-connection for a vacuum gauge.
Vacuubrand RZ 9 Features:
- Dual Stage, High Performance Rotary Vane Pump
- High flow rates even at vacuum levels approching ultimate vacuum
- High water vapor tolerance due to efficient gas ballast
- Very good ultimate pressure even with gass ballast
- Vacuum tight at switch off; external andi-suckback valve not needed
- Large oil volume: long intervals between oil changes
- Ease of maintenance due to telescopic design
Vacuubrand RZ 9 Applications:
Typical applications for Vacuubrand RZ9 include lypohilization, vacuum distilation and evacuation of small valumes, u-focus, xray tubes or filling with purge gases. Vacuubrand RZ9 with PC 3 is a perfect choice for applications requiring special protectionof pump and enviroment.

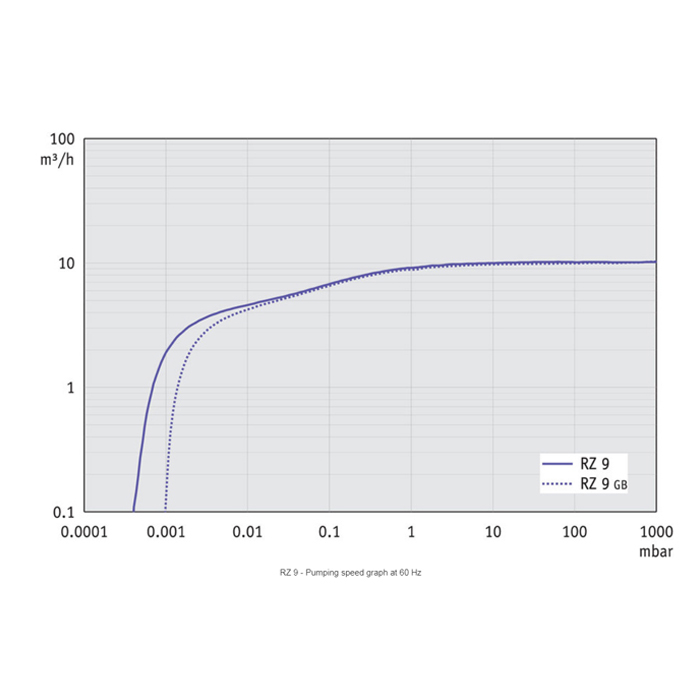

Vacuubrand RZ 9 Pumping Speed:

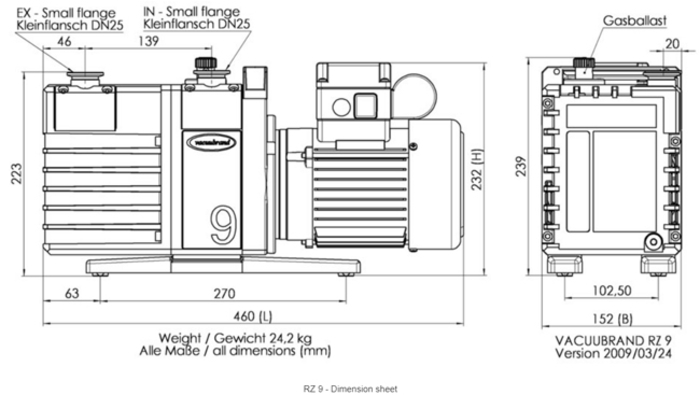

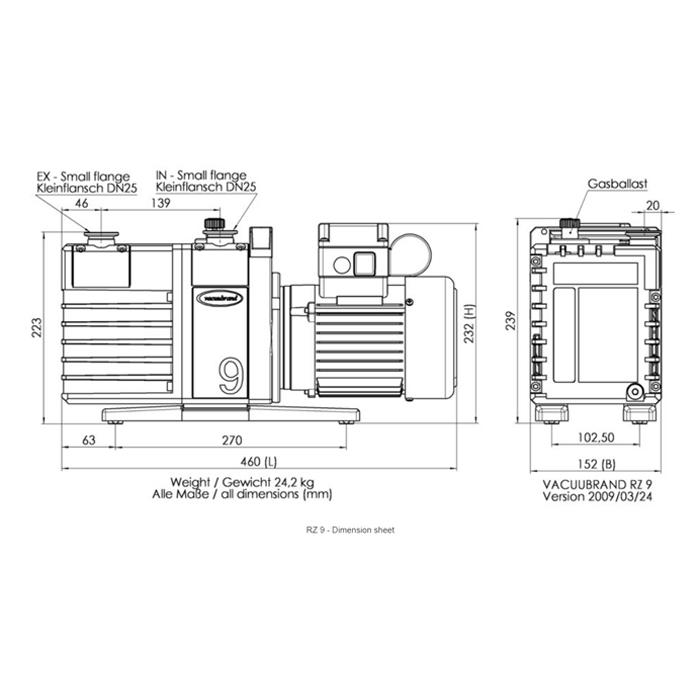

Vacuubrand RZ 9 Dimensions:
Click Here for Vacuubrand RZ Series Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Vacuubrand RZ9 Single Stage High Performance Vacuum Pump, 6 CFM, RZ 9 VAC / 230 VAC, 798140 / 20798140
Vacuubrand RZ 9 Technical Data:
| Technical data | Unit | RZ 9 |
|---|---|---|
| Number of stages | 2 | |
| Max. pumping speed at 50/60 Hz | m3/h | 8.9 / 10.2 |
| Max. pumping speed at 50/60 Hz | cfm | 5.2 / 6.0 |
| Ultimate partial vacuum (abs.) | mbar | 4 x 10-4 |
| Ultimate vacuum (abs.) | mbar/torr | 2 x 10-3 / 1.5 x 10-3 |
| Ultim. vac. (abs.) with gas ballast | mbar/torr | 1 x 10-2 / 0.75 x 10-2 |
| Water vapor tolerance with gas ballast | mbar | 40 |
| Ambient temperature range (operation) | °C | 12 - 40 |
| Ambient temperature range (storage) | °C | -10 - 60 |
| Oil capacity (B-Oil) min./max. | l | 0.2 / 0.8 |
| Max. back pressure (abs.) | bar | 1.1 |
| Inlet connection | Small flange KF DN 25 | |
| Outlet connection | Small flange KF DN 25 | |
| Rated motor power | kW | 0.37 |
| Rated motor speed at 50/60 Hz | min-1 | 1500/1800 |
| Degree of protection | IP 40 | |
| Dimensions (L x W x H) | mm | 460 x 152 x 232 |
| Weight | kg | 24.2 |
| Noise level at 50 Hz, typ. | dBA | 52 |
| Items supplied | Pump oil filled and completely mounted, ready for use, with manual. |
Click Here for Vacuubrand RZ Series Manual
A&J Vacuum Services, Inc is a Authorized Vacuubrand Service Facility. We repair / rebuild and service all Vacuubrand Diaphragm pumps, Rotary Vane Vacuum Pumps, and all other Vacuubrand equipment. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
