Alcatel Adixen, Minor Repair Kit for Adixen 2033 and 2033 SD Vacuum Pumps, PN 54285
Condition:
New
In Stock
Item#:PN01448
Mfr Part#:54285
Manufacturer:Adixen / Alcatel
Features:

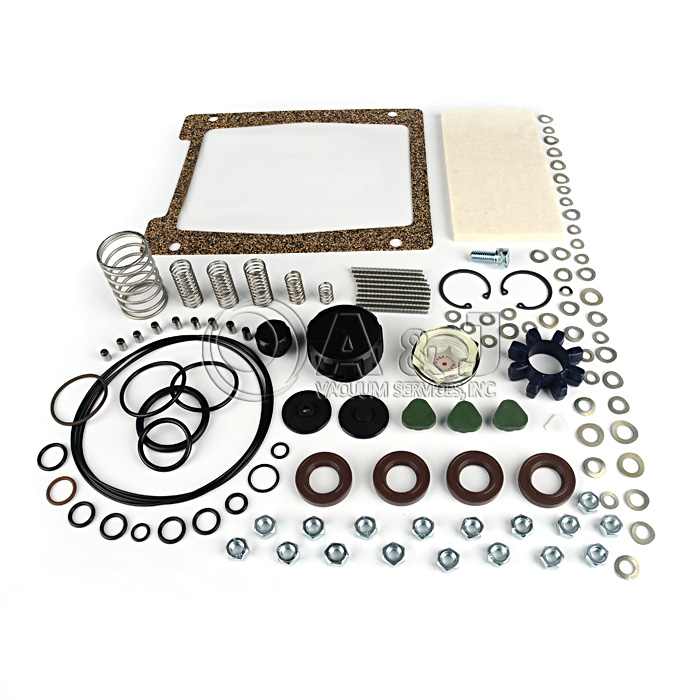

Alcatel Adixen, Minor Repair Kit for Adixen 2033 and 2033 SD Vacuum Pumps, PN 54285
Overview
The Alcatel Adixen Minor Repair Kit includes everything needed for minor overhauls on the Alcatel Adixen SD Pascal Series 1005 SD Pump.The parts included in the Alcatel Adixen Minor Repair Kits are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen SD Series Pump Models are available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen Pascal SD Series Rotary Vane Vacuum Pumps.
The Alcatel, Adixen Minor Kit PN 54285 contains the following parts:
|
PN |
Desc. |
Qty |
|
103306 |
GASKET,SIGHT GLASS |
1 |
|
105452R |
SIGHT GLASS,OIL,PLASTIC |
1 |
|
320067 |
O'RING,VITON,63.09 X 3.53 MM |
1 |
|
53443 |
VALVE,DISCHRG,VITON 2033/63C |
3 |
|
54091 |
COUPLER,ELSTC,BLUE,2030-2033C |
1 |
|
54114 |
SPRING,GAS BALLAST |
1 |
|
54128 |
GASKET,CASE,2033C |
1 |
|
54134 |
VALVE,EXHAUST,2033/63C |
1 |
|
54145 |
SPRING |
1 |
|
54149 |
SPRING |
1 |
|
54196 |
MEMBRANE,OIL PUMP |
1 |
|
54224 |
CLAPPER,2033/63 |
1 |
|
73446 |
WASHER,WAVED,S.S.,M10 |
4 |
|
73460 |
WASHER,WAVED,S.S.,M6 |
16 |
|
73461 |
WASHER,WAVED,S.S.,M8 |
23 |
|
79234 |
O'RING,BUNA,8 X 2 MM |
2 |
|
82108 |
O'RING,BUNA,9.19 X 2.62 MM |
1 |
|
82109 |
O'RING,BUNA,10.77 X 2.62 MM |
1 |
|
82112 |
O'RING,BUNA,15.54 X 2.62 MM |
1 |
|
65059 |
PAD,FELT,2033-2033CP+ |
1 |
|
65079 |
ASSY,SIGHT GLASS,2033/2063CP+ |
1 |
|
71188 |
C-CLIP,2033/63C |
2 |
|
71338 |
NUT |
1 |
|
75024 |
SCREW,SOCKET HEAD CAP,YLW CH |
1 |
|
76135 |
Sight glass, Window,W/seal |
1 |
|
76261 |
PIN,COTTER,2033/63 |
1 |
|
76261C |
C-CLIP,2033/63 |
1 |
|
79010 |
O'RING,BUNA,128 X 2 MM |
4 |
|
79051 |
O'RING,BUNA,41 X 3 MM |
1 |
|
79100 |
SEAL,SHAFT,BUNA |
3 |
|
79101 |
SEAL,SHAFT,VITON |
1 |
|
82024 |
O'RING,VITON,12.37 X 2.62 MM |
4 |
|
82122 |
O'RING,BUNA,29.3 X 3.6 MM |
1 |
|
82129 |
O'RING,BUNA,40.64 X 5.33 MM |
1 |
|
82604 |
PLUG,DRAIN,PLASTIC,2004A-2063C |
1 |
|
82925 |
PLUG,FILL,2033-2063C |
1 |
|
83633 |
O'RING,BUNA,38 X 2.5 MM |
1 |
|
84149 |
O'RING,BUNA,16 X 2 MM |
1 |
|
87926 |
O'RING,BUNA,44 X 3 MM |
1 |
|
87954 |
SPRING,VALVE |
3 |
|
54451G |
VANE,GX,OIL PUMP |
1 |
|
DRAWING |
Drawing Layout |
1 |
A & J Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, Models 1005, 1010, 1015, 1021, 2005, 2010, 2015, 2021. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
