- Fully Remanufactured
- Pumping Speed: Nitrogen: 310 l/s
- 769-8928
- Compression Ratio: Nitrogen: > 1 x 109
Shopping Cart ( )

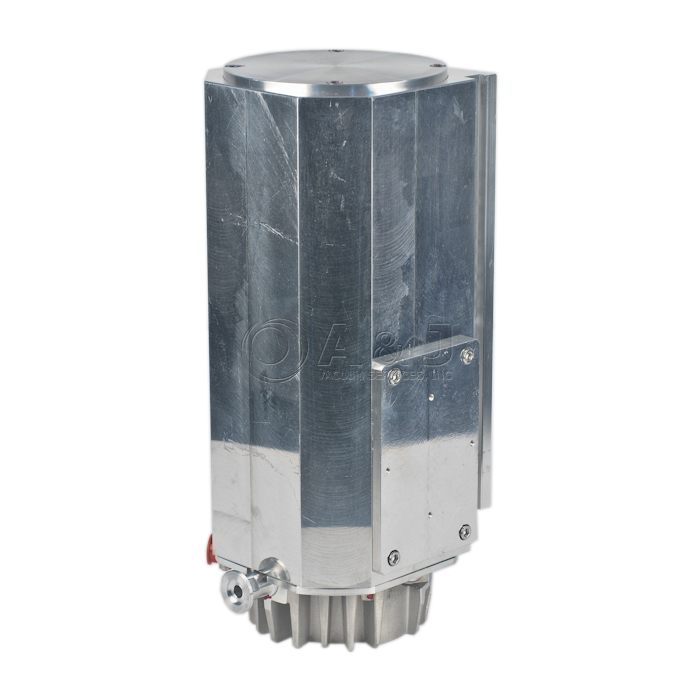

Agilent Technologies / Varian TV 401/301 Turbo Pump, 7698928, EX7698928 for Bruker Amazon SL Mass Spectrometer
Condition:
Remanufactured
Call us for Availability
Item#:PN18648
Mfr Part#:7698928
Manufacturer:Agilent Technologies / Varian
Price upon request
CONTACT US
Features:
Fully Remanufactured Agilent TV401/301 / Varian TV401/301 Turbo Vacuum Pump, 7698928, EX7698928 for Brucker Amazon SL LC-MS
Agilent TV401/301 Overview:
The Agilent Technologies TV401/301 769-8928 Turbo Pump consists of a high frequency motor driving a turbine with three pumping ports and 3 Macrotorr stages.This TV 401/301 Turbo pump was designed for Bruker Amazon mass spectrometer.
The Agilent TV 401 301 turbine rotates in an counterclockwise direction when viewed from the high vacuum flange end. The turbine is made of high-strength aluminium alloy, machined from a single block.
The Varian TV401 Macrotorr stages are in the form of 3 discs. The turbine rotor is supported by permanently lu-bricated high precision ceramic ball bearings installed on the forevacuum side of the pump. The static blades of the stator are made of stainless steel. These are supported and accurately positioned by spacer rings. The Macrotorr stators are in the form of self-positioning machined discs with pumping channels and an opening restricted by the corresponding rotor discs. These are made of aluminium alloy.
The TV401/301 turbo pump can be water cooled or air cooled: in the first case the customer can use the dedicated channels on the pump body, in the second case an external optional fan is available. A thermistor sensor is mounted near the upper bearing to prevent the pump from overheating. The pump can operate in any position and must be supported on the flange. The connection of the forevacuum on the side of the pump is a KF16 flange.
There are no returns, refunds or exchanges on this product.
A&J Vacuum repair / rebuild and service Agilent TV401/301 769892 Turbo Pumps, Vacuum Pumps along with all other Agilent Varian Vacuum Pumps and all other Agilent Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Fully Remanufactured Agilent TV401/301 / Varian TV401/301 Turbo Vacuum Pump, 7698928, EX7698928 Amazon SL LC-MS
Agilent TV401/301 Technical Data:
A&J Vacuum repair / rebuild and service Agilent TV401/301 769892 Turbo Pumps, Vacuum Pumps along with all other Agilent Varian Vacuum Pumps and all other Agilent Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
