Alcatel Adixen, Minor Repair Kit for Adixen 2033 CP Vacuum Pumps, PN 65060
Condition:
New
In Stock
Item#:PN10034
Mfr Part#:65060
Manufacturer:Adixen / Alcatel
Features:
Alcatel Adixen, Minor Repair Kit for Adixen 2033 CP Vacuum Pumps, PN 65060
Overview
The Alcatel Adixen 2003 CP Minor Repair / Rebuild Kit includes everything needed for minor overhauls on the Alcatel Adixen 2033 CP Rotary Vane Vacuum Pumps. The parts included in the Alcatel Adixen Minor Repair Kit are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen 2033, 2063 CP and CP+ Pump Models are also available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen 2033 CP Rotary Vane Vacuum Pumps.

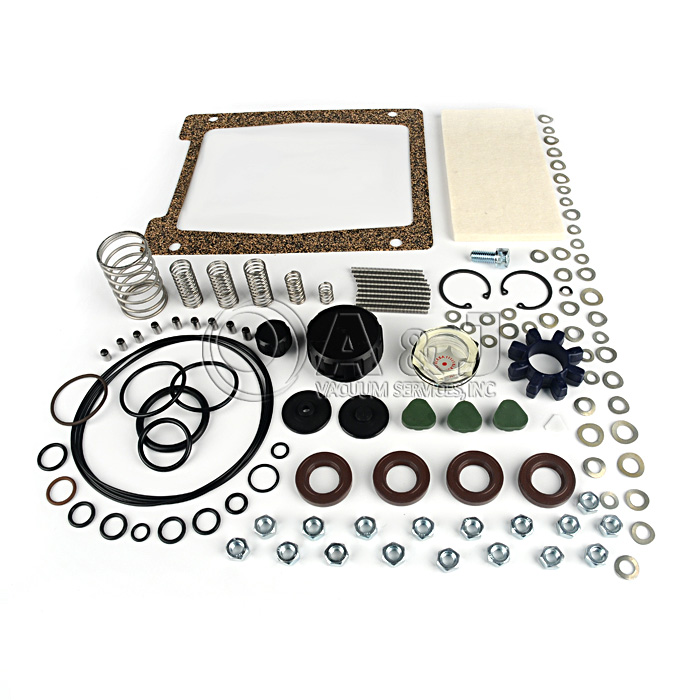

Alcatel Adixen, 2033 CP Minor Repair Kit contains the following parts:
|
Part # |
description |
qty |
|
52752 |
PLUG,DRAIN |
1.00 |
|
53443 |
VALVE,DISCHRG,VITON 2033/63C |
3.00 |
|
54091 |
COUPLER,ELSTC,BLUE,2030-2033C |
1.00 |
|
54128 |
GASKET,CASE,2033C |
1.00 |
|
54134 |
VALVE,EXHAUST,2033/63C |
1.00 |
|
54145 |
SPRING |
1.00 |
|
54149 |
SPRING |
1.00 |
|
54196 |
MEMBRANE,OIL PUMP |
1.00 |
|
54224 |
CLAPPER,2033/63 |
1.00 |
|
65059 |
PAD,FELT,2033-2033CP+ |
1.00 |
|
65148 |
SPRING |
1.00 |
|
71188 |
C-CLIP,2033/63C |
2.00 |
|
71191 |
C-CLIP,2033/63C |
1.00 |
|
71338 |
NUT |
1.00 |
|
73339 |
WASHER,FLAT,SMALL O.D.,S.S.,M4 |
2.00 |
|
73446 |
WASHER,WAVED,S.S.,M10 |
4.00 |
|
73460 |
WASHER,WAVED,S.S.,M6 |
21.00 |
|
73461 |
WASHER,WAVED,S.S.,M8 |
23.00 |
|
75024 |
SCREW,SOCKET HEAD CAP,YLW CH |
1.00 |
|
76261 |
PIN,COTTER,2033/63 |
1.00 |
|
76261C |
C-CLIP,2033/63 |
1.00 |
|
79101 |
SEAL,SHAFT,VITON |
4.00 |
|
79134 |
O'RING,VITON,8 X 2 MM |
2.00 |
|
79136 |
O'RING,VITON,95 X 3 MM |
1.00 |
|
79137 |
O'RING,VITON,148 X 2 MM |
4.00 |
|
79303 |
O'RING,VITON,4.47 X 1.78 MM |
2.00 |
|
82007 |
O'RING,VITON,10.77 X 2.62 MM |
4.00 |
|
82013 |
O'RING,VITON,40.64 X 5.33 MM |
1.00 |
|
82015 |
O'RING,VITON,9.19 X 2.62 MM |
1.00 |
|
82022 |
O'RING,VITON,17.12 X 2.62 MM |
1.00 |
|
82024 |
O'RING,VITON,12.37 X 2.62 MM |
4.00 |
|
82025 |
O'RING,VITON,29.3 X 3.6 MM |
2.00 |
|
82027 |
O'RING,VITON,91.44 X 5.33 MM |
2.00 |
|
82039 |
O'RING,VITON,128 X 2 MM |
4.00 |
|
82056 |
O'RING,VITON,37 X 2.5 MM |
1.00 |
|
82067 |
O'RING,VITON,44 X 3 MM |
2.00 |
|
82925 |
PLUG,FILL,2033-2063C |
1.00 |
|
87954 |
SPRING,VALVE |
3.00 |
|
65079 |
ASSY,SIGHT GLASS,2033/2063CP+ |
1.00 |
|
54451G |
VANE,GX,OIL PUMP |
1.00 |
