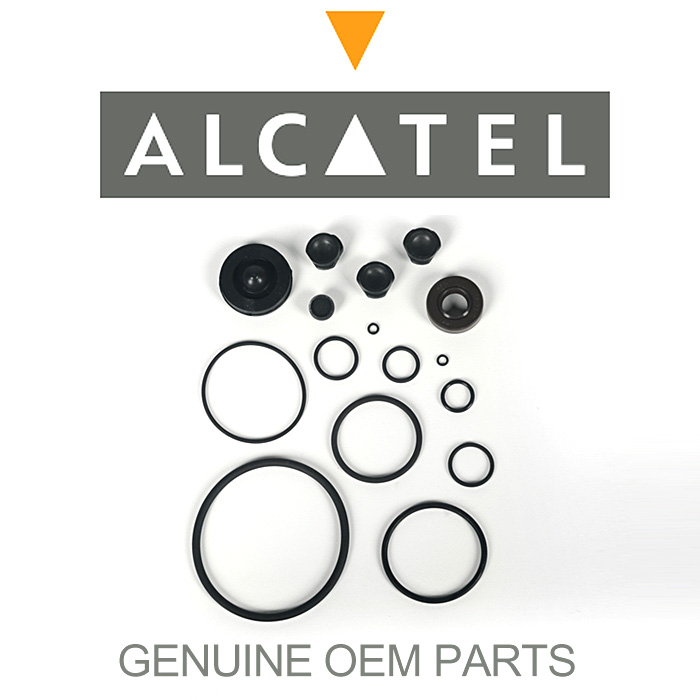

Alcatel Adixen, Minor Repair Kit for Adixen 2033 CP+ Vacuum Pumps, PN 65123
Condition:
New
Item#:PN10039
Mfr Part#:65123
Manufacturer:Adixen / Alcatel
Features:
Alcatel Adixen, Minor Repair Kit for Adixen 2033 CP+ Vacuum Pumps, PN 65123
Overview
The Alcatel Adixen 2033 CP+ Minor Repair / Rebuild Kit includes everything needed for minor overhauls on the Alcatel Adixen 2033 CP+Rotary Vane Vacuum Pumps. The parts included in the Alcatel Adixen Minor Repair Kit are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen 2033, 2063 CP and CP+ Pump Models are also available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen 2033 CP+ Rotary Vane Vacuum Pumps.
Alcatel Adixen, 2033 CP+ Minor Repair Kit contains the following parts:
|
Part # |
description |
qty |
|
52752 |
PLUG,DRAIN |
1.00 |
|
53443 |
VALVE,DISCHRG,VITON 2033/63C |
3.00 |
|
54091 |
COUPLER,ELSTC,BLUE,2030-2033C |
1.00 |
|
54128 |
GASKET,CASE,2033C |
1.00 |
|
54145 |
SPRING |
1.00 |
|
54149 |
SPRING |
1.00 |
|
54196 |
MEMBRANE,OIL PUMP |
1.00 |
|
54224 |
CLAPPER,2033/63 |
1.00 |
|
65059 |
PAD,FELT,2033-2033CP+ |
1.00 |
|
65148 |
SPRING |
1.00 |
|
71188 |
C-CLIP,2033/63C |
2.00 |
|
71191 |
C-CLIP,2033/63C |
1.00 |
|
71338 |
NUT |
1.00 |
|
71668 |
C-CLIP |
1.00 |
|
73339 |
WASHER,FLAT,SMALL O.D.,S.S.,M4 |
2.00 |
|
73446 |
WASHER,WAVED,S.S.,M10 |
4.00 |
|
73460 |
WASHER,WAVED,S.S.,M6 |
16.00 |
|
73461 |
WASHER,WAVED,S.S.,M8 |
23.00 |
|
75024 |
SCREW,SOCKET HEAD CAP,YLW CH |
1.00 |
|
79101 |
SEAL,SHAFT,VITON |
4.00 |
|
79134 |
O'RING,VITON,8 X 2 MM |
2.00 |
|
79137 |
O'RING,VITON,148 X 2 MM |
4.00 |
|
79303 |
O'RING,VITON,4.47 X 1.78 MM |
2.00 |
|
82007 |
O'RING,VITON,10.77 X 2.62 MM |
4.00 |
|
82013 |
O'RING,VITON,40.64 X 5.33 MM |
3.00 |
|
82022 |
O'RING,VITON,17.12 X 2.62 MM |
1.00 |
|
82024 |
O'RING,VITON,12.37 X 2.62 MM |
4.00 |
|
82025 |
O'RING,VITON,29.3 X 3.6 MM |
1.00 |
|
82039 |
O'RING,VITON,128 X 2 MM |
4.00 |
|
82056 |
O'RING,VITON,37 X 2.5 MM |
1.00 |
|
82067 |
O'RING,VITON,44 X 3 MM |
2.00 |
|
82925 |
PLUG,FILL,2033-2063C |
1.00 |
|
87954 |
SPRING,VALVE |
3.00 |
|
103306 |
GASKET,SIGHT GLASS |
1.00 |
|
105452R |
SIGHT GLASS,OIL,PLASTIC |
1.00 |
|
320067 |
O'RING,VITON,63.09 X 3.53 MM |
1.00 |
|
65079 |
ASSY,SIGHT GLASS,2033/2063CP+ |
1.00 |
|
54451G |
VANE,GX,OIL PUMP |
1.00 |
|
320159 |
O'RING,VITON,221.85 X 3.53 |
1.00 |
A&J Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, CP, CP+ and C. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Alcatel Adixen, Minor Repair Kit for Adixen 2033 CP+ Vacuum Pumps, PN 65123
Overview
The Alcatel Adixen 2033 CP+ Minor Repair / Rebuild Kit includes everything needed for minor overhauls on the Alcatel Adixen 2033 CP+Rotary Vane Vacuum Pumps. The parts included in the Alcatel Adixen Minor Repair Kit are high quality components used in rotary vane vacuum pump maintenance, service, and repairs. Minor and major repair kits for all Alcatel Adixen 2033, 2063 CP and CP+ Pump Models are also available. We offer high quality spare parts, such as rotors, stators, plates, vanes, and shaft seals for all Alcatel Adixen 2033 CP+ Rotary Vane Vacuum Pumps.
Alcatel Adixen, 2033 CP+ Minor Repair Kit contains the following parts:
|
Part # |
description |
qty |
|
52752 |
PLUG,DRAIN |
1.00 |
|
53443 |
VALVE,DISCHRG,VITON 2033/63C |
3.00 |
|
54091 |
COUPLER,ELSTC,BLUE,2030-2033C |
1.00 |
|
54128 |
GASKET,CASE,2033C |
1.00 |
|
54145 |
SPRING |
1.00 |
|
54149 |
SPRING |
1.00 |
|
54196 |
MEMBRANE,OIL PUMP |
1.00 |
|
54224 |
CLAPPER,2033/63 |
1.00 |
|
65059 |
PAD,FELT,2033-2033CP+ |
1.00 |
|
65148 |
SPRING |
1.00 |
|
71188 |
C-CLIP,2033/63C |
2.00 |
|
71191 |
C-CLIP,2033/63C |
1.00 |
|
71338 |
NUT |
1.00 |
|
71668 |
C-CLIP |
1.00 |
|
73339 |
WASHER,FLAT,SMALL O.D.,S.S.,M4 |
2.00 |
|
73446 |
WASHER,WAVED,S.S.,M10 |
4.00 |
|
73460 |
WASHER,WAVED,S.S.,M6 |
16.00 |
|
73461 |
WASHER,WAVED,S.S.,M8 |
23.00 |
|
75024 |
SCREW,SOCKET HEAD CAP,YLW CH |
1.00 |
|
79101 |
SEAL,SHAFT,VITON |
4.00 |
|
79134 |
O'RING,VITON,8 X 2 MM |
2.00 |
|
79137 |
O'RING,VITON,148 X 2 MM |
4.00 |
|
79303 |
O'RING,VITON,4.47 X 1.78 MM |
2.00 |
|
82007 |
O'RING,VITON,10.77 X 2.62 MM |
4.00 |
|
82013 |
O'RING,VITON,40.64 X 5.33 MM |
3.00 |
|
82022 |
O'RING,VITON,17.12 X 2.62 MM |
1.00 |
|
82024 |
O'RING,VITON,12.37 X 2.62 MM |
4.00 |
|
82025 |
O'RING,VITON,29.3 X 3.6 MM |
1.00 |
|
82039 |
O'RING,VITON,128 X 2 MM |
4.00 |
|
82056 |
O'RING,VITON,37 X 2.5 MM |
1.00 |
|
82067 |
O'RING,VITON,44 X 3 MM |
2.00 |
|
82925 |
PLUG,FILL,2033-2063C |
1.00 |
|
87954 |
SPRING,VALVE |
3.00 |
|
103306 |
GASKET,SIGHT GLASS |
1.00 |
|
105452R |
SIGHT GLASS,OIL,PLASTIC |
1.00 |
|
320067 |
O'RING,VITON,63.09 X 3.53 MM |
1.00 |
|
65079 |
ASSY,SIGHT GLASS,2033/2063CP+ |
1.00 |
|
54451G |
VANE,GX,OIL PUMP |
1.00 |
|
320159 |
O'RING,VITON,221.85 X 3.53 |
1.00 |
A&J Vacuum Services, Inc. Repairs / Rebuilds and Services Alcatel Adixen Vacuum Pumps including Alcatel Adixen Rotary Vane Pumps, Pascal Series, SD Series, CP, CP+ and C. Along with all other Vacuum Rotary Vane Pumps, Dry Scroll Pumps, Leak Detectors. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
