Edwards E2M275 HC Vacuum Pump, Dual Stage, 3Ph, 380-400V 50Hz / 230/460V 60Hz, ISO63 Inlet Flange, ISO40 Outlet Flange, A36704940

Main image
Image 1 Image 2 Image 3
Condition: New
Item#:PN57707
Mfr Part#:A36704940
Manufacturer:Edwards Vacuum
PRICE:
$45,000.00
Web savings:
$6,744.00
YOU PAY:
$38,256.00
Request a repair estimate Request sales quote Financing available
New Edwards E2M275 HC Vacuum Pump, Dual Stage, 3Ph, 380-400V 50Hz / 230/460V 60Hz, ISO63 Inlet Flange, ISO40 Outlet Flange, A36704940
Features:
  • Pumping Speed at 60Hz: 180.10 cfm
  • Pumping Speed at 50Hz: 150.09 cfm
  • Pressure Ultimate: 3.300 × 10⁻³ mbar
  • IP55 Rating
  • Overview
  • Specifications
  • Manuals
  • Spare Parts
  • Accessories
  • Service & Repair
12 months warranty

Edwards E2M275 HC Vacuum Pump, Dual Stage, 3Ph, 380-400V 50Hz / 230/460V 60Hz, ISO63 Inlet Flange, ISO40 Outlet Flange, A36704940



Edwards E2M75 HC Features:

  • Reliable operation
  • Minimal noise
  • High GB flow rate
  • Swift acting inlet valve
  • Connection inlet flange: DN 63 ISO-F
  • Connection vacuum outlet flange: DN 40 ISO-KF
  • Cooling method: Water Cooling
  • Pressure ultimate: 3.300 × 10⁻³ mbar
  • Power supply voltage: 3Ph 380-400V 50Hz / 230/460V 60Hz
  • Unique mode selection switch: enables high vacuum and high throughput operation from single pump

E2M75 HC / A36704940 Overview:

This Edwards Rotary Vane Pump has a peak pumping velocity of 180.10 cfm and a final pressure of 2.475 × 10⁻³ Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.

A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.

The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation.



E2M75HC Scope of Delivery:

  • Installation, operation and maintenance instructions

E2M75HC Applications:

  • Analytical instruments
  • Laboratory bench table
  • Backing Turbomolecular pump
  • Freeze drying
  • Research and development
  • In scientific and laboratory applications, the E2M0.7-2.5 and E2M18/28 are the ideal partners for your turbomolecular pump
  • In Industrial applications, E2M18/28, E2M40/80 and E2M175/275 offer very robust solutions in demanding applications

A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80, E2M175, E2M275 Series  Vacuum Pumps  along with all other Edwards  Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

This item is non-returnable/non-refundable

Edwards E2M275 HC Vacuum Pump, Dual Stage, 3Ph, 380-400V 50Hz / 230/460V 60Hz, ISO63 Inlet Flange, ISO40 Outlet Flange, A36704940



Edwards E2M275 HC Technical Data:

Weight 222.00 kg | 489.43 lb

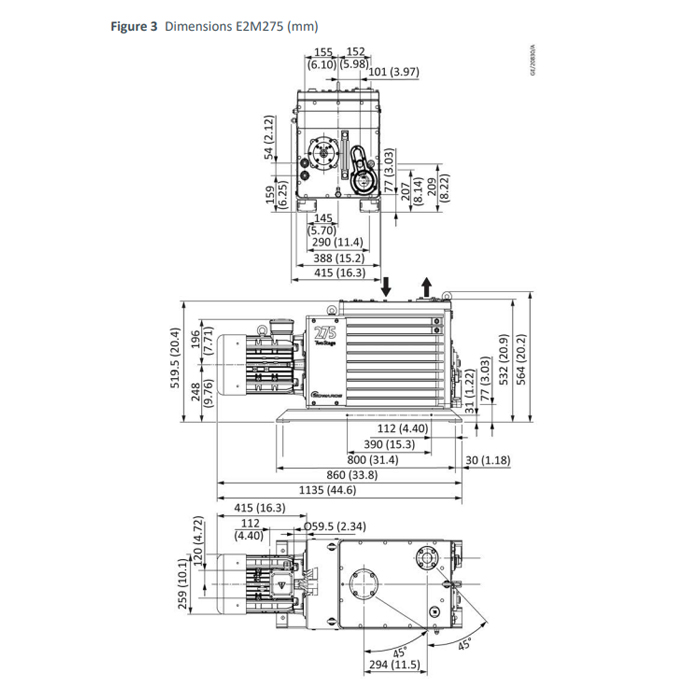

Dimension Length 1165.00 mm | 45.87 in
Dimension Height 533.00 mm | 20.98 in
Dimension Width 388.00 mm | 15.28 in
Noise / Sound Level 75.00 db(A)
Connection Inlet / Outlet Flange DN 63 ISO-F / DN 40 ISO-F
Certification Motor CE
Power Total Rated @60Hz 8500.00 W
Power Total Rated @50Hz 7500.00 W
Pumping Speed Air Nitrogen 60Hz 0.085 m³/s
Pumping Speed Air Nitrogen 50Hz 0.071 m³/s
Pressure Water Vapour Max 200.00 Pa
Nominal Rotational Speed 50Hz 25.00 Hz
Capacity Water Vapour 6.944 × 10⁻⁴ kg/s
Displacement @50Hz Max 0.081 m³/s
Pressure Ultimate With Gas Ballast 1.33 Pa
Pressure Ultimate 0.330 Pa
Nominal Rotational Speed 60Hz 30.00 Hz
Displacement @60Hz Max 0.097 m³/s
Altitude Max 1.000 × 10⁶ mm | 39370.08 in
Lubricant Capacity Min 1159.45 in³
Lubricant Capacity Max 1708.67 in³
Temperature Inlet Gas Max 70.00 °C | 158.00 °F | 343.15 K
Pressure Absolute Outlet Continous Max 1.500 × 10⁵ Pa
Temperature Ambient Operation Max 40.00 °C | 104.00 °F | 313.15 K
Temperature Ambient Operation Min 12.00 °C | 53.60 °F | 285.15 K
Temperature Ambient Storage Min -30.00 °C | -22.00°F | 243.15 K
Temperature Ambient Storage Max 70.00 °C | 158.00 °F | 343.15 K
Classification Dry or Wet Pump Wet

A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80, E2M175, E2M275 Series  Vacuum Pumps  along with all other Edwards  Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
