- Ultimate Vacuum: 0.007 mbar / 0.005 Torr
- Inlet Flange: NW 25
- Exhaust Flange: NW 25
- Pumping Speed 8.8 CFM
Shopping Cart ( )

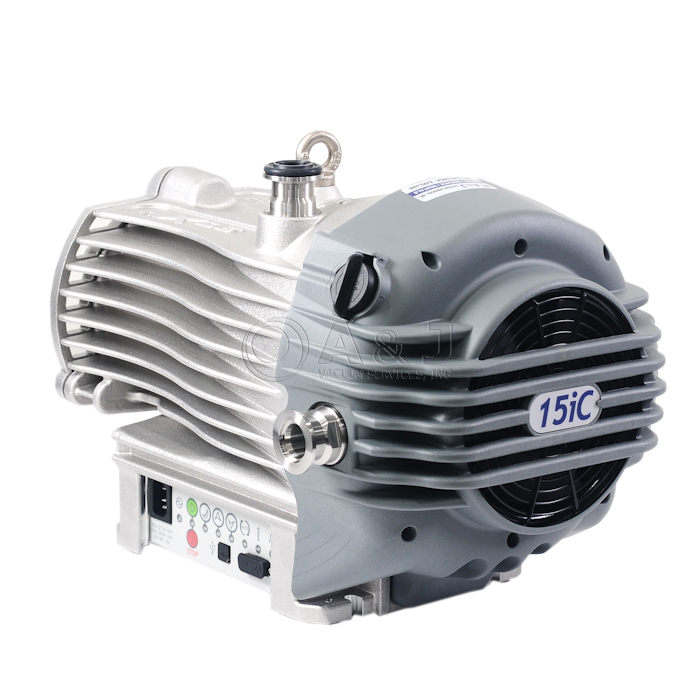

Edwards nXDS15iC Dry Scroll Vacuum Pump, Corrosive, 8.8 CFM 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A73702983, NXDS 15iC
Condition:
New
In Stock
Item#:PN15785
Mfr Part#:A73702983
Manufacturer:Edwards Vacuum
Features:
Edwards nXDS15iC Dry Scroll Pump, Corrosive, 8.8 CFM 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A737-02-983 73702983, EDWARDS NXDS15iC
Edwards nXDS 15iC Overview:
The Edwards nXDS15iC is the next generation in completely oil free, dry scroll pumps and replaces the Edwards XDS15iC.
Edwards nXDS15iC improves on legacy XDS series pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases.
Edwards nXDS15iC pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. Edwards nXDS15iC pumps are designed to be completely field serviceable.

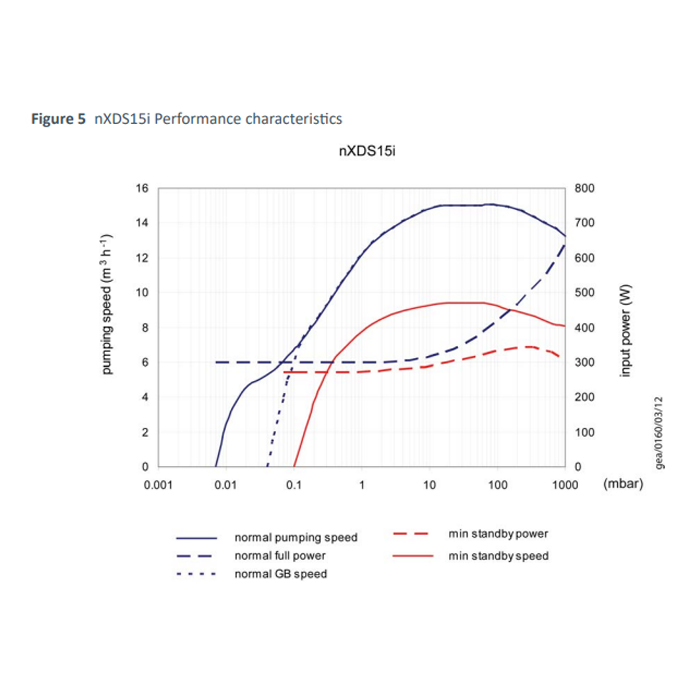

Edwards nXDS 15iC Characteristic:
Edwards nXDS 15iC Features:
- Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
- Thermaly controlled fan for reduced noise
- No atmosphere to vacuum shaft seals means bearing are completely isolated, which prevents process attack and means the bearings run cooler and last longer
- Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
- Improved motor and drive efficiencies for reduced power and cost of ownership
- Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485

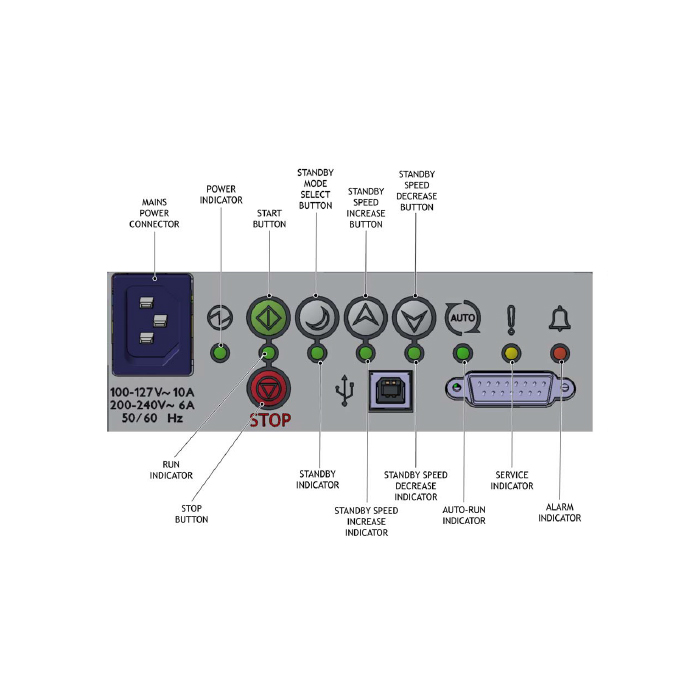

Edwards nXDS 15iC Front Panel:

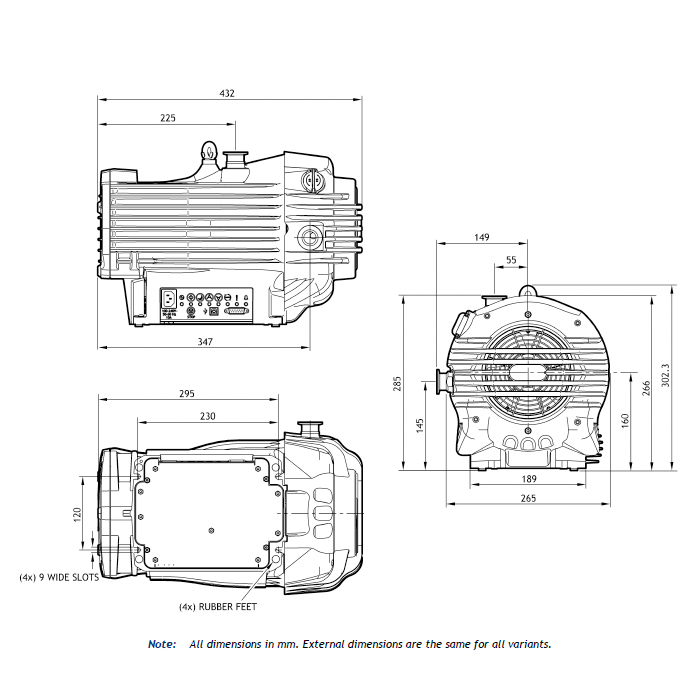

Edwards nXDS 15iC Dimensions (mm):
Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:
- PN17767 Exhaust Filter Silencer for XDS5, XDS10, nXDS6i, nXDS10i, nXDS15i, A50597000, Click Here
- PN17799 Replacement Element for Exhaust Filter Silencer A50597800, Click Here
- PN17735 Vacuum Inlet Filter for Edwards XDS5, XDS10, nXDS6i, nXDS10i, nXDS15i, Click Here
- PN15792 Edwards Tip Seal Kit Service Kit for nXDS6i, nXDS10i, nXDS15i, nXDS20i Dry Scroll Pumps, A73501801 Click Here
- PN17503 Edwards Gas Gallast Adaptor for nXDS6i, nXDS10i, nXDS15i, and nXDS20i Scroll Pump, A73501809, Click Here
- PN17493 Edwards Bearing Replacement Kit for nXDS6i, nXDS10i, and nXDS15i Dry Scroll Pumps, A73501802, Click Here
Click here for Edwards nXDS15iC Operation Manual A73601983 https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf
Click here for Edwards nXDS15iC Dry Scroll Vacuum Pump Brochure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf
A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS SCROLL PUMPS, XDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
Edwards nXDS15iC Dry Scroll Pump, Corrosive, 8.8 CFM 100 - 127 V, 200 - 240 V, Single Phase, 50/60 Hz, A737-02-983 73702983, EDWARDS NXDS15iC
Edwards nXDS 15iC Technical Data:
|
Inlet Flange: |
NW 25 |
|
Exhaust Flange: |
NW 25 |
|
Rotational Speed: |
1800 rpm |
|
Input Voltage: |
100-127, 200-240 |
|
Voltage Frequency: |
50/60 Hz |
|
Pumping Speed: |
15.1 m3h-1 |
|
Total Pressure: |
0.007 mbar |
|
Weight: |
25.2 kg / 56 lbs |
Edwards nXDS6i, nXDS10i, and nXDS15i Available Spare Parts, Service Kits and Accessories:
- PN17767 Exhaust Filter Silencer for XDS5, XDS10, nXDS6i, nXDS10i, nXDS15i, A50597000, Click Here
- PN17799 Replacement Element for Exhaust Filter Silencer A50597800, Click Here
- PN17735 Vacuum Inlet Filter for Edwards XDS5, XDS10, nXDS6i, nXDS10i, nXDS15i, Click Here
- PN15792 Edwards Tip Seal Kit Service Kit for nXDS6i, nXDS10i, nXDS15i, nXDS20i Dry Scroll Pumps, A73501801 Click Here
- PN17503 Edwards Gas Gallast Adaptor for nXDS6i, nXDS10i, nXDS15i, and nXDS20i Scroll Pump, A73501809, Click Here
- PN17493 Edwards Bearing Replacement Kit for nXDS6i, nXDS10i, and nXDS15i Dry Scroll Pumps, A73501802, Click Here
Click here for Edwards nXDS15iC Operation Manual 73601983 https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Instruction_Manual.pdf
Click here for Edwards nXDS15iC Dry Scroll Vacuum Pump Brochure https://www.ajvs.com/library/Edwards_nXDS_Dry_Scroll_Pump_Brochure.pdf
A&J Vacuum Repair / Rebuild and Service Varian EDWARDS NXDS SCROLL PUMPS, XDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or Click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
