- Motor Type; 35R869R777G1 Multi-pin at Junction Box
- Pumping Speed: 19.8 m3/h
- Ultimate Pressure: < 2x10-3 mbar
- Inlet Flange: DN 25 KF
Shopping Cart ( )

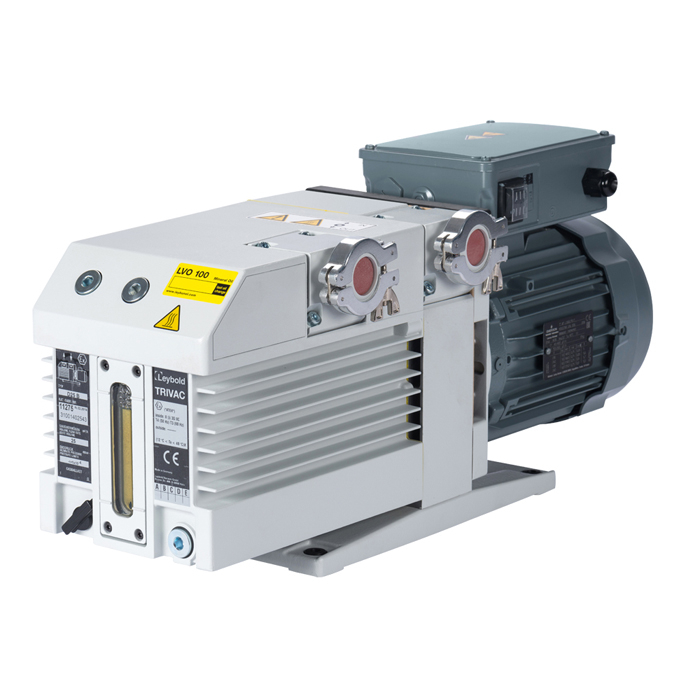

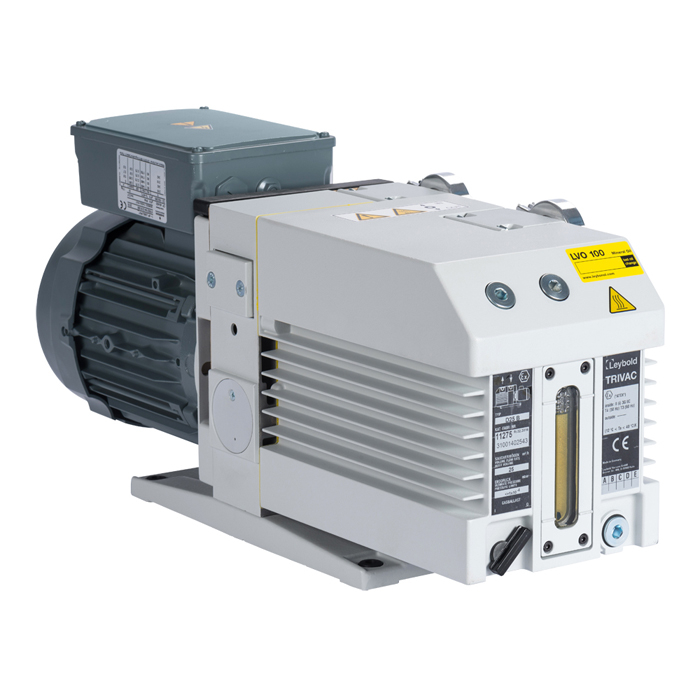

Leybold D16B TRIVAC Vacuum Pump 1-Phase 110/220V 50Hz, 115/208-230V 60 Hz, 898698, D16B with Multi-pin Plug
Condition:
New
Item#:PN41009
Mfr Part#:898698
Manufacturer:Leybold
Features:
Leybold D16B TRIVAC Vacuum Pump 1-Phase 110/220V 50Hz, 115/208-230V 60 Hz, 898698, D16B with Multi-pin Plug at junction box.
Please note: Power Mains Cable sold seperately !
115 VAC 12 pin plug at the motor 1.8 m US plug NEMA 5-15P E72127874 / PN40217
230 VAC 12 pin plug at the motor 1.8 m US plug NEMA 6-15P E72127874 / PN40218
Leybold D16B / p/n 898698 TRIVAC Pump Overview:
The LEYBOLD TRIVAC D16B vacuum pumps are oil lubricated vacuum pumps. Each Leybold D16B pump p/n 898698 comes with 1-Phase 110/220V 50Hz, 1115/208-230V 60 Hz, motor Type 35R869R777G1 with Multi-pin Plug at Junction box.
The Leybold D 16 B is a well know pump with excelent reputation for vapor handling capability. The Leybold D16B vacuum pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D16B is perfectly suitable for many laboratory and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D 16 B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D8 oil requirement 0.5 L min, 1.0 L max. The TRIVAC D16 Pump has grate water vapor capacity of 305 g/h.
Leybold D 16 B pumps are also very quiet with nise level of 50 db(A) without gass ballast, and 54 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 25 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D16B vane vacuum pumps are available with different motors with other voltage options listed below. 91255-2.

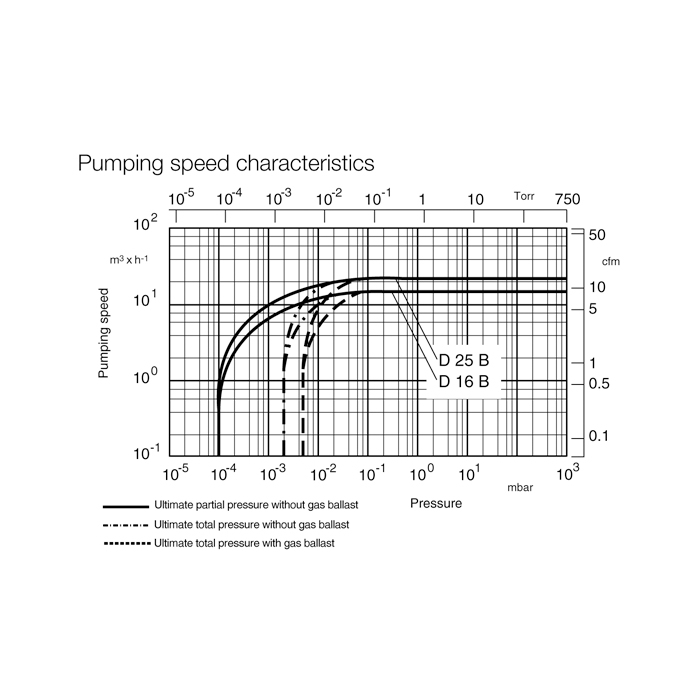

Leybold D16B / 898698 TRIVAC Pumping speed:
Available D16B pump voltages configurations:
Click Here to view D16B and D25B Operation Manual to view all pump configurations
New TRIVAC D16B Pump is supplied with the following accessories:
- 1 Centering Ring
- 1 Centering ring with dirt trap
- 2 clamps DN 25 KF
- Operating instructions
- Spare parts list
- For pump protection during transit, both Inlet and exhaust ports are blanked with rubber diaphragms and supporting rings.
Typical D 16 B Vacuum pump Applications:
- Vacuum Ovens
- Leak detectors and Leak detector systems
- Surface analysis instruments
- Scanning electron microscopes
- Load lock
- Spectroscopy
- University Research Labs
- As a backing pump for turbomolecular pump systems
- Beam welding

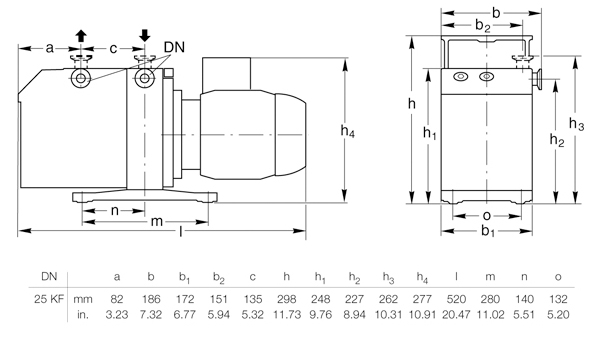

Leybold D16B TRIVAC Dimensions:
Click Here for Leybold D16B Manual
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D16B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Leybold D16B TRIVAC Vacuum Pump 1-Phase 110/220V 50Hz, 115/208-230V 60 Hz, 898698, D16B with Multi-pin Plug at junction box.

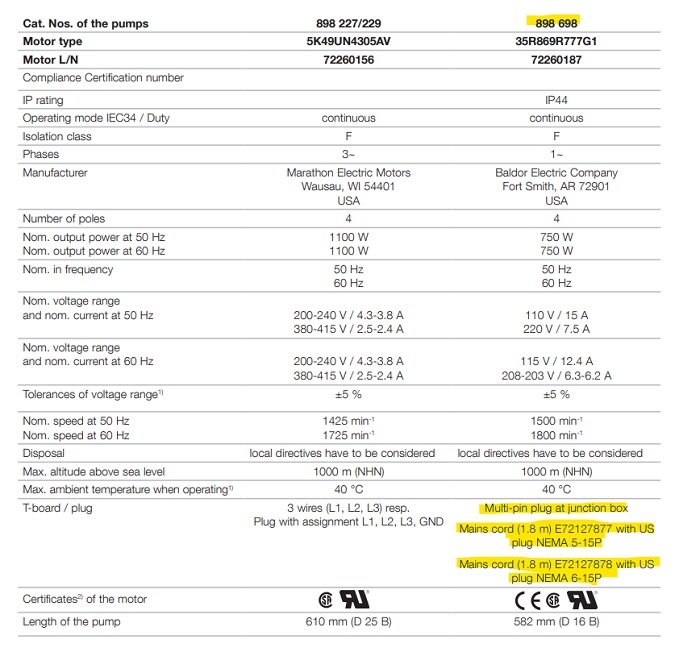

Leybold D16B TRIVAC Technical Data:
Motor Type; 35R869R777G1 Multi-pin at Junction Box
Motor Manufacturer: Baldor Electric
Number of Poles: 4
Curent range: 115V / 12.4 A - 208-230V / 6.3 A
Click Here for Leybold D16B Manual
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D16B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
