- Displacement: 12 cfm
- Pumping Speed: 19.8 m3/h
- Ultimate Pressure: < 2x10-3 mbar
- Inlet Flange: DN 25 KF
Shopping Cart ( )

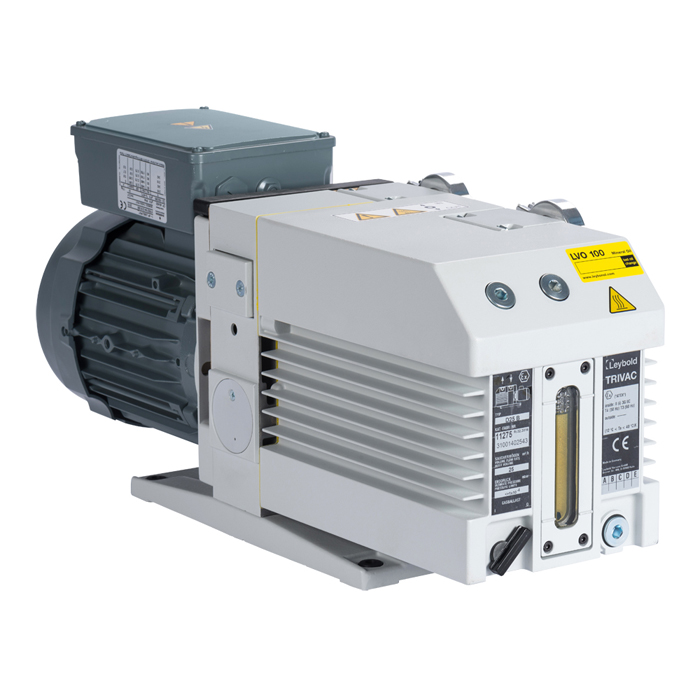

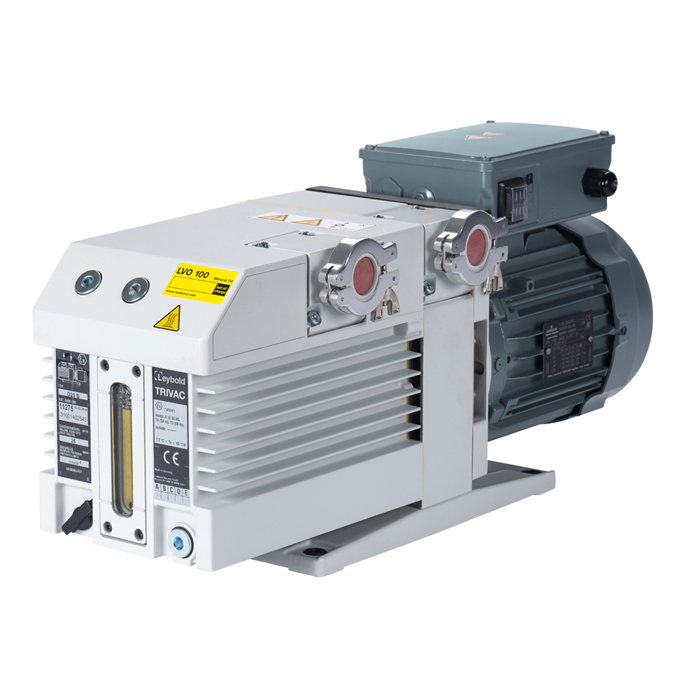

Leybold D16B TRIVAC Vacuum Pump 3-Phase 230/400V 50/60 HZ, 12 CFM, 11266, D16
Condition:
New
Item#:PN20302
Mfr Part#:11266
Manufacturer:Leybold
Features:
Leybold Vacuum D16B TRIVAC Vacuum Pump 12 CFM Pumping Speed, Single Phase 115V 50/60 HZ, 91265-1, D16, 140266
Leybold D16B TRIVAC Overview:
The LEYBOLD TRIVAC D16B vacuum pumps are oil lubricated vacuum pumps. Each Leybold D16B pump 11266 can be wired for low 230V 50/60 Hz Voltage or 400 V 50/60 Hz High Voltagge. The Leybold D 16 B is a well know vacuum pump with excelent reputation for vapor handling capability. The Leybold D16B pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D16B is perfectly suitable for many laboratory and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D 16 B pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 100 / PN16787, D16 oil requirement 0.5 L min, 1.0 L max. The TRIVAC D16 Pump has grate water vapor capacity of 305 g/h.
Leybold D 16 B pumps are also very quiet with nise level of 52 db(A) without gass ballast, and 54 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 25 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D16B vane vacuum pumps are available with different motors with other voltage options listed below. 11266.

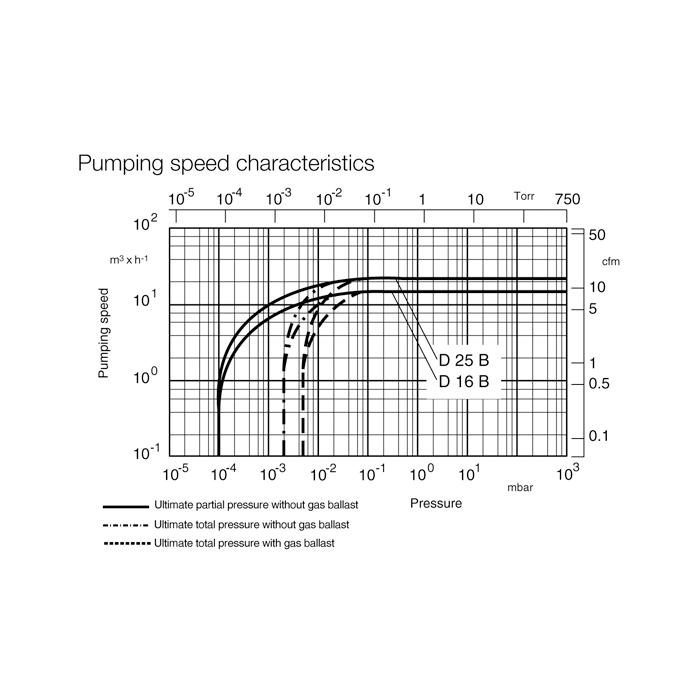

Leybold D16B TRIVAC Pumping speed:
Available D16B pump voltages configurations:
Leybold D 16 B Vacuum Pump with single phase motor 115VAC 50/60 hz, Leybold Part Number 91265-1
Leybold D16B Vacuum Pump with Three phase motor 230VAC 50/60 hz, Leybold Part Number 91265-2
Click Here to view D16B and D25B Operation Manual to view all pump configurations
New TRIVAC D16B Pump is supplied with the following accessories:
- 1 Centering Ring
- 1 Centering ring with dirt trap
- 2 clamps DN 25 KF
- Operating instructions
- Spare parts list
- For pump protection during transit, both Inlet and exhaust ports are blanked with rubber diaphragms and supporting rings.
Typical D 16 B Vacuum pump Applications:
- Vacuum Ovens
- Leak detectors and Leak detector systems
- Surface analysis instruments
- Scanning electron microscopes
- Load lock
- Spectroscopy
- University Research Labs
- As a backing pump for turbomolecular pump systems
- Beam welding

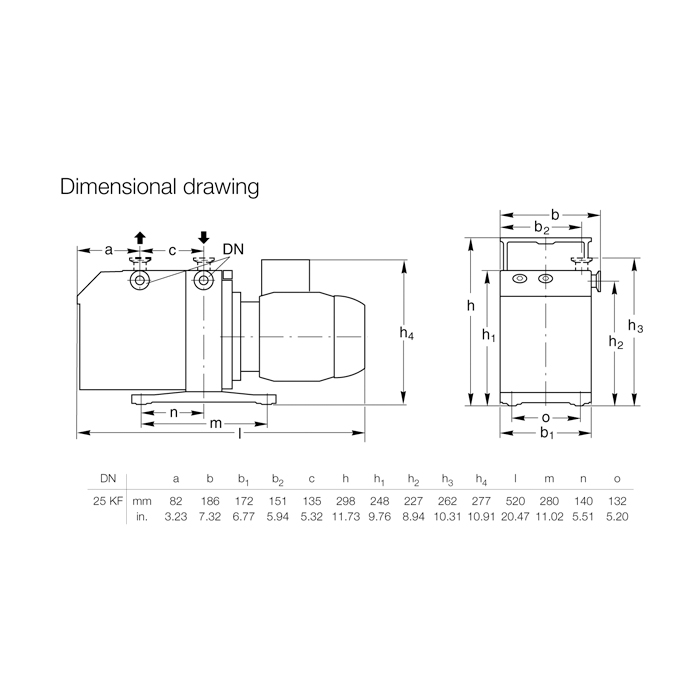

Leybold D16B TRIVAC Dimensions:
Click Here for Leybold D16B Manual
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D16B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
This item is non-returnable/non-refundable
Leybold Vacuum D16B TRIVAC Vacuum Pump 12 CFM Pumping Speed, Single Phase 115V 50/60 HZ, 91265-1, D16

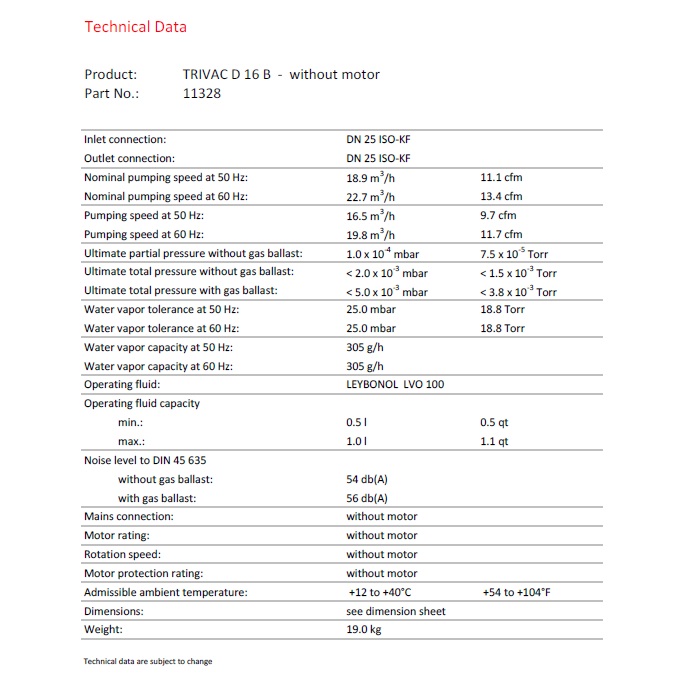

Leybold D16B TRIVAC Technical Data:
Click Here for Leybold D16B Manual
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D16B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
