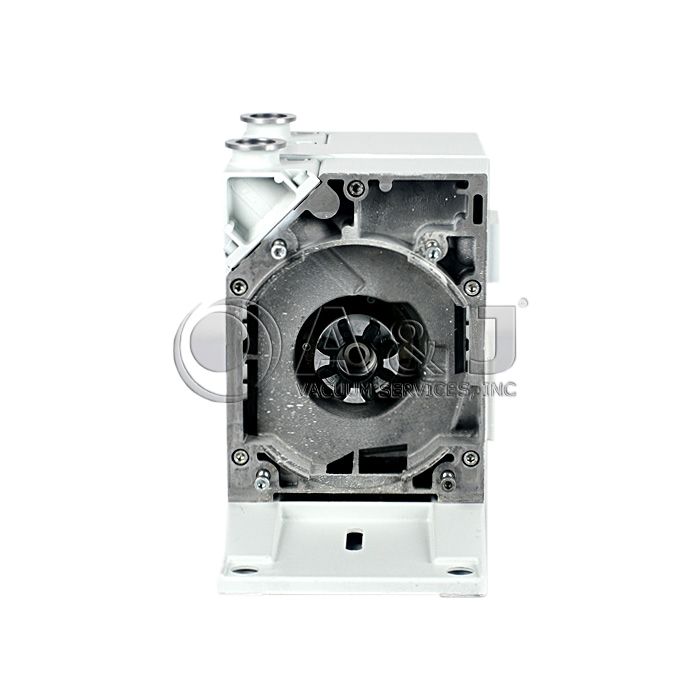

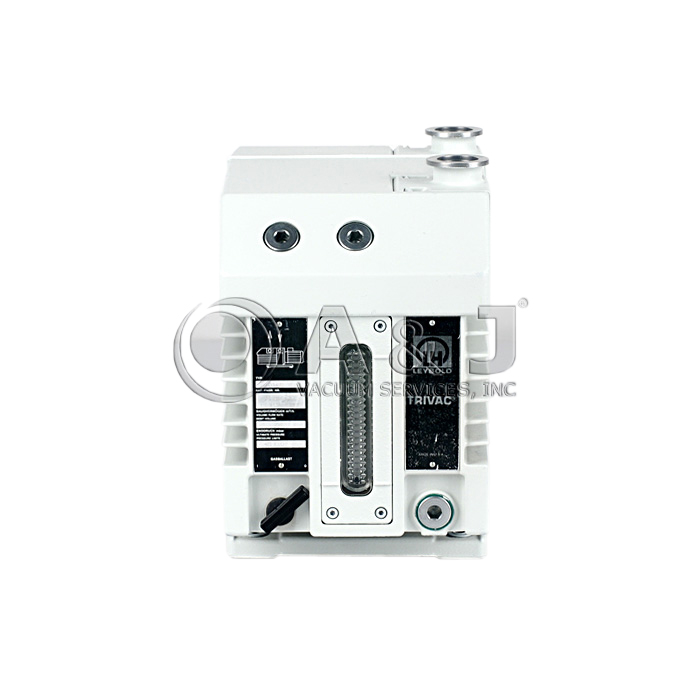

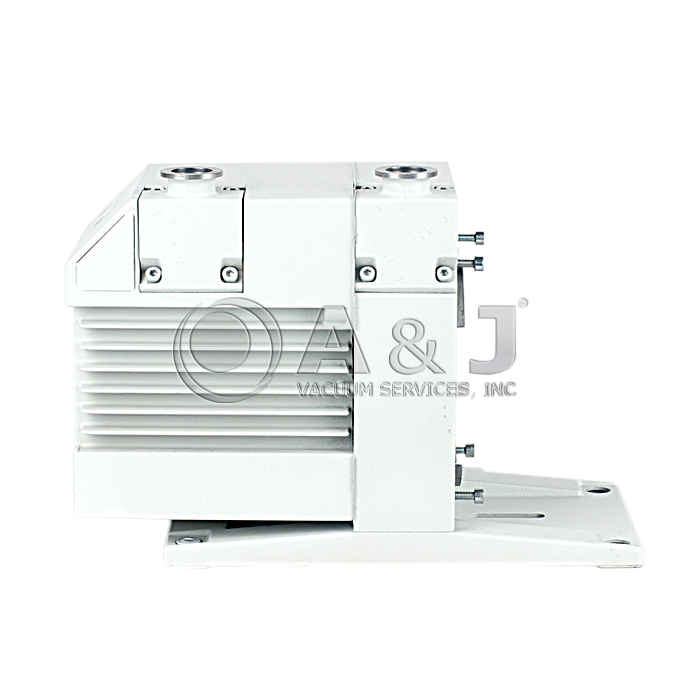

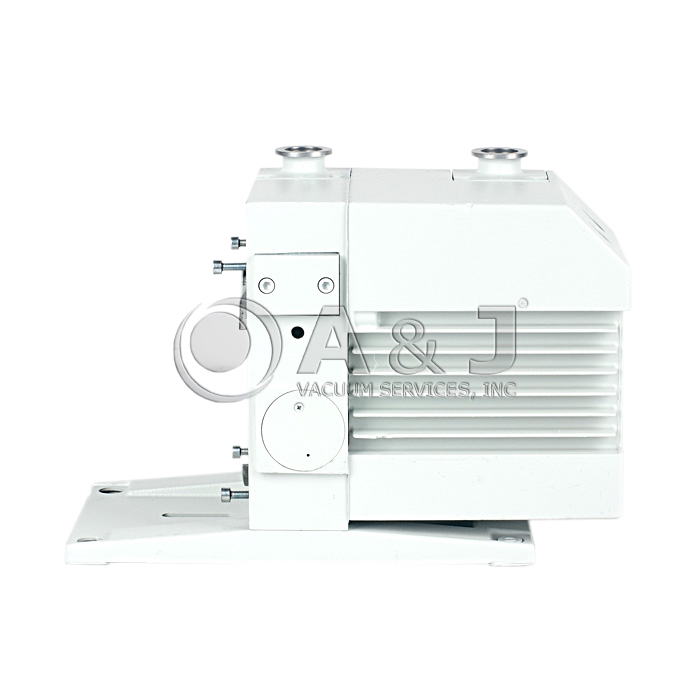

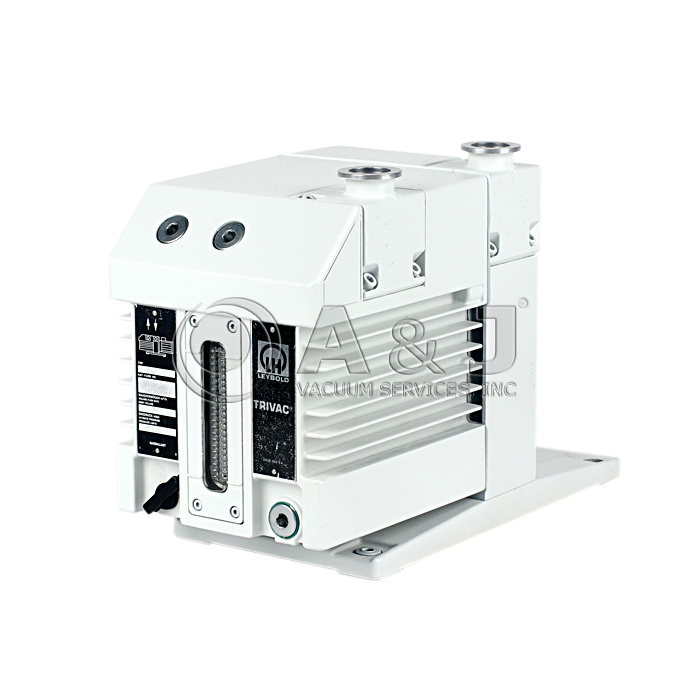

Leybold / Oerlikon D 16 B Vacuum Pump Rotary Vane, Module Only, Hydrocarbon Oil, 91265
D16B / 91265 Overview:
Oerlikon / Leybold Trivac B pumps are oil-sealed rotary vane pumps. Trivac B pumps can pump gases and vapors and evacuate vessels or vacuum systems in the fine vacuum range. Those of standard design are not suitable for pumping greater than atmospheric concentrations of oxygen, hazardous gases, or extremely aggressive or corrosive media.
The drive motor of the Trivac B is directly flanged to the pump at the coupling housing. The pump and motor shafts are directly connected by a flexible coupling. The bearing points of the pump module are force lubricated sliding bearings. All controls as well as the oil-level glass and the nameplate are arranged on the front. All connections are to be found at the sides of the pump. The oil-level glass is provided with prisms for better observation of the oil level.
The pump module consists of assembly parts which are pin-fitted so as to allow easy disassembly and reassembly. The pump module can be easily removed without special tools.
A&J Vacuum repair / rebuild and service all Leybold D65 B, Leybold D 65BCS TRIVAC Vacuum Pump, Leybold Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold / Oerlikon D 16 B Vacuum Pump Rotary Vane, Module Only, Hydrocarbon Oil, 91265
Leybold D16B Technical Data:
| Nominal pumping speed (50Hz | 60Hz) | 18.9 m3/h (11.1 cfm) | 22.7 m3/h (13.4 cfm) |
| Pumping speed (50Hz | 60Hz) | 16.5 m3/h (9.7 cfm) | 19.8 m3/h (11.7 cfm) |
| Ultimate partial pressure without gas ballast (50Hz | 60Hz) | 10-4 mbar (0.75 x 10-4 Torr) | 10-4 mbar (0.75 x 10-4 Torr) |
| Ultimate total pressure without gas ballast (50Hz | 60Hz) | < 2 x 10-3 mbar (< 1.5 x 10-3 Torr) | < 2 x 10-3 mbar (< 1.5 x 10-3 Torr) |
| Ultimate total pressure with gas ballast (50Hz | 60Hz) | < 5 x 10-3 mbar (< 3.8 x 10-3 Torr) | < 5 x 10-3 mbar (< 3.8 x 10-3 Torr) |
| Water vapor tolerance (50Hz | 60Hz) | 25 mbar (18.8 Torr) | 25 mbar (18.8 Torr) |
| Water vapor capacity (50Hz | 60Hz) | 305 g/h (0.672 lbs/h) | 370 g/h (0.816 lbs/h) |
| Oil filling, min. / max. (50Hz | 60Hz) | 0.5 / 1.0 l (0.5 / 1.1 qt) | 0.5 / 1.0 l (0.5 / 1.1 qt) |
|
Noise level to DIN 45 635, without / with gas ballast (50Hz | 60Hz) |
54 / 56 dB(A) | 54 / 56 dB(A) |
| Admissible ambient temperature (50Hz | 60Hz) | +12 to +40 °C (+54 to +104 °F) | +12 to +40 °C (+54 to +104 °F) |
| Motor rating (50Hz | 60Hz) | 750 W (1 HP) | 750 W (1 HP) |
| Nominal speed (50Hz | 60Hz) | 1425 rpm | 1730 rpm |
| Type of protection (50Hz | 60Hz) | IP 55 | IP 55 |
| Connections, Intake and Exhaust (50Hz | 60Hz) | 25 KF | 25 KF |
| Weight (50Hz | 60Hz) | 28 kg (61.7 lbs) | 28 kg (61.7 lbs) |
A&J Vacuum repair / rebuild and service all Leybold D65 B, Leybold D 65BCS TRIVAC Vacuum Pump, Leybold Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
