Leybold Turbovac 90 i High-Vacuum Turbo Pump, DN 63 CF, 810041V1000
Leybold Turbovac 90 i Features:
- Ultimate pressure: < 5.0 x 10-10 mbar
- Pumping speed (Ar): 83 l/s
- Pumping speed (He): 90 l/s
- Pumping speed (H₂): 78 l/s
- Pumping speed (N₂): 90 l/s
- Stress free operation
- High performance
Turbovac 90 i / 810041V1000 Overview:
With the Leybold Turbovac 90 i high-vacuum pump, improving your industrial vacuum processes has never been easier and more convenient. The Leybold Turbovac 90-450i Series of industrial high-vacuum turbo pumps allows users to optimize pump down times and consistently achieve optimal pressures and gas flows. The 90i series pump is particularly designed to offer the best performance-to-size ratio among pumps within the ISO 63, 100, and 160 inlet size ranges. A defining feature of this product family includes a cutting-edge rotor along with drag-stage design, effectively resulting in high performance and unparalleled pumping speed, particularly for light gas varieties.
Turbomolecular vacuum pumps of the Turbovac 90i category are used in applications necessitating a clean high or ultra-high vacuum, particularly in fields ranging from research and development (R&D) to industrial fields incorporating the semiconductor industry, as well as analytical instrumentation and coating technology.
Turbovac90i Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair and service of Leybold Turbovac 90i High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold Turbovac 90 i High-Vacuum Turbo Pump, DN 63 CF, 810041V1000

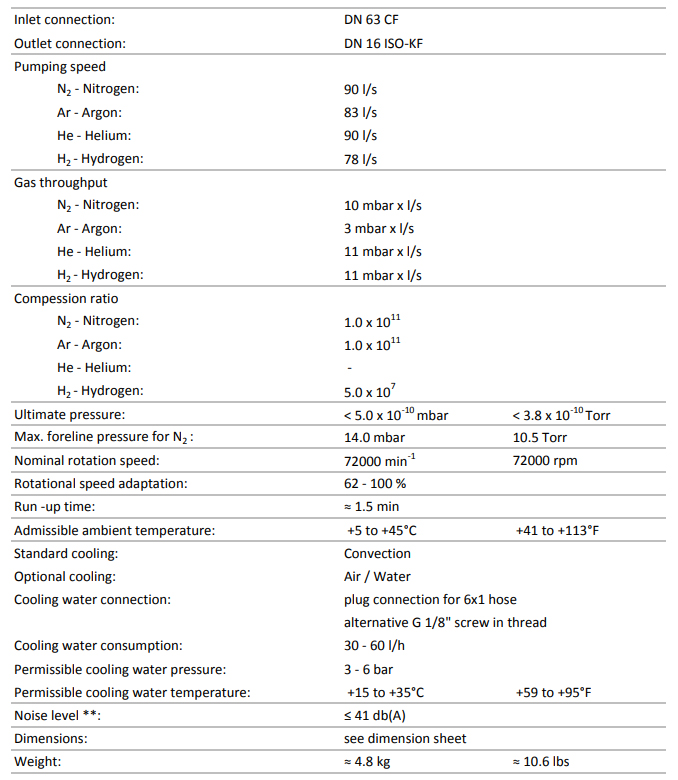

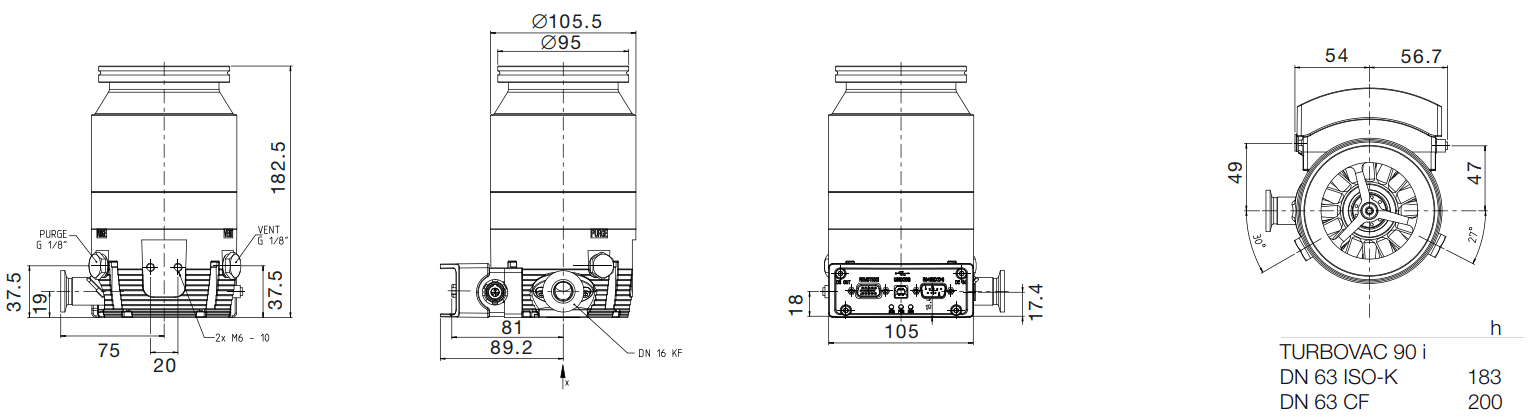

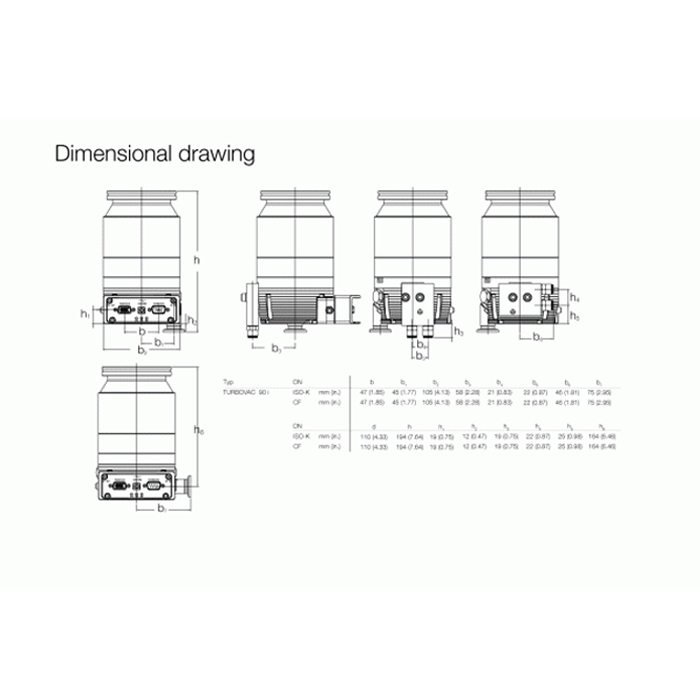

Leybold Turbovac 90 i Technical Data:
| Connection Cooling | 6x1 mm flexible hose quick connection |
| Connection Vacuum Outlet Flange | DN 16 ISO-KF (NW16) |
| Connection Vacuum Inlet Flange | DN 63 CF (4.5") |
| Cooling Method | Air Cooling (convection) Air Cooling (forced - fan) Water Cooling |
| Dimension Height | 0.200 m |
| Dimension Length | 0.114 m |
| Dimension Width | 0.114 m |
| IP Rating | IP40 |
| Noise / Sound Level | 41.00 db(A) 41.00 db(A) 41.00 db(A) |
| Supply Frequency | DC Voltage |
| Supply Voltage | DC 24V DC 48V |
| Weight | 4.80 kg | 10.6 lb |
| Connection Inlet / Outlet Flange | DN 63 CF (4.5") | DN 16 ISO-KF (NW16) |
| Product Certification | CE UL (61010-1 3rd Edition) CSA (C22.2 No.61010-1-12) |
| Connection Purge Gas, Gas Ballast, Vent | 1/8" BSPP (or G 1/8") Female 1/8" BSPP (or G 1/8") Female |
| Temperature Ambient Operation Max | 40.00 °C |
| Temperature Ambient Storage Max | 70.00 °C |
| Temperature Ambient Operation Min | 5.00 °C |
| Temperature Ambient Storage Min | -15.00 °C |
| Magnetic Field Resistance Max (covering worst direction - come and consult us for more details) | 5.500 × 10⁻³ T |
| Dry or Wet Pump | Dry |
| Product Pressure Range | High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar Ultra High Vacuum: 1·10⁻⁷ - 1·10⁻¹¹ mbar |
| High / Medium / Rough Vacuum Classification | High Vacuum Pump |
| Vacuum Pump Technology | Turbomolecular Pump - hybrid bearing oil free |
| Compression Ratio Air Nitrogen | 1.000 × 10¹¹ |
| Compression Ratio Helium | 1.000 × 10⁸ |
| Compression Ratio Hydrogen | 5.000 × 10⁷ |
| Power Consumption Max | 240 W |
| Power Total Rated | 240 W |
| Pressure Ultimate | 5.000 × 10⁻¹⁰ mbar |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 90.00 l/s |
| Pumping Speed Argon | 83.00 l/s |
| Pumping Speed Helium | 90.00 l/s |
| Pumping Speed Hydrogen | 78.00 l/s |
| Ramp Up Time | 90 s |
| Nominal rotational speed | 1200 Hz |
| Pressure Backing Max | 14 mbar |
| Compression Ratio Argon | 1.000 × 10¹¹ |
| Communication Interface Protocol | USS Universal Serial Interface Protocol |
| Communication Interfaces Customer | RS485 (serial) REMOTE X1 (Parallel I/O) USB |
| Connection electrical comms interface connector | DSUB 9-PIN - Male DSUB HD 15-PIN - Female (high density) USB type B - Female |
| Installation | Any orientation |
| variantTmpPerformanceModel | TURBOVAC i - frontend 1 (basic) |
| Flow Cooling Water Min | 8.333 × 10⁻³ l/s |
| Temperature Cooling Water Max | 35.00 °C |
| Temperature Cooling Water Min | 15.00 °C |
| Flow Cooling Water Max | 0.017 l/s |
| Flow Purge Gas Ballast | 0.043 Pa·m³/s |
| Pressure Permissible Supply Cooling Water - Min and Max | 4000.00 mbar 4000.00 mbar |
