- High Degree of User Flexibility with Simplified User Interface
- High Pumping Speeds for Four Distinct Gases: Hydrogen, Helium, Nitrogen, Argon
- Excellent Resistance to Vibration Resulting From Sturdy Mechanical Bearings
- Incorporates a DN 160 ISO-K Inlet Flange; DN 25 ISO-KF Outlet Flange

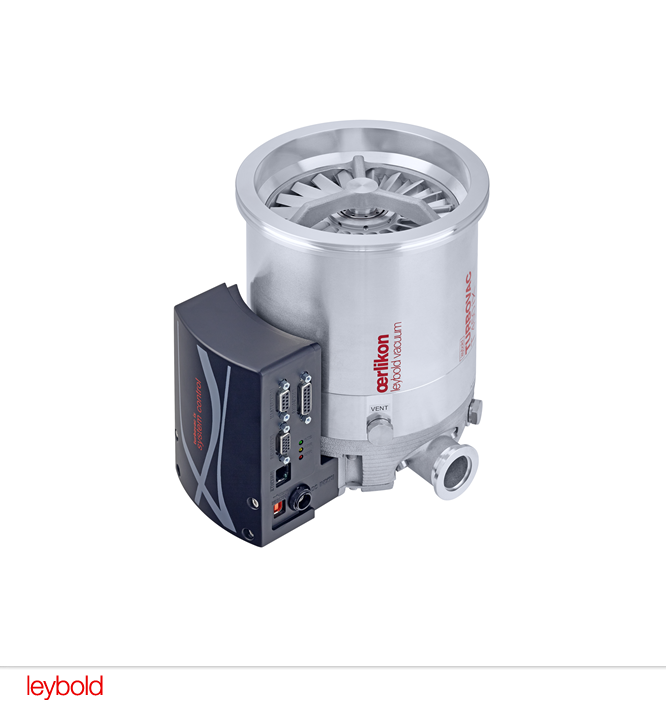

Leybold Turbovac 450 iX High-Vacuum Turbo Pump, RS 485, DN 160 ISO-K, 830071V3300
Leybold Turbovac 450 iX Features:
- Ultimate pressure: < 8.0 x 10-8 mbar
- Pumping speed (Ar): 400 l/s
- Pumping speed (He): 440 l/s
- Pumping speed (H₂): 420 l/s
- Pumping speed (N₂): 430 l/s
- High pressure foreline tolerance
- Excellent resistance to vibration due to proven mechanical bearings
- Efficient convection cooling due to a large number of cooling fans
Turbovac 450 iX / 830071V3300 Overview:
With the Leybold Turbovac 450 iX, high functionality meets outstanding performance. Our Model 450 iX turbomolecular pump range with an integrated vacuum system controller provides many features that have, until now, been available only within costly external control units. With the new Leybold Turbovac 450 iX, valuable accessories including forevacuum pumps, gauges, coolers, valves, and many other varieties of accessories can now be easily controlled via the turbo pump.
Specifically designed to offer the best performance-to-size ratio within the ISO 63, 100 and 160 size range, the Leybold Turbovac 450 iX features a cutting-edge rotor and drag stage design, contributing to high performance and an unparalleled pumping speed, especially for light gas varieties.
A wide selection of interface options, housing and flange configurations, as well as accessories completes this product line. The unique oil-free hybrid bearing system with lifetime-lubricated ball bearings will boost your productivity and reduce cost of ownership.
Turbovac450iX Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair/service of Leybold Turbovac 450iX Turbo Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We likewise offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold Turbovac 450 iX High-Vacuum Turbo Pump, RS 485, DN 160 ISO-K, 830071V3300
Leybold Turbovac 450 iX Technical Data:
| Connection Cooling |
6x1 mm flexible hose quick connection |

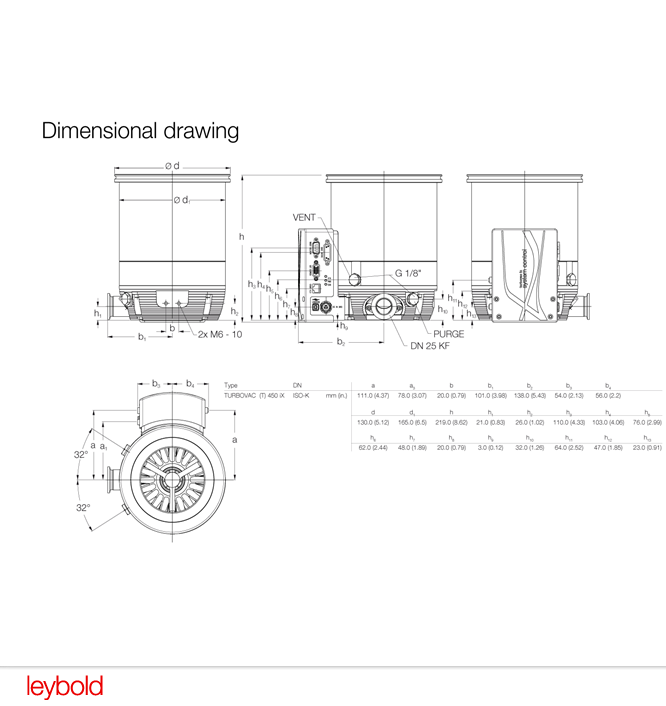

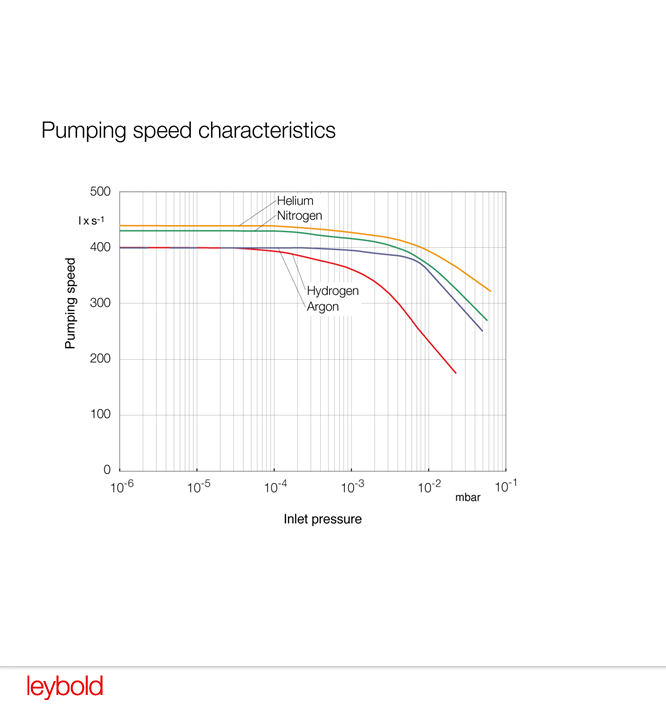

| Connection Outlet Flange | DN 25 ISO-KF (NW25) |
| Connection Inlet Flange | DN 160 ISO-K |
| Cooling Method | Air Cooling (convection) Air Cooling (forced - fan) Water Cooling |
| Dimension Height | 0.216 m |
| Dimension Length | 0.183 m |
| Dimension Width | 0.190 m |
| IP Rating | IP40 |
| Noise / Sound Level | 44.00 db(A) 44.00 db(A) 44.00 db(A) |
| Supply Frequency | DC Voltage |
| Supply Voltage | DC 24V DC 48V |
| Weight | 8.20 kg | 18 lb |
| Connection Inlet / Outlet Flange | DN 160 ISO-K | DN 25 ISO-KF (NW25) |
| Product Certification | CE UL (61010-1 3rd Edition) CSA (C22.2 No.61010-1-12) |
| Connection Purge Gas, Gas Ballast, Vent | 1/8" BSPP (or G 1/8") Female 1/8" BSPP (or G 1/8") Female |
| Temperature Ambient Operation Max | 40.00 °C |
| Temperature Ambient Storage Max | 70.00 °C |
| Temperature Ambient Operation Min | 5.00 °C |
| Temperature Ambient Storage Min | -15.00 °C |
| Magnetic Field Resistance Max (covering worst direction - come and consult us for more details) | 7.000 × 10⁻³ T |
| Classification Dry or Wet Pump | Dry |
| Classification Product Pressure Range | High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar |
| Classification High / Medium / Rough Vacuum Classification | High Vacuum Pump |
| Classification Vacuum Pump Technology | Turbomolecular Pump - hybrid bearing oil free |
| Compression Ratio Air Nitrogen | 1.000 × 10¹¹ |
| Compression Ratio Helium | 1.000 × 10⁸ |
| Compression Ratio Hydrogen | 1.000 × 10⁶ |
| Power Consumption Max | 240 W |
| Power Total Rated | 240 W |
| Pressure Ultimate | 8.000 × 10⁻⁸ mbar |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 430.00 l/s |
| Pumping Speed Argon | 400.00 l/s |
| Pumping Speed Helium | 440.00 l/s |
| Pumping Speed Hydrogen | 420.00 l/s |
| Ramp Up Time | 330 s |
| Nominal rotational speed | 1000 Hz |
| Pressure Backing Max | 10 mbar |
| Compression Ratio Argon | 1.000 × 10¹¹ |
| Communication Interface Protocol | USS Universal Serial Interface Protocol |
| Communication Interfaces Customer | RS485 (serial) REMOTE X1 (Parallel I/O) USB |
| Connection electrical comms interface connector | DSUB 9-PIN - Female DSUB HD 15-PIN - Female (high density) USB type B - Female ANYBUS socket IP20 for all modules |
| Installation | Any orientation |
| Variant TMP | TURBOVAC iX - Xtention box controller |
| Flow Cooling Water Min | 0.014 l/s |
| Temperature Cooling Water Max | 35.00 °C |
| Temperature Cooling Water Min | 15.00 °C |
| Flow Cooling Water Max | 0.028 l/s |
| Pressure Permissible Supply Cooling Water - Min and Max | 4000.00 mbar 4000.00 mbar |
