- High Degree of User Flexibility w/Simplified User Interface
- Easy to Integrate Into Complex Vacuum Systems and Processes
- Excellent Resistance to Vibration Due to Mechanical Bearings
- Incorporates a DN 160 CF Inlet Flange; DN 25 ISO-KF Outlet Flange

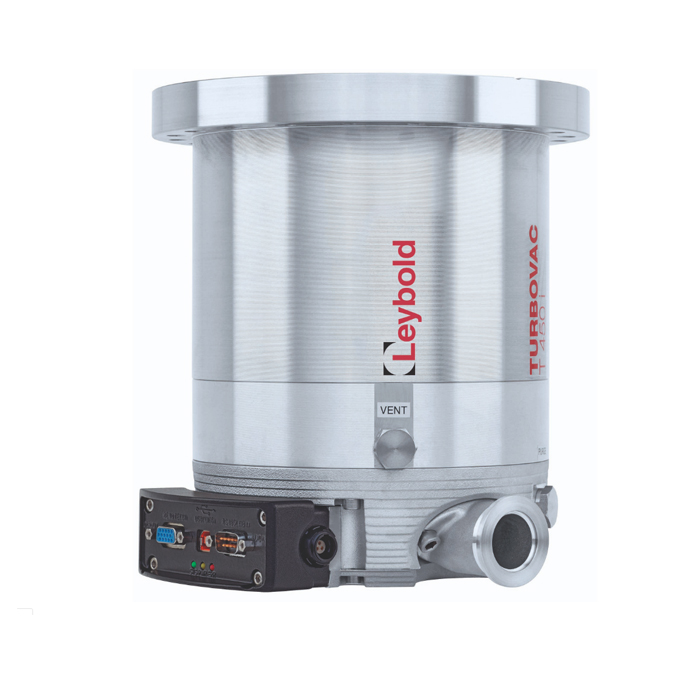

Leybold Turbovac 450 i High-Vacuum Turbo Pump, DN 160 CF, 830081V1000
Leybold Turbovac 450 i Features:
- Ultimate pressure: < 5.0 x 10-10 mbar
- Pumping speed (Ar): 400 l/s
- Pumping speed (He): 440 l/s
- Pumping speed (H₂): 420 l/s
- Pumping speed (N₂): 430 l/s
- High pressure foreline tolerance
- Excellent resistance to vibration due to proven mechanical bearings
- Efficient convection cooling due to a large number of cooling fans
Turbovac 450 i / 830081V1000 Overview:
With the Leybold Turbovac 450 i, improving your advanced vacuum processes has never been easier. The Turbovac 90-450 i series range of Leybold Turbovac pumps allow you to optimize pump down times and consistently hit your pressure and gas flow targets. Designed to offer the best performance-to-size ratio within the ISO 63, 100, and 160 size range, this product family features a cutting-edge rotor and drag stage design, resulting in high performance and unparalleled pumping speeds, particularly for light gases.
Not only does the flexibility of the rotor and drag stage design offer benchmark performance, it also ensures that the performance of your pump is perfectly adapted to your specific application. In addition, you can also choose between different electronic control options, various housing and flange configurations, as well as a wide range of options for accessories.
The unique oil-free hybrid bearing system with lifetime-lubricated ball bearings will boost your productivity and reduce the cost of ownership. The result will be a vacuum system operation that is more efficient than ever before!
Turbovac450i Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair/service of Leybold Turbovac 450i Turbo Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We likewise offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold Turbovac 450 i High-Vacuum Turbo Pump, DN 160 CF, 830081V1000

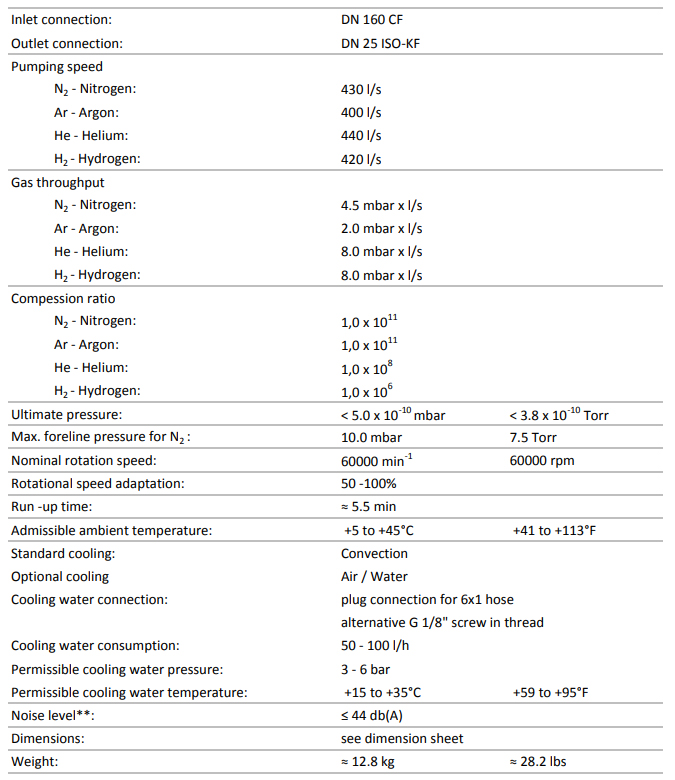

Leybold Turbovac 450 i Technical Data:
| Connection Cooling |
6x1 mm flexible hose quick connection |

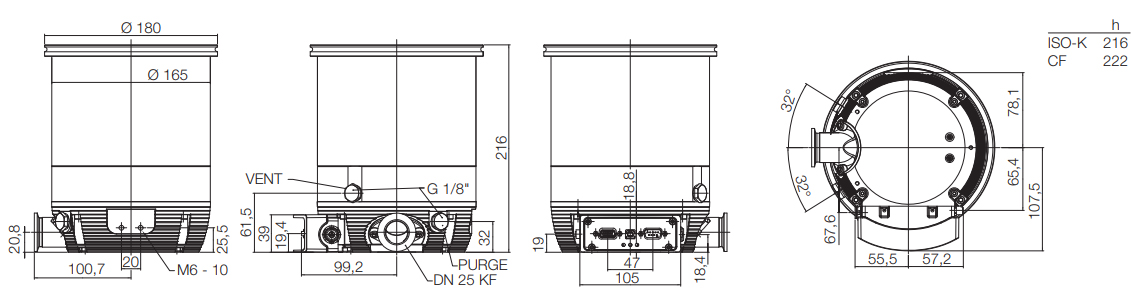

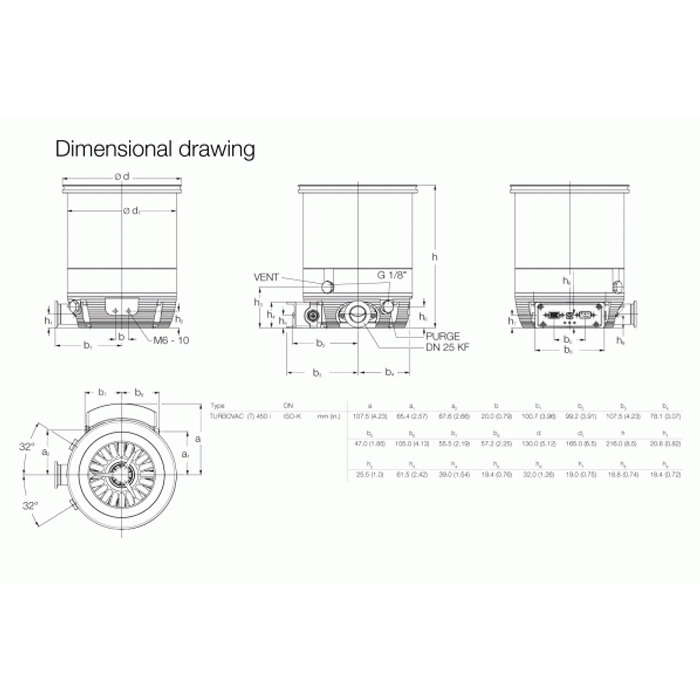

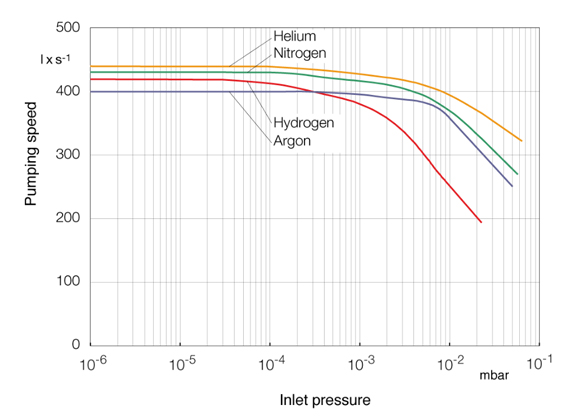

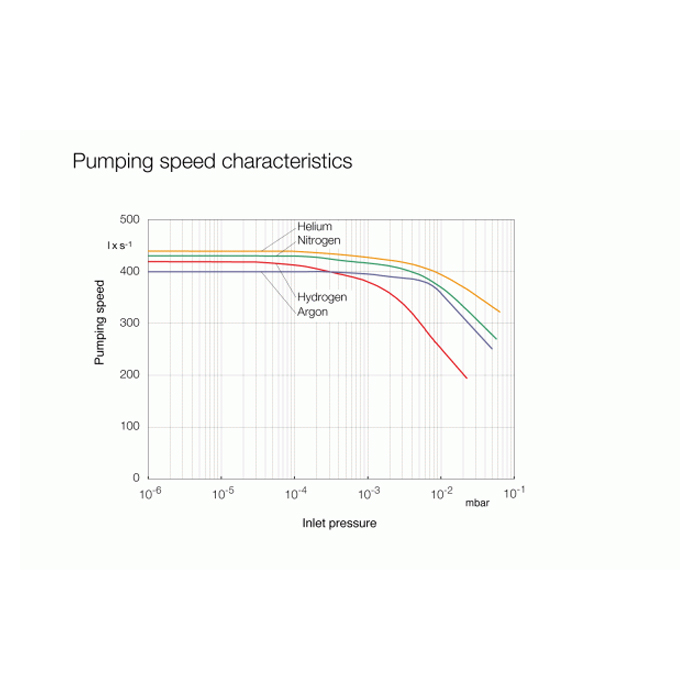

| Connection Outlet Flange | DN 25 ISO-KF (NW25) |
| Connection Inlet Flange | DN 160 CF (8") |
| Cooling Method | Air Cooling (convection) Air Cooling (forced - fan) Water Cooling |
| Dimension Height | 0.222 m |
| Dimension Length | 0.203 m |
| Dimension Width | 0.203 m |
| IP Rating | IP40 |
| Noise / Sound Level | 44.00 db(A) 44.00 db(A) 44.00 db(A) |
| Supply Frequency | DC Voltage |
| Supply Voltage | DC 24V DC 48V |
| Weight | 12.50 kg | 28 lb |
| Connection Inlet / Outlet Flange | DN 160 CF (8") | DN 25 ISO-KF (NW25) |
| Product Certification | CE UL (61010-1 3rd Edition) CSA (C22.2 No.61010-1-12) |
| Connection Purge Gas, Gas Ballast, Vent | 1/8" BSPP (or G 1/8") Female 1/8" BSPP (or G 1/8") Female |
| Temperature Ambient Operation Max | 40.00 °C |
| Temperature Ambient Storage Max | 70.00 °C |
| Temperature Ambient Operation Min | 5.00 °C |
| Temperature Ambient Storage Min | -15.00 °C |
| Magnetic Field Resistance Max (covering worst direction - come and consult us for more details) | 7.000 × 10⁻³ T |
| Classification Dry or Wet Pump | Dry |
| Classification Product Pressure Range | High Vacuum: 1·10⁻³ - 1·10⁻⁷ mbar Ultra High Vacuum: 1·10⁻⁷ - 1·10⁻¹¹ mbar |
| Classification High / Medium / Rough Vacuum Classification | High Vacuum Pump |
| Classification Vacuum Pump Technology | Turbomolecular Pump - hybrid bearing oil free |
| Compression Ratio Air Nitrogen | 1.000 × 10¹¹ |
| Compression Ratio Helium | 1.000 × 10⁸ |
| Compression Ratio Hydrogen | 1.000 × 10⁶ |
| Power Consumption Max | 240 W |
| Power Total Rated | 240 W |
| Pressure Ultimate | 5.000 × 10⁻¹⁰ mbar |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 430.00 l/s |
| Pumping Speed Argon | 400.00 l/s |
| Pumping Speed Helium | 440.00 l/s |
| Pumping Speed Hydrogen | 420.00 l/s |
| Ramp Up Time | 330 s |
| Nominal rotational speed | 1000 Hz |
| Pressure Backing Max | 10 mbar |
| Compression Ratio Argon | 1.000 × 10¹¹ |
| Communication Interface Protocol | USS Universal Serial Interface Protocol |
| Communication Interfaces Customer | RS485 (serial) REMOTE X1 (Parallel I/O) USB |
| Connection electrical comms interface connector | DSUB 9-PIN - Male DSUB HD 15-PIN - Female (high density) USB type B - Female |
| Installation | Any orientation |
| Variant TMP | TURBOVAC i - frontend 1 (basic) |
| Flow Cooling Water Min | 0.014 l/s |
| Temperature Cooling Water Max | 35.00 °C |
| Temperature Cooling Water Min | 15.00 °C |
| Flow Cooling Water Max | 0.028 l/s |
| Pressure Permissible Supply Cooling Water - Min and Max | 4000.00 mbar 4000.00 mbar |
