- Brand-New Leybold Turbovac 90 iX High-Vacuum Turbo Pump
- High Pumping Speed for Four Gases: Nitrogen, Argon, Helium, Hydrogen
- Excellent Pump Efficiency; Highly Favorable Performance-to-Size Ratio
- Utilizes DN 63 ISO-K Inlet Flange; DN 16 ISO-KF Outlet Flange

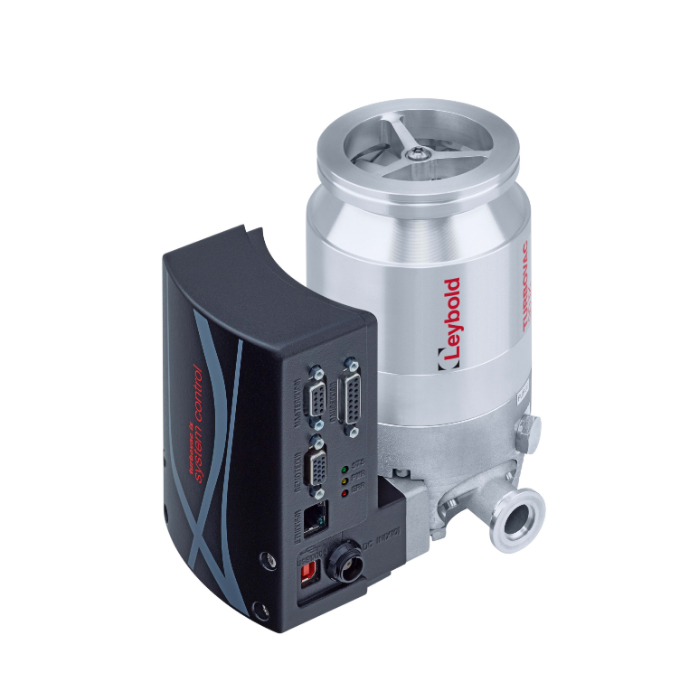

Leybold Turbovac 90 iX High-Vacuum Turbo Pump, DN 63 ISO-K, 810031V3300
Leybold Turbovac 90 iX Features:
- Ultimate pressure: < 8.0 x 10-8 mbar
- Pumping speed (Ar): 83 l/s
- Pumping speed (He): 90 l/s
- Pumping speed (H₂): 78 l/s
- Pumping speed (N₂): 90 l/s
- Stress free operation
- High performance
Turbovac 90iX / 810031V3300 Overview:
With the Leybold Turbovac 90 iX high-vacuum pump, improving your industrial vacuum processes has never been easier and more convenient. The Leybold Turbovac 90-450i Series of industrial high-vacuum turbo pumps allows users to optimize pump down times and consistently achieve optimal pressures and gas flows. The 90i series pump is particularly designed to offer the best performance-to-size ratio among pumps within the ISO 63, 100, and 160 inlet size ranges. A defining feature of this product family includes a cutting-edge rotor along with drag-stage design, effectively resulting in high performance and unparalleled pumping speed, particularly for light gas varieties.
Turbomolecular vacuum pumps of the Turbovac 90iX category are used in applications necessitating a clean high or ultra-high vacuum, particularly in fields ranging from research and development (R&D) to industrial fields incorporating the semiconductor industry, as well as analytical instrumentation and coating technology.
Turbovac90iX Applications:
- Analytical technologies / Research & Development
- Mass spectrometers
- Electron microscopes
- Surface analysis
- X-ray-analysis
- Particle accelerators and synchrotons
- Laboratory coating systems
- MBE (Molecular Beam Epitaxy)
- UHV systems
- Life Sciences
- Proton therapy
- Gamma sterilisation
- Production of high quality implants
- Industrial and Coating applications
- PVD- Physical Vapour deposition
- Optical coatings
- CD/DVD/Bly-Ray Disc production
- Thin film technologies, photovoltaics
- Wear protection
- Heat treatment
- Electron beam welders
- Load locks, transfer chambers, handling systems
- Insulation vacuum and leak detection
A&J Vacuum Services offers full repair and service of Leybold Turbovac 90iX High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Leybold Turbovac 90 iX High-Vacuum Turbo Pump, DN 63 ISO-K, 810031V3300

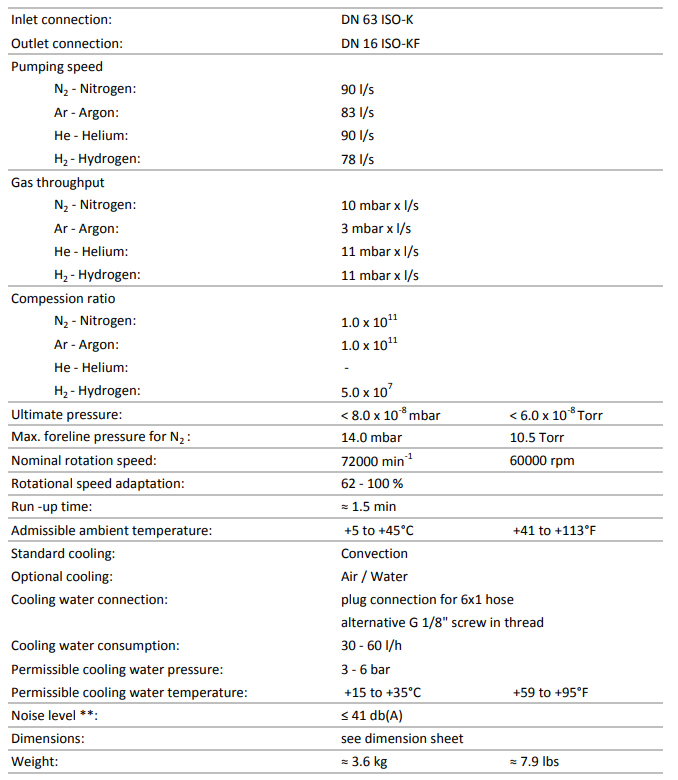

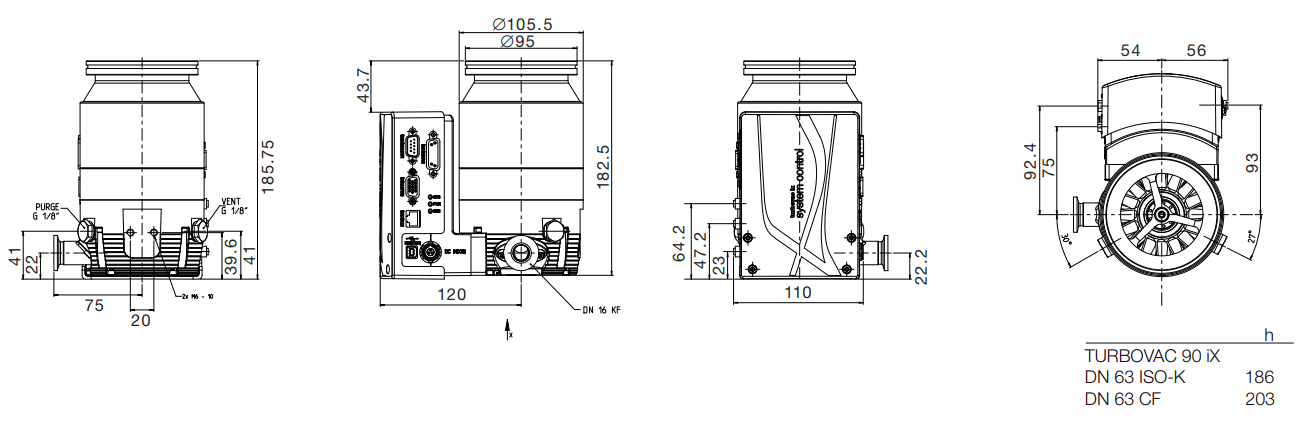

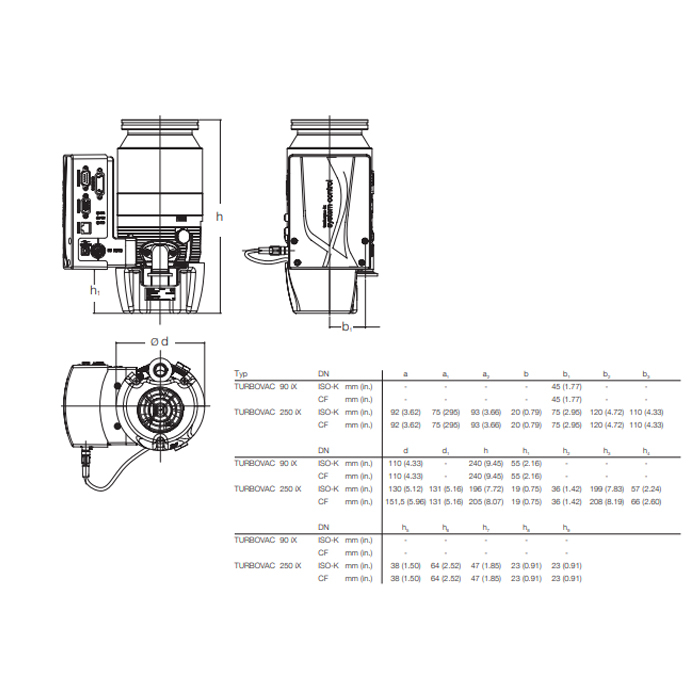

Leybold Turbovac 90 iX Technical Data:
- Inlet connection: DN 63 ISO-K
- Outlet conncetion: DN 16 ISO-KF

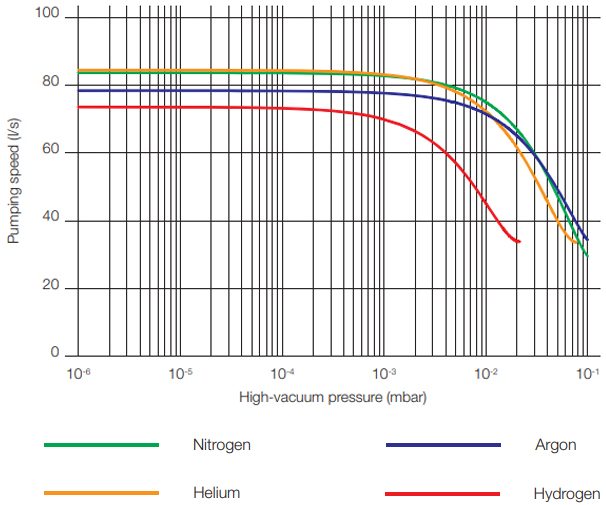

- Pumping speed:
- N2 - Nitrogen: 90 l/s
- Ar - Argon: 83 l/s
- He - Helium: 90 l/s
- H2 - Hydrogen: 78 l/s
- Gas throughput:
- N2 - Nitrogen: 10 mbar x l/s
- Ar - Argon: 3 mbar x l/s
- He - Helium: 11 mbar x l/s
- H2 - Hydrogen: 11 mbar x l/s
- Compession ratio:
- N2 - Nitrogen: 1.0 x 10^11
- Ar - Argon: 1.0 x 10^11
- He - Helium: -
- H2 - Hydrogen: 5.0 x 10^7
- Ultimate pressure: < 8.0 x 10-8 mbar | < 6.0 x 10-8 Torr
- Max. foreline pressure for N2: 14.0 mbar | 10.5 Torr
- Nominal rotation speed: 72000 min-1 | 72000 rpm
- Rotational speed adaptation: 62 - 100 %
- Run-up time: ≈ 1.5 min
- Admissible ambient temperature: +5 to +45 °C | +41 to +113 °F
- Standard cooling: Convection
- Optional cooling: Air / Water
- Cooling water connection:
- plug connection for 6x1 hose
- alternative G 1/8" screw in thread
- Cooling water consumption: 30 - 60 l/h
- Permissible cooling water pressure: 3 - 6 bar
- Permissible cooling water temperature: +15 to +35 °C | +59 to +95 °F
- Noise level (with convection cooling): ≤ 41 db(A)
- Weight: ≈ 3.6 kg | ≈ 7.9 lbs
- Integrated vacuum system controller: Yes
- Mains connection: 24/48 V DC, ± 10%
- Max. current consumption: 10 A at 24 V DC
- Max. power consumption: 240 W
- Power consumption at ultimate pressure (24V/48V): 7 W / 9.5 W
- Interfaces: USB+, 15-Pin digital I/O, RS485
- Protection class: IP 40
- Recommended Fore Vacuum Pumps:
- TRIVAC D 2,5 E
- TRIVAC D 4 B
- SCROLLVAC SC 5 D
- DIVAC 1.4 HV3
A&J Vacuum Services offers full repair and service of Leybold Turbovac 90iX High-Vacuum Pumps, along with all other brands of Leybold Turbo Pumps offered on our website. Please contact us for more information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
